Description

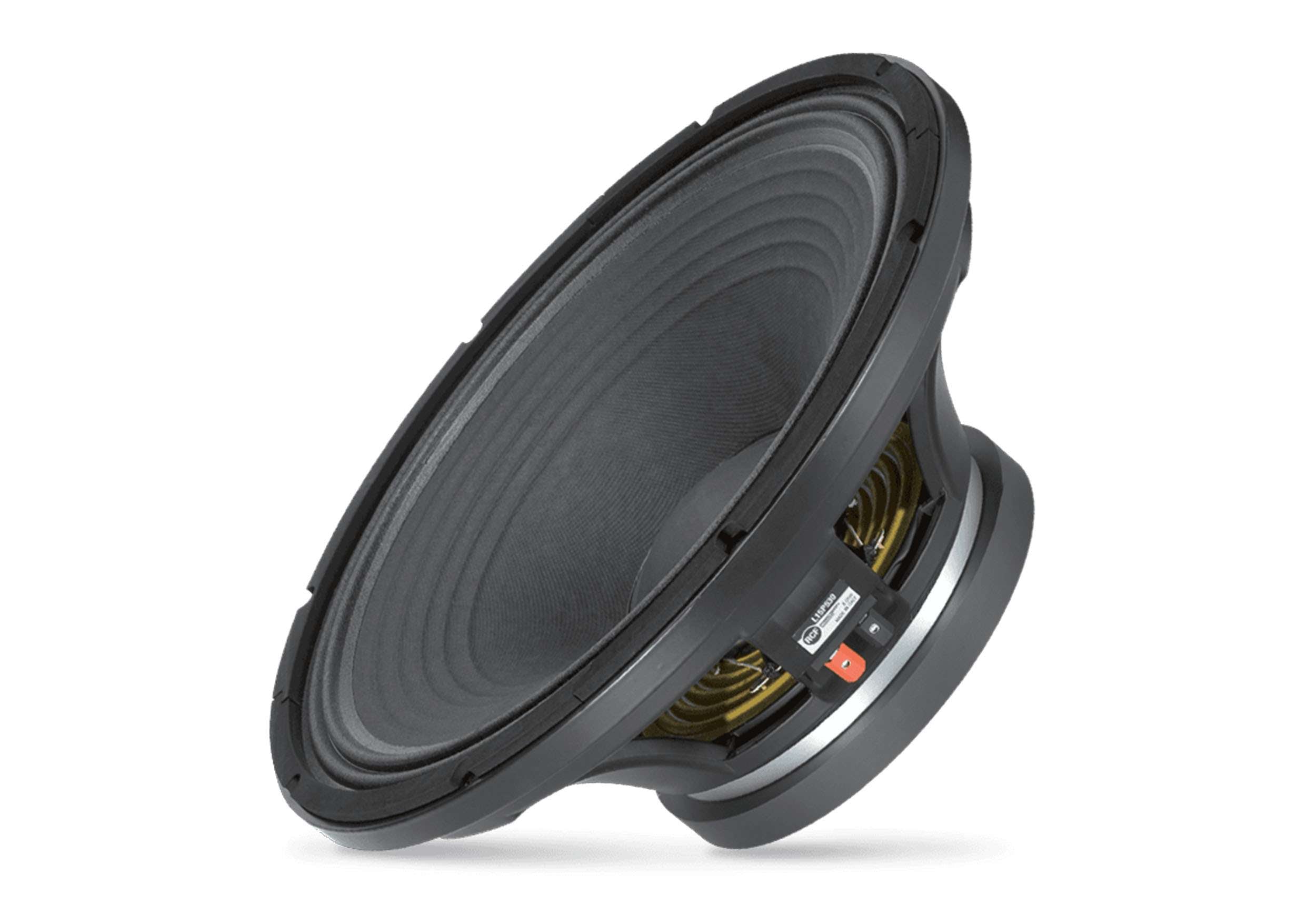

The RCF L15P530 is a powerful 15-inch mid-bass driver with exceptional sensitivity, linear response, and low distortion. Its edgewound aluminum voice coil ensures efficient performance, while the sealed spider and integrated radiator enhance heat dissipation. The M-roll surround and exponential cone geometry provide precise and dynamic sound, making it ideal for high-performance audio applications.
Product Specifications:
Nominal Diameter: 15 inches
Rated Impedance: 8 ohms
Program Power: 700W
Power Handling: 350W
Sensitivity: 100 dB
Frequency Range: 40 - 3000 Hz
Voice Coil & Magnet
Diameter: 3.0 inches
Winding Material: Aluminum
Length: 0.71 inches
Layers: Outside (1 layer)
Magnet Type: Ceramic
Top Plate Thickness: 0.39 inches
Mechanical Design
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M-roll
Spider: 02 (Sealed design)
Max. Excursion Before Damage: 1.42 inches
Thiele-Small Parameters
Resonance Frequency (Fs): 45 Hz
DC Resistance (Re): 5.10 ohms
Mechanical Q (Qms): 7.50
Electrical Q (Qes): 0.51
Total Q (Qts): 0.48
BL Factor: 15.30 T·m
Effective Moving Mass (Mms): 83 g
Equivalent Compliance Volume (Vas): 160 liters
Max Linear Excursion (Xmax): 7 mm
Mounting & Dimensions (in inches)
Overall Diameter: 15.24 inches
Mounting Bolt Circle: 14.61 inches
Front Mount Baffle Cut-Out: 13.86 inches
Rear Mount Baffle Cut-Out: 14.17 inches
Height: 6.5 inches
Weight: 19.18 lbs
Shipping Dimensions (in inches)
Package Height: 8.46 inches
Package Width: 16.93 inches
Package Depth: 17.13 inches
Package Weight: 22.49 lbs
