Description

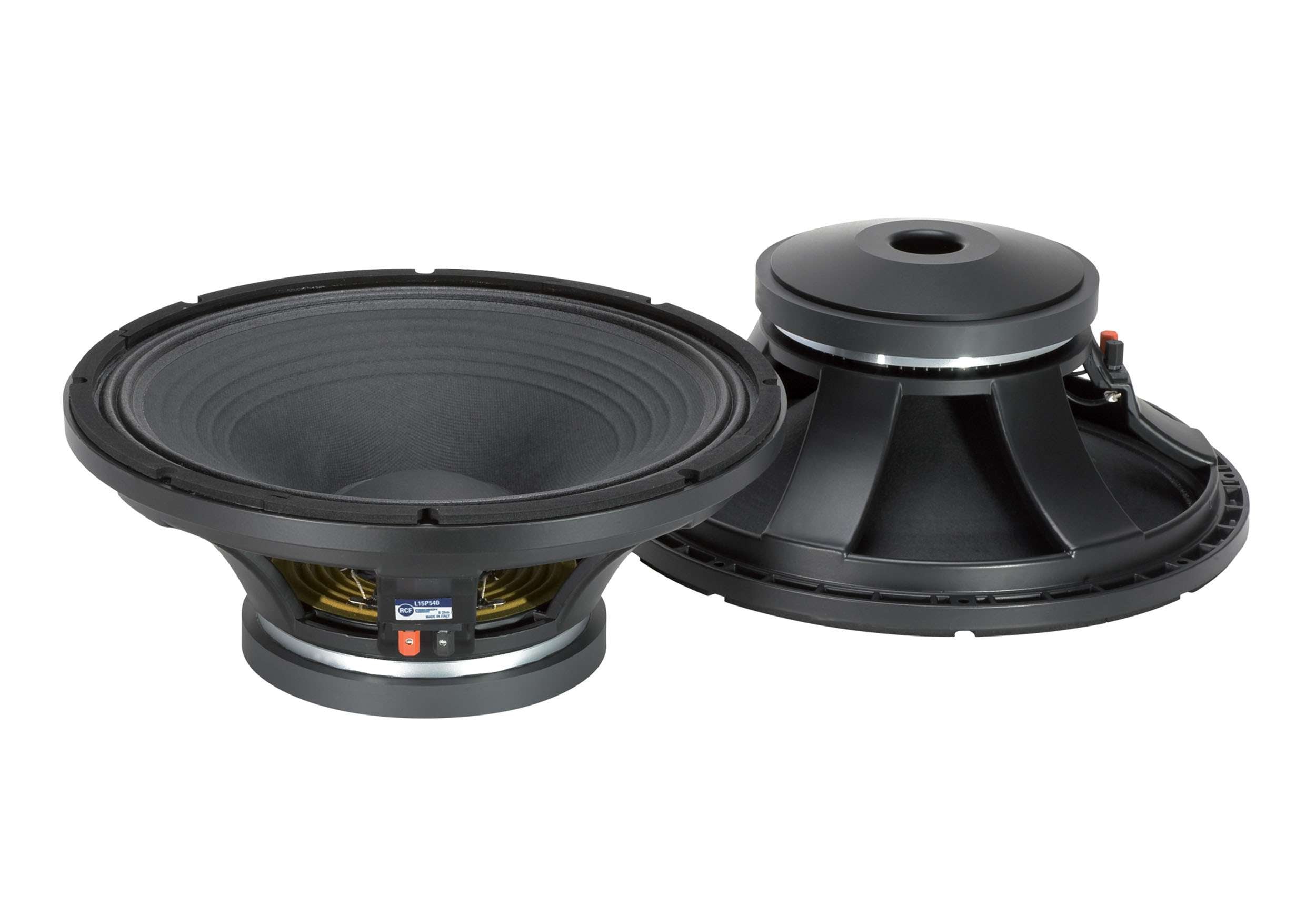

The RCF L15P540 is a high-performance 15-inch woofer designed for exceptional power handling, linear response, and minimal distortion. Its advanced cooling system, featuring a basket-integrated radiator and dual-sealed spider design, ensures superior heat dissipation. The M-roll surround and exponential cone geometry deliver precise bass response, making it ideal for professional audio applications.
Product Specifications:
Nominal Diameter:15 inches
Rated Impedance:8 ohms
Program Power:1000W
Power Handling:500W
Sensitivity:98 dB
Frequency Range:40 - 2000 Hz
Voice Coil & Magnet
Diameter:3.0 inches
Winding Material:Copper
Length:0.71 inches
Layers:Inside/Outside (2 layers)
Magnet Type:Ceramic
Top Plate Thickness:0.39 inches
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M-roll
Spider:03 (Dual-sealed design)
Max. Excursion Before Damage:1.42 inches
Thiele-Small Parameters:
Resonance Frequency (Fs):50 Hz
DC Resistance (Re):5.60 ohms
Mechanical Q (Qms):9.70
Electrical Q (Qes):0.41
Total Q (Qts):0.39
BL Factor:21.40 T·m
Effective Moving Mass (Mms):106 g
Equivalent Compliance Volume (Vas):100 liters
Max Linear Excursion (Xmax): 7 mm
Mounting & Dimensions (in inches)
Overall Diameter:15.24 inches
Mounting Bolt Circle:14.61 inches
Front Mount Baffle Cut-Out:13.86 inches
Rear Mount Baffle Cut-Out:14.17 inches
Height:7.24 inches
Weight:19.4 lbs
Shipping Dimensions (in inches)
Package Height:8.86 inches
Package Width:17.13 inches
Package Depth:17.13 inches
Package Weight:22.49 lbs
