Description

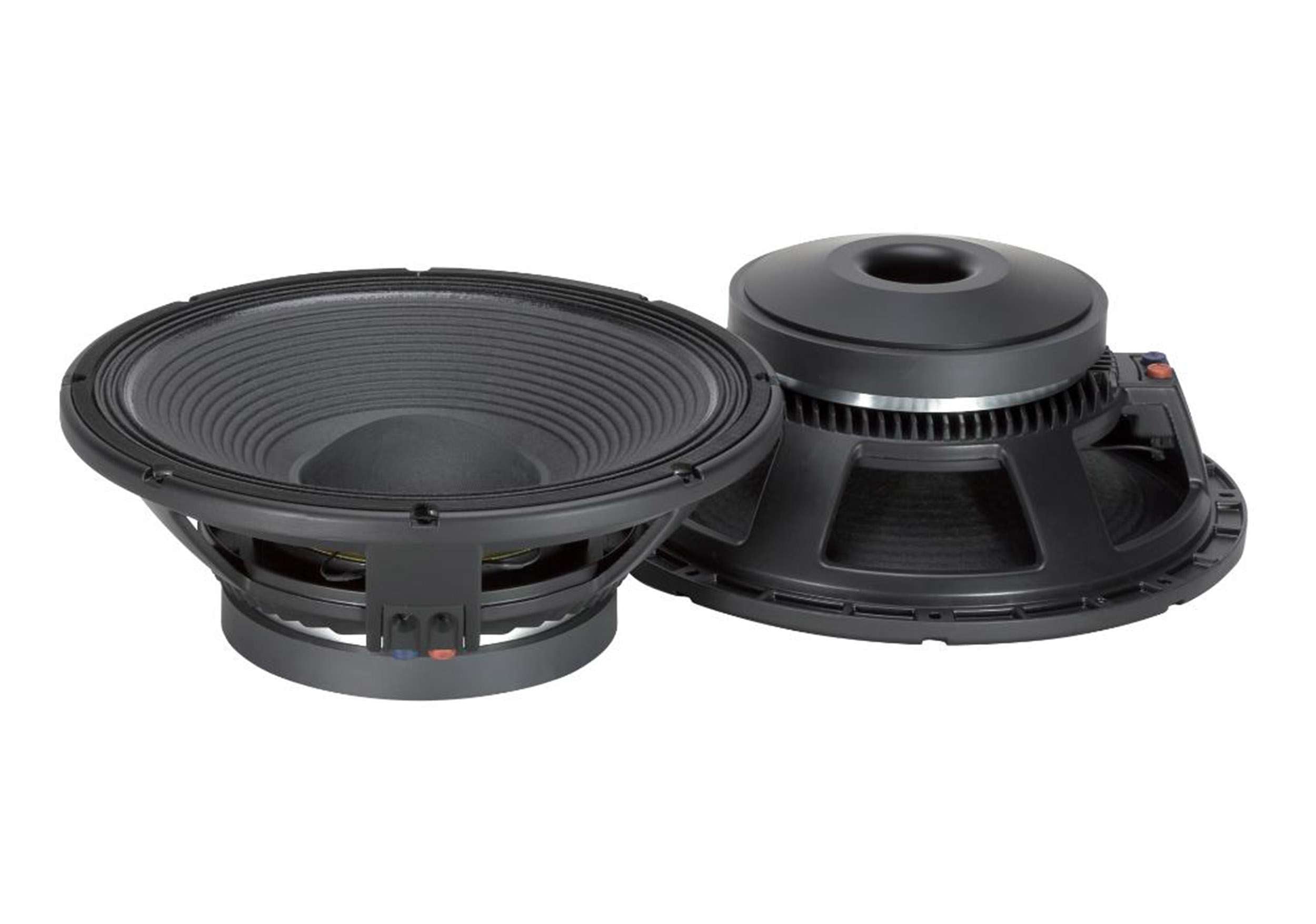

The RCF LF15G401 is a 15-inch woofer designed for high-power applications requiring precise and linear frequency response. With a fiber-loaded cone and triple-roll surround, it delivers exceptional durability and a peak-to-peak excursion of 52mm. Engineered for superior performance, it provides smooth sound reproduction and high efficiency, making it ideal for professional audio systems.
Product Specifications:
Nominal Diameter:15" (381 mm)
Impedance:8Ω
Program Power:1600W
Continuous Power Handling:800W
Sensitivity:97 dB
Frequency Range:35 Hz – 1500 Hz
Effective Piston Diameter:13.39" (340 mm)
Max. Excursion Before Damage:2.05" (52 mm)
Minimum Impedance:6.1Ω
Voice Coil & Magnet
Diameter:4" (102 mm)
Winding Material:Copper
Length:0.91" (23 mm)
Layers:2 (inside/outside)
Top Plate Thickness:0.47" (12 mm)
Magnet Type:Ceramic
Thiele-Small Parameters
Resonance Frequency (Fs):36 Hz
DC Resistance (Re):4.80Ω
Qms:6.20
Qes:0.27
Qts:0.26
BL Factor:24.60 T·m
Moving Mass (Mms):150 g
Vas:150 liters
Sd:0.090 m²
Max Linear Excursion (Xmax):9 mm
Voice Coil Inductance @ 1 kHz (Le1k):1.80 mH
Mounting Information
Overall Diameter:15.47" (393 mm)
Bolt Circle Diameter:14.61 - 14.8" (371-376 mm)
Bolt Hole Diameter:0.28" (7 mm)
Front Mount Cutout:13.86" (352 mm)
Rear Mount Cutout:14.17" (360 mm)
Volume Occupied by Driver:0.17 ft³ (4.3 liters)
Size & Weight
Height:6.06" (154 mm)
Weight:28.66 lbs (13 kg)
Shipping Information
Package Dimensions (H x W x D):8.66" x 17.32" x 17.32" (220 mm x 440 mm x 440 mm)
Package Weight:30.86 lbs (14 kg)
