Description

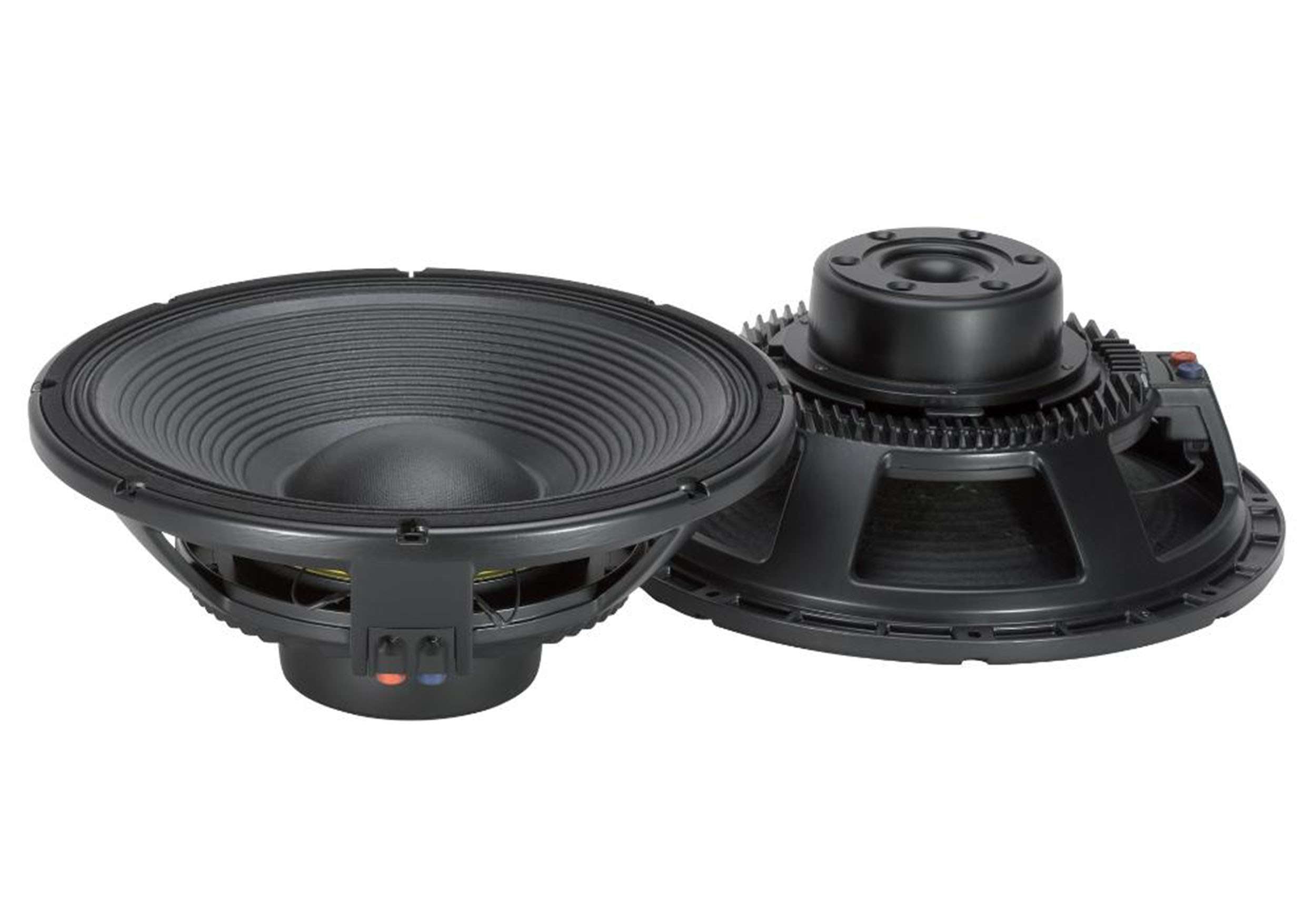

The RCF LF15N401 is a 15-inch neodymium woofer with an 8 ohm rating, a 4-inch voice coil and 900 W power handling (1800 W program). It is a raw driver, with 97 dB sensitivity and a 35 Hz to 1500 Hz range.
A fiberglass-loaded straight cone, a triple-roll surround and a dual spider with silicone-based damping control give it durability and precision. Dual forced-air ventilation keeps the voice coil cool for efficiency and minimal power compression, which suits high-output use.
RCF LF15N401 specifications
| Nominal diameter | 15 in (381 mm) |
|---|---|
| Impedance | 8 ohms nominal; 6.3 ohms minimum |
| Program power | 1800 W |
| Continuous power handling | 900 W |
| Sensitivity | 97 dB |
| Frequency range | 35 Hz to 1500 Hz |
| Effective piston diameter | 13.39 in (340 mm) |
| Max excursion before damage | 2.05 in (52 mm) |
| Voice coil | 4 in (102 mm) diameter, copper winding, 0.98 in (25 mm) long, 2 layers (inside and outside) |
| Magnet | Neodymium, 0.59 in (15 mm) top plate |
| Cooling | Dual forced-air ventilation |
| Resonance frequency (Fs) | 34 Hz |
| DC resistance (Re) | 5.10 ohms |
| Qms / Qes / Qts | 5.80 / 0.23 / 0.22 |
| BL factor | 27.80 T·m |
| Moving mass (Mms) | 158 g |
| Vas | 160 liters |
| Sd | 0.090 m² |
| Xmax | 9 mm |
| Voice coil inductance (Le at 1 kHz) | 2.50 mH |
| Overall diameter | 15.47 in (393 mm) |
| Bolt circle diameter | 14.61 to 14.8 in (371 to 376 mm) |
| Bolt hole diameter | 0.28 in (7 mm) |
| Front or rear mount cutout | 13.94 in (354 mm) |
| Volume occupied by driver | 0.15 ft³ (3.8 liters) |
| Height | 6.3 in (160 mm) |
| Weight | 19.33 lb (8.77 kg) |
| Package (H x W x D) | 8.46 x 16.61 x 17.4 in (215 x 422 x 442 mm), 22.44 lb (10.18 kg) |
How much power can the LF15N401 handle?
RCF rates it at 900 W continuous power handling and 1800 W program power. Sensitivity is 97 dB.
What is the impedance of the LF15N401?
8 ohms nominal, with a 6.3 ohm minimum impedance and 5.10 ohm DC resistance.
What size cutout does it need?
A 13.94 inch (354 mm) baffle cutout for front or rear mounting. The overall diameter is 15.47 inches, and the bolt circle is 14.61 to 14.8 inches with 0.28 inch bolt holes.
What are the Thiele-Small parameters?
Fs is 34 Hz, Qts is 0.22 (Qes 0.23, Qms 5.80), Vas is 160 liters and Xmax is 9 mm, with a BL factor of 27.80 T·m. The full list is in the table above.
Where can I find other RCF replacement drivers?
Browse the Raw Frame - Replacement Drivers collection, or all RCF products.
