Description

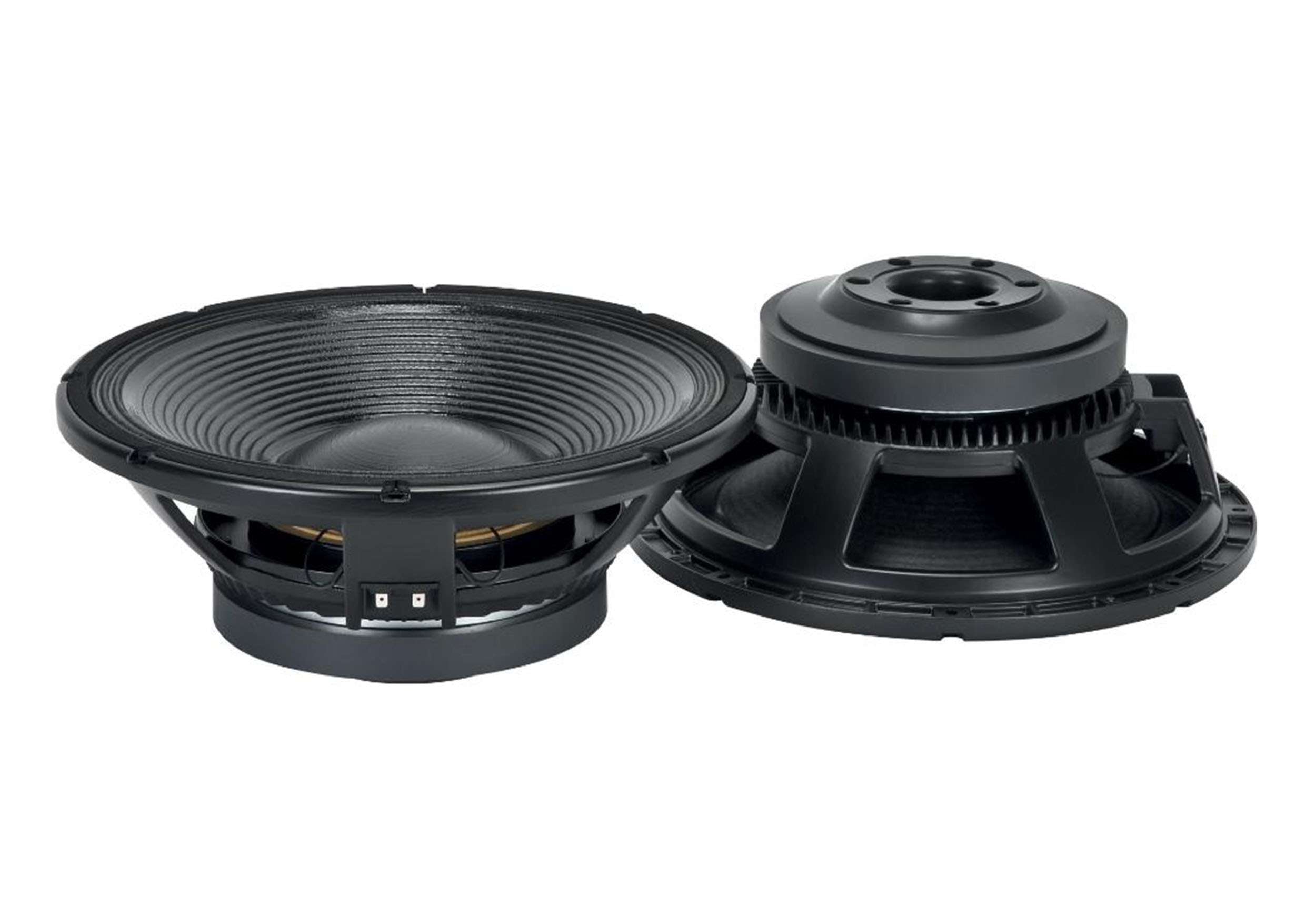

The RCF LF15X401 is a high-performance 15" neodymium woofer designed for extreme power handling and minimal distortion. Featuring a fiber-loaded cone, triple-roll surround, and dual spider design, it delivers deep, controlled bass with exceptional linearity. Its advanced hyper-venting system ensures efficient voice coil cooling, reducing power compression and maximizing reliability. Ideal for high-output applications requiring clarity and precision.
Product Specifications:
Nominal Diameter:15" (381 mm)
Impedance:8Ω
Program Power:3000W
Continuous Power Handling:1500W
Sensitivity:96.5 dB
Frequency Range:30 Hz – 1500 Hz
Effective Piston Diameter:13.39" (340 mm)
Max. Excursion Before Damage:1.97" (50 mm)
Minimum Impedance:6.5Ω
Voice Coil & Magnet
Diameter:4" (102 mm)
Winding Material:Copper
Length:1.18" (30 mm)
Layers:2 (inside/outside)
Top Plate Thickness:0.59" (15 mm)
Cooling:Dual Forced Hyperventing System
Thiele-Small Parameters
Resonance Frequency (Fs):34 Hz
DC Resistance (Re):5.50Ω
Qms:7.60
Qes:0.30
Qts:0.29
BL Factor:26.50 T·m
Moving Mass (Mms):170 g
Vas:146 liters
Sd:0.090 m²
Max Linear Excursion (Xmax):12 mm
Voice Coil Inductance @ 1 kHz (Le1k):1.30 mH
Mounting Information
Overall Diameter:15.47" (393 mm)
Bolt Circle Diameter:14.61 - 14.8" (371-376 mm)
Bolt Hole Diameter:0.28" (7 mm)
Front/Rear Mount Cutout:13.94" (354 mm)
Volume Occupied by Driver:0.17 ft³ (4.3 liters)
Size & Weight
Height:6.34" (161 mm)
Weight:26.46 lbs (12 kg)
Shipping Information
Package Dimensions (H x W x D):8.23" x 17.28" x 17.09" (209 mm x 439 mm x 434 mm)
Package Weight:29.76 lbs (13.5 kg)
