Description

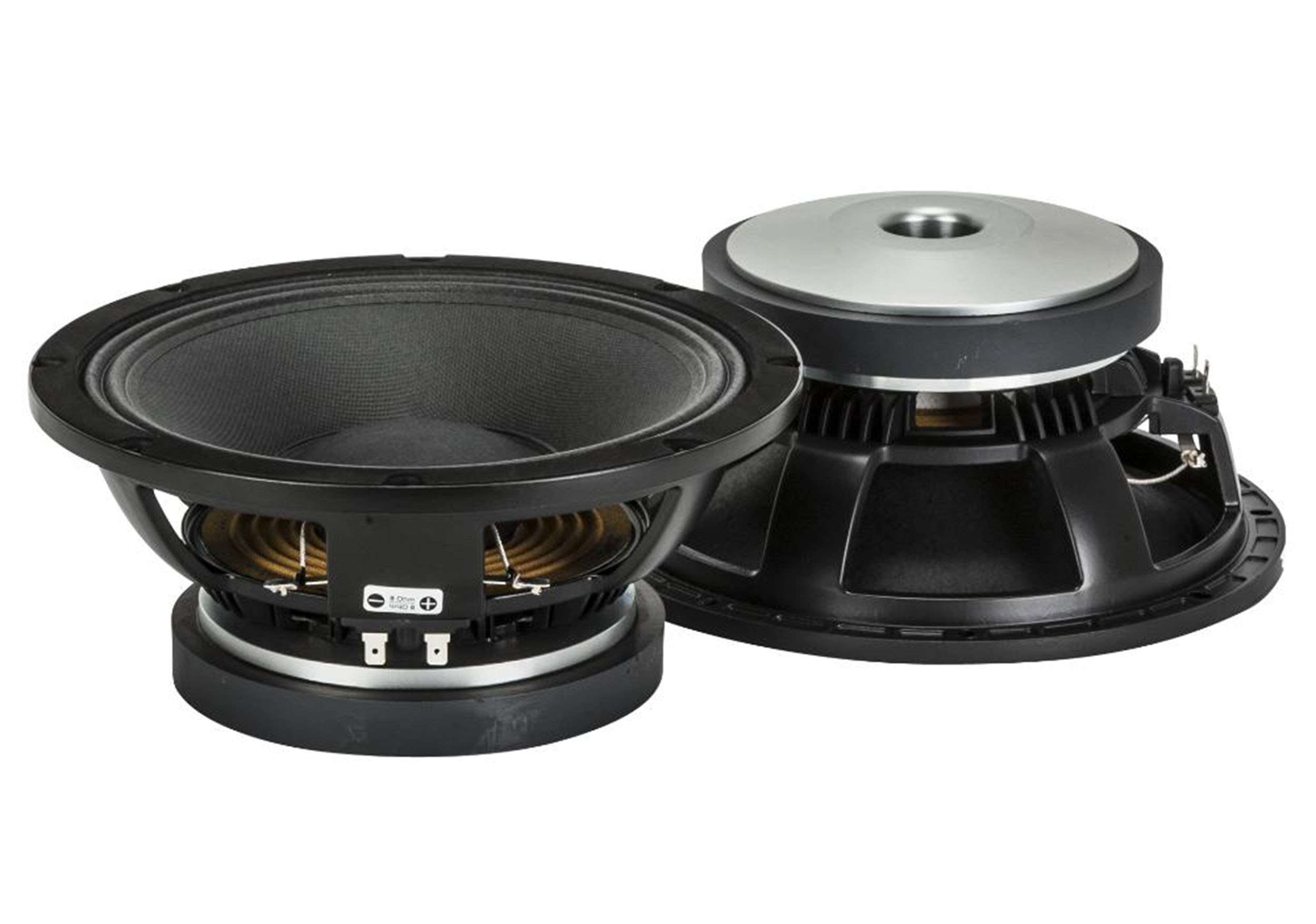

The RCF MB10G251 is a high-performance 10-inch mid-bass driver engineered for excellent frequency response linearity with minimal distortion. Featuring a 2.5-inch aluminum voice coil with a fiberglass former, it delivers 600W program power handling and 98.5 dB sensitivity. Its ceramic magnet structure ensures dynamic precision, while the M-roll surround and spider design provide smooth, controlled low-frequency reproduction. Ideal for professional audio applications, this driver guarantees high efficiency and reliability.
Product Specifications:
Nominal Diameter:10 inch / 254 mm
Impedance:8 ohms
Program Power:600W
Power Handling Capacity:300W
Sensitivity:98.5 dB
Frequency Range:55 Hz - 3.0 kHz
Effective Piston Diameter:210 mm / 8.27 inch
Max Excursion Before Damage:40 mm / 1.57 inch
Minimum Impedance:6.4 ohm
Voice Coil Diameter:2.5 inch / 63 mm
Voice Coil Winding Material:Aluminum
Voice Coil Length:18 mm / 0.71 inch
Number of Layers:2 (inside/outside)
Top Plate Thickness:8 mm / 0.31 inch
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M-roll
Magnet Type:Ceramic
Spider:Single
Thiele-Small Parameters:
Resonance Frequency (Fs):76 Hz
DC Resistance (Re):5.20 ohm
Mechanical Q Factor (Qms):8.00
Electrical Q Factor (Qes):0.35
Total Q Factor (Qts):0.34
Bl Factor:14.90 T x m
Effective Moving Mass (Mms):33.0 g
Equivalent Air Volume (Vas):24.0 liters
Effective Piston Area (Sd):0.040 m²
Max Linear Excursion (Xmax):7 mm
Voice Coil Inductance @ 1kHz (Le1k):0.50 mH
Half-Space Efficiency:2.71%
Mounting Information:
Overall Diameter:260 mm / 10.24 inches
Bolt Circle Diameter:241-246 mm / 9.49-9.69 inches
Bolt Hole Diameter:6 mm / 0.24 inch
Front/Rear Mount Baffle Cutout:232 mm / 9.13 inches
Volume Occupied by Driver:1.2 liters / 0.05 ft³
Physical Specifications:
Color:Black
Height:123 mm / 4.84 inches
Diameter:260 mm / 10.24 inches
Weight:5 kg / 11.02 lbs
Shipping Information:
Package Height:180 mm / 7.09 inches
Package Width:290 mm / 11.42 inches
Package Depth:290 mm / 11.42 inches
Package Weight:5.5 kg / 12.13 lbs
