Description

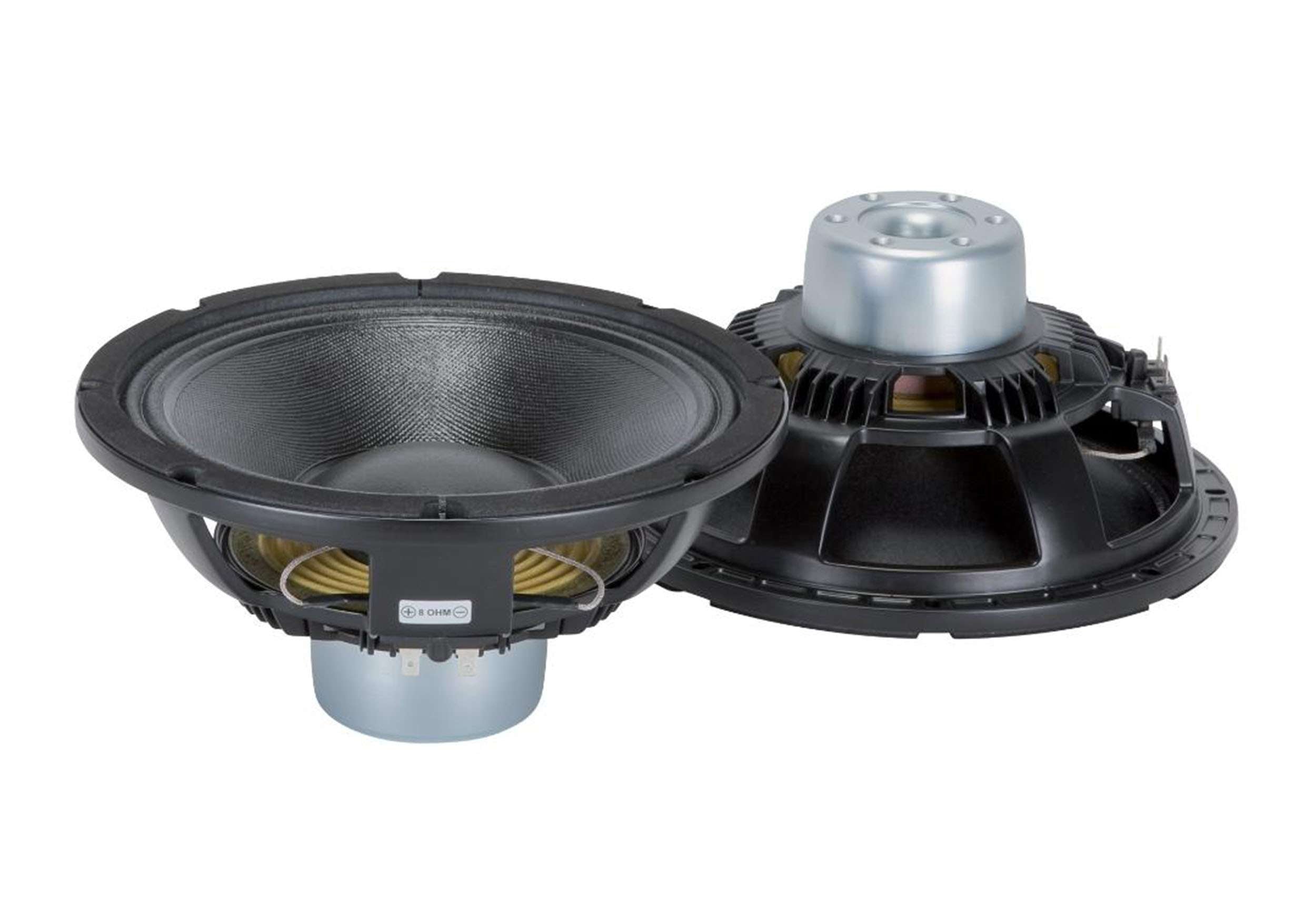

The RCF MB10N251 is a lightweight yet powerful 10-inch neodymium mid-bass driver designed for high efficiency, excellent linearity, and superior power handling. Featuring a 2.5-inch aluminum voice coil on a fiberglass former, it ensures precise low-frequency reproduction with minimal power compression. The M-roll surround and exponential cone geometry provide smooth response and controlled displacement, while the forced air ventilation system enhances heat dissipation for consistent performance.
Product Specifications:
Nominal Diameter:10 inch / 254 mm
Impedance:8 ohms
Program Power:600W
Power Handling Capacity:300W
Sensitivity:97 dB
Frequency Range:50 Hz - 3.5 kHz
Effective Piston Diameter:210 mm / 8.27 inch
Max Excursion Before Damage:40 mm / 1.57 inch
Minimum Impedance:6.4 ohm
Voice Coil Diameter:2.5 inch / 63 mm
Voice Coil Winding Material:Aluminum
Voice Coil Length:14 mm / 0.55 inch
Number of Layers:1 (outside)
Top Plate Thickness:9 mm / 0.35 inch
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M-roll
Magnet Type:Neodymium
Dual-Force Air Ventilation:Yes
Spider:Single
Thiele-Small Parameters:
Resonance Frequency (Fs):55 Hz
DC Resistance (Re):5.10 ohm
Mechanical Q Factor (Qms):4.20
Electrical Q Factor (Qes):0.29
Total Q Factor (Qts):0.27
Bl Factor:15.20 T x m
Effective Moving Mass (Mms):36.0 g
Equivalent Air Volume (Vas):39.0 liters
Effective Piston Area (Sd):0.040 m²
Max Linear Excursion (Xmax):5 mm
Voice Coil Inductance @ 1kHz (Le1k):1.30 mH
Half-Space Efficiency:2.20%
Mounting Information:
Overall Diameter:260 mm / 10.24 inches
Bolt Circle Diameter:241-246 mm / 9.49-9.69 inches
Bolt Hole Diameter:6 mm / 0.24 inch
Front/Rear Mount Baffle Cutout:234 mm / 9.21 inches
Volume Occupied by Driver:1.2 liters / 0.05 ft³
Color:Black
Height:123 mm / 4.84 inches
Diameter:260 mm / 10.24 inches
Weight:2.5 kg / 5.51 lbs
Shipping Information:
Package Height:180 mm / 7.09 inches
Package Width:290 mm / 11.42 inches
Package Depth:290 mm / 11.42 inches
Package Weight:3 kg / 6.61 lbs
