Description

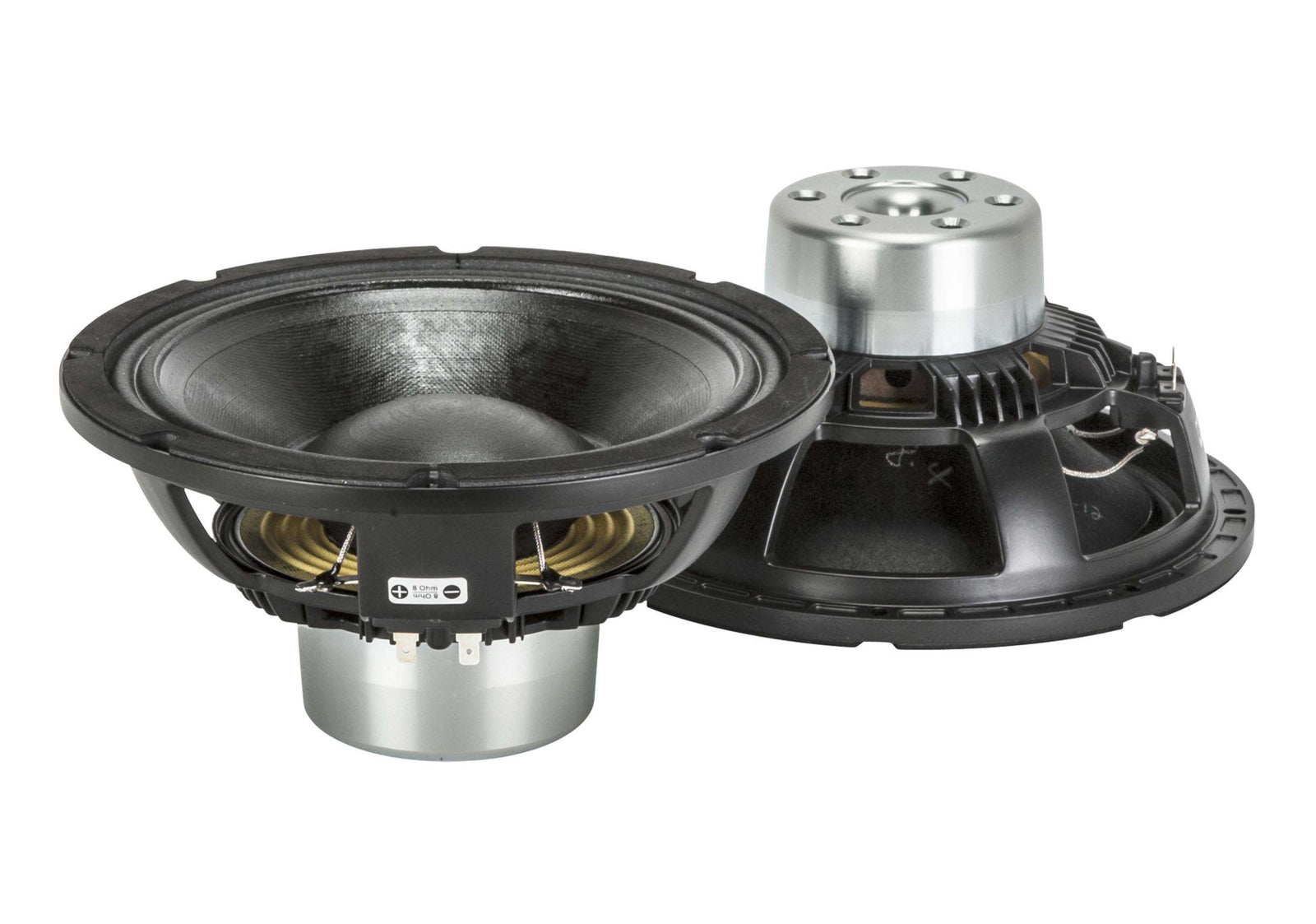

The RCF MB10N305 is a high-power, Hypervented 10-inch mid-bass speaker, engineered for exceptional linearity, low distortion, and high efficiency. It features a 3-inch fibreglass inside/outside aluminum voice coil, capable of 1000W program power handling. The neodymium magnet and advanced dual-forced air ventilation ensure optimal cooling, reduced power compression, and extended durability. The M-roll surround and exponential cone geometry enhance smooth, precise sound reproduction, making it ideal for high-performance audio applications.
Product Specifications:
Nominal Diameter: 10 inch / 254 mm
Impedance: 8 ohms
Program Power: 1000W
Power Handling Capacity: 500W
Sensitivity: 97.5 dB
Frequency Range: 55 Hz - 3.5 kHz
Effective Piston Diameter: 210 mm / 8.27 inch
Max Excursion Before Damage: 34 mm / 1.34 inch
Minimum Impedance: 6.9 ohm
Voice Coil Diameter: 3.0 inch / 76 mm
Voice Coil Winding Material: Aluminum
Voice Coil Length: 14 mm / 0.55 inch
Number of Layers: 1 (inside/outside)
Top Plate Thickness: 10 mm / 0.39 inch
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M-roll
Magnet Type: Neodymium
Hypervented Magnetic Structure: Yes
Spider: Single
Thiele-Small Parameters:
Resonance Frequency (Fs): 60 Hz
DC Resistance (Re): 5.60 ohm
Mechanical Q Factor (Qms): 4.00
Electrical Q Factor (Qes): 0.24
Total Q Factor (Qts): 0.23
Bl Factor: 18.50 T x m
Effective Moving Mass (Mms): 37.0 g
Equivalent Air Volume (Vas): 31.0 liters
Effective Piston Area (Sd): 0.040 m²
Max Linear Excursion (Xmax): 5 mm
Voice Coil Inductance @ 1kHz (Le1k): 0.90 mH
Half-Space Efficiency: 2.90%
Mounting Information:
Overall Diameter: 260 mm / 10.24 inches
Bolt Circle Diameter: 241-246 mm / 9.49-9.69 inches
Bolt Hole Diameter: 6 mm / 0.24 inch
Front Mount Baffle Cutout: 234 mm / 9.21 inches
Rear Mount Baffle Cutout: 234 mm / 9.21 inches
Volume Occupied by Driver: 1.4 liters / 0.06 ft³
Size & Weight:
Height: 126 mm / 4.96 inches
Diameter: 260 mm / 10.24 inches
Weight: 3.2 kg / 7.05 lbs
Shipping Information:
Package Height: 169 mm / 6.65 inches
Package Width: 289 mm / 11.38 inches
Package Depth: 289 mm / 11.38 inches
Package Weight: 3.8 kg / 8.38 lbs
