Description

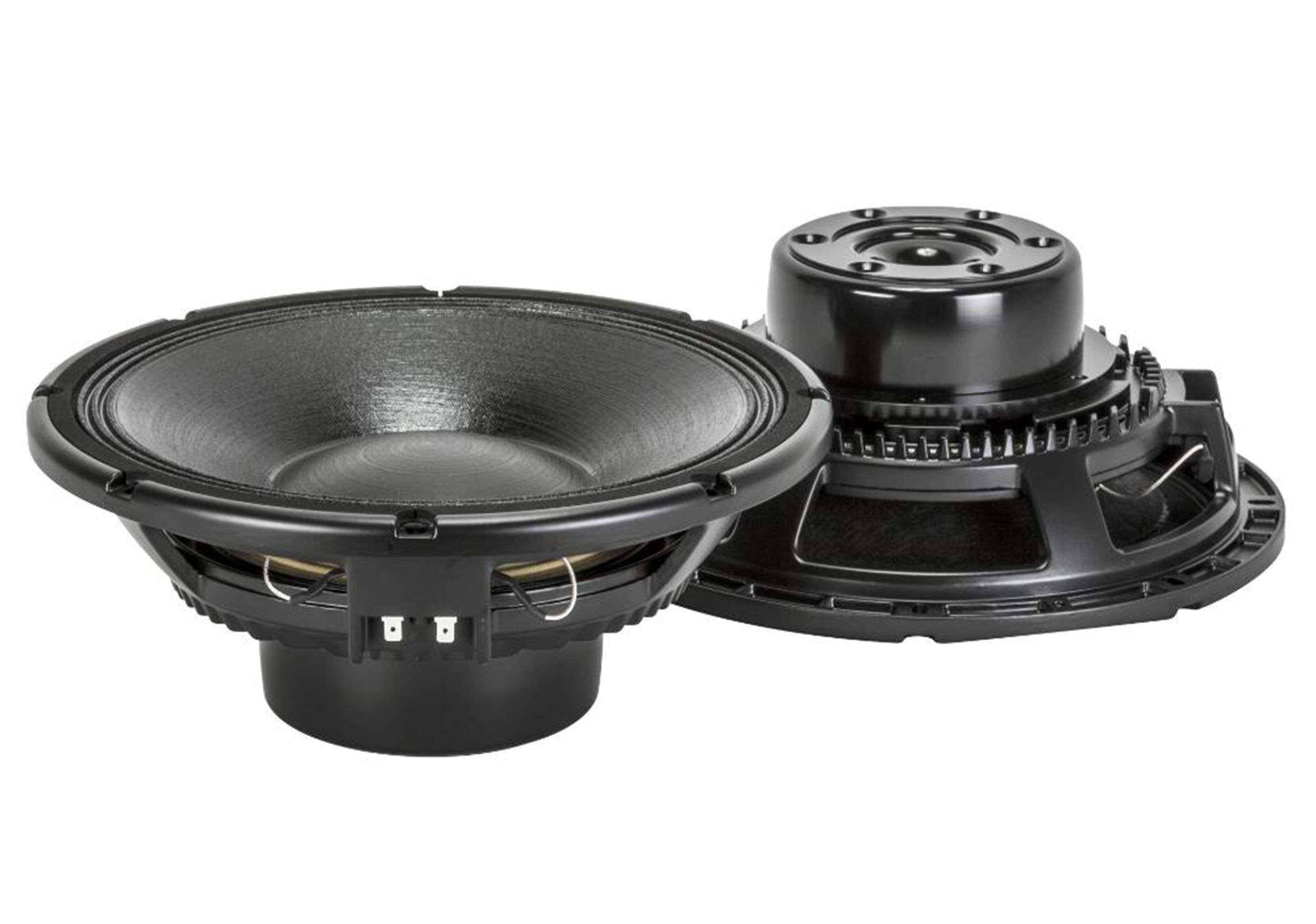

The RCF MB12N405 is a high-efficiency, Hypervented 12-inch mid-bass driver with a neodymium magnet structure for superior performance. Its fibreglass former and aluminum voice coil ensure high power handling while maintaining a lightweight design. The triple-roll surround and fiber-loaded exponential cone provide precise bass response, making it ideal for professional audio applications.
Product Specifications:
Nominal Diameter:12 inches
Rated Impedance:8 ohms
Program Power:2000W
Power Handling:1000W
Sensitivity:98.5 dB
Frequency Range:50 - 2000 Hz
Voice Coil & Magnet
Voice Coil Diameter:4.0 inches
Winding Material:Aluminum
Coil Length:0.79 inches
Layers:Inside/Outside (2 layers)
Magnet Type:Neodymium
Top Plate Thickness:0.47 inches
Hypervented Magnetic Structure:Yes
Mechanical Design
Cone Design:Curved
Surround Material:Polycotton
Surround Design:Triple-roll
Spider:01
Max. Excursion Before Damage:2.09 inches
Thiele-Small Parameters
Resonance Frequency (Fs):52 Hz
DC Resistance (Re):5.00 ohms
Mechanical Q (Qms):6.00
Electrical Q (Qes):0.21
Total Q (Qts):0.20
BL Factor:23.50 T·m
Effective Moving Mass (Mms):73 g
Equivalent Compliance Volume (Vas):53 liters
Max Linear Excursion (Xmax):7 mm
Mounting & Dimensions (in inches)
Overall Diameter:12.6 inches
Mounting Bolt Circle:11.54 - 11.97 inches
Front Mount Baffle Cut-Out:11.1 inches
Rear Mount Baffle Cut-Out:11.18 inches
Height:5.24 inches
Weight:16.98 lbs
Shipping Dimensions (in inches)
Package Height:7.64 inches
Package Width:13.94 inches
Package Depth:14.33 inches
Package Weight:19.18 lbs
