Description

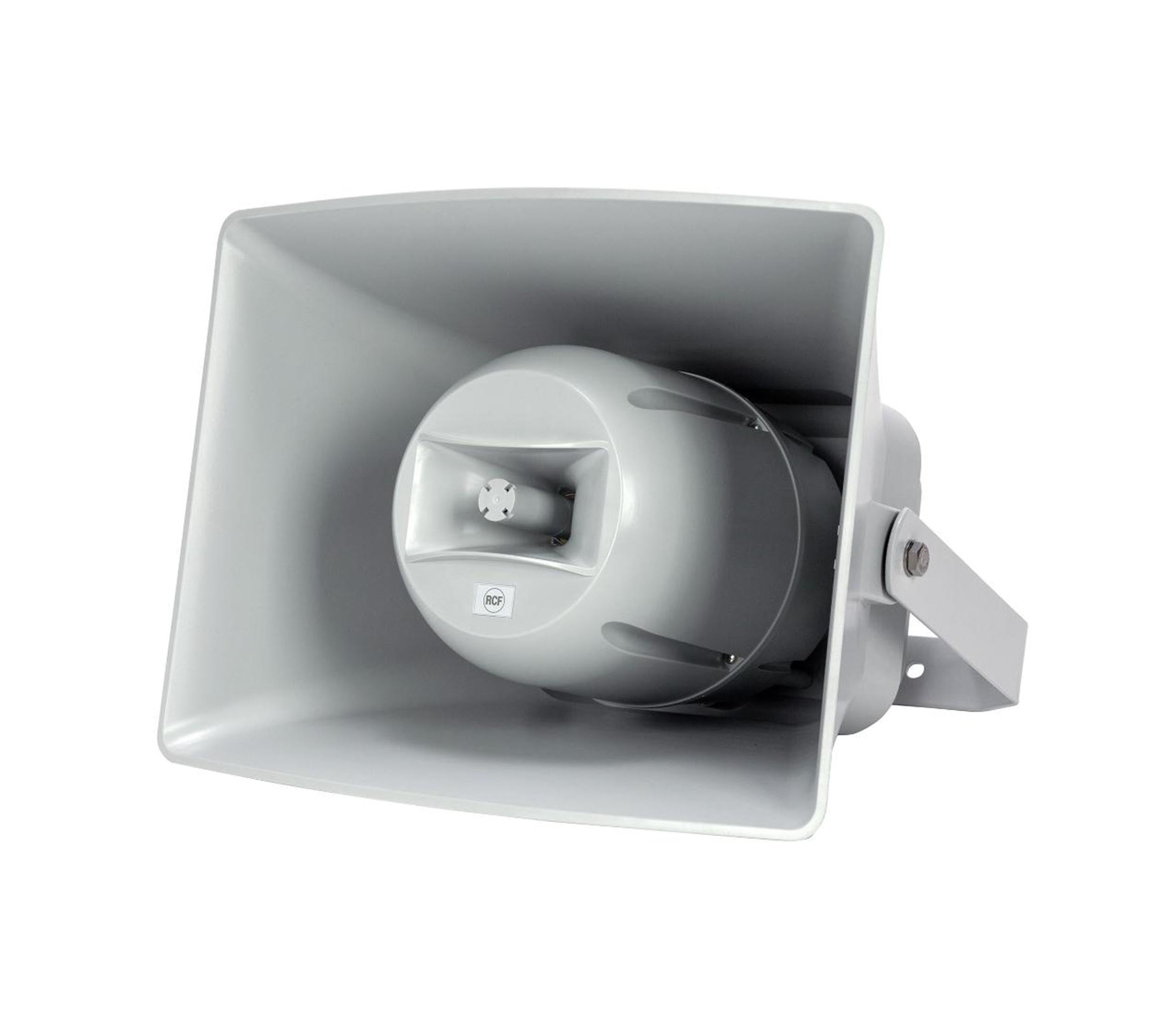

The RCF MH 61EN is a two-way plastic horn speaker suitable for both broadcasting alarm messages (thanks to the highly intelligible voice reproduction) and background music, and can be used for sound reinforcement and speech systems in medium and large spaces. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. It can be easily aimed towards any direction through the adjustable wall-mount bracket, and thanks to its IP66 protection grade it can be installed both indoor and outdoor.
Product Specification:
Acoustical Specifications:
Frequency Response (-10 dB): 100 Hz – 20,000 Hz
Max SPL @ 1 m: 115 dB
Max SPL @ 4 m: 103 dB
Horizontal Coverage Angle: 70°
Vertical Coverage Angle: 90°
System Sensitivity: 99 dB
System Sensitivity 1 W @ 4 m: 87 dB
Power Section:
Nominal Impedance: 8 ohm
Power Handling: 60 W
Peak Power Handling: 240 W Peak
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000 : DXT 4000 : DXT 7000
Transducers:
Dome Tweeter: 1 x 1.0”
Woofer: 1 x 6.5”
Input and Output Section:
Input Connectors: Ceramic screw terminals
Output Connectors: Ceramic screw terminals
Constant Voltage Transformer: 100 V
Power Selection 1: 60 W : 167 ohm
Power Selection 2: 30 W : 333 ohm
Power Selection 3: 15 W : 667 ohm
Power Selection 4: 7.5 W : 1333 ohm
Standard Compliance:
IP Protection Grade: IP66
Safety Agency: CE compliant
EN54-24 Certified: Yes
CPR Number: 1488-CPR-0672/W
Physical Specifications:
Cabinet Material: ABS
Hardware: Steel bracket
Color: Grey RAL 7035
Size and Weight:
Height: 332 mm : 13.07 inches
Width: 418 mm : 16.46 inches
Depth: 391 mm : 15.39 inches
Weight: 7.35 kg : 16.2 lb.
Shipping Information:
Shipping Height: 450 mm : 17.72 inches
Shipping Width: 360 mm : 14.17 inches
Shipping Depth: 430 mm : 16.93 inches
Shipping Weight: 8.6 kg : 18.96 lb.
