Description

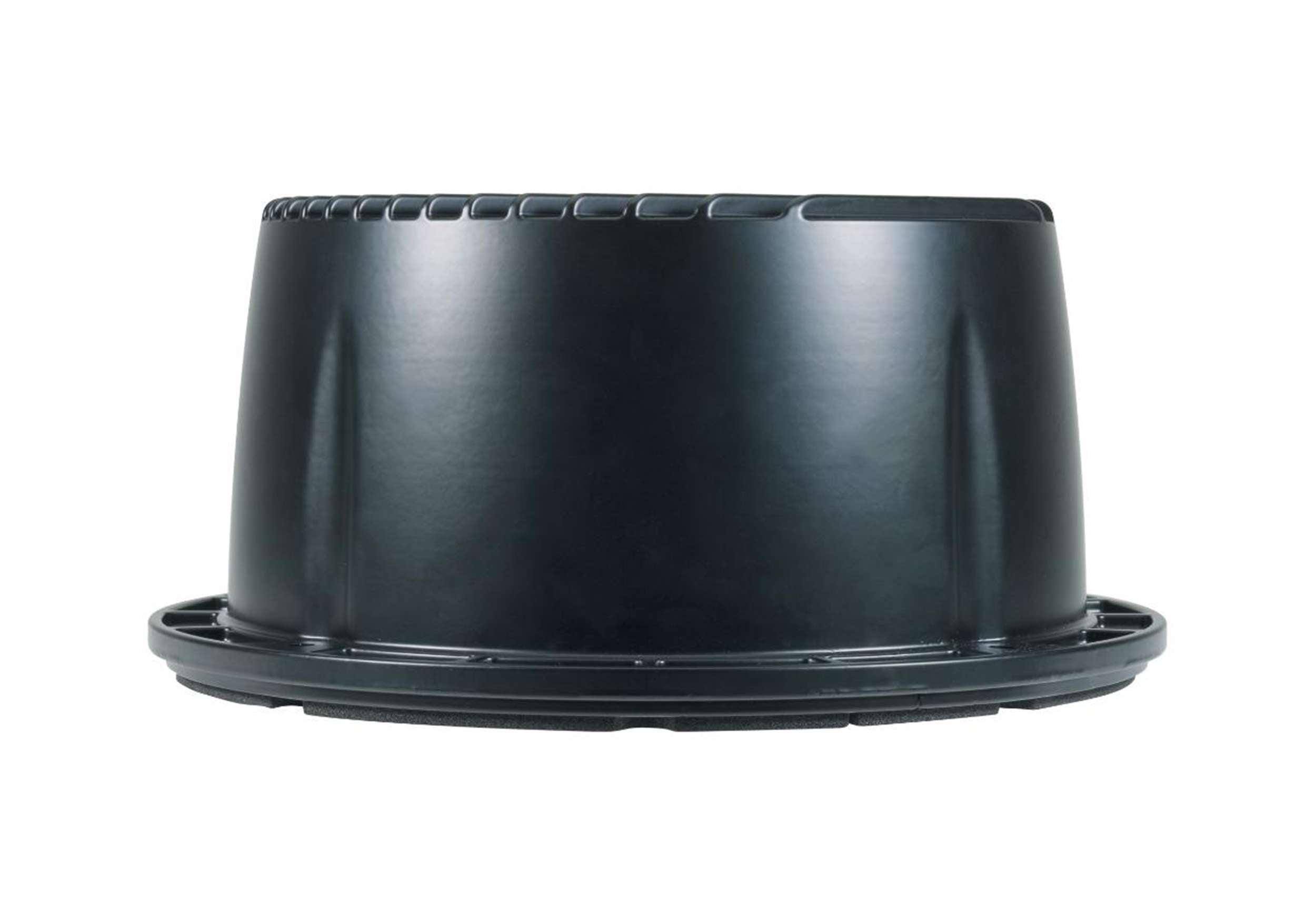

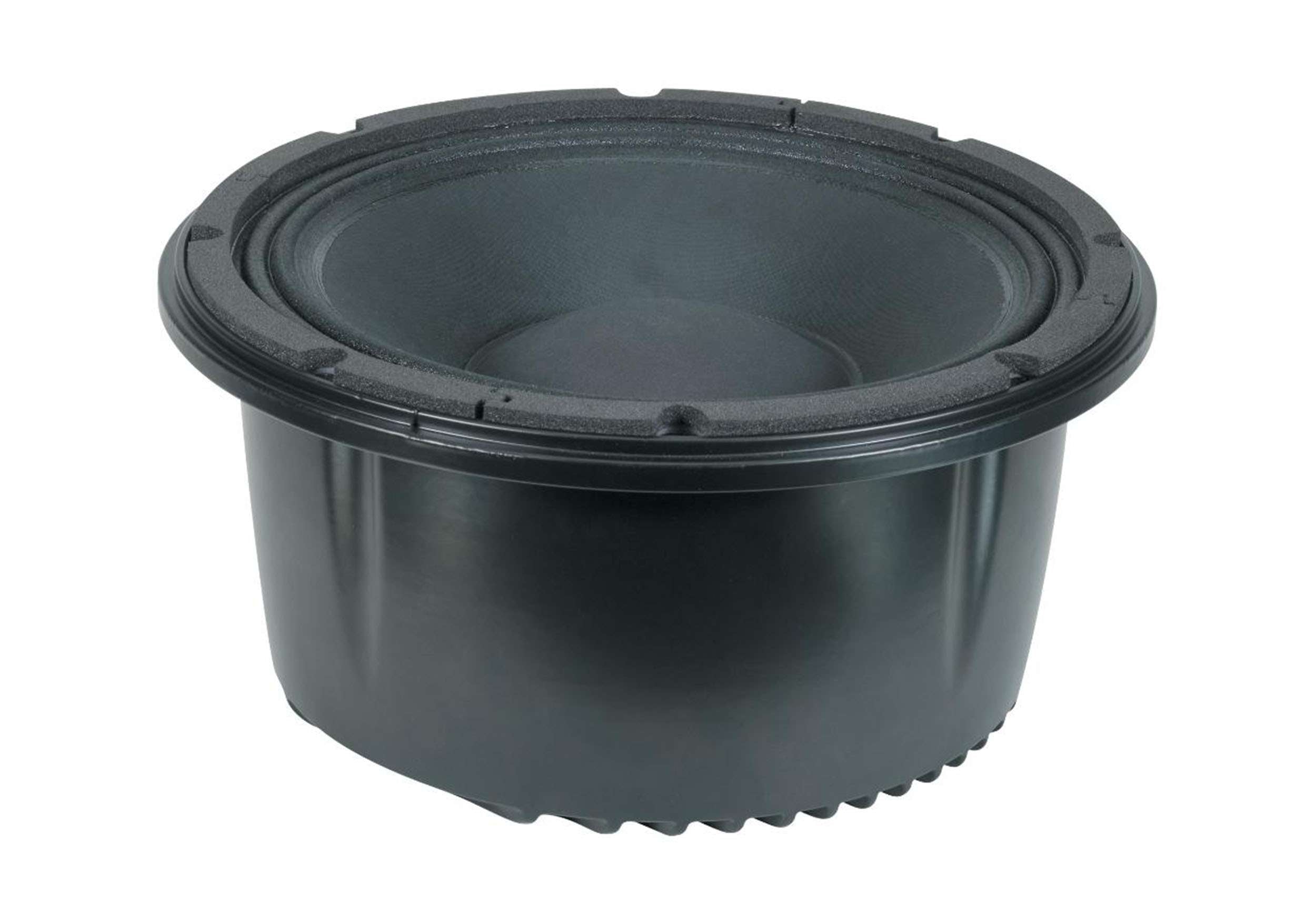

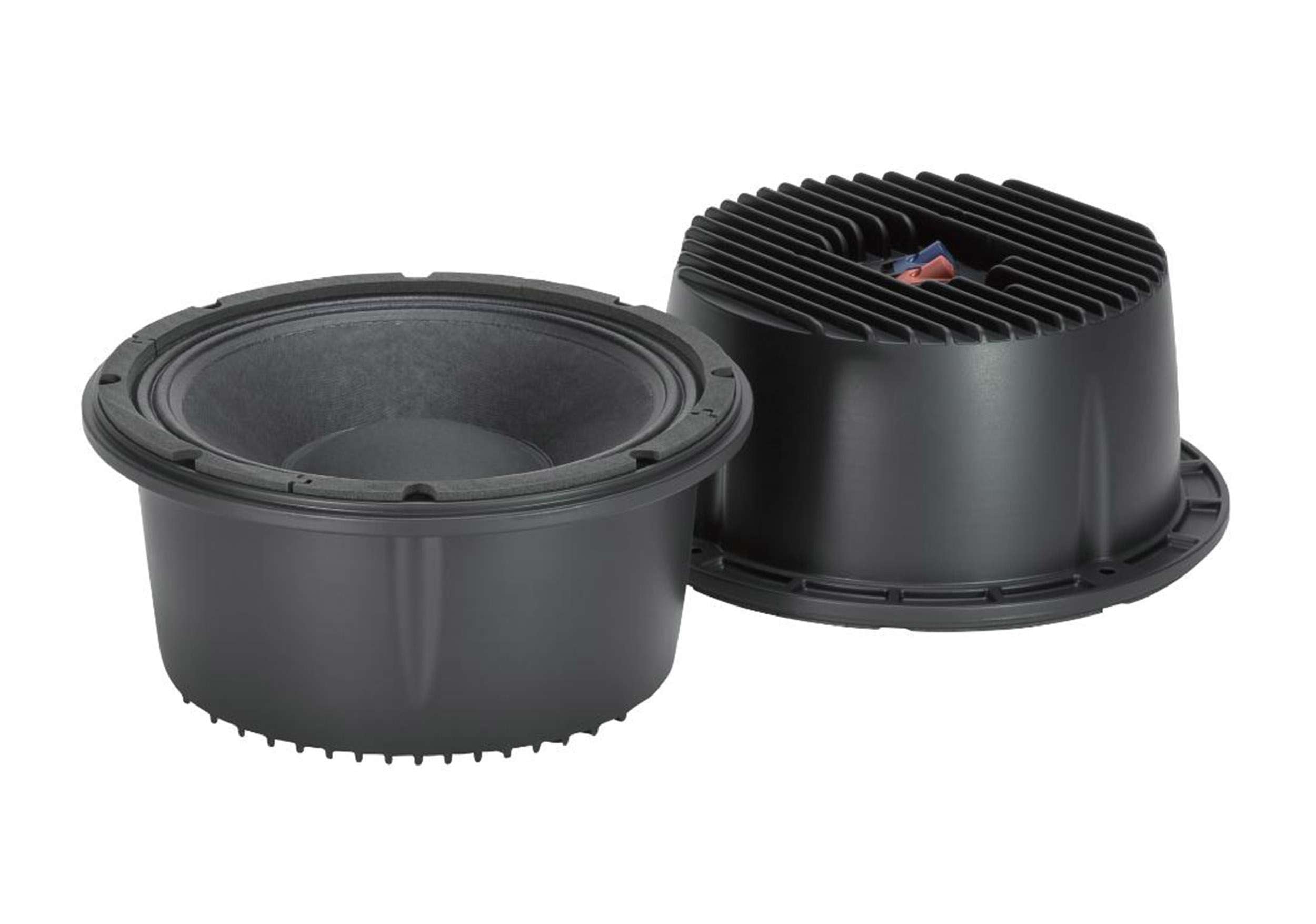

The RCF MR10N301 is a high-power, ultra-lightweight 10-inch midrange speaker designed for professional applications requiring exceptional sound pressure levels in a compact size. Featuring a 3-inch inside/outside aluminum voice coil and a high BL neodymium magnet, this driver delivers 102 dB sensitivity in horn-loaded configurations. Its sealed aluminum basket with vented fin heat dissipation ensures superior cooling and reliability. The speaker’s optimized back volume enhances transient response, making it ideal for high-performance midrange reproduction in PA and horn-loaded systems.
Product Specifications:
Nominal Diameter:10 inch / 254 mm
Impedance:8 ohms
Program Power:600W
Power Handling Capacity:300W
Sensitivity:102 dB
Frequency Range:150 Hz - 2 kHz
Effective Piston Diameter:210 mm / 8.27 inch
Max Excursion Before Damage:20 mm / 0.79 inch
Minimum Impedance:9.0 ohm
Voice Coil Diameter:3.0 inch / 76 mm
Voice Coil Winding Material:Aluminum
Voice Coil Length:11 mm / 0.43 inch
Number of Layers:2 (inside/outside)
Top Plate Thickness:10 mm / 0.39 inch
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M-roll
Magnet Type:Neodymium
Spider:Single
Thiele-Small Parameters:
Resonance Frequency (Fs):250 Hz
DC Resistance (Re):6.20 ohm
Mechanical Q Factor (Qms):6.48
Electrical Q Factor (Qes):0.72
Total Q Factor (Qts):0.65
Bl Factor:20.70 T x m
Effective Moving Mass (Mms):32.0 g
Equivalent Air Volume (Vas):2.0 liters
Effective Piston Area (Sd):0.040 m²
Max Linear Excursion (Xmax):1 mm
Voice Coil Inductance @ 1kHz (Le1k):1.17 mH
Half-Space Efficiency:9.26%
Mounting Information:
Overall Diameter:272 mm / 10.71 inches
Bolt Circle Diameter:244 mm / 9.61 inches
Bolt Hole Diameter:7 mm / 0.28 inches
Front Mount Baffle Cutout:235 mm / 9.25 inches
Rear Mount Baffle Cutout:232 mm / 9.13 inches
Volume Occupied by Driver:5 liters / 0.2 ft³
Size & Weight:
Height:142 mm / 5.59 inches
Diameter:272 mm / 10.71 inches
Weight:4.5 kg / 9.92 lbs
Shipping Information:
Package Height:170 mm / 6.69 inches
Package Width:285 mm / 11.22 inches
Package Depth:285 mm / 11.22 inches
Package Weight:5 kg / 11.02 lbs
