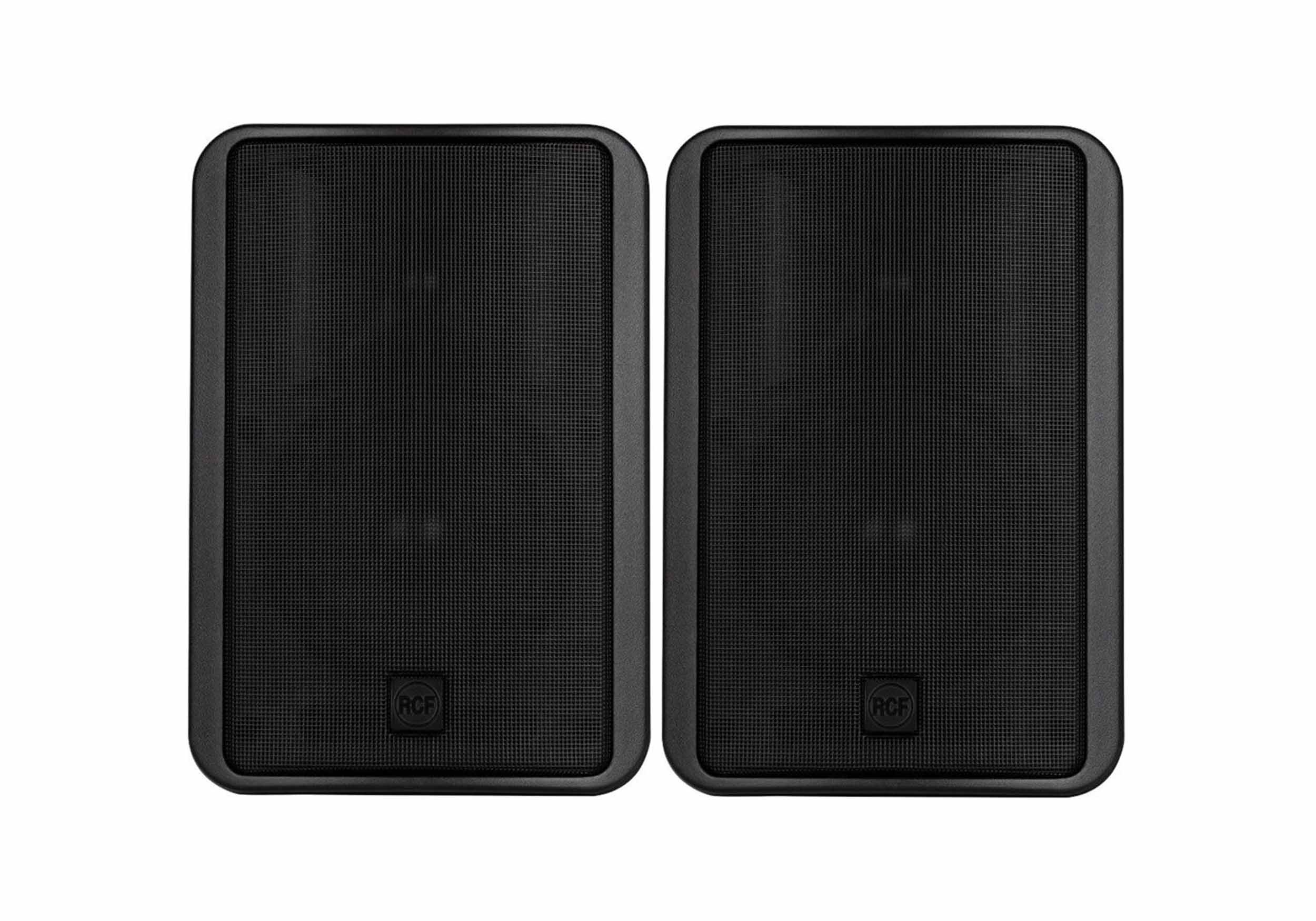

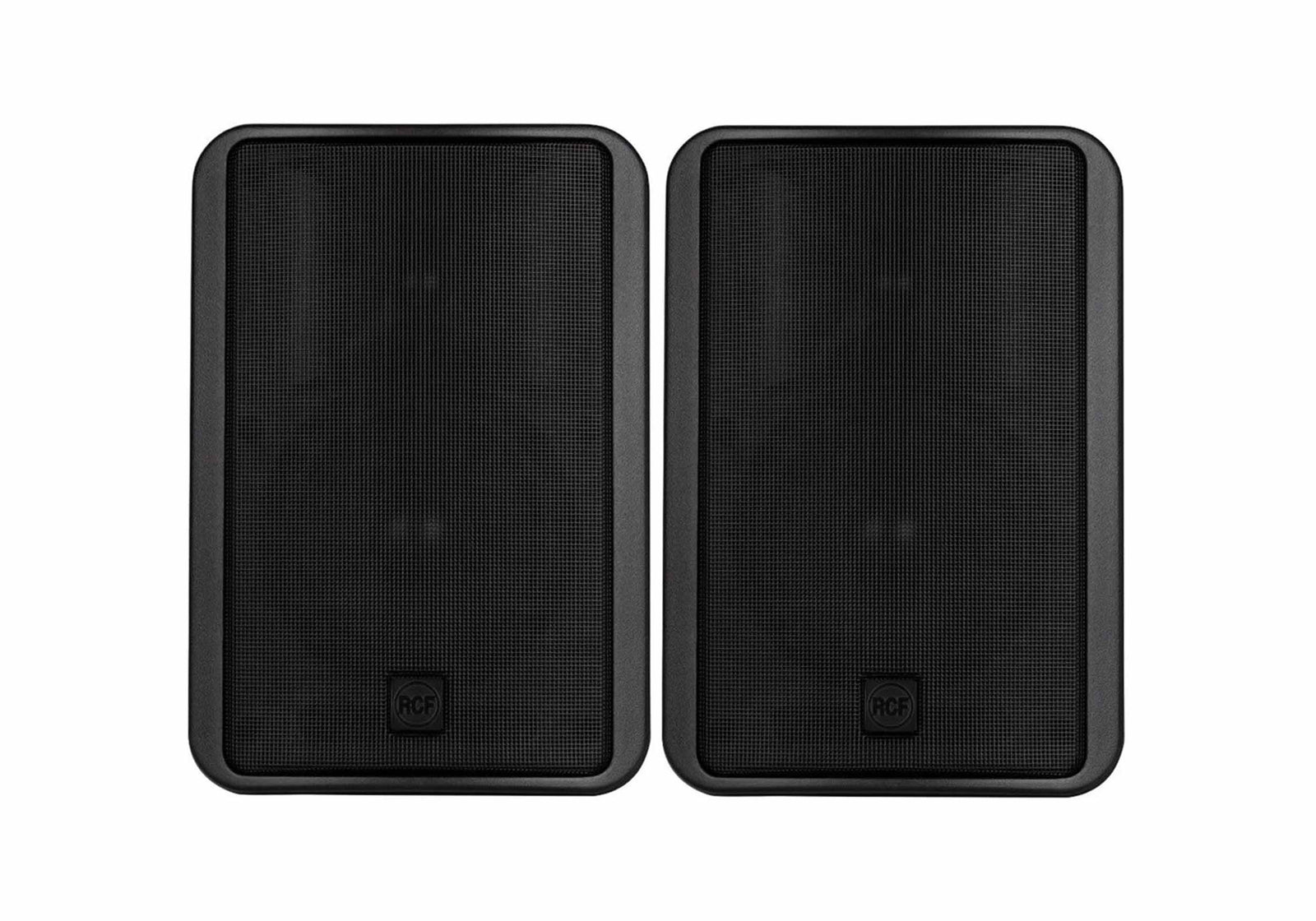

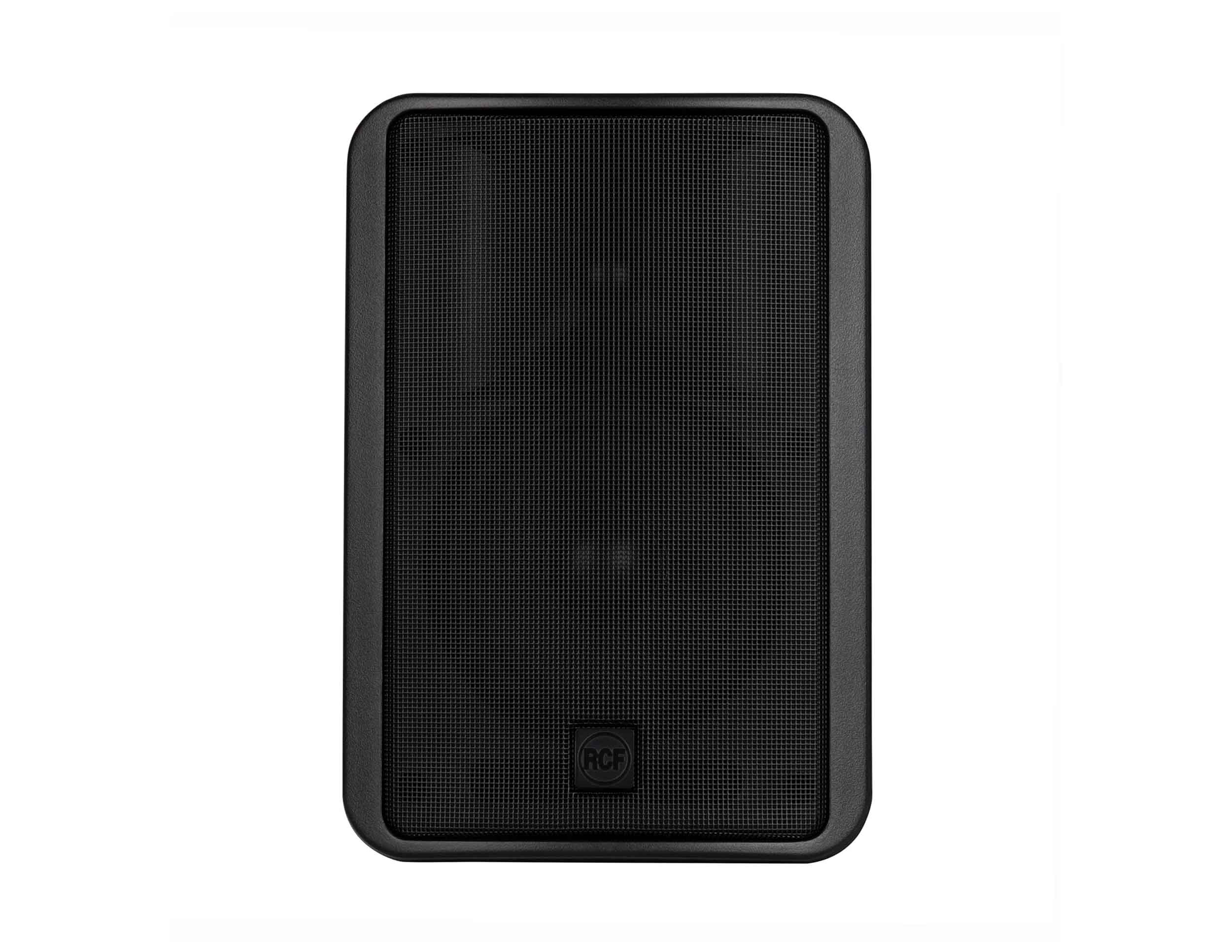

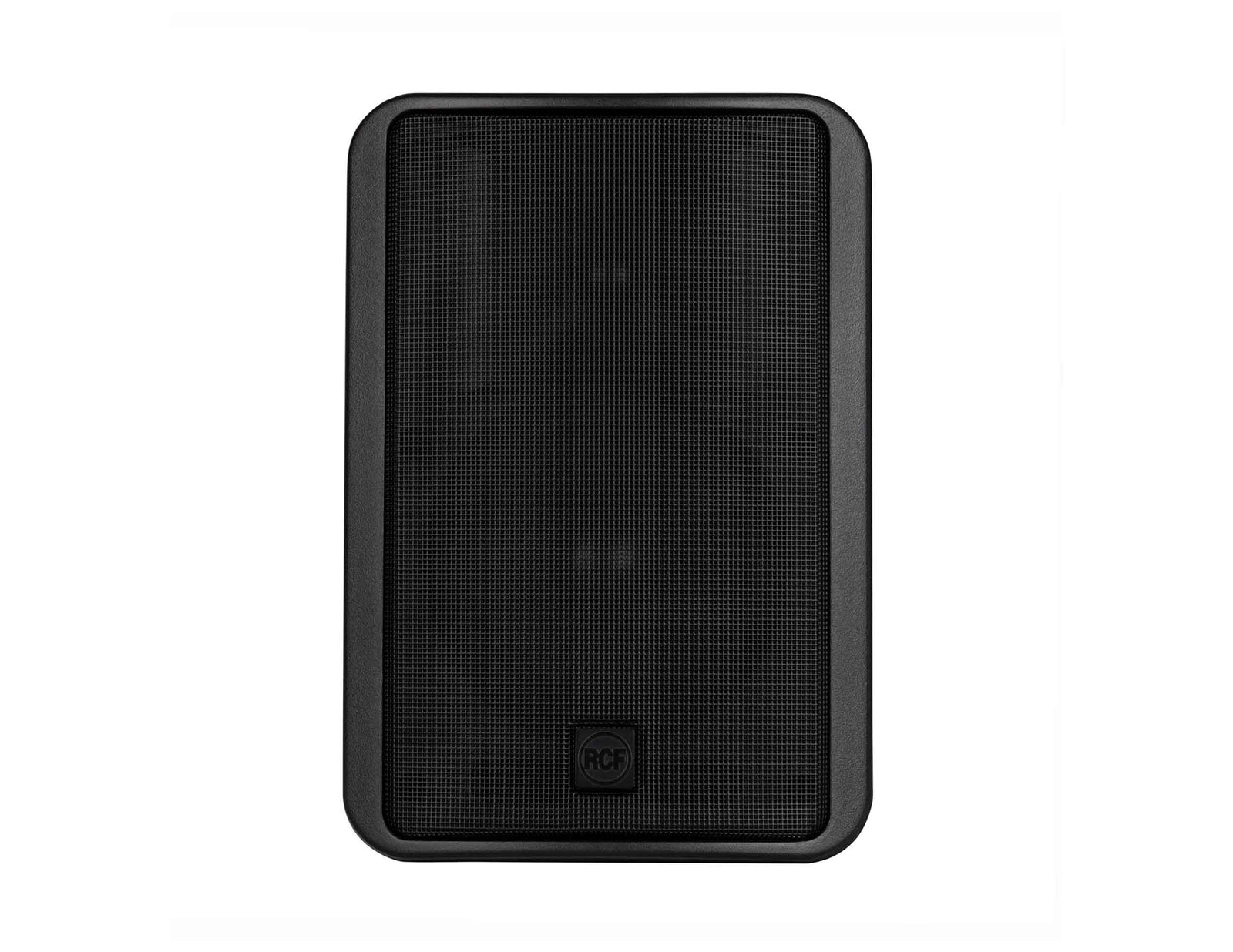

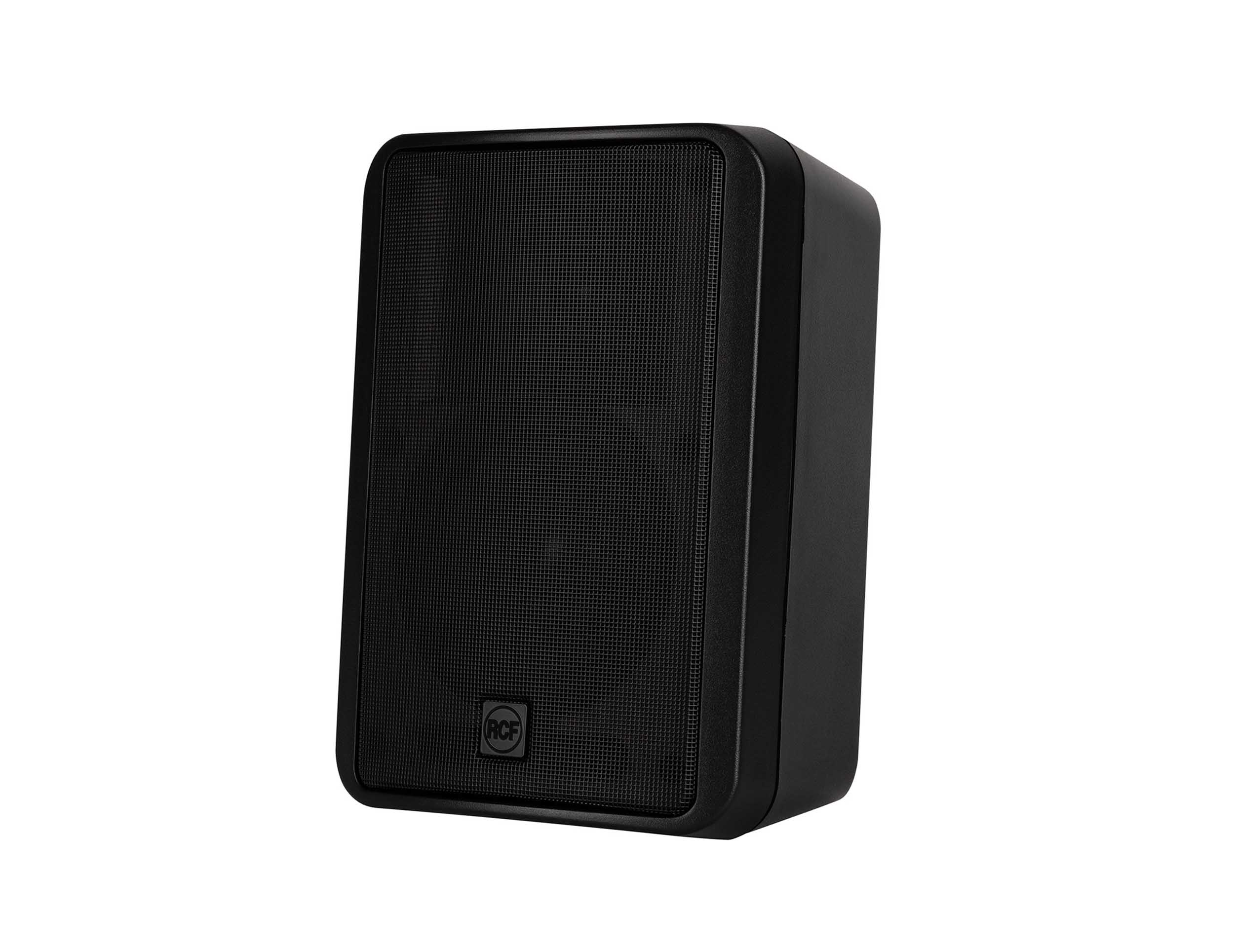

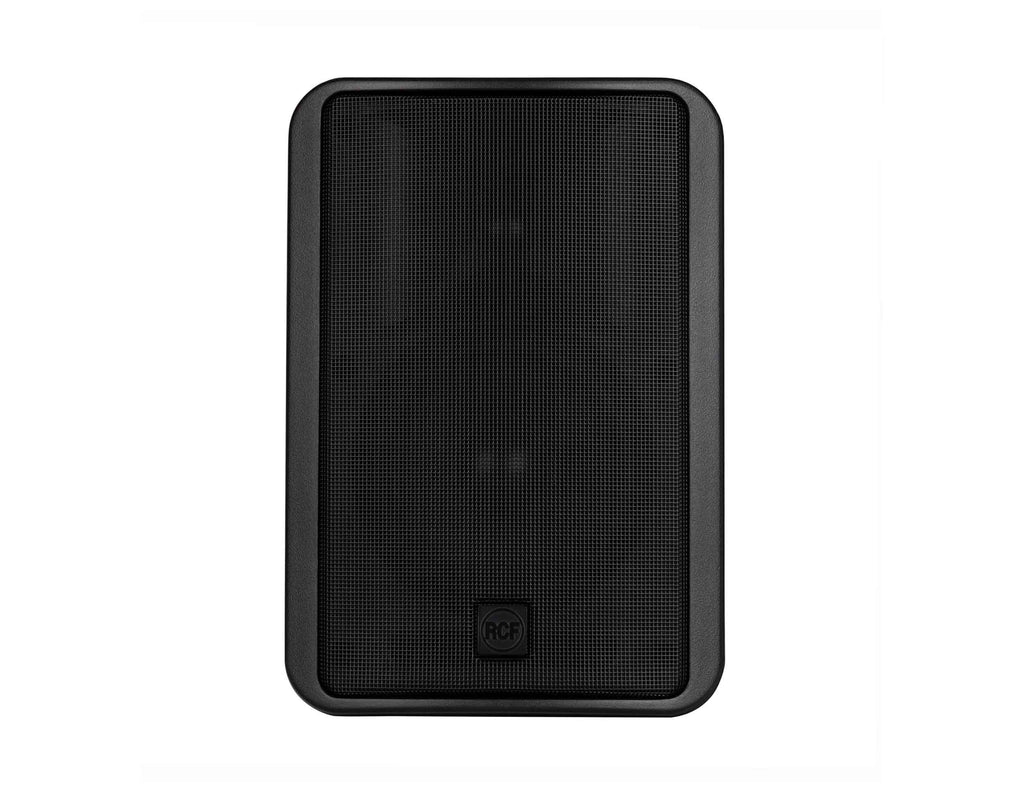

RCF MR50-T 5" Two-Way Passive Speaker w/ Line Transformer 240 - Pair

The RCF MR50-T 5-Inch Two-Way Passive Speaker with Line Transformer 240 Watt - Pair is designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 50T the perfect speaker for listening in the most demanding applications. Suitable for indoor and outdoor installation.

Versatile Sound

Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely-detailed high-frequency response.

Smooth Installation

Housed in a robust plastic cabinet, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting.

Uncompromised Performance

Quality components and careful acoustic design make the MR series a perfect choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls or audio monitoring facilities.

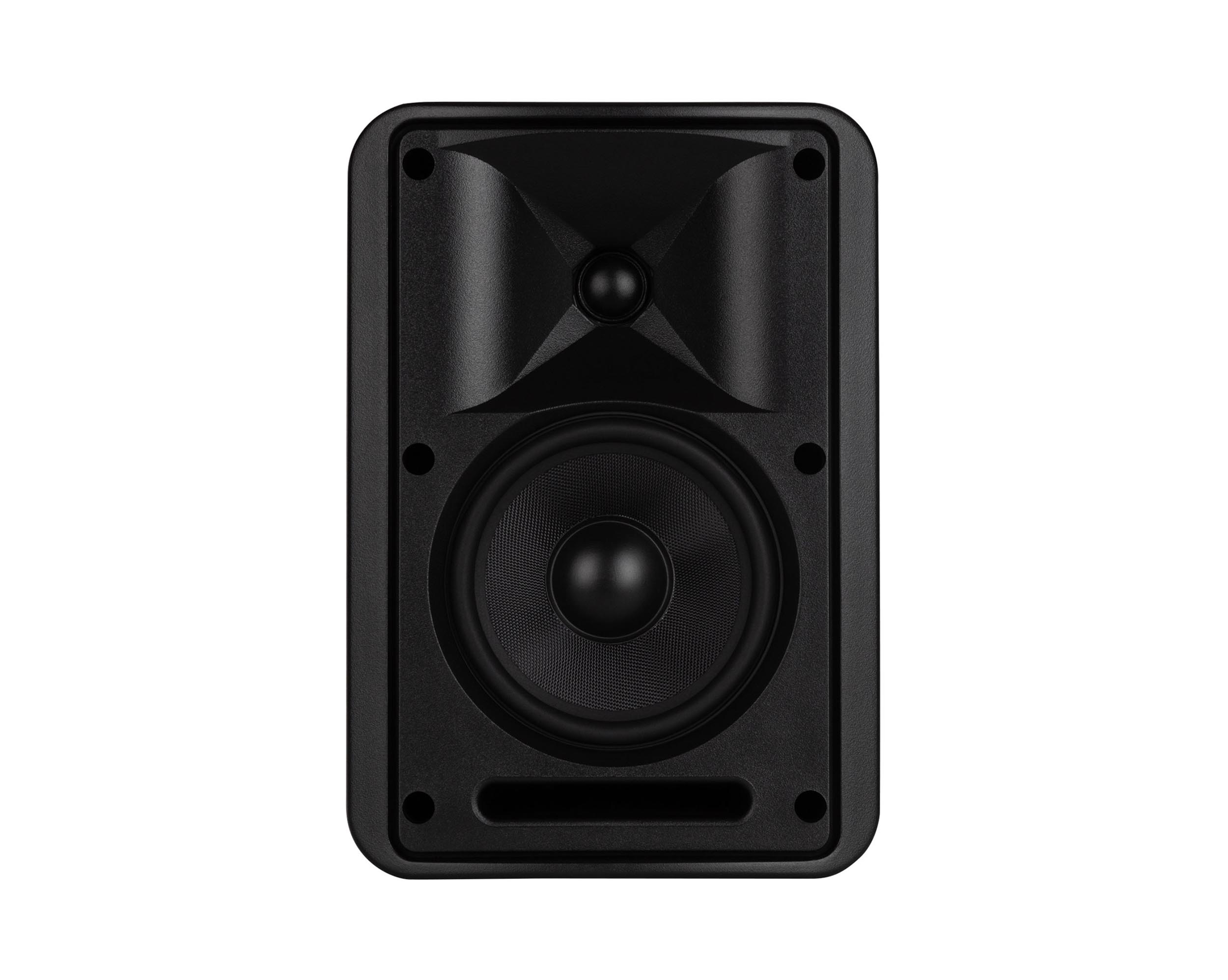

All models use purpose-designed 1” voice coil woofers and 0.8” voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability.

Constant Voltage Speakers

Constant-voltage speaker systems, also called high impedance or 70V/100V audio distribution systems, refer to networks of loudspeakers equipped with line transformers connected to an audio amplifier with high impedance output. This approach offers several advantages such as:

High voltage (70V or 100V) enables long cable runs between amp and speakers with reduced power loss: low level current allows smaller cable diameters

Speakers can be wired in parallel in large number, limited only by available amplifier power

Different speaker types with different power requirements can share the same speaker line simultaneously making the system-wiring easie

Adding or removing a speaker is very quick and simple, it does not require to re-wire the overall circuit

Product Specifications:

Acoustical:

Frequency Response (-10 dB): 60 Hz – 20000 kHz

Max SPL @ 1 m: 110 dB

Horizontal Coverage: 110°

Vertical Coverage: 100°

Directivity Index Q: 7

System Sensitivity: 87 dB

Power Section:

Nominal Impedance: 8 Ω

Power Handling: 60 W RMS

Peak Power Handling: 240 W PEAK

Protection: Bulb lamp

Crossover Frequency: 3000 Hz

Transducers:

Dome Tweeter: 1 × 1.0" neodymium (0.8" v.c.)

Woofer: 1 × 5.0" (1.0" v.c.)

Input / Output Section:

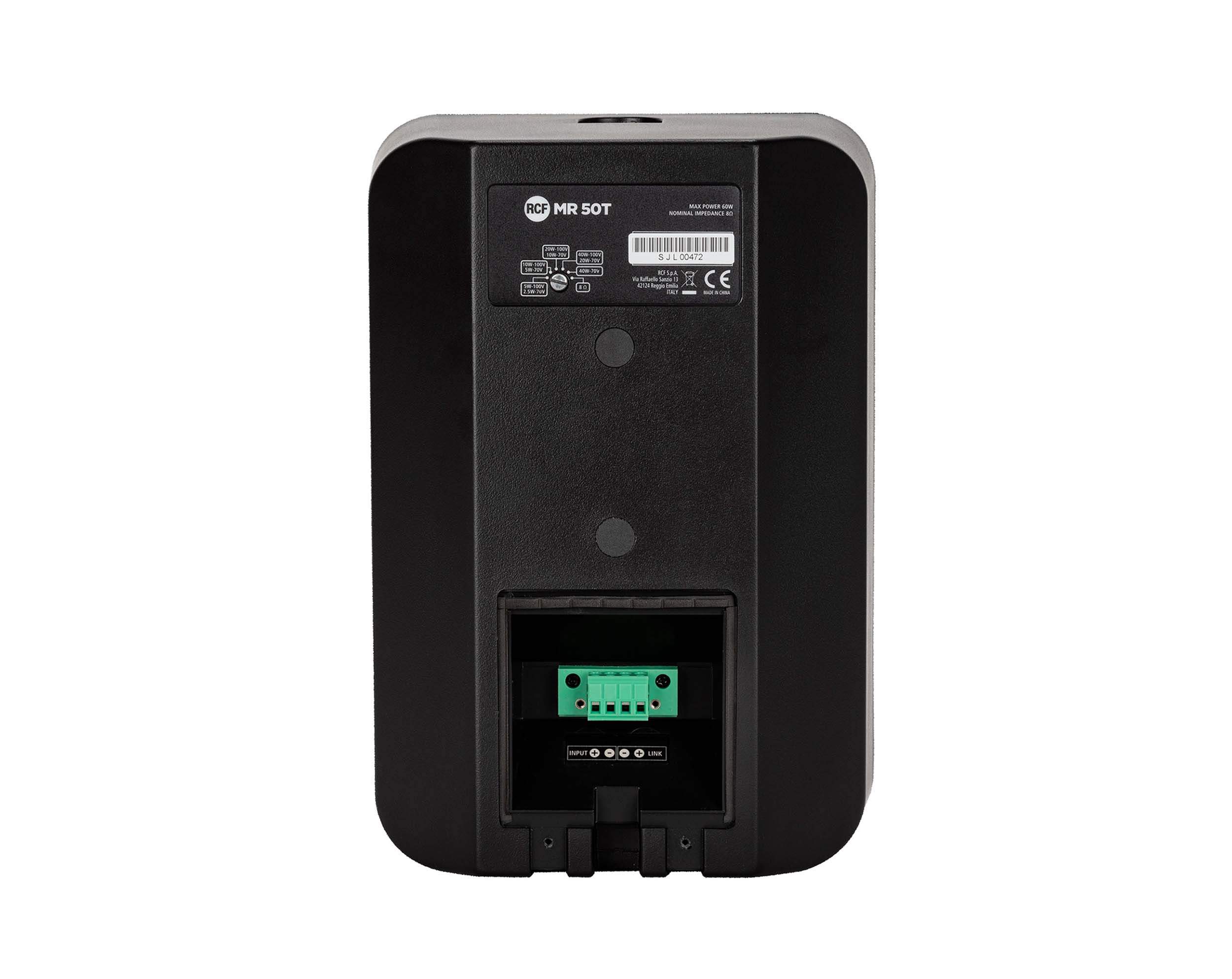

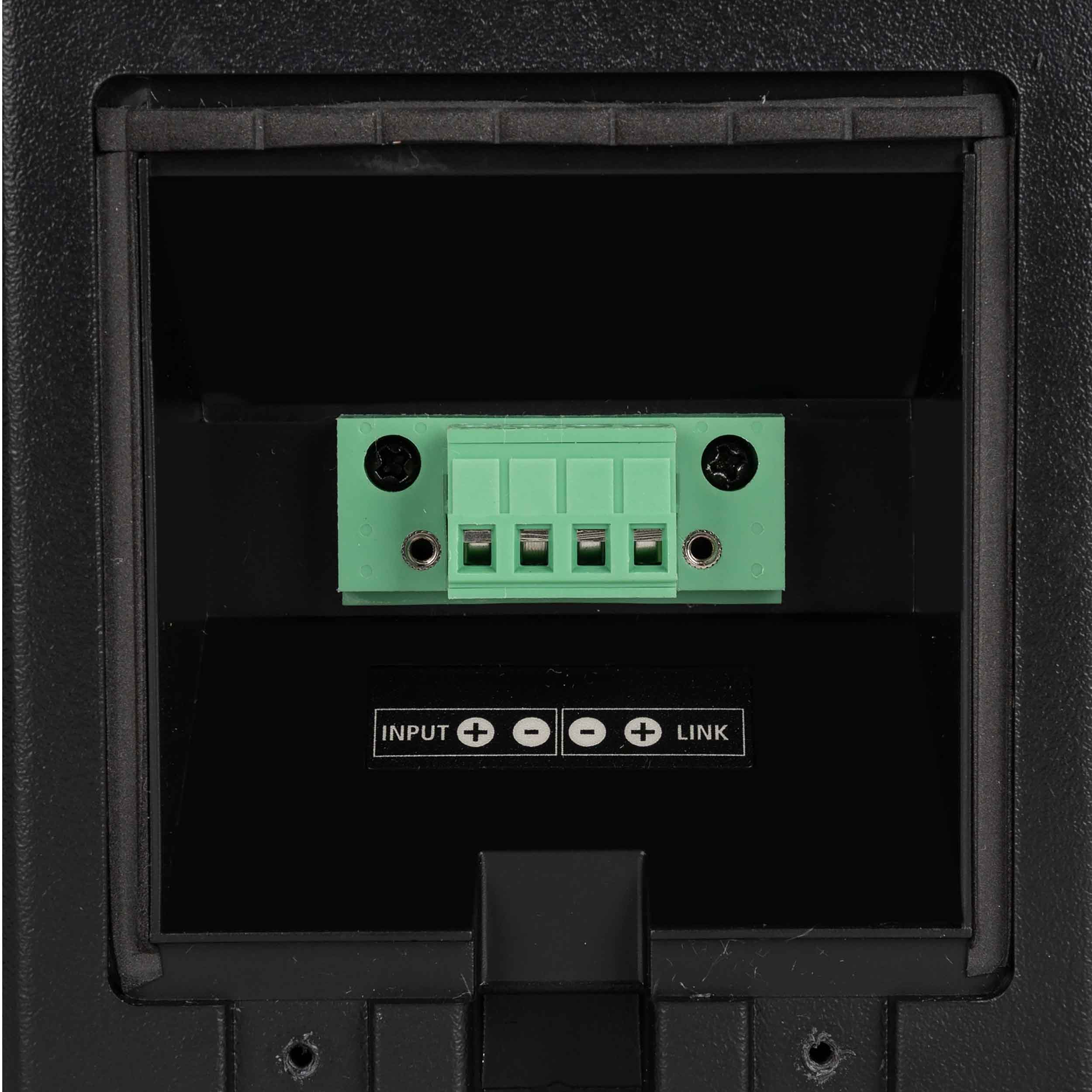

Input connectors: Euroblock

Output connectors: Euroblock

Constant Voltage Transformer: 70/100 V

Power selection 1: 40 W - 250 ohm

Power selection 2: 20 W - 500 ohm

Power selection 3: 10 W - 1000 ohm

Power selection 4: 5 W - 2000 ohm

Compliance:

IP Rating: IP55

Safety: CE Compliant

Physical:

Cabinet Material: Plastic

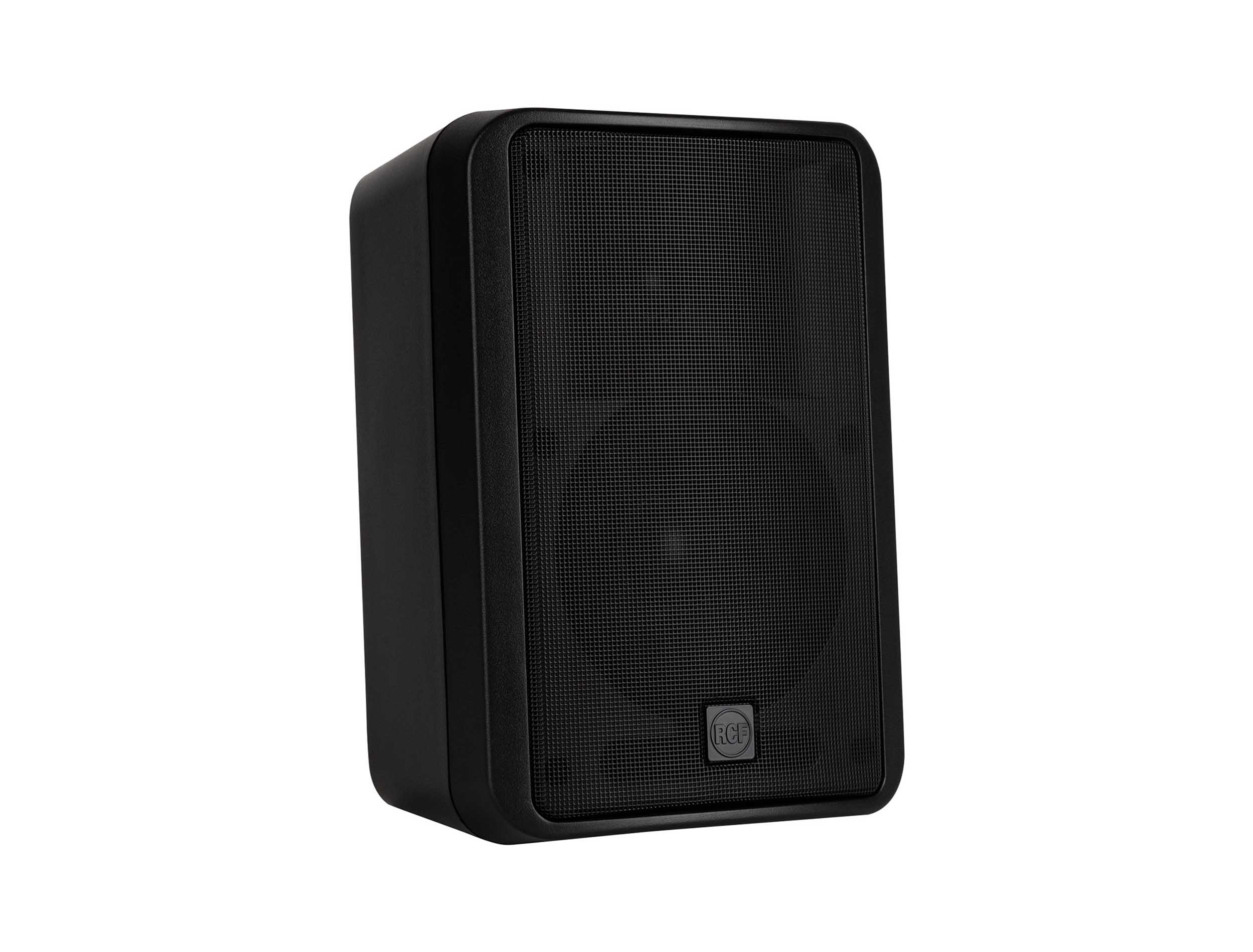

Grille: Aluminium

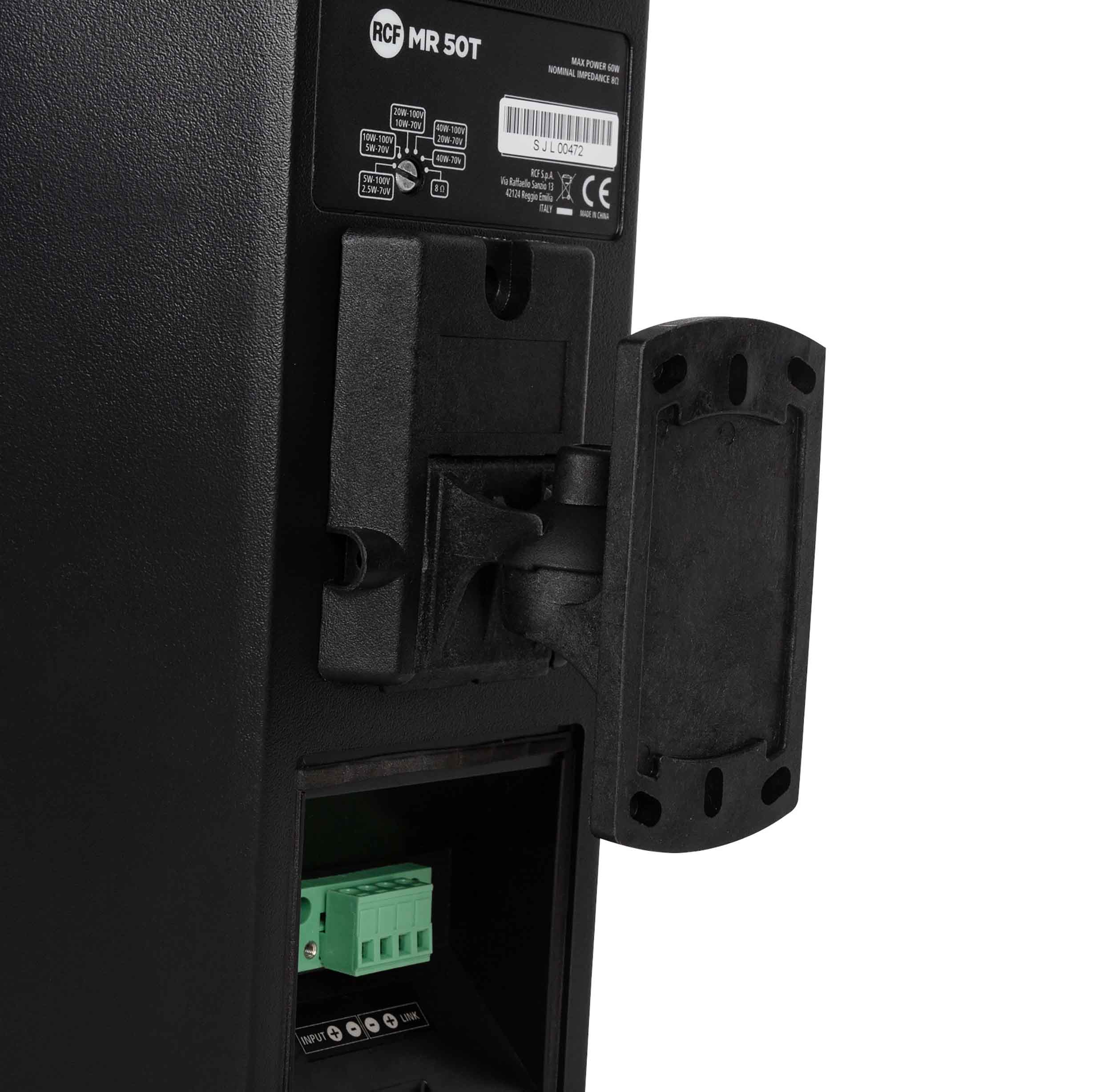

Hardware: Wall mount bracket included

Color: Black RAL 9005

Product Height: 270 mm / 10.63 inches

Product Width: 187 mm / 7.36 inches

Product Depth: 167 mm / 6.57 inches

Product Weight: 4 kg / 8.82 lbs.

Shipping Height: 370 mm / 14.57 inches

Shipping Width: 510 mm / 20.08 inches

Shipping Depth: 250 mm / 9.84 inches

Shipping Weight: 8.9 kg / 19.62 lbs.
