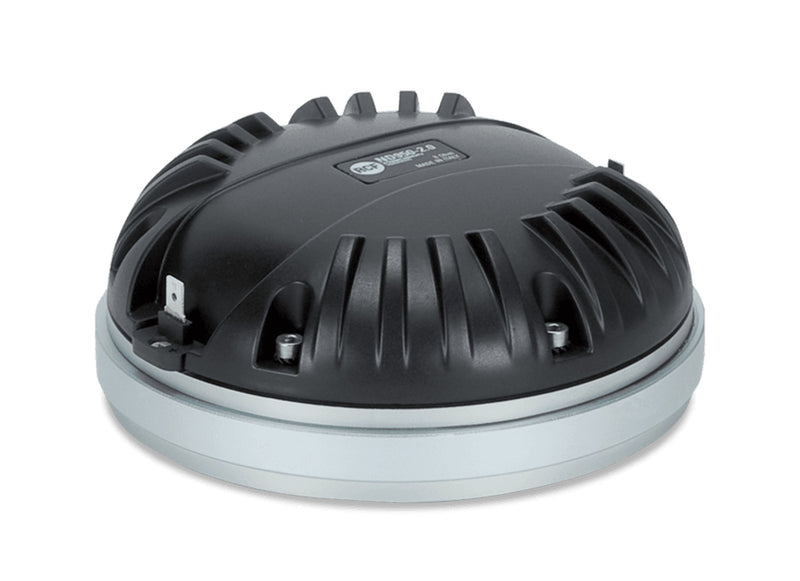

RCF ND950 1.4, Pure Titanium Compression Driver

The RCF ND950 1.4, Pure Titanium Compression Driver is an ultra-compact size, high performance, high power handling 4.0-inch diaphragm compression driver with a 1.4-inch exit throat. The high-power neodymium magnet guarantees the perfect control of the dome assembly’s moving mass. This leads to higher efficiency, better transient response and diminishes high frequency distortion modes. A thin copper ring is precision pressed on to the pole piece in order to modify and lower the inductance characteristics of the magnetic circuit and voice coil providing a controlled extension of the acoustic frequency response. The ND950 1.4 features a 0.05 mm thick pure titanium dome in combination with a high strength Mylar suspension. The voice coil assembly is designed using a high strength, high temperature Kapton voice coil former and edge wound copper clad aluminium wire. The ND950 1.4 features a 4-slot, optimized geometry, phase plug design. Extended computer assisted mathematical modelling and testing has resulted in a geometry that provides a balanced acoustic performance controlling and lowering air distortion and maximizing output.

Product Specifications:

Exit Throat Diameter: 1.4 Inch / 36 Mm

Related Impedance: 8 Ohms

Program Power (Watt): 280 W

Power Handling Capacity: 140 W

Sensitivity: 110 Db

Frequency Range: 500 - 20000 Hz

Suspension Design: Flat

Minimum Impedance (Ohm): 8.50 Ohm

Voice Coil Diameter: 4.0 Inch / 102 Mm

Voice Coil Former Design: Direct Drive Kapton

Number of Layers: 1

Flux Density: 2.0 T

Phase Plug Design: 4 Slots

Bl Factor (Bl) (T X M): 17.60 T X M

Overall Diameter: 146 Mm / 5.75 Inches

Overall Height: 60 Mm / 2.36 Inches

Mounting: 4 X 6 Mm Threaded Holes At 90°

Safety Agency: CE Compliant

Weight: 7.72 Lbs

Shipping Height: 3.11 Inches

Shipping Width: 6.65 Inches

Shipping Depth: 6.73 Inches

Shipping Weight: 8.16 Lbs
