Description

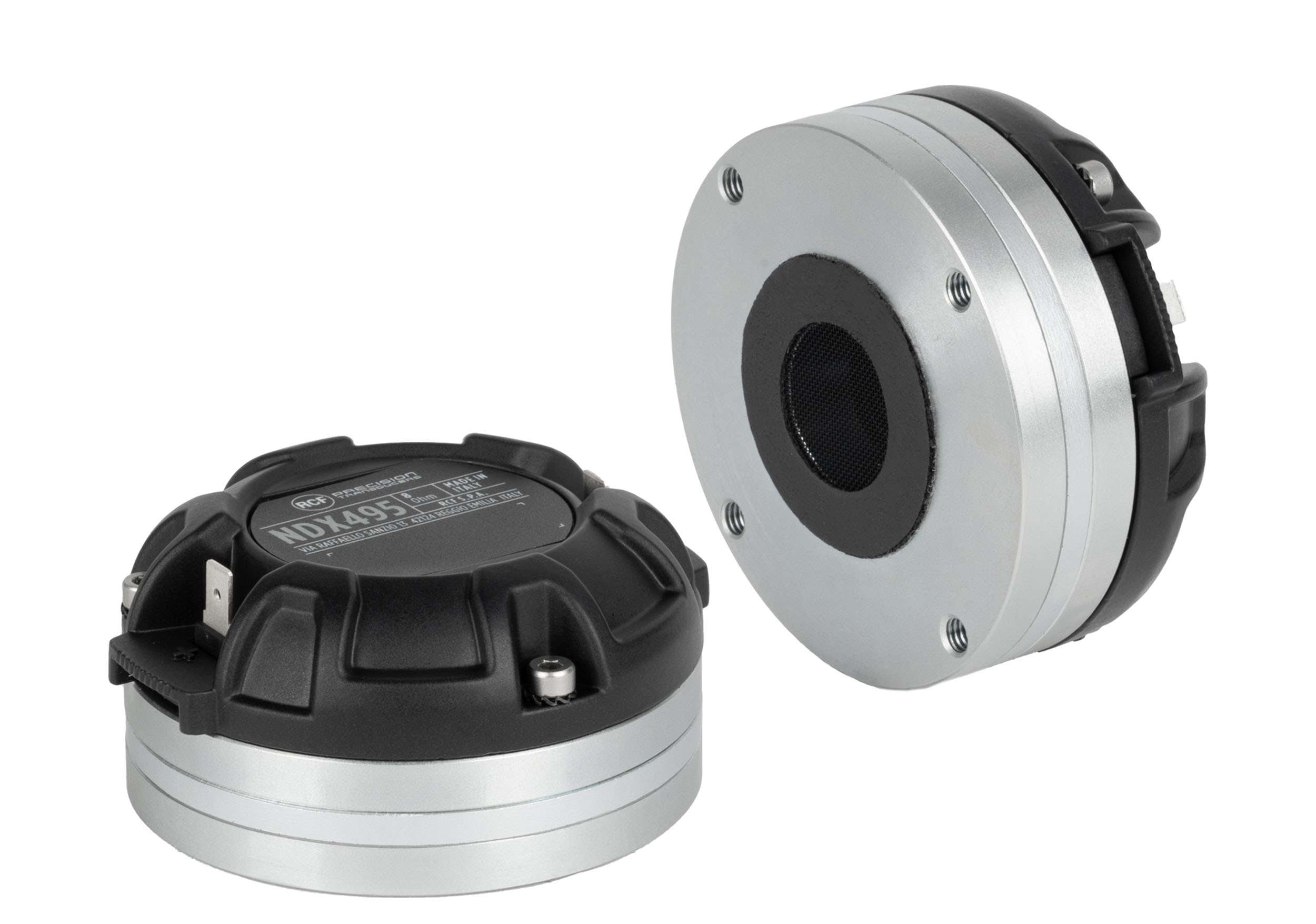

The RCF NDX495 is a compact, high-performance 1.75-inch compression driver designed for professional audio applications. Featuring a PKX polymer dome and polyimide surround, it delivers exceptional clarity, power handling, and reliability. With an ultra-light edge-wound aluminum voice coil, neodymium magnet, and a 4-slot phase plug, the NDX495 ensures high sensitivity and low distortion. Its low recommended crossover point (1000 Hz) makes it ideal for two-way cabinet designs and three-way loudspeaker systems.
Product Specifications:
Exit Throat Diameter: 1.0 inch / 25 mm
Impedance: 8 ohms
Program Power: 140 W
Power Handling Capacity: 70 W
Sensitivity: 109 dB
Frequency Range: 1200 - 20,000 Hz
Diaphragm Material: PKX Polymer
Suspension Material: PKX Polymer
Suspension Design: Flat
Minimum Impedance: 6.50 ohm
Voice Coil Diameter: 1.75 inch / 44 mm
Voice Coil Winding Material: Edgewound Aluminum
Voice Coil Former: Straight - Kapton
Number of Layers: 1 (outside wound)
Flux Density: 1.8 T
Phase Plug Design: 4-slot
Phase Plug Material: PP Composite
Magnet Type: Neodymium
Mounting Information
Overall Diameter: 85 mm / 3.35 inches
Overall, Height: 44 mm / 1.73 inches
Mounting: 4 x 6 mm threaded holes at 90°
Compliance & Safety
Standard Compliance: CE Compliant
Shipping Information
Package Height: 65 mm / 2.56 inches
Package Width: 111 mm / 4.37 inches
Package Depth: 113 mm / 4.45 inches
Package Weight: 0.89 kg / 1.96 lbs
