Description

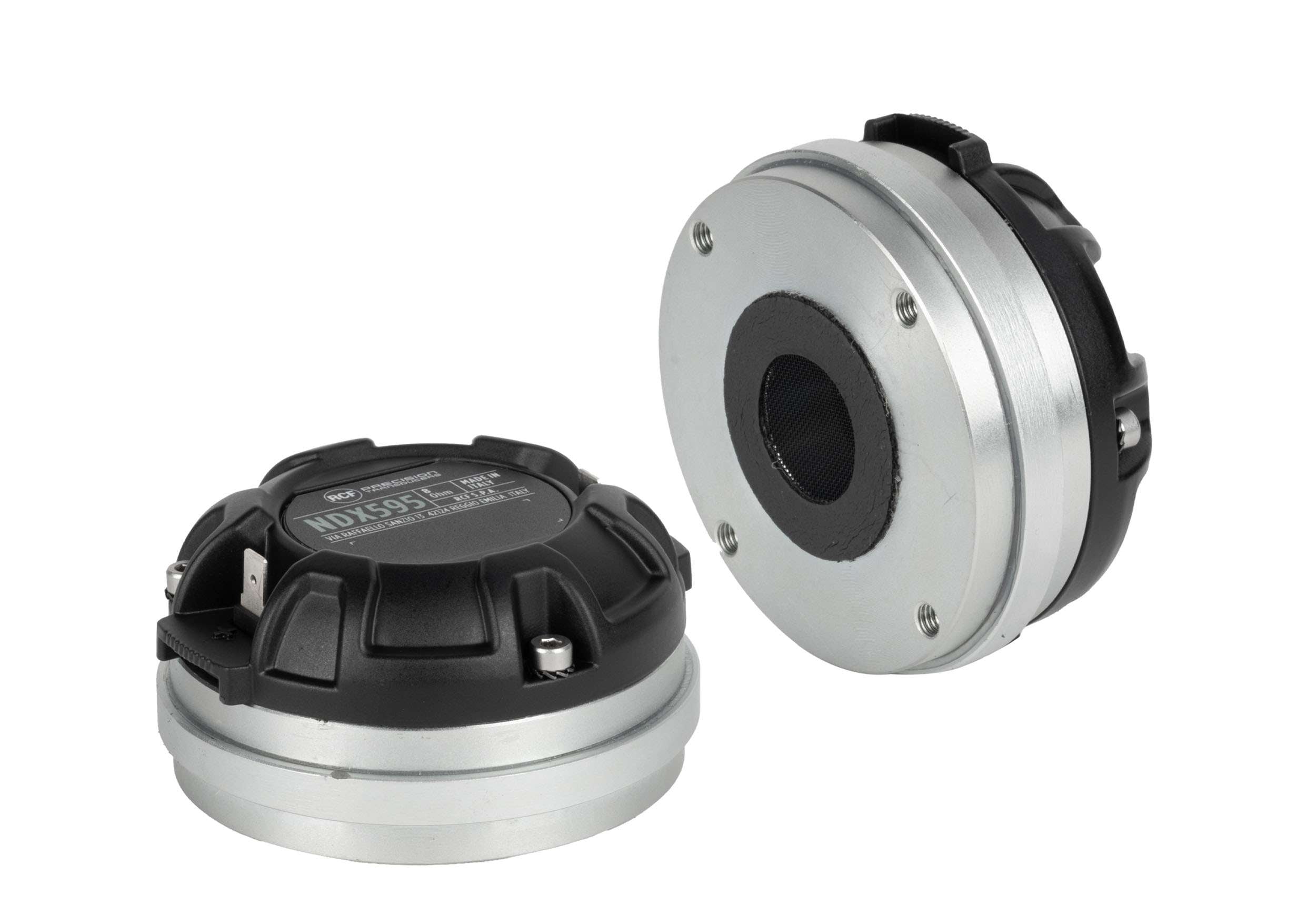

The RCF NDX595 is a high-performance 1.75-inch compression driver designed for professional audio applications requiring exceptional clarity, efficiency, and reliability. Featuring a PKX polymer dome with a polyimide surround, it offers superior precision and durability. The edge-wound aluminum voice coil, high-flux neodymium magnet, and 4-slot phase plug optimize power handling, sensitivity, and frequency response. With a low recommended crossover point at 1000 Hz, the NDX595 is ideal for compact two-way and three-way speaker designs.
Product Specifications:
Exit Throat Diameter:1.0 inch / 25 mm
Impedance:8 ohms
Program Power:140 W
Power Handling Capacity:70 W
Sensitivity:110 dB
Frequency Range:1200 - 20,000 Hz
Diaphragm Material:PKX Polymer
Suspension Material:PKX Polymer
Suspension Design:Flat
Minimum Impedance:6.50 ohm
Voice Coil Diameter:1.75 inch / 44 mm
Voice Coil Winding Material:Edgewound Aluminum
Voice Coil Former:Straight - Kapton
Number of Layers:1 (outside wound)
Flux Density:2.1 T
Phase Plug Design:3-slot
Phase Plug Material:PP Composite
Magnet Type:Neodymium
Mounting Information
Overall Diameter:90 mm / 3.54 inches
Overall, Height:47 mm / 1.85 inches
Mounting:4 x 6 mm threaded holes at 90°
Compliance & Safety
Standard Compliance:CE Compliant
Shipping Information
Package Height:65 mm / 2.56 inches
Package Width:111 mm / 4.37 inches
Package Depth:113 mm / 4.45 inches
Package Weight:1.13 kg / 2.49 lbs
