Description

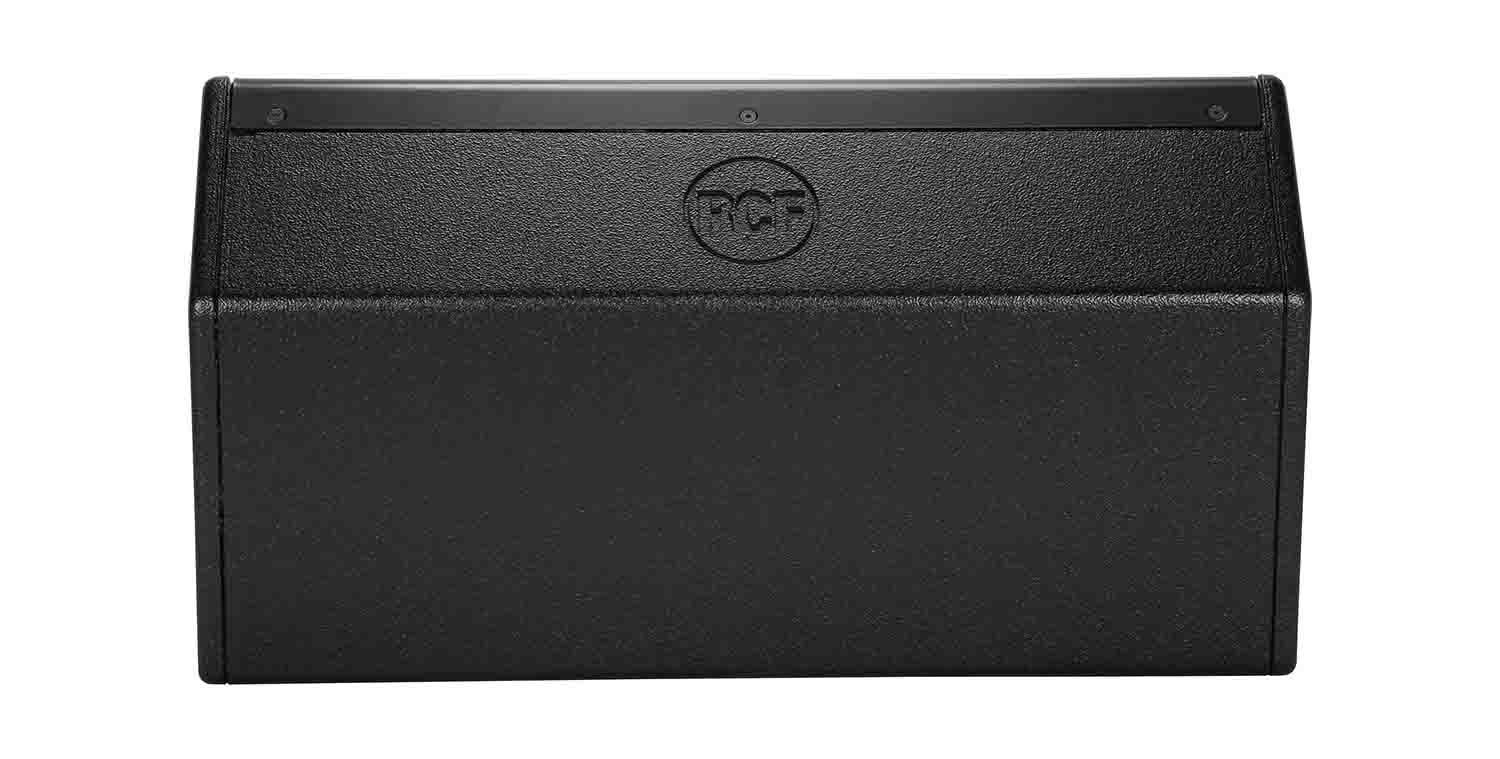

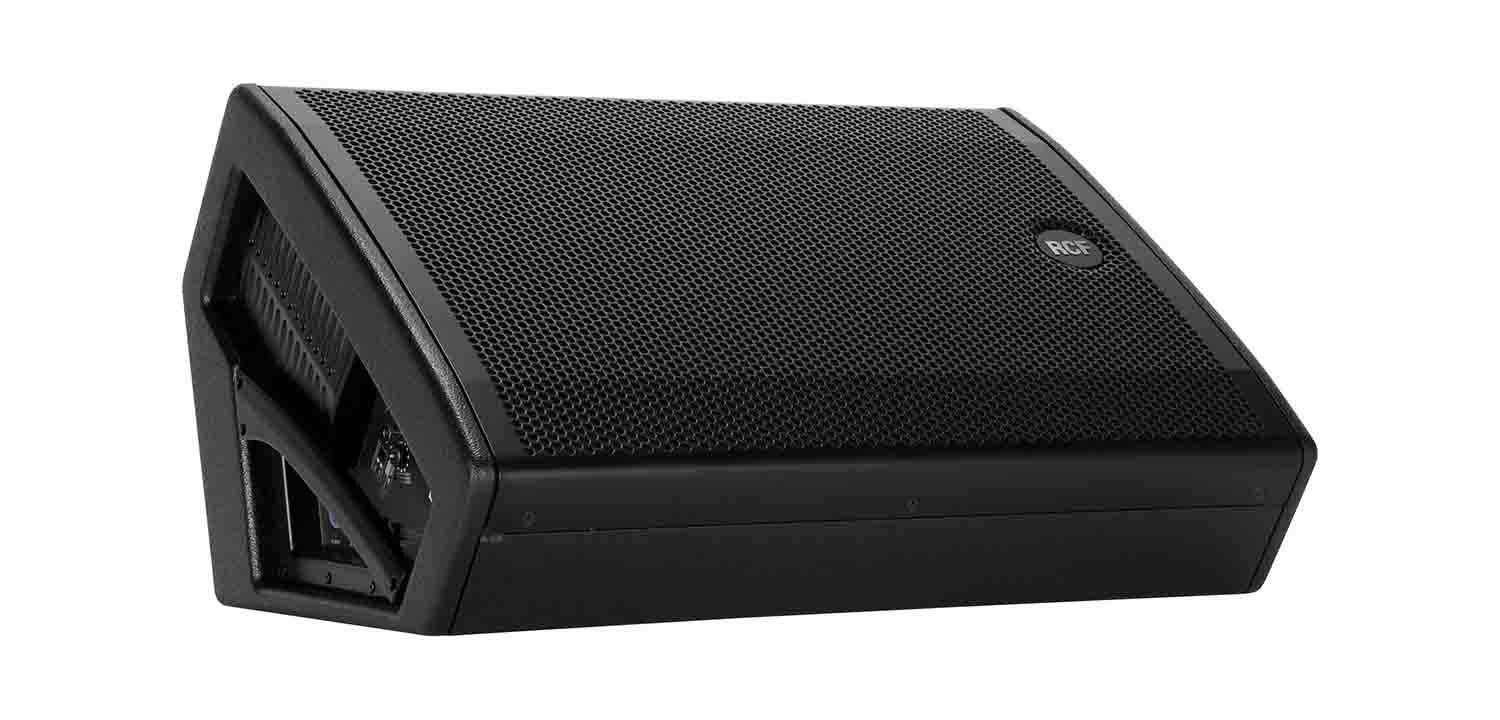

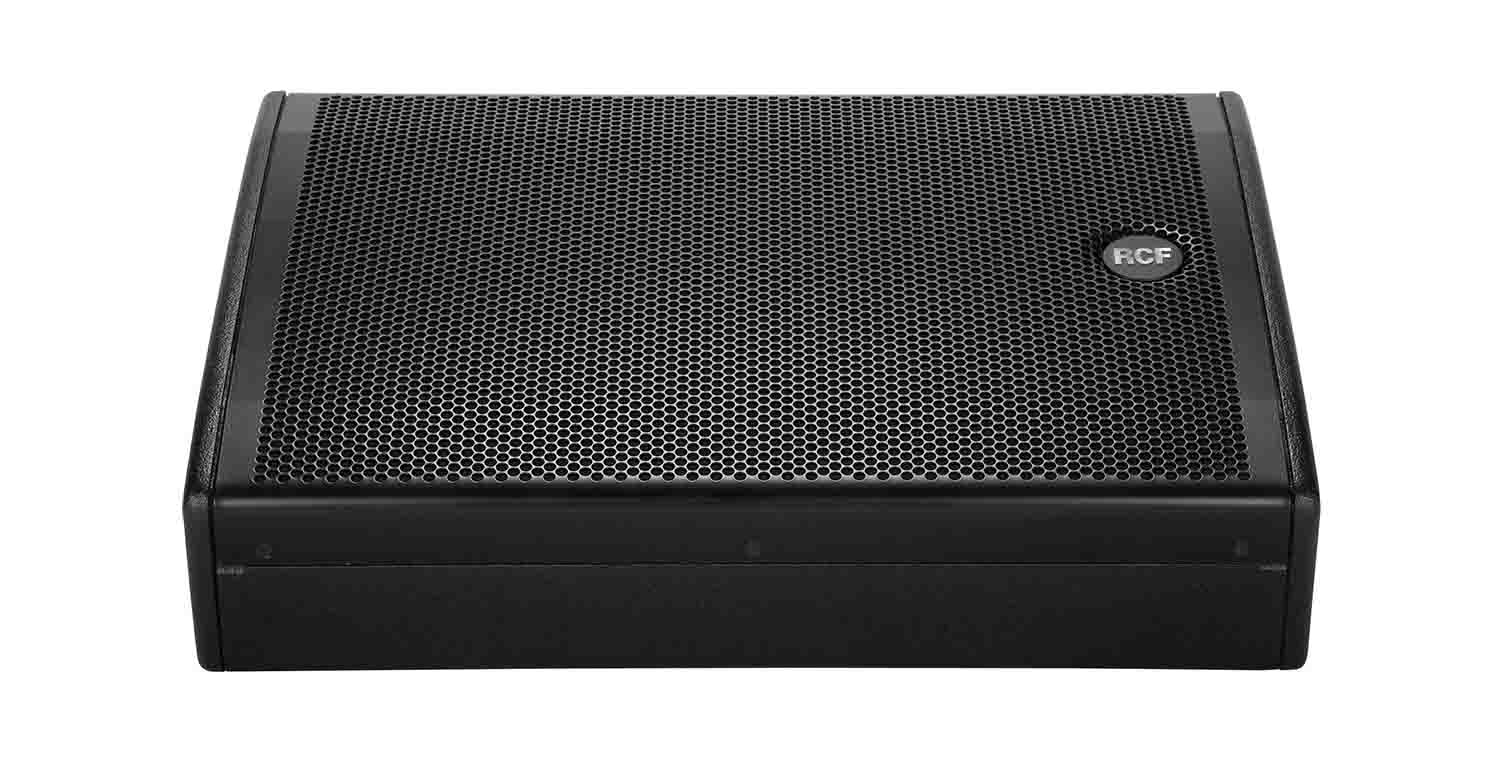

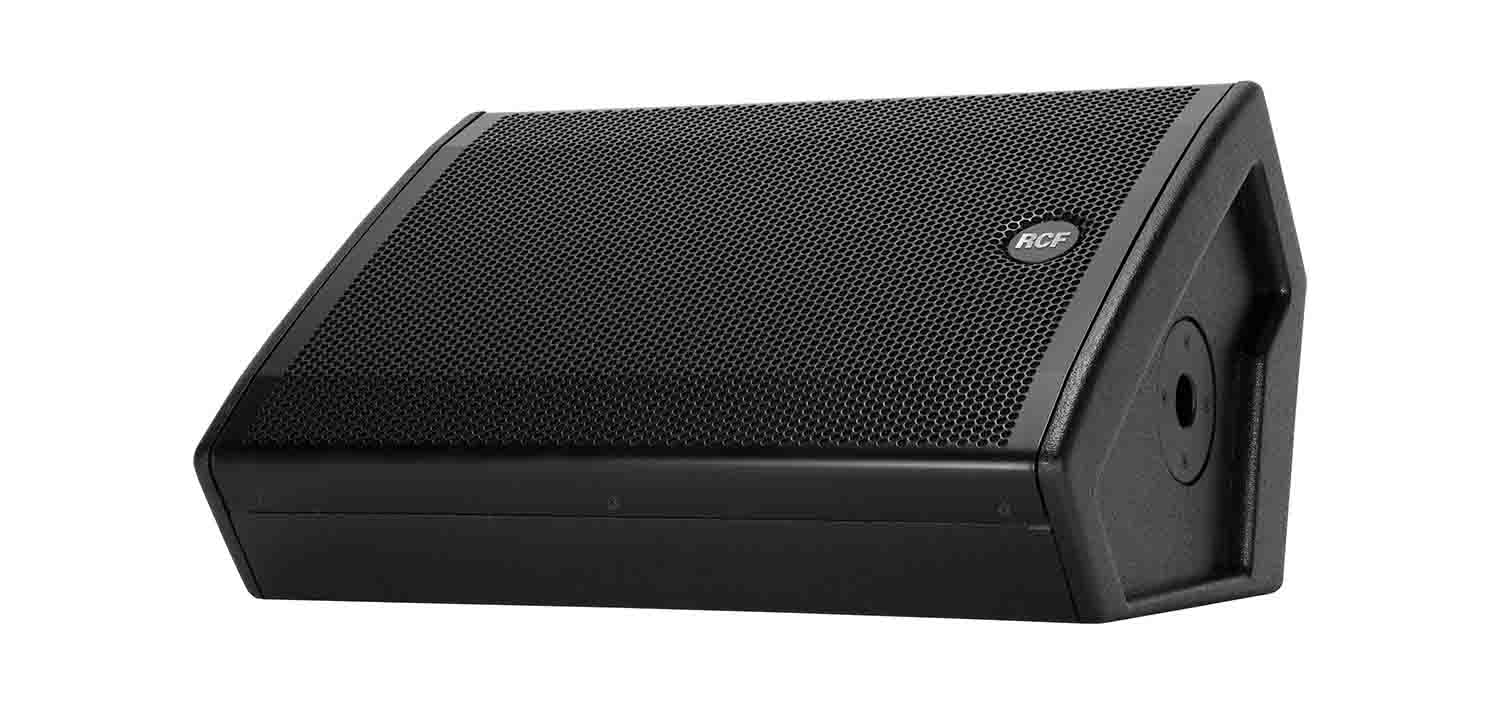

The RCF NX15-SMA Active 15-Inch 2-Way Stage Monitor Speaker provides high-quality audio ideal for a variety of live sound applications, such as stage monitoring, PA, and live music. The speaker has a 15" neodymium woofer and a 1" Kapton dome neodymium tweeter to deliver a wide, linear frequency response with precise low frequencies, transparent midrange, and high-fidelity high frequencies. The coaxial driver design helps to reduce feedback and keeps speaker weight to a minimum. The speaker has a 60 x 60° dispersion pattern, providing a wide sweet spot for monitoring or PA use.
The speaker has a 700W digital amplifier to provide plenty of power with low distortion. DSP processing allows you to choose the optimal EQ setting for floor or free field use, and also lets you enable the soft limiter and protection circuitry for long-term reliability. The connector/control panel has XLR and 1/4" inputs, as well as an XLR output for wide compatibility with a variety of systems. There are also AC Powercon input and output connectors for ultimate flexibility. An integrated handle provides convenient portability, while a standard pole socket allows you to mount the speaker on a stand or on top of a subwoofer.
Product Specifications
| Specification | Value |
|---|---|
| Configuration | Active 2-Way |
| Total Power Capacity | 700 W |
| HF Driver | 1 x 1" / 51 mm Polyimide Dome Tweeter |
| HF Voice Coil | 1.7" / 44 mm |
| LF Driver | 1 x 15" / 381 mm Woofer |
| LF Voice Coil | 2.5" / 6.35 cm |
| Frequency Response | 50 Hz to 20 kHz -3 dB |
| Maximum SPL | 130 dB |
| Coverage Angle | 60° H x 60° V |
| Input Sensitivity | +4 dBu |
| Protections | RMS, Thermal |
| Mounting | 1 x 1.38" / 35 mm Pole Socket |
| Construction Material | Metal Grille, Wood |
| Dimensions | 14.2 x 25.6 x 18.4" / 362 x 650 x 468 mm |
| Weight | 43.6 lb / 19.8 kg |
| Package Weight | 55 lb |
