RCF NXL14-A Point Source Speaker & SUB-18AX Sub Pkg w/ Pole Cables

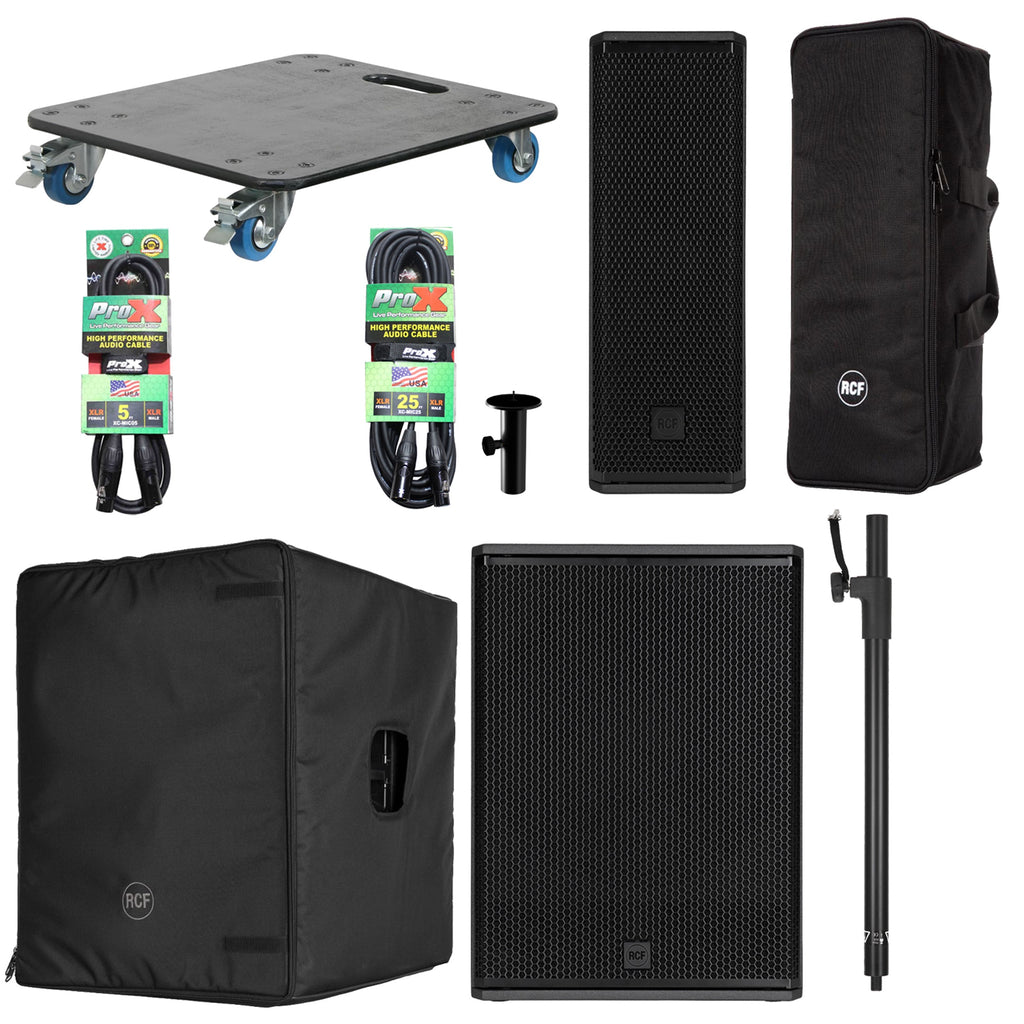

Package Includes:

• 1 RCF NXL14-A, Black Compact Active Dual 6-Inch 2-Way Point Source Column Speaker - 2100 Watt
• 1 RCF SUB18-AX, 2200 Watt Portable 18-Inch High-Power Active Subwoofer with Bluetooth and LiveRemote App - Black
• 1 RCF PMK60678, Pole Mount Stand Adapter for KX 515 and NXL 14 with 35mm Diameter Pole - Black
• 1 RCF AC-PM-M20 Threaded Pole Mount - Black
• 1 RCF CVR60685, Protective Cover for NXL 14-A
• 1 RCF COVER-003 Padded Cover for SUB 708-AS MK3 and SUB 8003-AS MK3
• 1 Odyssey ADP30P Multi-Purpose Pro Dolly Plate
• 1 ProX XC-MIC05 Balanced XLR-F to XLR-M High Performance Microphone Cable - 5 Feet
• 1 ProX XC-MIC25 Balanced XLR-F to XLR-M High Performance Microphone Cable - 25 Feet

This professional audio package includes a single RCF NXL14-A compact active speaker and an RCF SUB18-AX high-power 18-inch subwoofer, delivering clear, impactful sound for small to mid-sized venues. It comes with essential accessories: a pole mount adapter and threaded pole mount, protective covers for both speaker and subwoofer, an Odyssey ADP30P dolly for easy transport, and high-performance ProX XLR cables (5 ft and 25 ft) for reliable connections. Designed for mobile DJs, live sound, and portable setups, this kit combines portability, durability, and professional-grade audio performance

1 RCF NXL14-A, Black Compact Active Dual 6-Inch 2-Way Point Source Column Speaker - 2100 Watt

The RCF NXL 14-A is a compact active speaker in the professional NXL series. It features two 6” woofers and a 1.75” PKX compression driver on a rotatable TRW waveguide, powered by a 2,100W two-channel amplifier. Designed for clarity, power, and portability, it is ideal for vocal reproduction, compact live systems paired with SUB Series subwoofers, immersive setups, or as a fill speaker.

Power That Moves

2,100W Class-D amplifier with fast transient response, low distortion, and fanless convection cooling. Features balanced line input/output, volume control, signal LEDs, and preset selection: LINEAR, BOOST, STAGE.

High & Low Frequencies

1.75" PKX compression driver for high frequencies. Dual 6” neodymium woofers with water-resistant cones and hypervented magnetic structure for robust low-end.

Superior Directivity

Symmetrical transducers and rotatable 100º x 70º waveguide provide precise coverage and intelligibility.

Rig it Anywhere

Supports hanging, pole, truss, wall, or ceiling mounting in any orientation. Rotatable waveguide and top/bottom handles enhance portability.

Tour Ready Construction

Plywood enclosure with scratch-resistant polyurea coating, steel grille, waterproof powerCON TRUE1 connectors, and reinforced internal structure.

Bass Motion Control

Advanced BMC woofer excursion management for extended low frequencies without affecting stability.

Product Specifications:

Cabinet: Plywood

Handles: 2 top/bottom

Grille: Steel

Color: Black - RAL 9005

Frequency Response: 70 Hz – 20 kHz

Max SPL @ 1m: 128 dB

Coverage: Horizontal 100° / Vertical 70°

Transducers: 1 x 1.75” compression driver, 2 x 6” woofers

Inputs/Outputs: Combo XLR/Jack, XLR output

Input Sensitivity: -2 dBu / +4 dBu

Crossover: 1200 Hz

Protections: Excursion, Fast Limiter

Controls: Presets (Linear/Boost/Stage), Volume

Power: 2,100 W Peak (HF 700 W, LF 1,400 W)

Cooling: Convection

Connections: PowerCON TRUE1 TOP IN/OUT

Dimensions (H×W×D): 567 × 197 × 270 mm / 22.32 × 7.76 × 10.63 in

Weight: 12.8 kg / 28.22 lbs.

Shipping (H×W×D): 600 × 232 × 302 mm / 23.62 × 9.13 × 11.89 in

Shipping Weight: 14.6 kg / 32.19 lbs.

1 RCF SUB18-AX, 2200 Watt Portable 18-Inch High-Power Active Subwoofer with Bluetooth and LiveRemote App - Black

The RCF SUB18-AX, 18-Inch Portable High-Power Active Subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB18-AX is the ideal complement for 10" or 12" or 15” woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Advanced Subwoofer with Crossover Presets for RCF Speakers

The key to optimizing your sound system is the precise adjustment of your subwoofer's time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat, they can hear and the vibe they can feel. With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

LiveRemote App

Whether you’re a musician, DJ, or pro sound engineer, the RCF LiveRemote App, the same app that is used with the ART 9 AX, is now available with the SUB AX models. On the subs, crossover preset selection, system EQ and delay adjustments and crossover individual settings are quickly accessible. When two subwoofer models are paired, they can be set up for 2.2 operation. Available for Android and iOS phones and tablets.

Gig-Ready Solution

RCF cabinets are made of high-quality multi-ply hardwood coated with a rugged Black polyurea finish. Subs are stackable and lightweight, have ergonomic handles with rubber grips, and are designed for easy set-up and tear-down. The M20 threaded pole mount on the top of the cabinet supports RCF speakers of various sizes. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect transducers from dust. SUB AX Series subwoofers are built to last, with powerCON TRUE1 TOP mains connectors, so you can be sure that they will stand up to the rigors of use and transport.

Industry-Leading Subs

Lightweight and powerful, RCF woofers are a reference in high performance. RCF Precision Transducers engineers have developed new specific magnet sizes and molds to optimize magnetic flux while maintaining a low weight. The magnetic circuit topology is capable of delivering the highest, balanced level of performance in three specific areas: maintenance of a consistent, high integrity magnetic flux gap, exceptionally low distortion and efficiently integrating the magnetic circuit in a minimum weight design. The T-pole design optimization generates the minimum amount of flux modulation in the magnetic assembly during typical voice coil movement within the gap.

Drive the Rhythm of the Beat

With 2,200 Watts of power, our Class-D amplifier can manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low thermal loss. The stereo input circuit features a low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section combining high efficiency with minimum weight.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Product Specifications:

Cabinet/Case Material: Plywood

Handles: 1 handle per side

Pole mount/Cap: Yes

Grille: Steel

Color: Black

Acoustical Specifications:

Frequency Response: 35 Hz ÷ 120 Hz

Max SPL @ 1m: 135 dB

Transducers:

Woofer: 1 x 18'', 4.0'' v.c

Input/Output Section:

Input Signal: bal/unbal

Input Connectors: Combo XLR/Jack

Output Connectors: XLR

Input Sensitivity: -2 dBu/+4 dBu

Processor Section:

Protections: Thermal

Limiter: Soft Limiter

Controls: Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.

Power Section:

Total Power: 2200 W Peak, 1100 W RMS

Cooling: Convection

Connections: Powercon TRUE1 TOP IN/OUT

Product Weight: 43.8 kg / 96.56 lbs.

Product Dimensions (L×W×H): 19.88 × 26.97 × 27.28 in

Shipping Weight: 49.5 kg / 109.13 lbs.

Shipping Dimensions (L×W×H): 29.33 × 22.24 × 28.94 in.

1 RCF PMK60678, Pole Mount Stand Adapter for KX 515 and NXL 14 with 35mm Diameter Pole - Black

The Black Pole Mount Stand Adapter is a durable and secure mounting solution for KX 515 & NXL 14 loudspeakers, designed to fit 35mm diameter poles. Made from high-quality steel with a scratch-resistant black finish, it ensures long-lasting performance in professional audio setups. Whether for live sound, DJ performances, or fixed installations, this adapter provides stability and reliability for your loudspeakers.

Product Specifications:

Material: Steel

Color Options: Black

Protection: Scratch-resistant coating

Compliance: CE certified

Product Weight: 1.46 lbs.

Shipping Weight: 2.03 lbs.

Shipping Dimensions: 9.06 × 4.33 × 4.33 in

1 RCF AC-PM-M20 Threaded Pole Mount - Black

The RCF AC-PM-M20 is a durable, height-adjustable M20 pole mount designed for secure speaker-to-subwoofer setups. With a maximum load capacity of 40 kg (88 lbs.), this pole ensures reliable support for professional audio applications. Its adjustable height range—from 725 mm to 1135 mm—offers flexibility for optimal speaker positioning in both live and installed environments. CE-compliant and available in black finishes, the PM-KIT M20 is a versatile, rugged solution for modern sound reinforcement systems.

Product Specifications:

Compatibility: Speakers

Length (min - max): 725 mm - 1135 mm

Standard compliance:

Safety agency: CE compliant

Color: Black

Product Weight: 1.13 kg / 2.49 lbs.

Shipping Dimensions (HxWxD): 2.36 inches 30.71 inches4.13 inches

Shipping Weight: 1.3 kg / 2.87 lbs.

1 RCF CVR60685, Protective Cover for NXL 14-A

The RCF Protective Cover for NXL 14-A is a durable and padded travel bag designed to protect your speaker from scratches, impacts, and dust during storage and transportation. Made with a heavy-duty 600D polyester outer fabric on a PVC base, it ensures long-lasting durability. The internal 190T taffeta fabric and 10mm foam rubber padding provide shock absorption and added protection. Featuring a zippered closure and a sturdy handle, this cover allows for easy carrying while keeping your speaker safe. The embroidered grey RCF logo adds a professional touch.

Product Specifications:

Material: Nylon

Protection: Scratches, impacts

Standard Compliance: CE compliant

Color: Black

Weight: 1 kg / 2.2 lbs.

Shipping Weight: 1.8 kg / 3.97 lbs.

Shipping Dimensions (HxWxD): 3.15 x 18.11 x 13.78

1 RCF COVER-003 Padded Cover for SUB 708-AS MK3 and SUB 8003-AS MK3

The RCF COVER-003 Padded Cover for SUB 708-AS MK3 and SUB 8003-AS MK3 Padded Cover for cabinet protection. It features heavy-duty weatherproof polyester outer fabric, foam rubber padding, and zip openings with Velcro fasteners. The frontal cover can be opened and blocked with velcro on one side. It features multiple openings for handles, for the rear connection panel, and the pole mount cap.

Product Specifications:

Color: Black

Water Resistance: Yes

IP Rating: No

Certifications: CE

Materials: Exterior: Nylon, Polyester, PVC, Rubber

Padded Interior: Yes, 0.4" / 10 mm Thick

1 Odyssey ADP30P Multi-Purpose Pro Dolly Plate

Most working DJs don't have roadies, and that's where Odyssey moving equipment comes in handy. Odyssey Dolly Plates are perfect for getting your gear in gear. Made of the toughest materials, let them take the weight off your shoulders. The ADP30P dolly plate is designed for most standard depth equipment and rack cases.

Product Specifications:

Weight: 15.00 lbs.

Dimensions: 24.00" W x 21.00" D x 5.00" H

Shipping Weight: 17.00 lbs.

Shipping Dimensions: 25.00" W x 22.00" D x 7.00" H

1 ProX XC-MIC05 Balanced XLR-F to XLR-M High Performance Microphone Cable - 5 Feet

The ProX XC-MIC05 is ideal for professional touring and live sound applications where a device with an XLR output needs to be connected to a device with an XLR input. ProX cables are built with uncompromised quality with excellent performance at each connection - Instrument cables, Speaker cables, RCA cables, DMX cables, Power cables and more. Our cables are made for professionals, by professionals.

Fits: XLR-M to XLR-F

Product Specifications:

Length: 25 Ft.

Connector 1: XLR-M (Male)

Connector 2: XLR-F (Female)

Conductor: 20 AWG x 2 Oxygen-Free Copper (OFC)

Shielding: 93% Braided OFC for noise reduction

Plating: Gold/Silver plated contacts for superior signal transfer

Shipping Dimensions: 1.00"H x 3.00"W x 7.00"L

Shipping Weight: 1 lbs.

1 ProX XC-MIC25 Balanced XLR-F to XLR-M High Performance Microphone Cable - 25 Feet

The ProX XC-MIC25 is ideal for professional touring and live sound applications where a device with an XLR output needs to be connected to a device with an XLR input. 93% braided OFC Copper Compact shield to reduce noise and protect pure sound transfer. Compact cable diameter to decrease eddy currents. Bending & Twisting are no match for our high-performance tour-grade audio cables. They're designed to provide years of dependable sound reproduction and outlast every other cable on the market! Complete Coil technology demands consistent weave tolerances to create precise accuracy and detailed clarity. This is the most important part of the design and greatly affects performance.

Fits: XLR-M to XLR-F

Product Specifications:

Cable Type: Balanced

Length: 25 Ft.

Connector 1: XLR-M (Male)

Connector 2: XLR-F (Female)

Conductor: 20 AWG x 2 Oxygen-Free Copper (OFC)

Shielding: 93% Braided OFC for noise reduction

Plating: Gold/Silver plated contacts for superior signal transfer

Jacket: Extra-durable and flexible construction

Durability: Designed for heavy everyday use

Warranty: ProX Limited Lifetime Warranty
