RCF NXL14-A Point Source Speaker & SUB-18AX Sub Pkg w/ Pole Cables

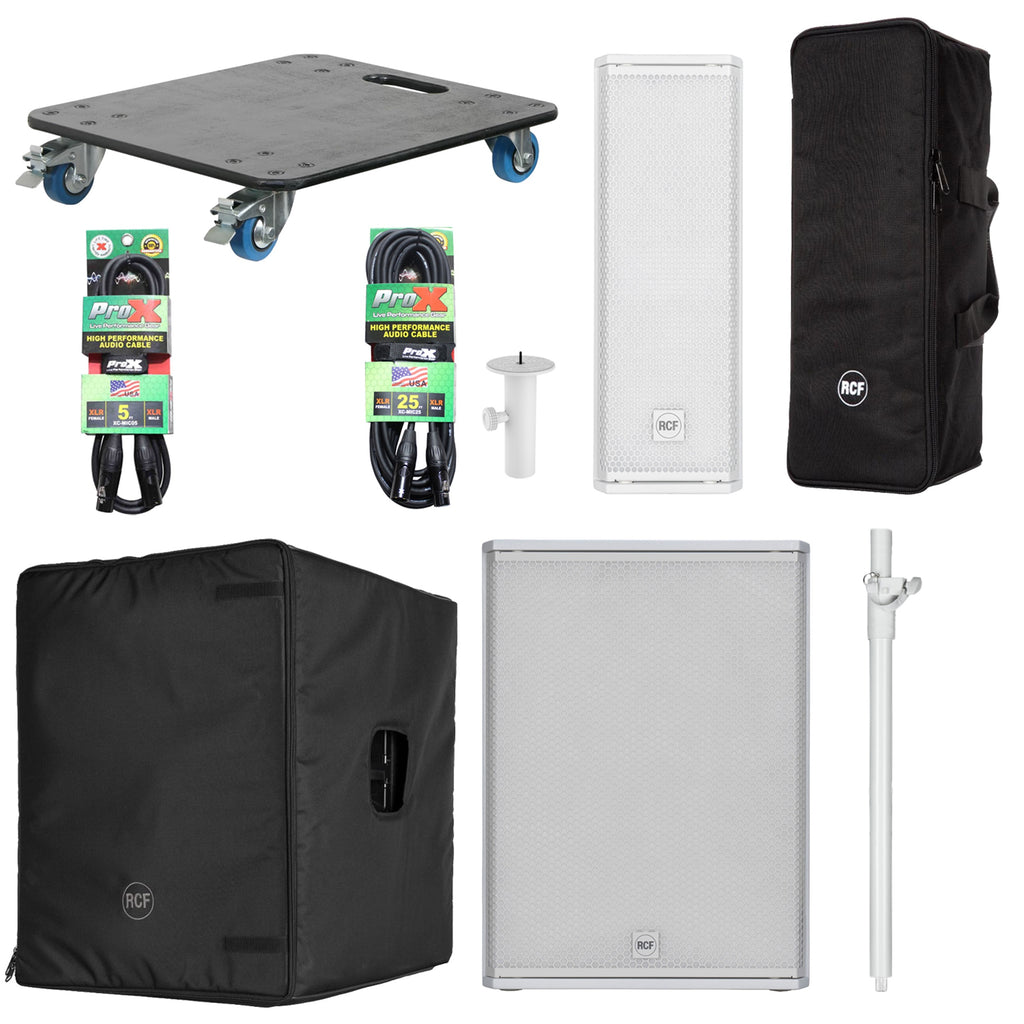

Package Includes:

• 1 RCF NXL14-A-W, White Compact Active Dual 6-Inch 2-Way Point Source Column Speaker - 2100 Watt
• 1 RCF PMK60679, Pole Mount Stand Adapter for KX 515 and NXL 14 with 35mm Diameter Pole - White
• 1 RCF SUB18-AX W, 2200 Watt Portable 18-Inch High-Power Active Subwoofer with Bluetooth and LiveRemote App - White
• 1 RCF CVR60685, Protective Cover for NXL 14-A
• 1 RCF AC-PM-M20-W Threaded Pole Mount - White
• 1 RCF COVER-003 Padded Cover for SUB 708-AS MK3 and SUB 8003-AS MK3
• 1 Odyssey ADP30P Multi-Purpose Pro Dolly Plate
• 1 ProX XC-MIC05 Balanced XLR-F to XLR-M High Performance Microphone Cable - 5 Feet
• 1 ProX XC-MIC25 Balanced XLR-F to XLR-M High Performance Microphone Cable - 25 Feet

This RCF White Sound System Package features 1 NXL14-A-W column speaker paired with a powerful SUB18-AX W 18-inch subwoofer for deep, full-range sound. The package includes pole mount adapters, threaded pole mounts, protective covers for the speaker and sub, a versatile Odyssey ADP30P dolly, and professional 5 ft and 25 ft XLR cables, providing a complete, ready-to-go solution for DJs, live events, and professional venues.

1 RCF NXL14-A-W, White Compact Active Dual 6-Inch 2-Way Point Source Column Speaker - 2100 Watt

The RCF NXL14-A-W is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. With white finish, the NXL14-A-W is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

Pair it with SUB AX

Unlock your NXL14-A-W’s true potential with RCF’s SUB AX Series. The key to optimizing your sound system is the precise match between your subs and tops. This not only elevates sound quality but also enhances bass response, giving your audience both the beat, they can hear and the vibe they can feel. With internal factory-tuned crossover presets for NXL14-A-W, your sound system is show-ready in a few easy steps. Simply connect your speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

Available in 15” and 18” models, SUB AX subwoofers deliver earth-shaking bass (up to 135 dB) with pristine clarity by combining powerful 2200-Watt Class-D amplifiers with high-power, long-excursion transducers. Featuring stereo crossovers, 8-band EQs, delays, factory-tuned crossover presets, a color touch panel, and remote control via Bluetooth, the SUB AX lets you tailor your live sound effortlessly. Built for the road with a rugged design and cardioid configuration option, the SUB AX is the perfect solution for powerful, solid base on the go.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Product Specifications:

Cabinet/Case Material: Plywood

Hardware:

2X M10 TOP AND BOTTOM

2X PIN D.10

Handles: 2 TOP AND BOTTOM

Grille: Steel

Color: White - RAL 9003

Acoustical Specifications:

Frequency Response: 70 Hz ÷ 20000 Hz

Max SPL @ 1m: 128 dB

Horizontal Coverage Angle: 100°

Vertical Coverage Angle: 70°

Transducers:

Compression Driver: 1 x 1.0'' neo, 1.75'' v.c

Woofer: 2 x 6.0'' neo, 2.0'' v.c

Input/output Section:

Input Signal: bal/unbal

Input Connectors: Combo XLR/Jack

Output Connectors: XLR

Input Sensitivity: -2 dBu/+4 dBu

Processor Section:

Crossover Frequencies: 1200

Protections: Excurs.

Limiter: Fast Limiter

Controls: Linear/Boost/Stage Presets, Volume.

Power Section:

Total Power: 2100 W Peak

High Frequencies: 700 W Peak

Low Frequencies: 1400 W Peak

Cooling: Convection

Connections: Powercon TRUE1 TOP IN/OUT

Product Height: 567 mm / 22.32 inches

Product Width: 197 mm / 7.76 inches

Product Depth: 270 mm / 10.63 inches

Product Weight: 12.8 kg / 28.22 lbs.

Safety Agency: CE compliant

1 RCF PMK60679, Pole Mount Stand Adapter for KX 515 and NXL 14 with 35mm Diameter Pole - White

The White Pole Mount Stand Adapter is a durable and secure mounting solution for KX 515 & NXL 14 loudspeakers, designed to fit 35mm diameter poles. Made from high-quality steel with a scratch-resistant white finish, it ensures long-lasting performance in professional audio setups. Whether for live sound, DJ performances, or fixed installations, this adapter provides stability and reliability for your loudspeakers.

Product Specifications:

Material: Steel

Color Options: White

Protection: Scratch-resistant coating

Compliance: CE certified

Product Weight: 1.46 lbs

1 RCF SUB18-AX W, 2200 Watt Portable 18-Inch High-Power Active Subwoofer with Bluetooth and LiveRemote App - White

The SUB18-AX W, 18-Inch Portable High-Power Active Subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB18-AX is the ideal complement for 10" or 12" or 15” woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Large Touch Display

2.4-inch Color Touch Panel

Rotary Push Encoder

Swipe Gestures for Fast Navigation

Advanced DSP for your System

Eight Recallable Snapshots

Fullrange Parametric 8 Band EQ

Up to 45 meters Delay

Precision Tuning

Top/Sub Alignment (meters/feet/ms)

Cardioid Function and L/R Balance for 2.1 systems

Drive the Rhythm of the Beat

With 2,200 Watts of power, our Class-D amplifier can manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low thermal loss. The stereo input circuit features a low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section combining high efficiency with minimum weight.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Product Specifications:

Cabinet/Case Material: Plywood

Handles: 1 handle per side

Pole mount/Cap: Yes

Grille: Steel

Color: White

Acoustical Specifications:

Frequency Response: 35 Hz ÷ 120 Hz

Max SPL @ 1m: 135 dB

Transducers:

Woofer: 1 x 18'', 4.0'' v.c

Input/output Section:

Input Signal: bal/unbal

Input Connectors: Combo XLR/Jack

Output Connectors: XLR

Input Sensitivity: -2 dBu/+4 dBu

Processor Section:

Protections: Thermal

Limiter: Soft Limiter

Controls: Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.

Power Section:

Total Power: 2200 W Peak, 1100 W RMS

Cooling: Convection

Connections: Powercon TRUE1 TOP IN/OUT

Product Height: 693 mm / 27.28 inches

Product Width: 505 mm / 19.88 inches

Product Depth: 685 mm / 26.97 inches

Product Weight: 43.8 kg / 96.56 lbs.

Safety Agency: CE compliant

1 RCF CVR60685, Protective Cover for NXL 14-A

The RCF Protective Cover for NXL 14-A is a durable and padded travel bag designed to protect your speaker from scratches, impacts, and dust during storage and transportation. Made with a heavy-duty 600D polyester outer fabric on a PVC base, it ensures long-lasting durability. The internal 190T taffeta fabric and 10mm foam rubber padding provide shock absorption and added protection. Featuring a zippered closure and a sturdy handle, this cover allows for easy carrying while keeping your speaker safe. The embroidered grey RCF logo adds a professional touch.

Product Specifications:

Material: Nylon

Protection: Scratches, impacts

Standard Compliance: CE compliant

Color: Black

Weight: 1 kg / 2.2 lbs.

1 RCF AC-PM-M20-W Threaded Pole Mount - White

The RCF AC-PM-M20-W Threaded Pole Mount - White is a durable, height-adjustable M20 pole mount designed for secure speaker-to-subwoofer setups. With a maximum load capacity of 40 kg (88 lbs.), this pole ensures reliable support for professional audio applications. Its adjustable height range—from 725 mm to 1135 mm—offers flexibility for optimal speaker positioning in both live and installed environments. CE-compliant and available in white finishes, the PM-KIT M20 is a versatile, rugged solution for modern sound reinforcement systems.

Product Specifications:

Compatibly: Speakers

Length (min - max): 725 mm - 1135 mm

Standard compliance:

Safety agency: CE compliant

Color: White

Product Weight: 1.13 kg / 2.49 lbs.

1 RCF COVER-003 Padded Cover for SUB 708-AS MK3 and SUB 8003-AS MK3

The RCF COVER-003 Padded Cover for SUB 708-AS MK3 and SUB 8003-AS MK3 Padded Cover for cabinet protection. It features heavy-duty weatherproof polyester outer fabric, foam rubber padding, and zip openings with Velcro fasteners. The frontal cover can be opened and blocked with velcro on one side. It features multiple openings for handles, for the rear connection panel, and the pole mount cap.

Product Specifications:

Color: Black

Water Resistance: Yes

IP Rating: No

Certifications: CE

Materials: Exterior: Nylon, Polyester, PVC, Rubber

Padded Interior: Yes, 0.4" / 10 mm Thick

1 Odyssey ADP30P Multi-Purpose Pro Dolly Plate

Most working DJs don't have roadies, and that's where Odyssey moving equipment comes in handy. Odyssey Dolly Plates are perfect for getting your gear in gear. Made of the toughest materials, let them take the weight off your shoulders. The ADP30P dolly plate is designed for most standard depth equipment and rack cases.
Product Specifications:

Compatibility: Designed for most standard depth equipment and rack cases

Construction: Made from durable, heavy-duty materials

Function: Facilitates easy movement and transport of heavy gear

Application: Ideal for DJs, live performers, and mobile setups without roadies

Dimensions: 24.00" W x 21.00" D x 5.00" H

Weight: 15.00 lbs.

1 ProX XC-MIC05 Balanced XLR-F to XLR-M High Performance Microphone Cable - 5 Feet

The ProX XC-MIC05 is ideal for professional touring and live sound applications where a device with an XLR output needs to be connected to a device with an XLR input. ProX cables are built with uncompromised quality with excellent performance at each connection - Instrument cables, Speaker cables, RCA cables, DMX cables, Power cables and more. Our cables are made for professionals, by professionals.

Product Specifications:

Fits: XLR-M to XLR-F

Length: 05 Ft.

Connector 1: XLR-M (Male)

Connector 2: XLR-F (Female)

Conductor: 20 AWG x 2 Oxygen-Free Copper (OFC)

Shielding: 93% Braided OFC for noise reduction

Plating: Gold/Silver plated contacts for superior signal transfer

Jacket: Extra-durable and flexible construction

Durability: Designed for heavy everyday use

Warranty: ProX Limited Lifetime Warranty

1 ProX XC-MIC25 Balanced XLR-F to XLR-M High Performance Microphone Cable - 25 Feet

The ProX XC-MIC25 is ideal for professional touring and live sound applications where a device with an XLR output needs to be connected to a device with an XLR input. 93% braided OFC Copper Compact shield to reduce noise and protect pure sound transfer. Compact cable diameter to decrease eddy currents. Bending & Twisting are no match for our high-performance tour-grade audio cables. They're designed to provide years of dependable sound reproduction and outlast every other cable on the market! Complete Coil technology demands consistent weave tolerances to create precise accuracy and detailed clarity. This is the most important part of the design and greatly affects performance.

Fits: XLR-M to XLR-F

Product Specifications:

Cable Type: Balanced

Length: 25 Ft.

Connector 1: XLR-M (Male)

Connector 2: XLR-F (Female)

Conductor: 20 AWG x 2 Oxygen-Free Copper (OFC)

Shielding: 93% Braided OFC for noise reduction

Plating: Gold/Silver plated contacts for superior signal transfer

Jacket: Extra-durable and flexible construction

Durability: Designed for heavy everyday use

Warranty: ProX Limited Lifetime Warranty
