Description

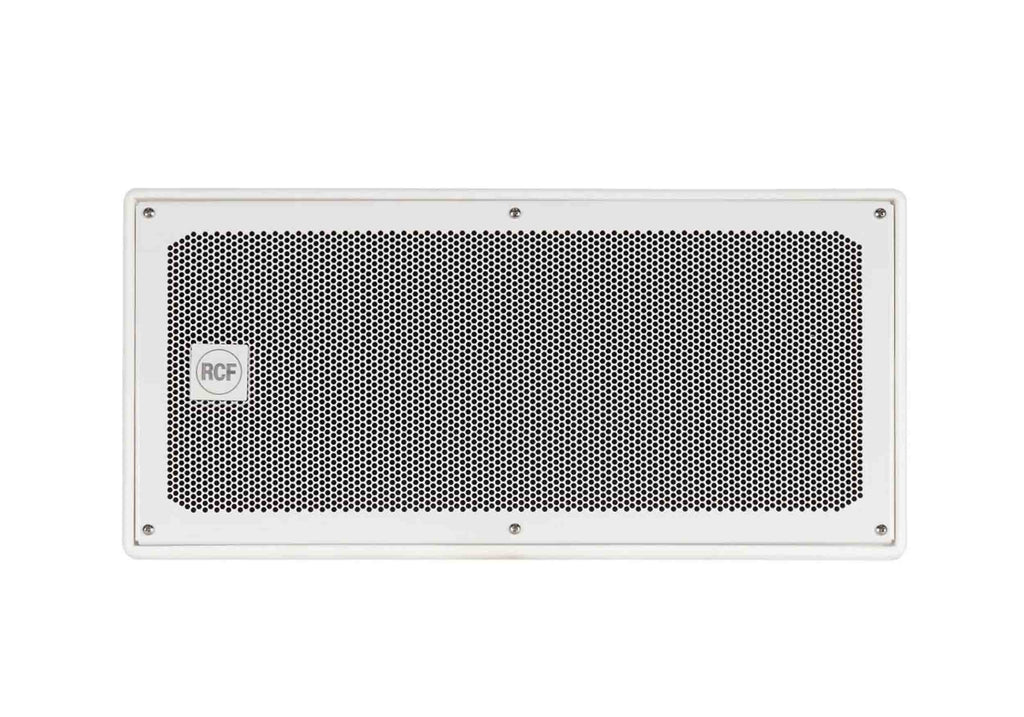

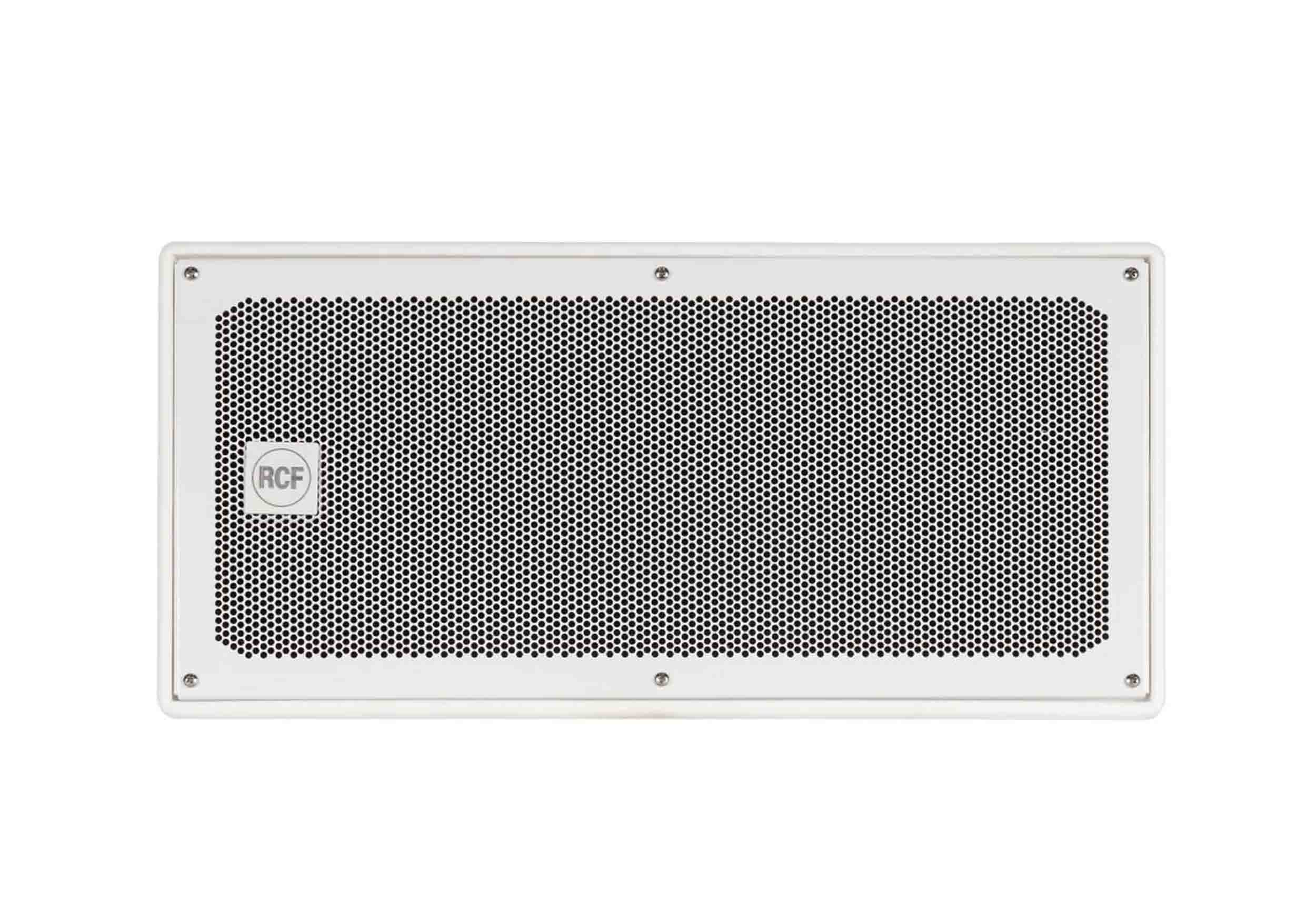

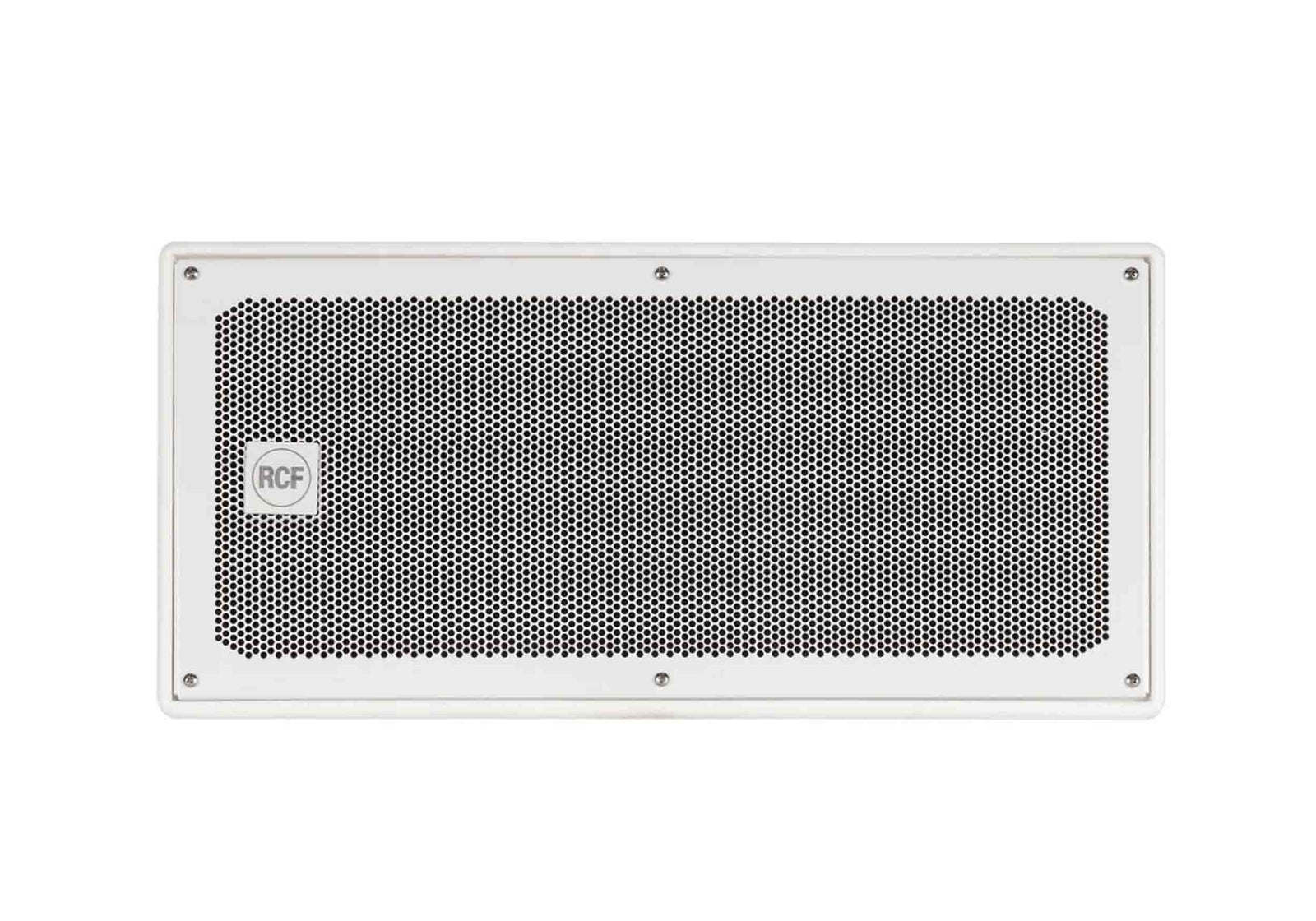

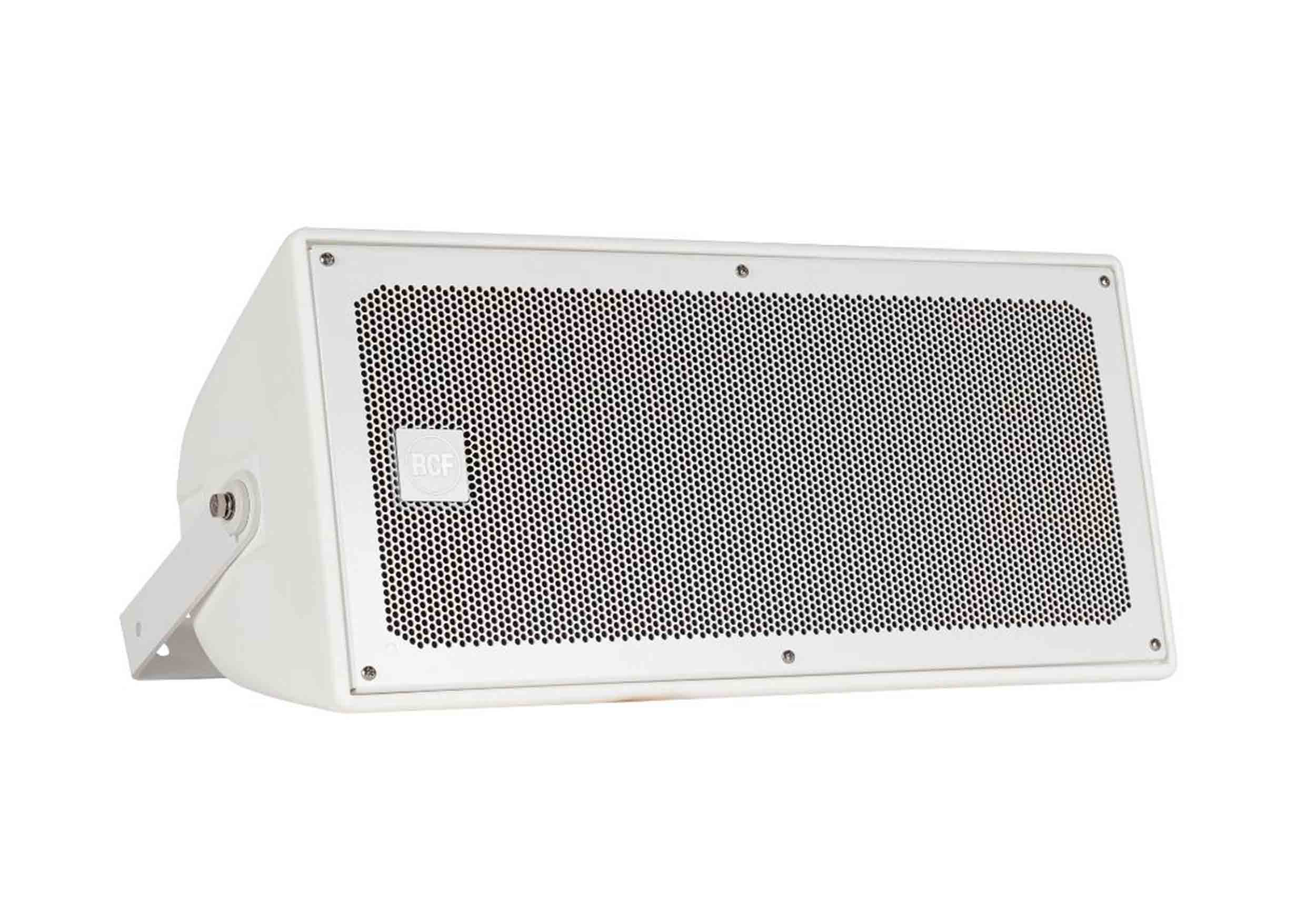

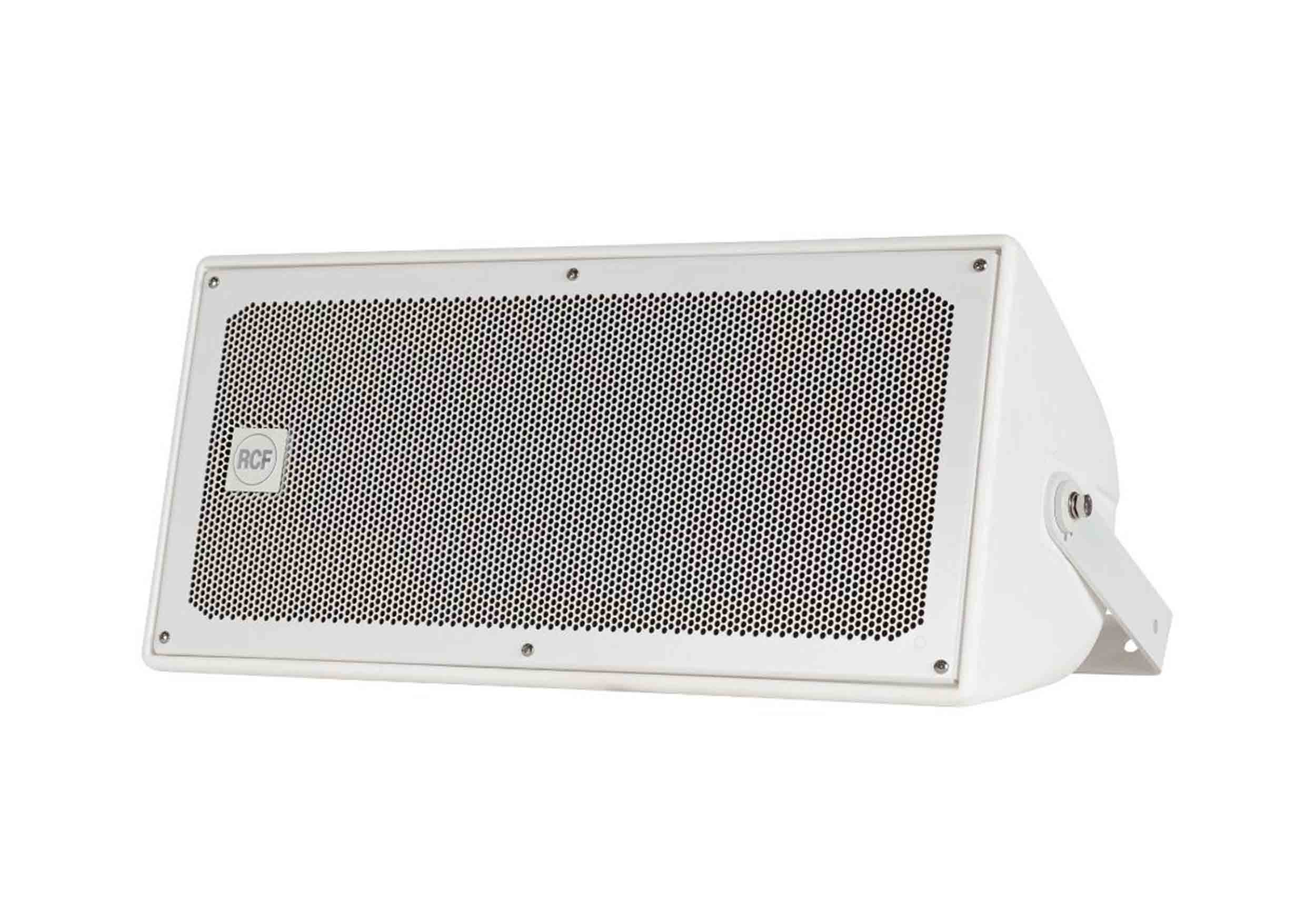

The RCF P4228W is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes a constant directivity CMD horn, loaded with a 1.4" RCF Precision neodymium compression driver with a 2.5" diaphragm assembly for smooth, highly controlled coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
All-weather performance:
The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.
Versatility for any application:
Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
LICC - Low Impedance Compensated Crossover: The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.
CMD - Coverage Matching Design:
RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Product Specification:
Frequency Response (-10 dB): 80 Hz – 20,000 Hz
Max SPL @ 1 m: 129 dB
Horizontal Coverage Angle: 110°
Vertical Coverage Angle: 60°
Directivity Index Q: 9
System Sensitivity: 97 dB
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 400 W RMS
Peak Power Handling: 1600 W
Protections: Dynamic Active MOSFET
Crossover Frequency: 1100 Hz
Compression Driver: 1 x 1.4" neodymium, 2.5" voice coil
Woofer: 2 x 8", 2.5" voice coil

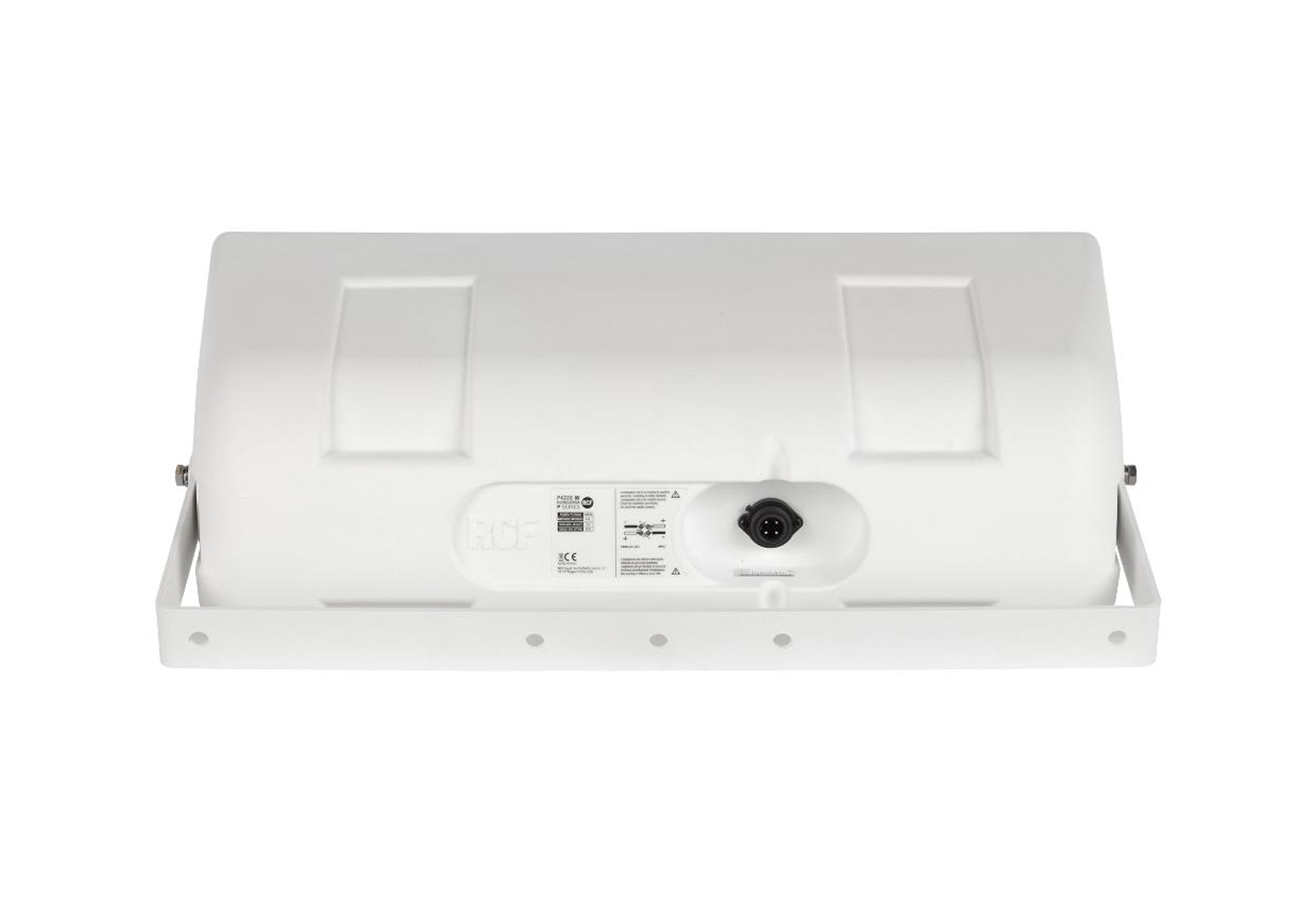

Input Connector: Amphenol Eco/Mat IP67
IP Protection Grade: IP55
Safety Standard: CE compliant
Cabinet Material: Low-density polyethylene (PE)

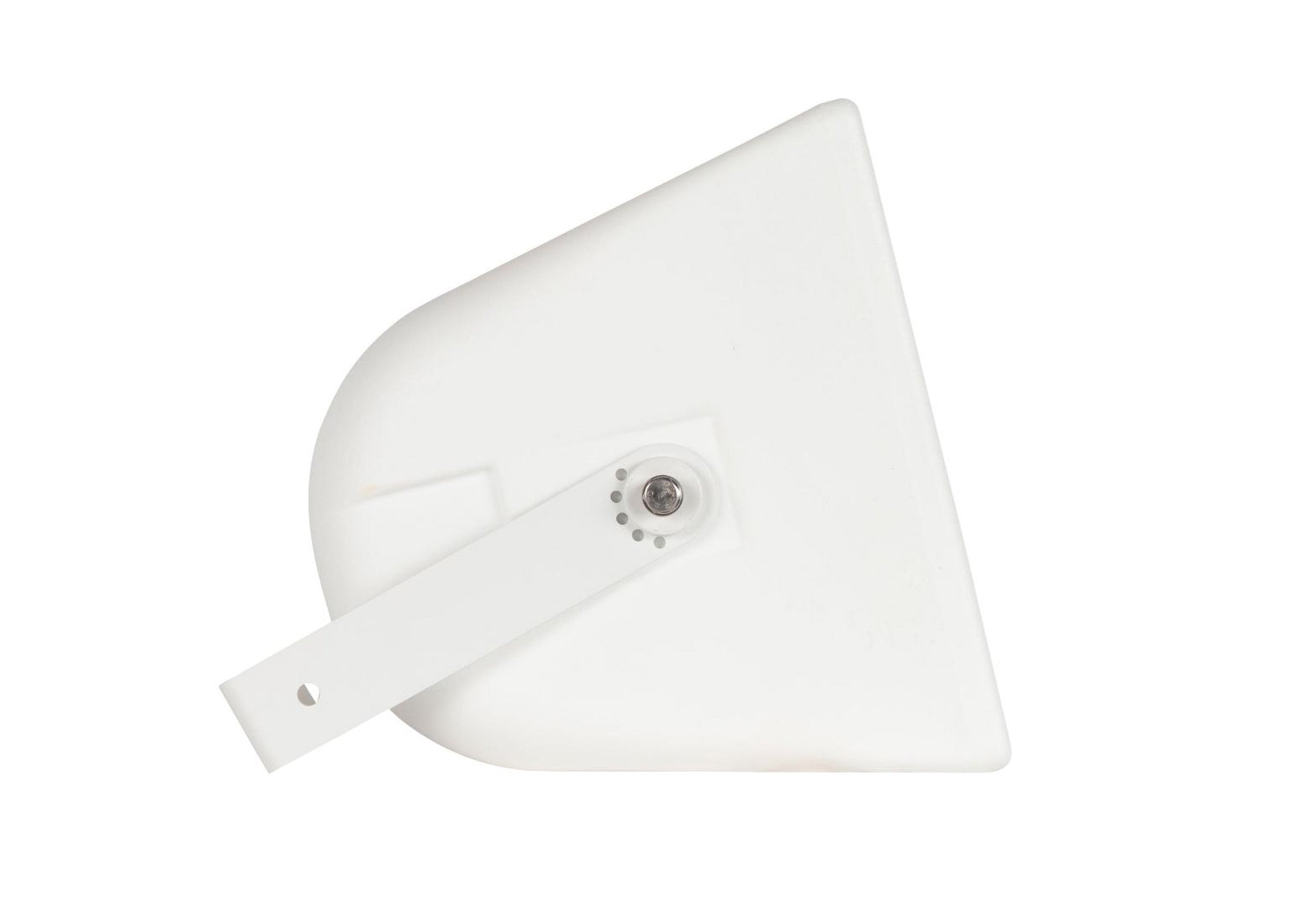

Hardware: 4 x M8 brass inserts with stainless steel U-bracket
Grille: Aluminum with water-repellent protection
Color: White (RAL 9003)
Product Height: 268 mm / 10.55 inches
Product Width: 566 mm / 22.28 inches
Product Depth: 250 mm / 9.84 inches
Product Weight: 14 kg / 30.86 lbs.
Shipping Height: 290 mm / 11.42 inches
Shipping Width: 590 mm / 23.23 inches
Shipping Depth: 290 mm / 11.42 inches
Shipping Weight: 15.6 kg / 34.39 lbs.
