Description

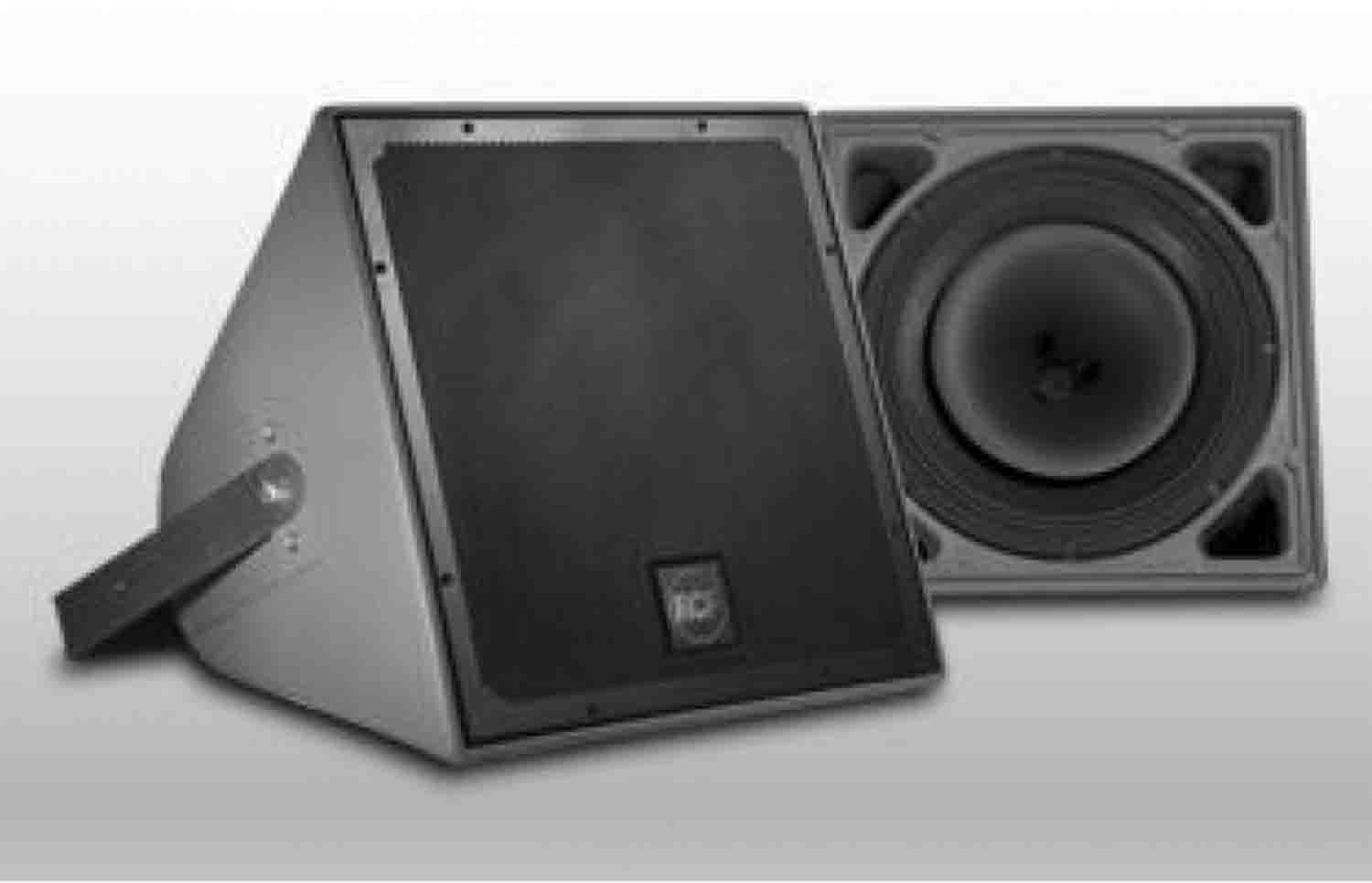

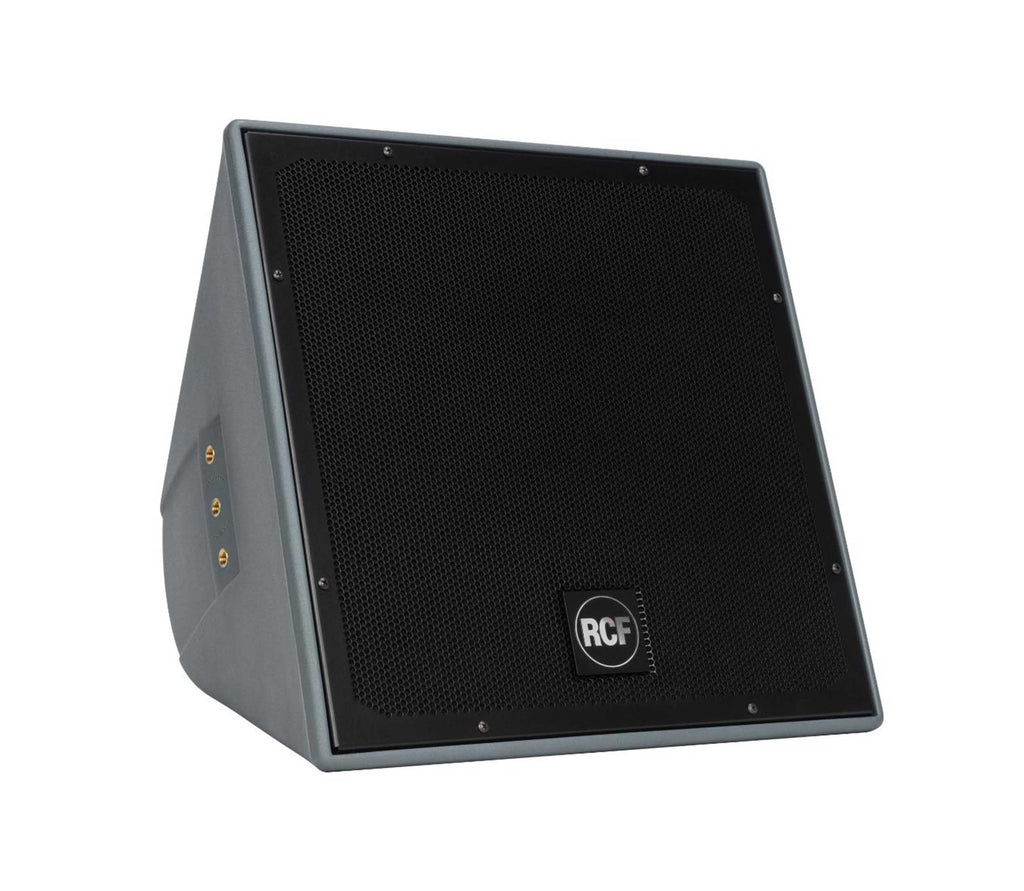

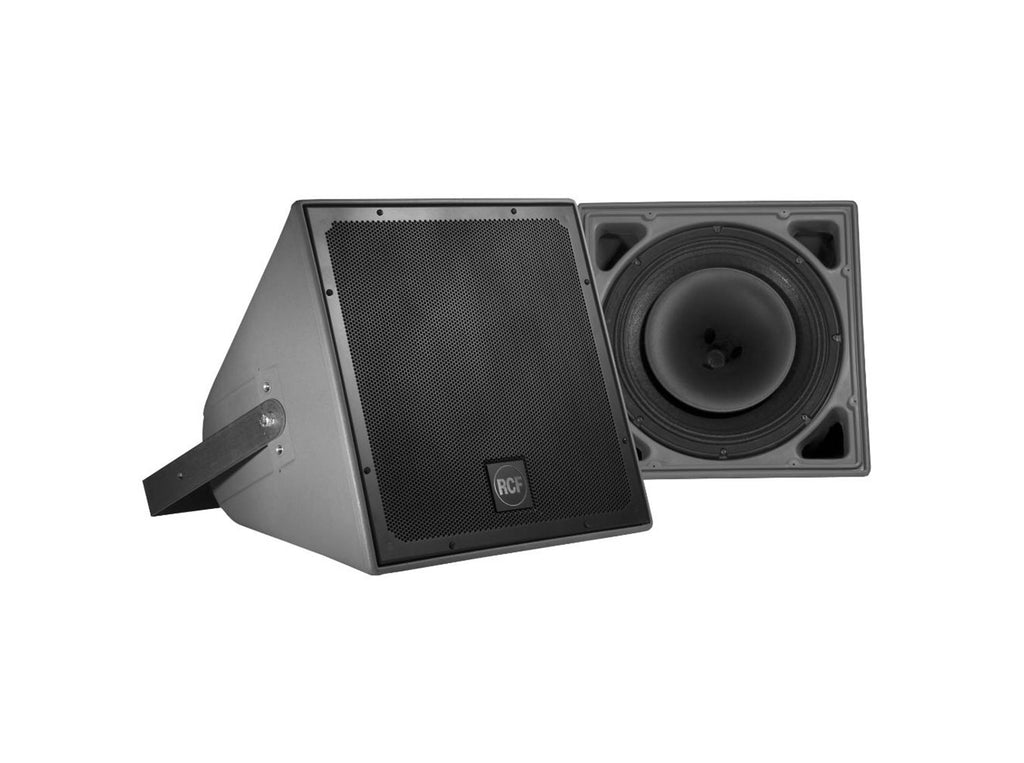

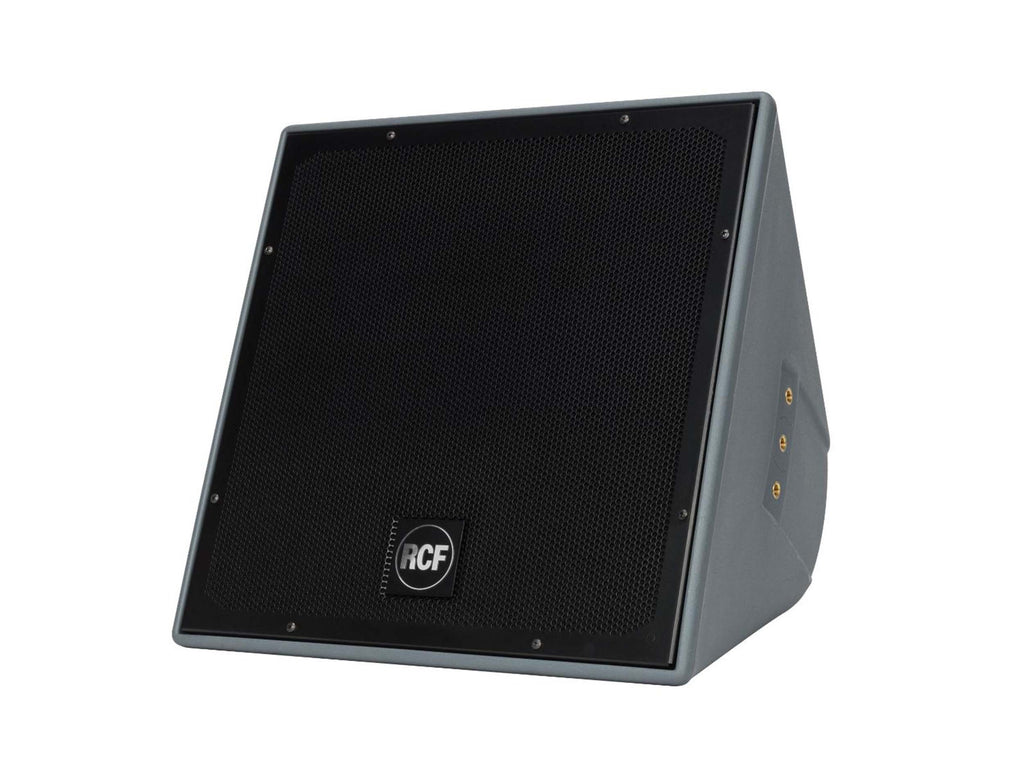

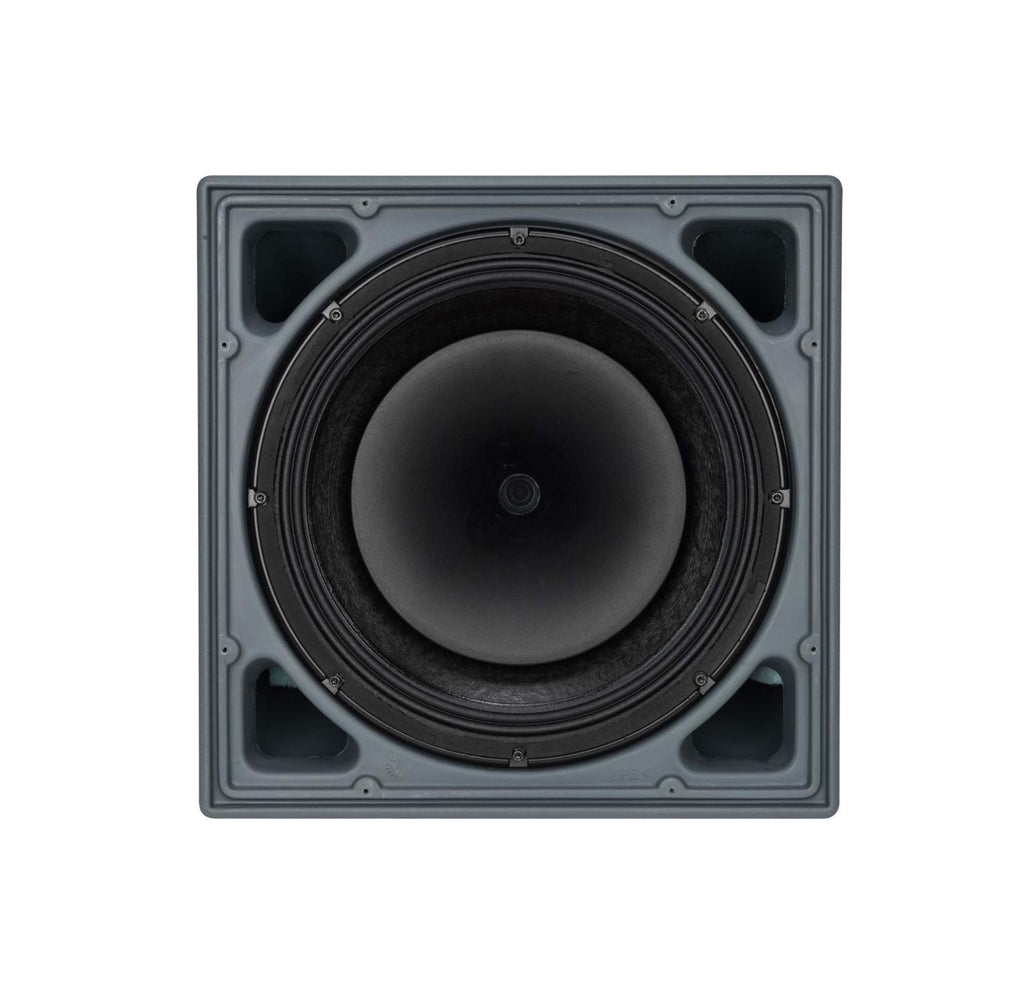

The RCF P6215 is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for very high output and long-throw applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” neodymium woofer, the high-frequency section combines a 1.3” neodymium RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. Internal circuit provides low crossover frequency for accurate vocal intelligibility and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and one durable and corrosion-resistant 316P stainless steel U-Bracket with f spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
All-weather performance

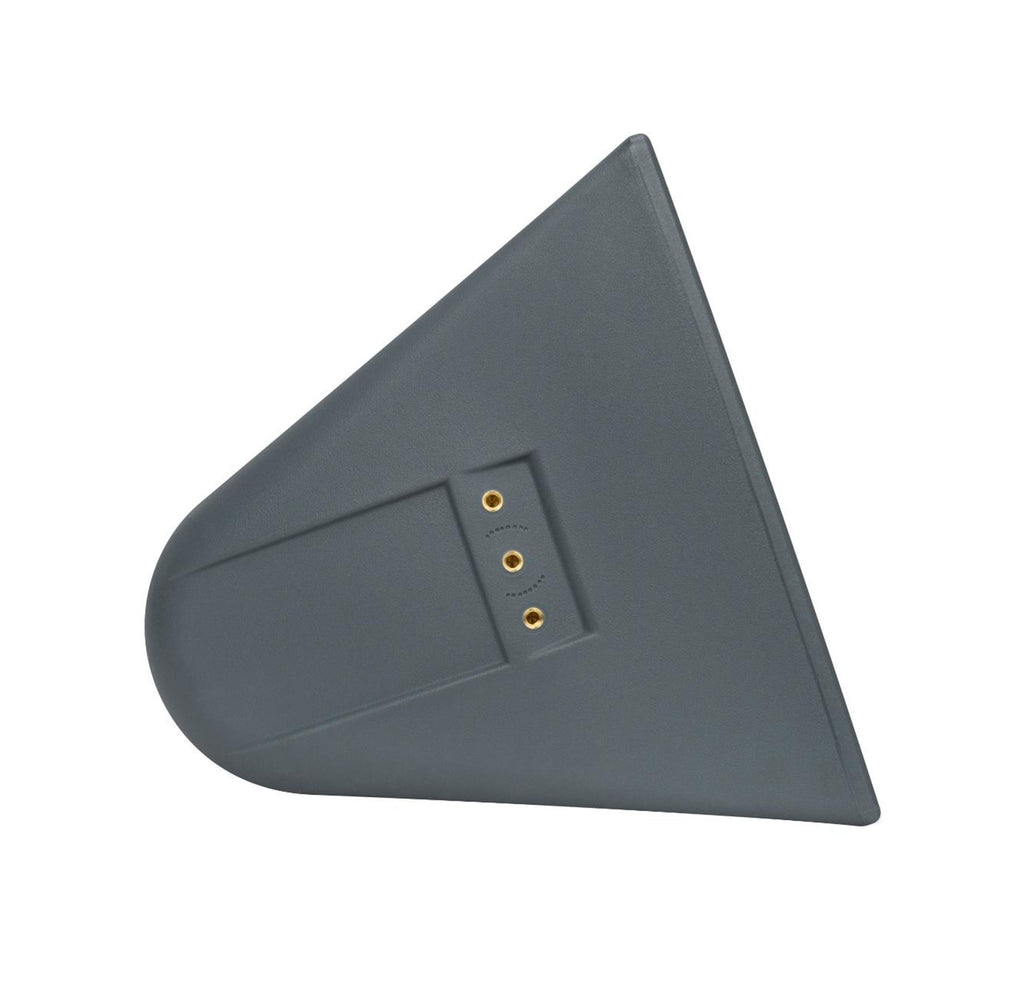

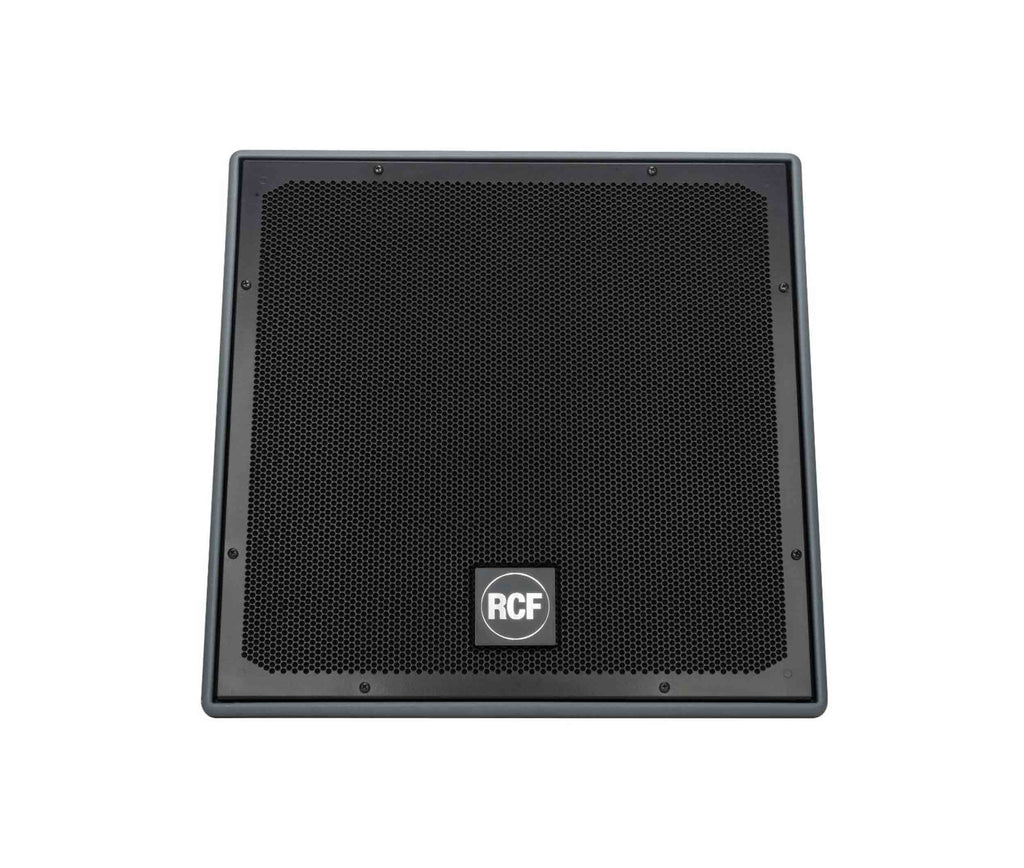

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material; front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.
Versatility for any application
Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and wave guides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
LICC - Low Impedance Compensated Crossover
The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.
CMD - Coverage Matching Design
RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Product Specification:
Frequency Response (-10 dB): 75 Hz – 20,000 Hz
Max SPL @ 1 m: 134 dB
Horizontal Coverage Angle: 60°
Vertical Coverage Angle: 60°
Directivity Index Q: 13
System Sensitivity: 100 dB
Amplification: Full Range
Nominal Impedance: 8 ohms
Power Handling: 600 W RMS
Peak Power Handling: 2400 W
Protections: Dynamic Active MOSFET
Crossover Frequency: 1100 Hz
Compression Driver: 1 x 1.3" neodymium, 2.5" voice coil
Woofer: Coaxial 15" neodymium, 3.0" voice coil
Input / Output:
Input Connector: Neoprene cable
Standards & Compliance:
IP Protection Grade: IP55
Safety Standard: CE compliant
Cabinet Material: Low-density polyethylene (PE)
Hardware: 12 x M10 brass inserts with stainless steel U-bracket and spacers
Grille: Aluminium with water-repellent protection
Color: Grey - RAL 7011
Product Height: 463 mm / 18.23 inches
Product Width: 463 mm / 18.23 inches
Product Depth: 433 mm / 17.05 inches
Product Weight: 17 kg / 37.48 lbs.
Shipping Height: 519 mm / 20.43 inches
Shipping Width: 489 mm / 19.25 inches
Shipping Depth: 489 mm / 19.25 inches
Shipping Weight: 21.4 kg / 47.18 lbs.
