Description

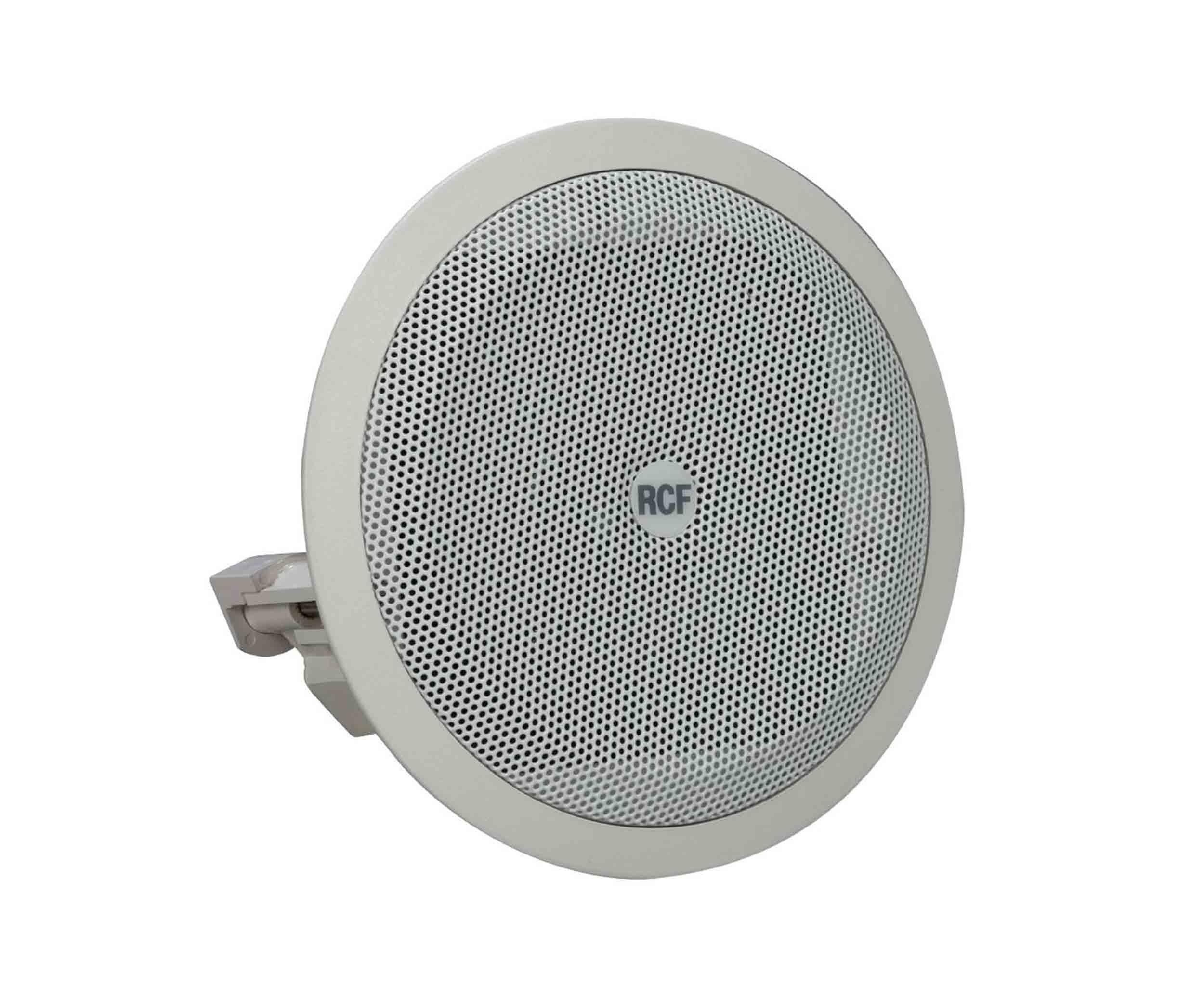

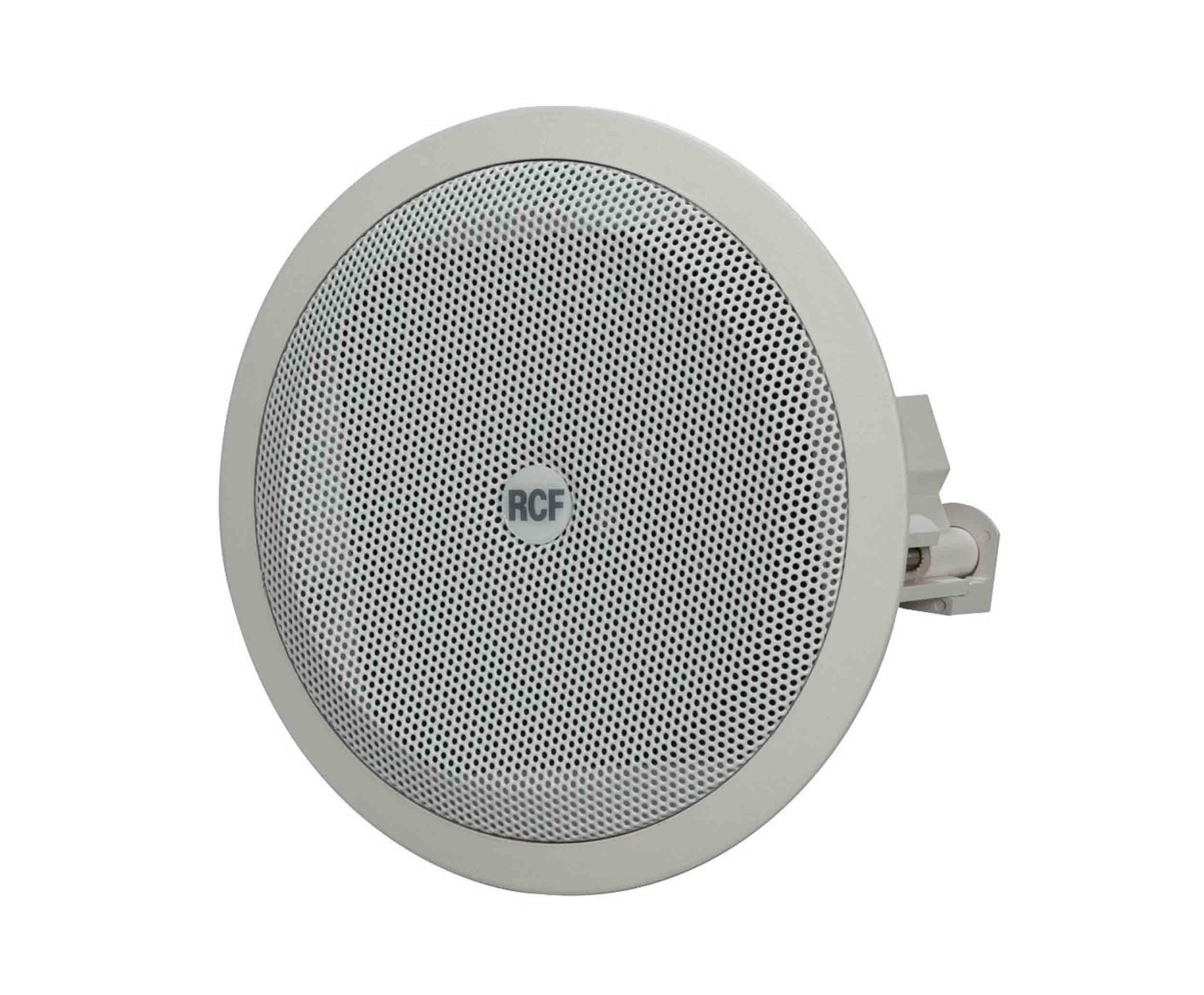

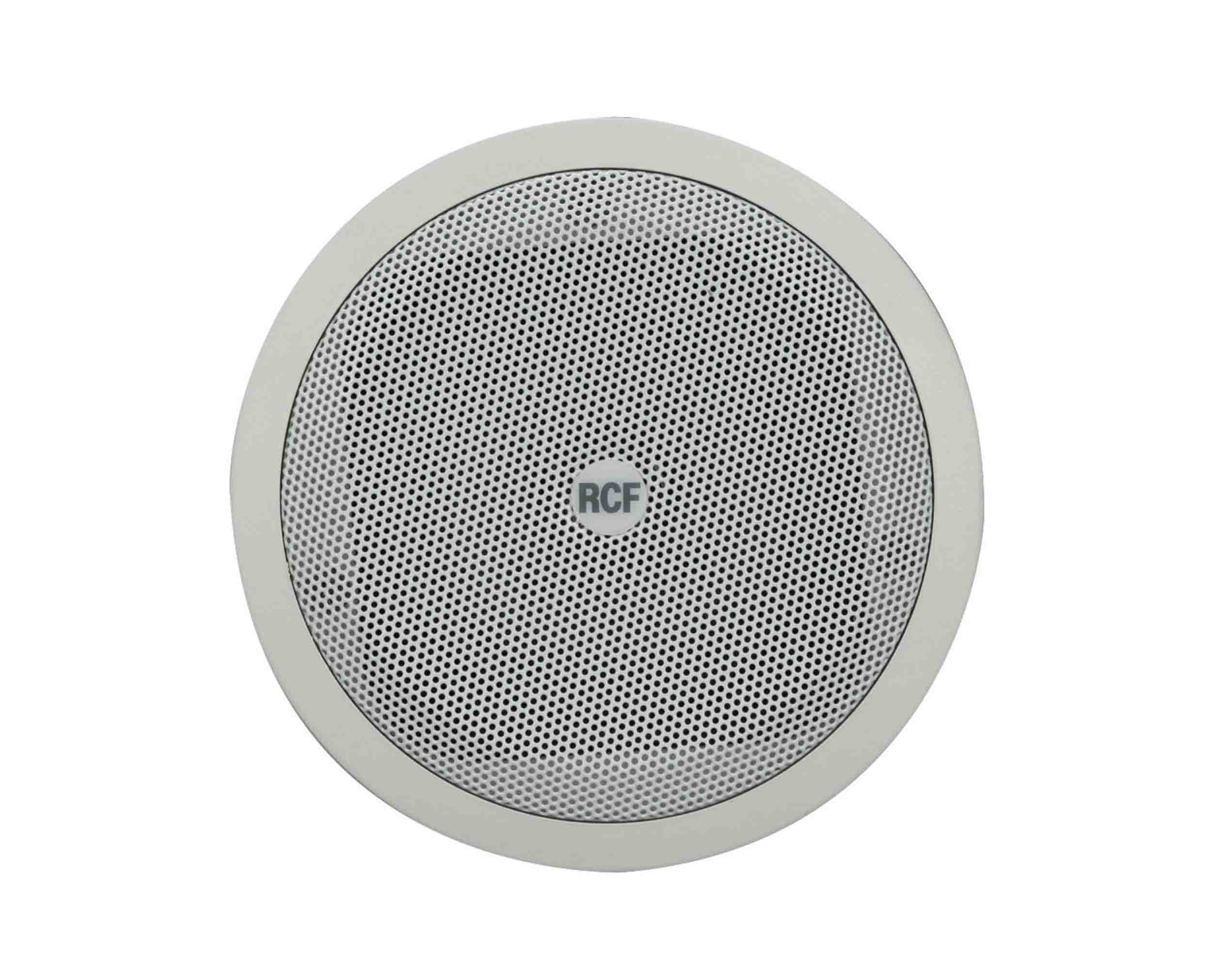

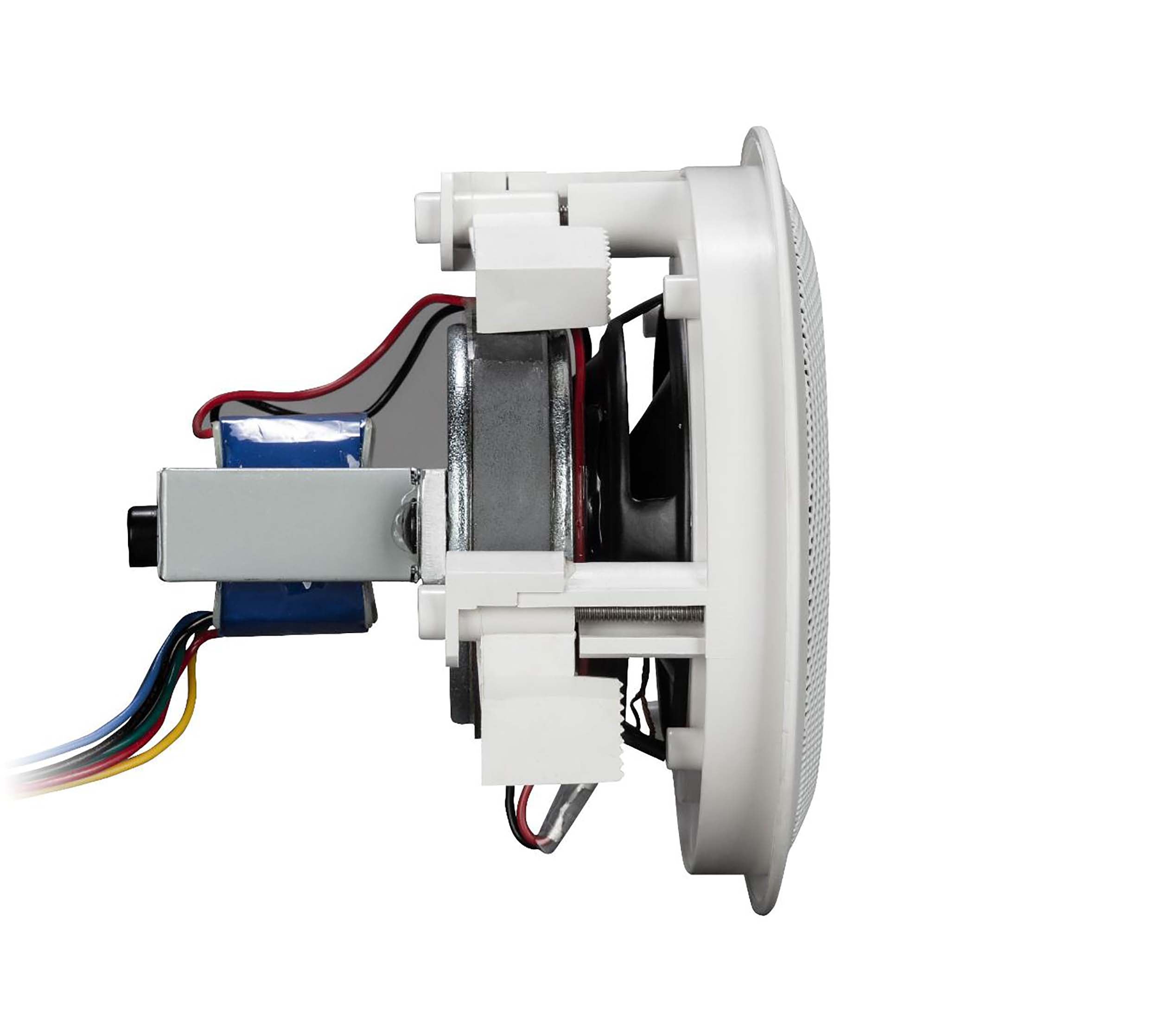

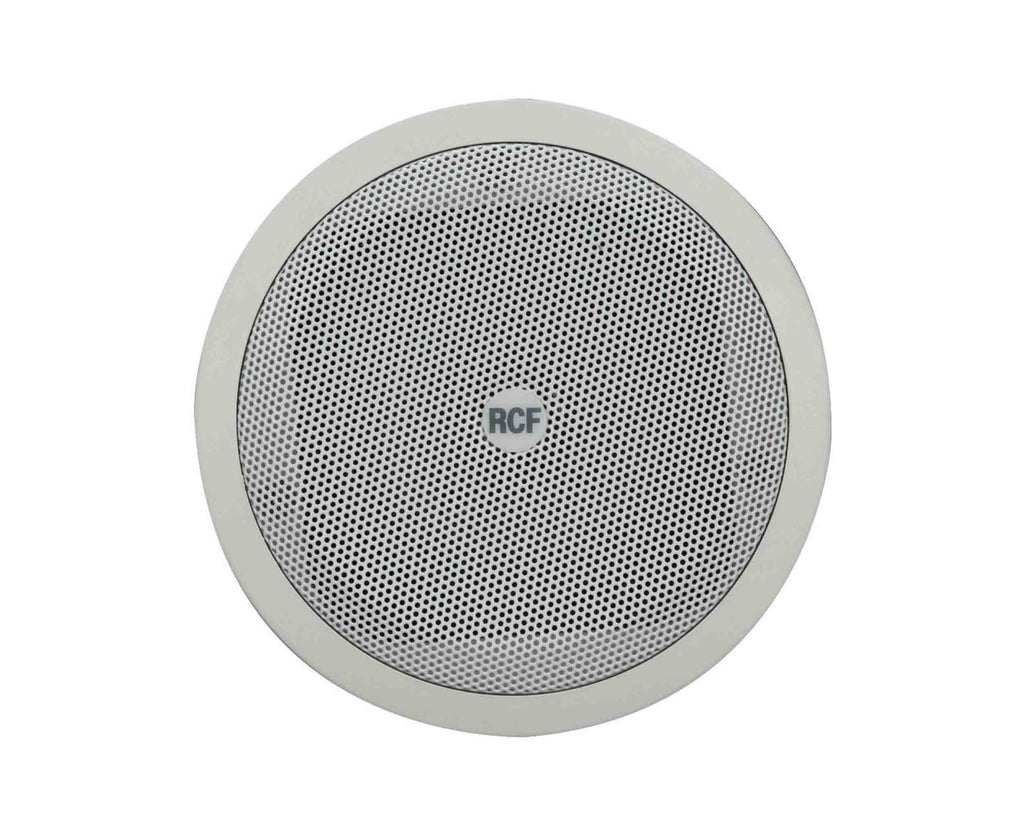

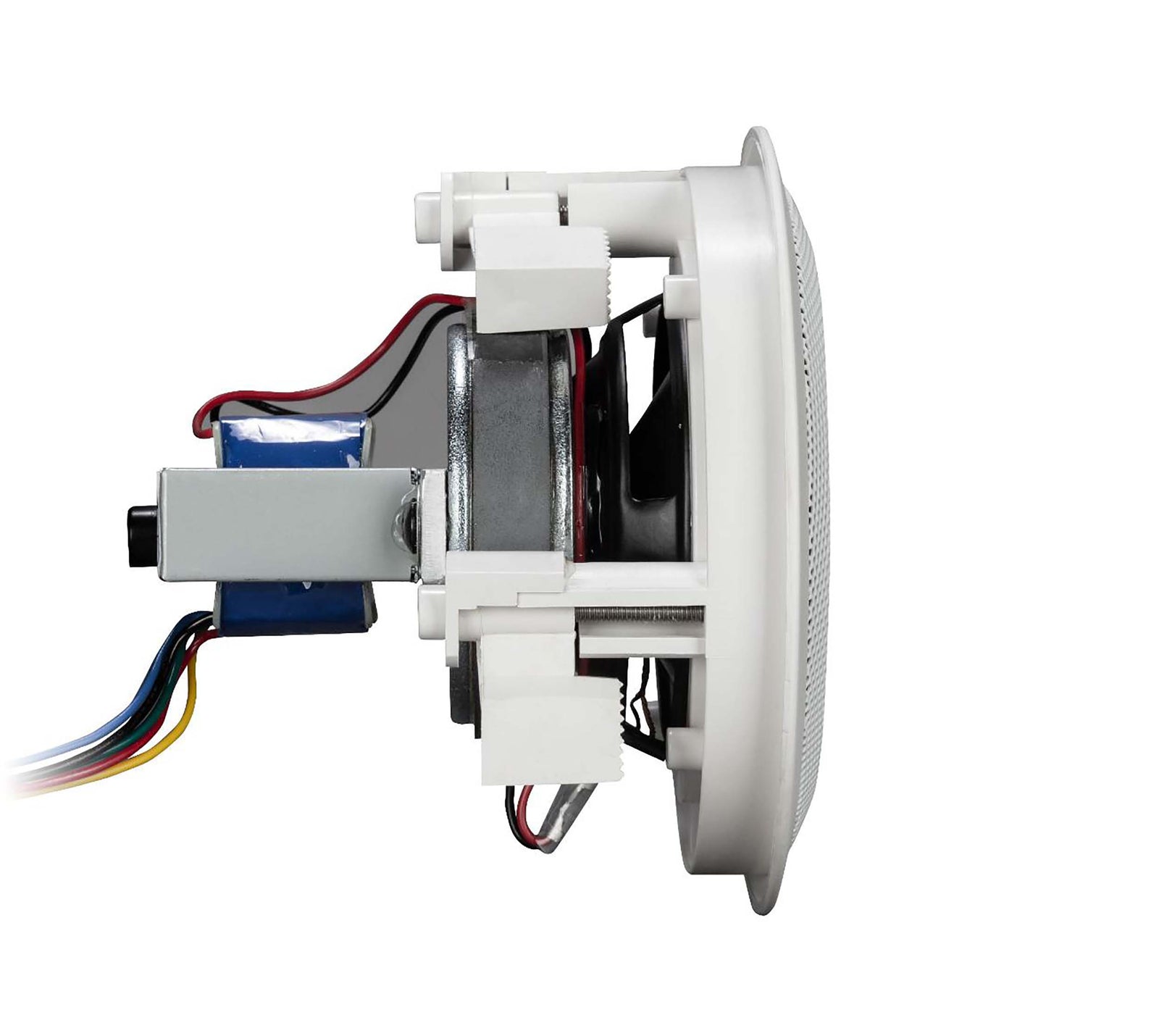

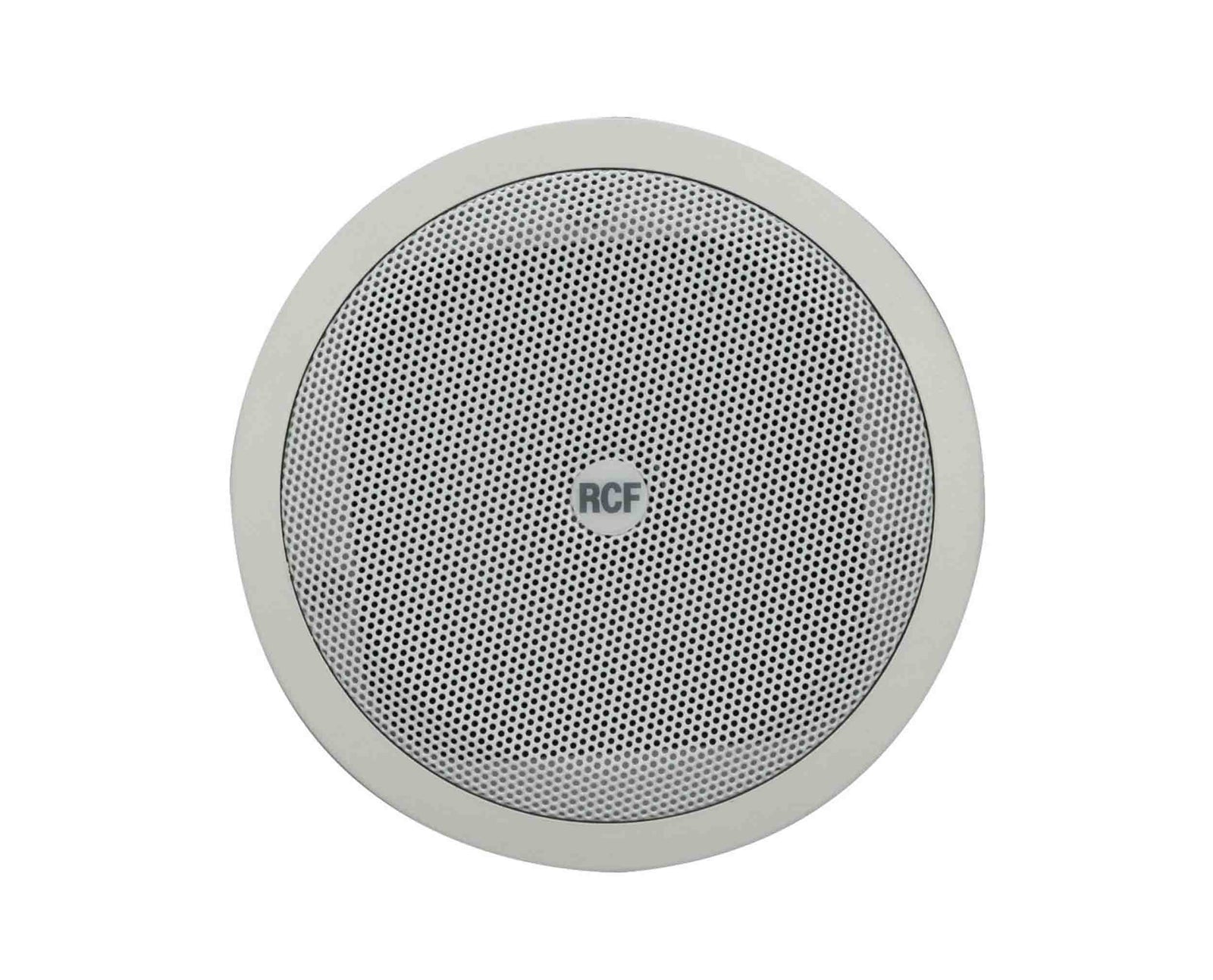

The RCF PL 40 is a ceiling speaker featuring elegant and innovative design that can be flush mounted in false ceilings or panels. Incorporating a 3.5” full range transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Product Specifications:
Acoustical:
Frequency Response (-10dB): 90 Hz – 20000 Hz
Max SPL @ 1m: 100 dB
Coverage angle: 120°
System Sensitivity: 88 dB
Power section:
Amplification: Full Range
Power Handling: 8 W RMS
Peak Power Handling: 32 W PEAK
Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
Transducers:

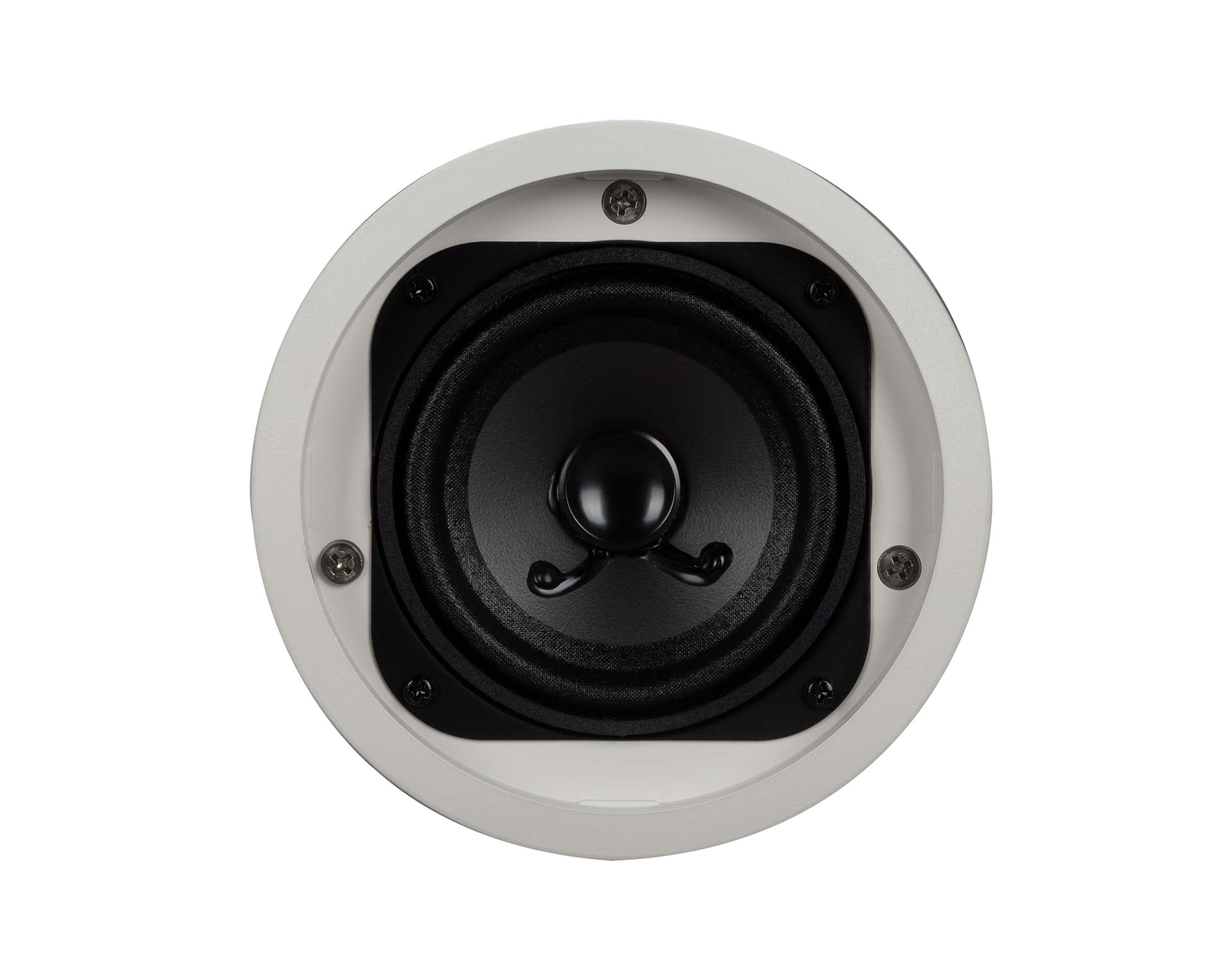

Full range: 1 × 3.5"
Input/Output section:
Input connectors: Screw Terminals
Output connectors: Screw Terminals
Constant Voltage Transformer: 100 V
Power selection 1: 8 W – 1250 ohm
Power selection 2: 6 W – 1667 ohm
Power selection 3: 4 W – 2500 ohm
Power selection 4: 2 W – 5000 ohms
Standard compliance:
IP protection grade: IP 44
Safety agency: CE compliant
Cabinet/Case Material: Plastic
Hardware: Plastic Material
Grille: Aluminium
Color: White – RAL 9003
Product Depth: 110 mm / 4.33 in
Recessed Depth: 103 mm / 4.06 in
Product Diameter: 130 mm / 5.12 in
Cut-out Diameter: 122 mm / 4.8 in
Product Weight: 0.38 kg / 0.84 lbs
Shipping Height: 120 mm / 4.72 in
Shipping Width: 175 mm / 6.89 in
Shipping Depth: 175 mm / 6.89 in
Shipping Weight: 1.2 kg / 2.65 lbs
