Description

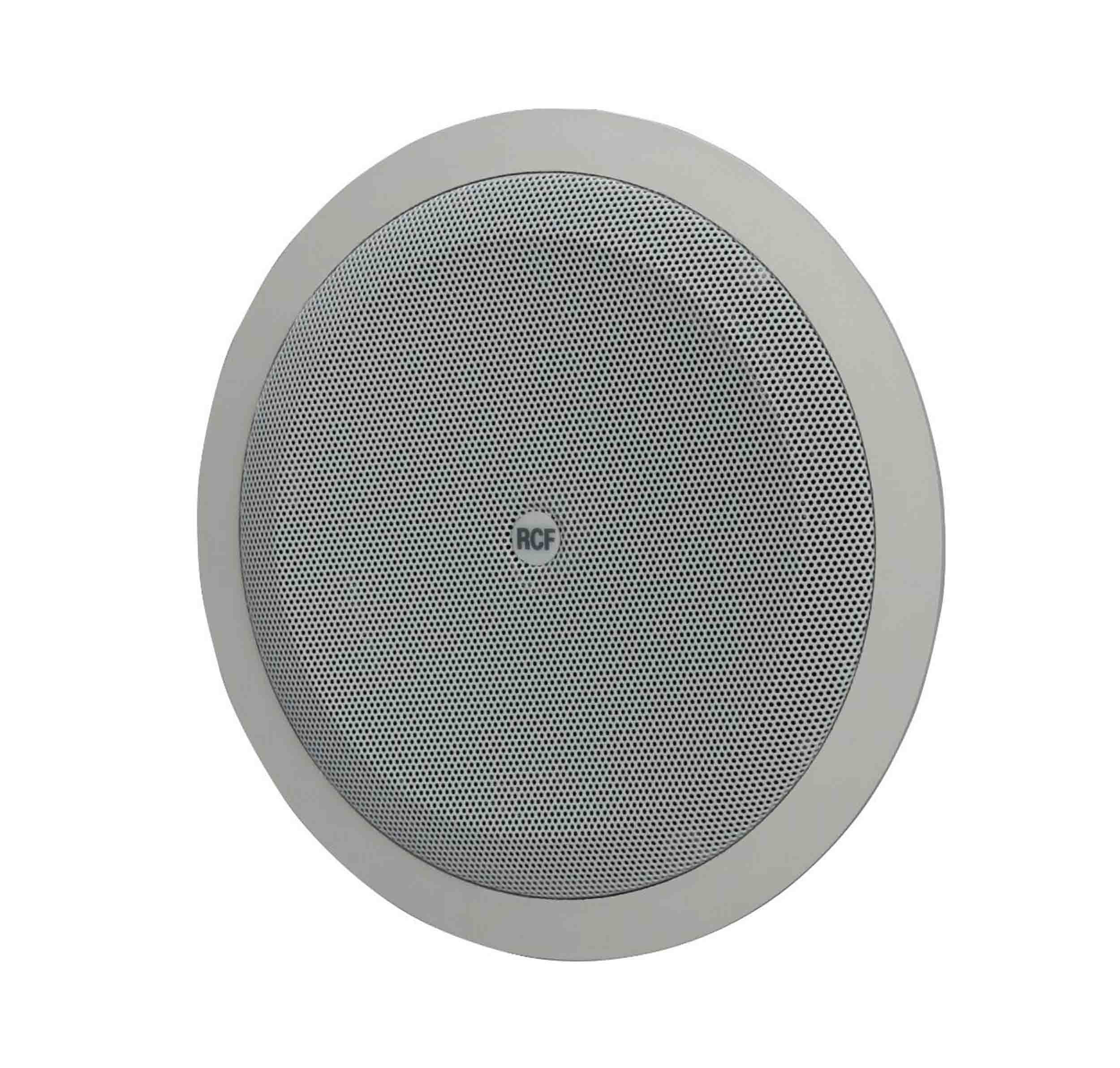

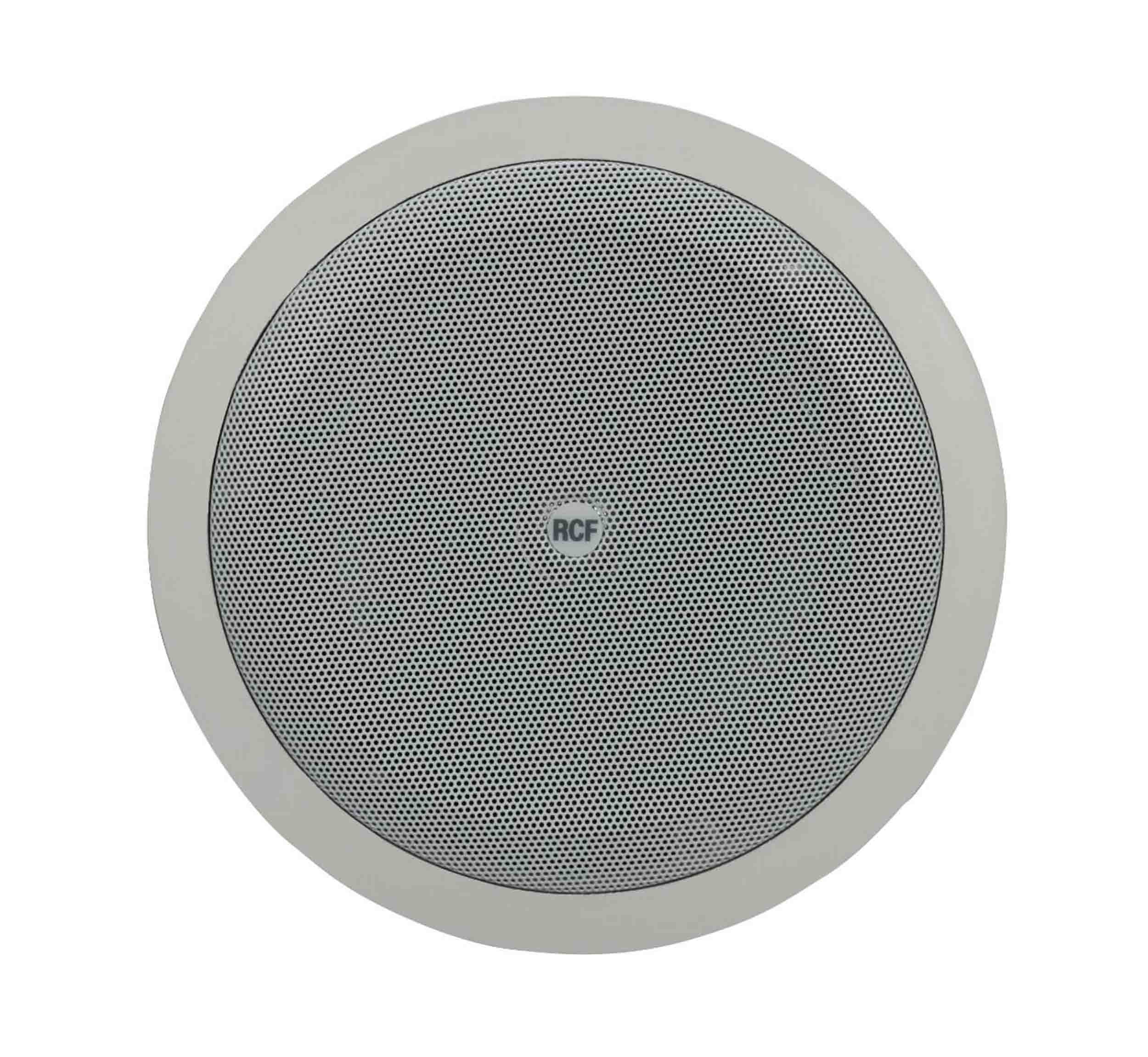

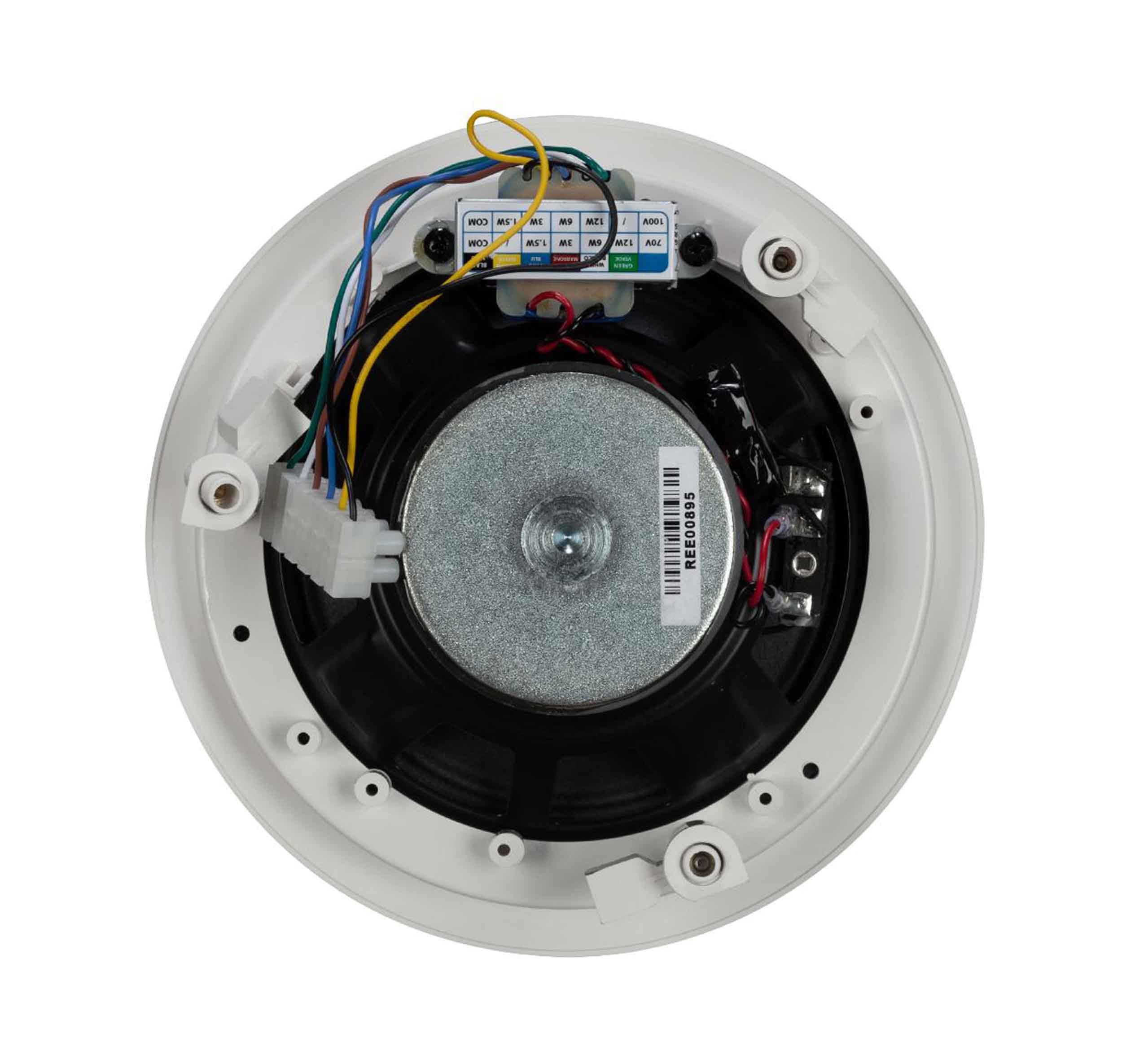

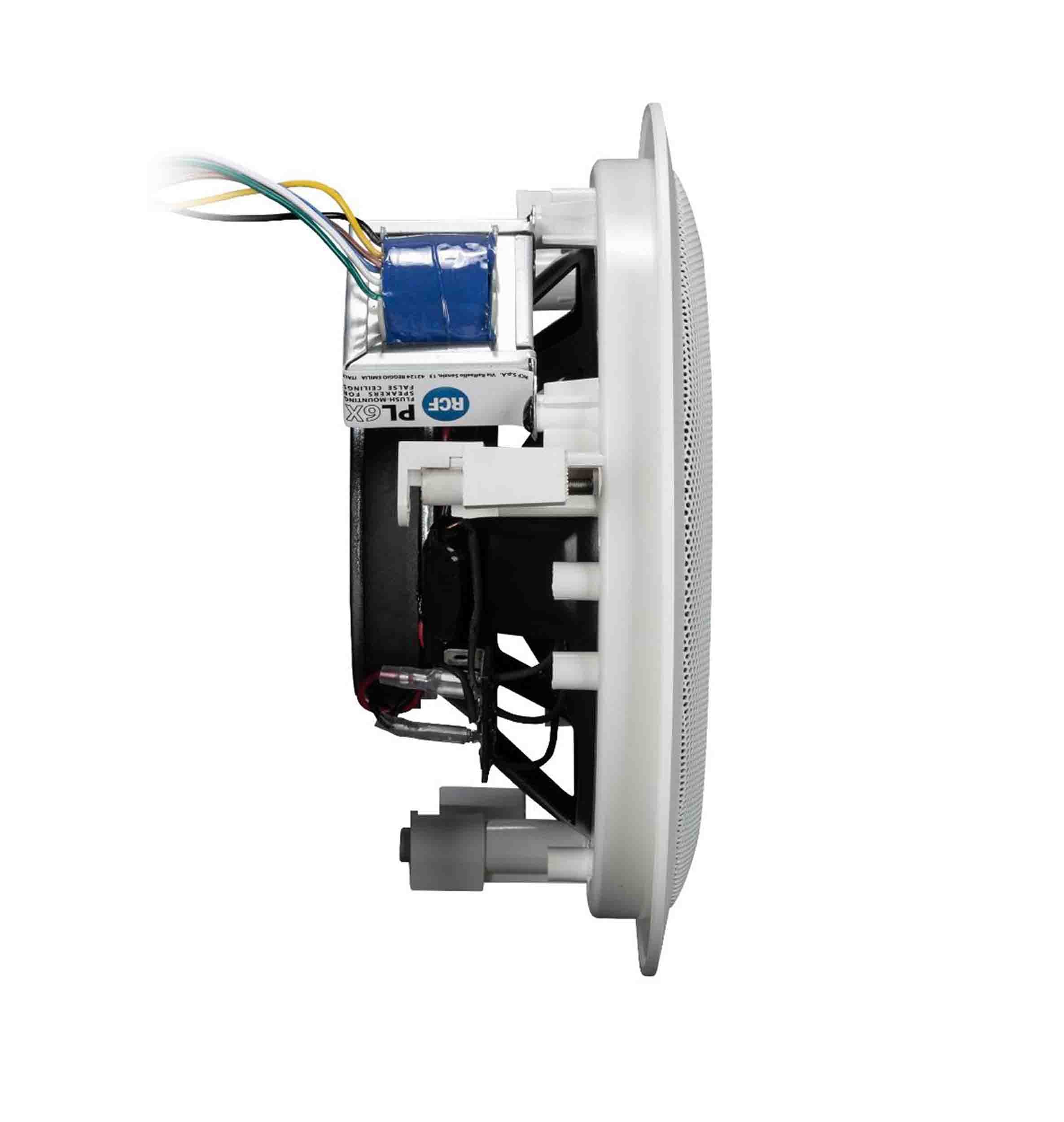

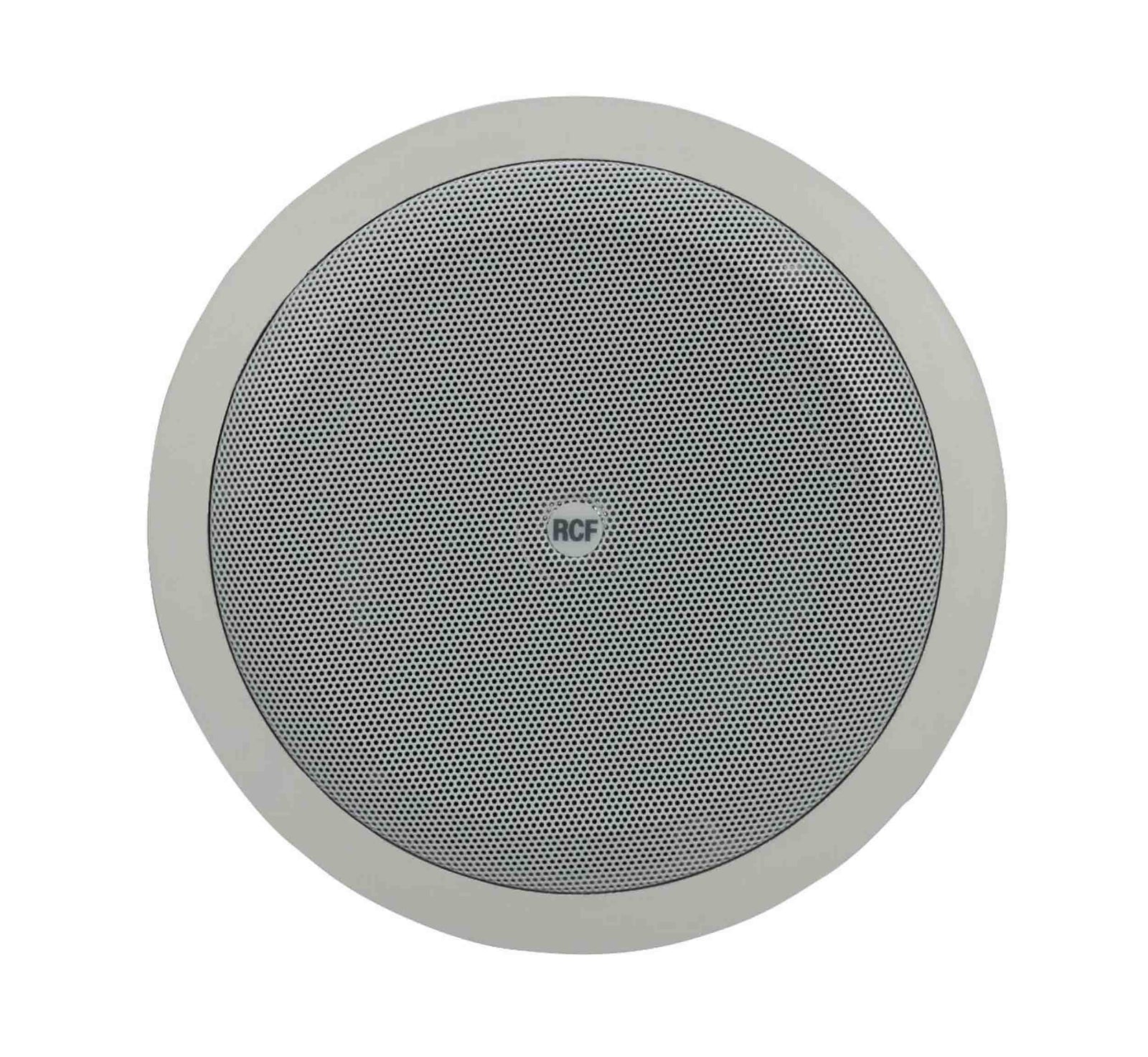

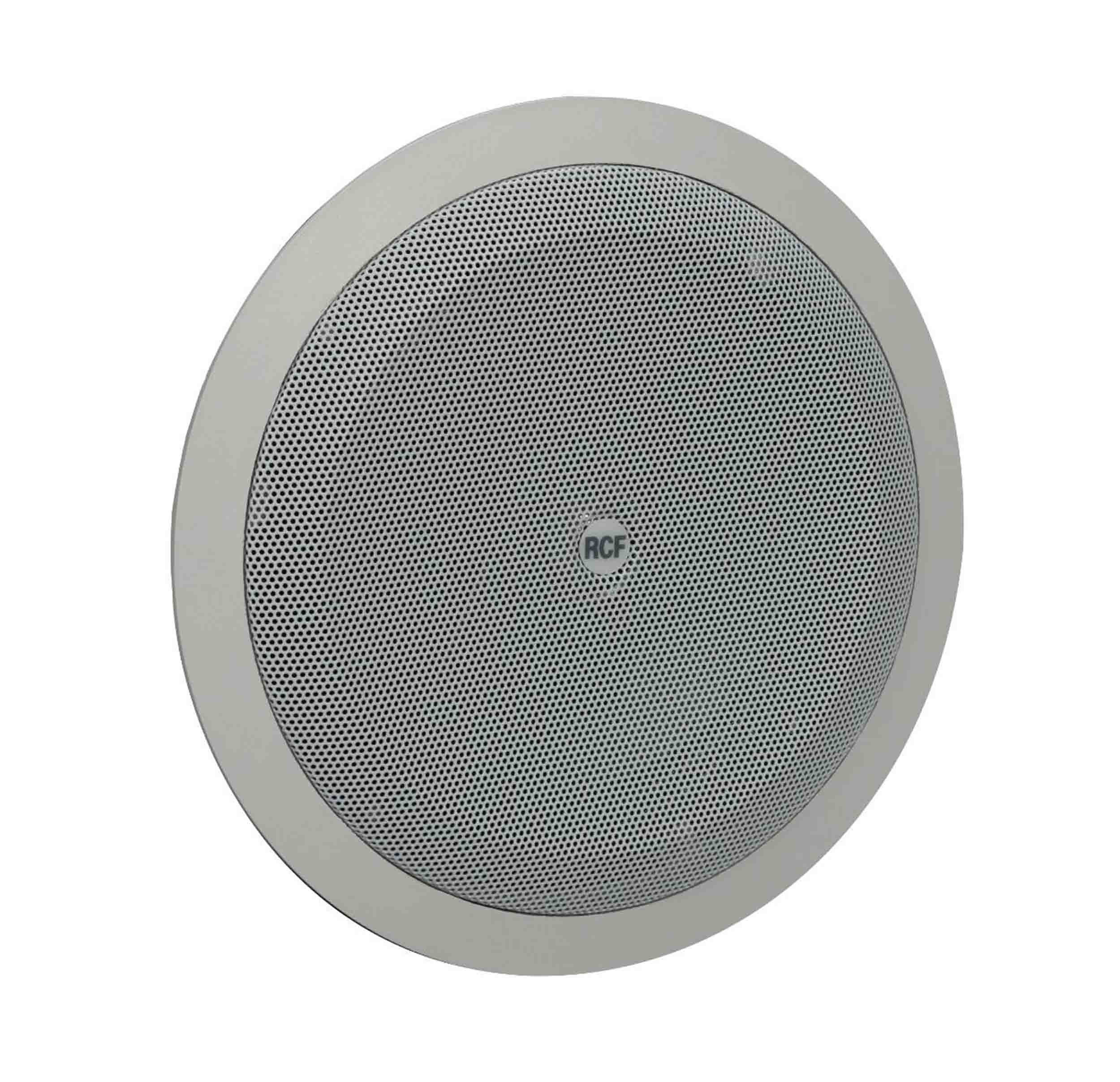

The RCF PL 6X is a compact coaxial ceiling speaker designed for high-quality background and foreground music in commercial and public environments.Its 6" woofer and 1" dome tweeter deliver clear, balanced sound, while the integrated 70/100V transformer allows flexible power selection for distributed audio systems.The durable UL 94 V0 plastic enclosure and aluminium grille ensure long-term reliability, and the quick three-hook mounting system enables fast and secure installation in false ceilings without additional hardware.
Product Specifications
Acoustical:
Frequency Response (-10 dB): 70 Hz – 20,000 Hz
Max SPL @ 1 m: 106 dB
Coverage Angle: 100°
Sensitivity: 92 dB
Power Section:
Power Handling: 12 W RMS
Peak Power: 48 W
Amplification: Full Range
Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM series, UP series
Transducers:
Woofer: 6"
Tweeter: 1" dome
Input / Output:
Connectors: Screw terminals (input & output)
Constant Voltage: 70 / 100 V

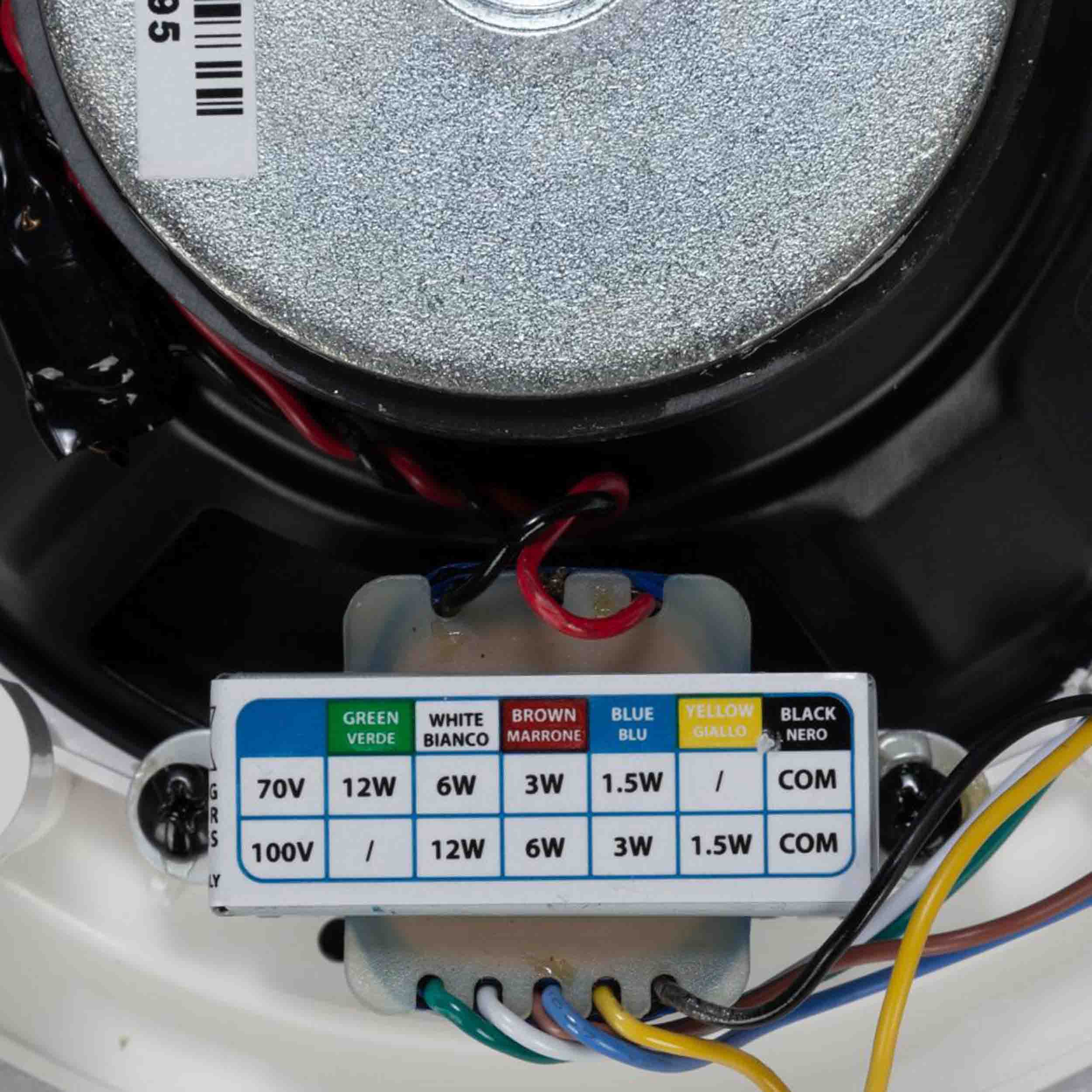

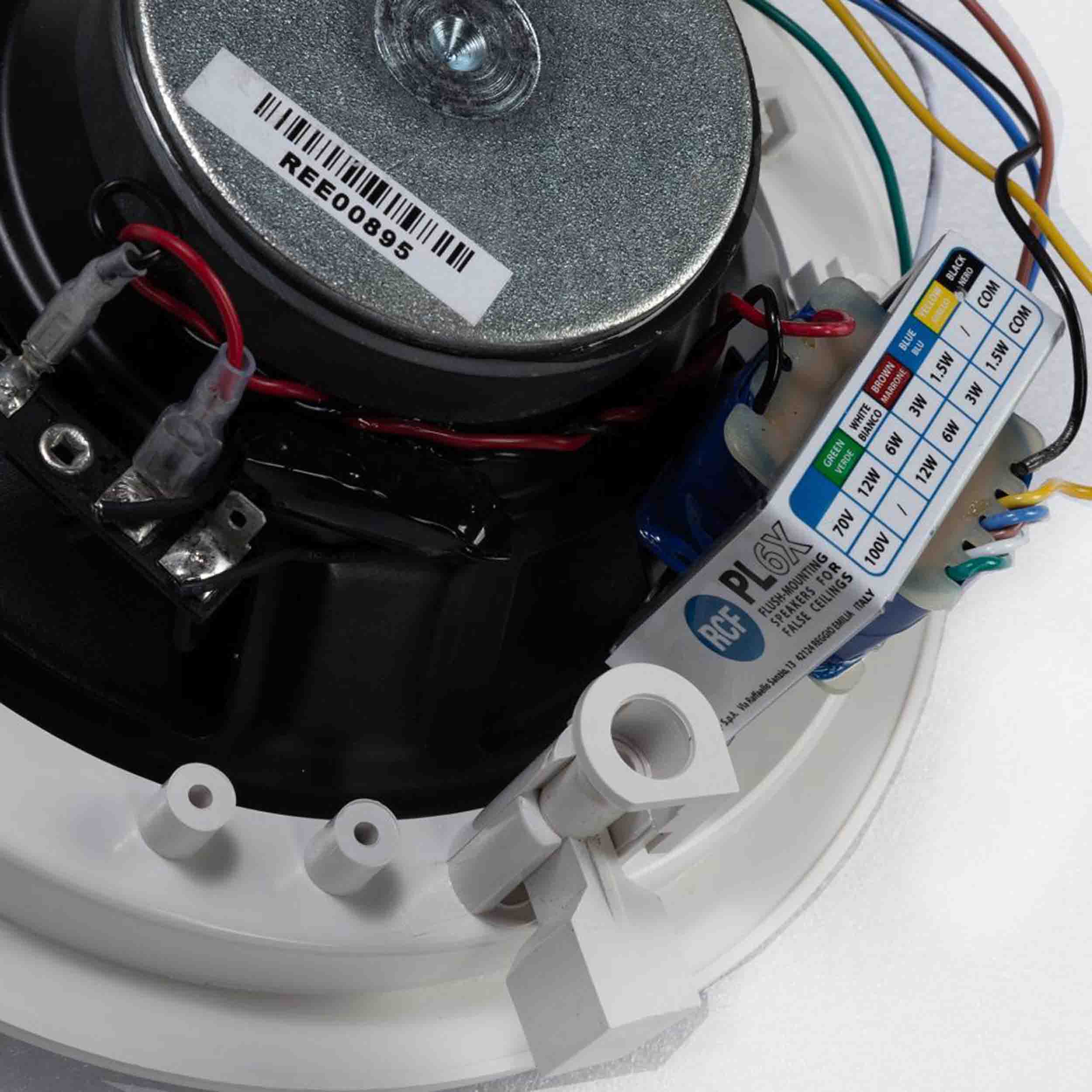

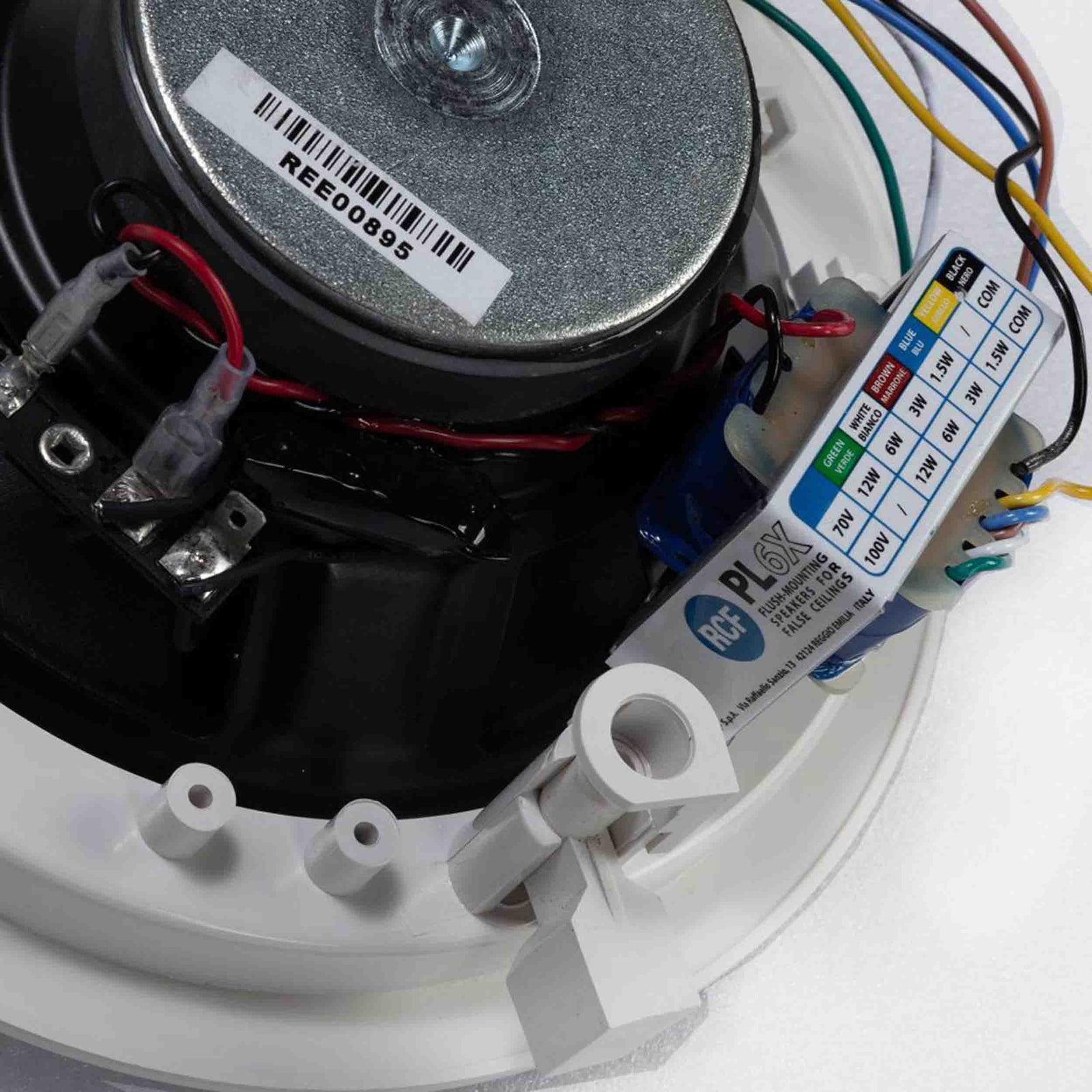

Power Taps: 12 W – 833 Ω,6 W – 1667 Ω,3 W – 3333 Ω,1.5 W – 6667 Ω
Compliance:
IP Rating: IP 44
Safety: CE compliant
Physical:
Material: Plastic frame, aluminium grille
Colour: White RAL 9003
Diameter: 204 mm / 8.03"
Cut-out Diameter: 182 mm / 7.17"
Depth: 73 mm / 2.87"
Recessed Depth: 66 mm / 2.6"
Weight: 0.78 kg / 1.72 lbs.
Shipping Information:
Shipping Height: 240 mm / 9.45"
Shipping Width : 240 mm / 9.45"
Shipping Depth: 110 mm / 4.33"
Shipping Weight: 1.56 kg / 3.44 lbs.
