Description

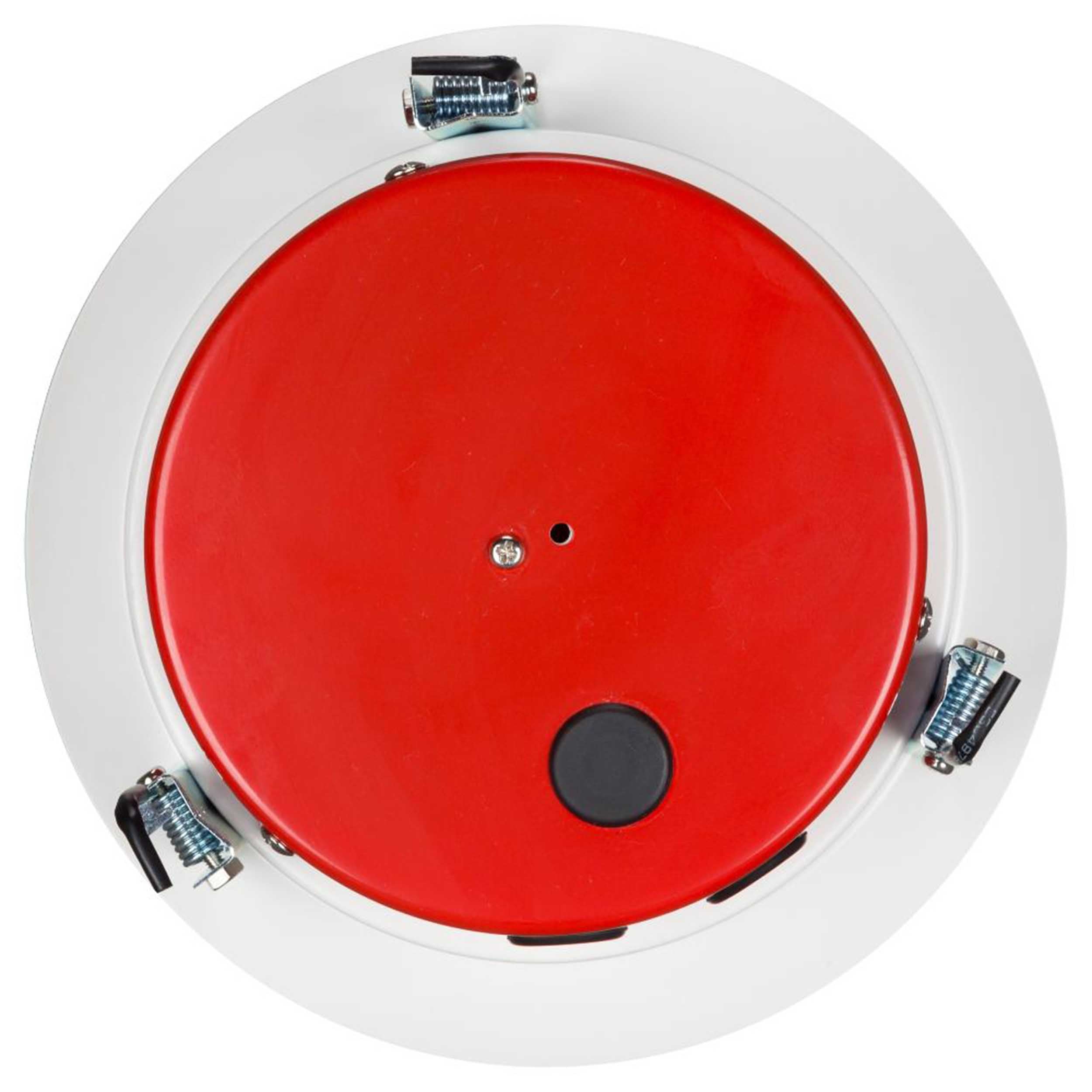

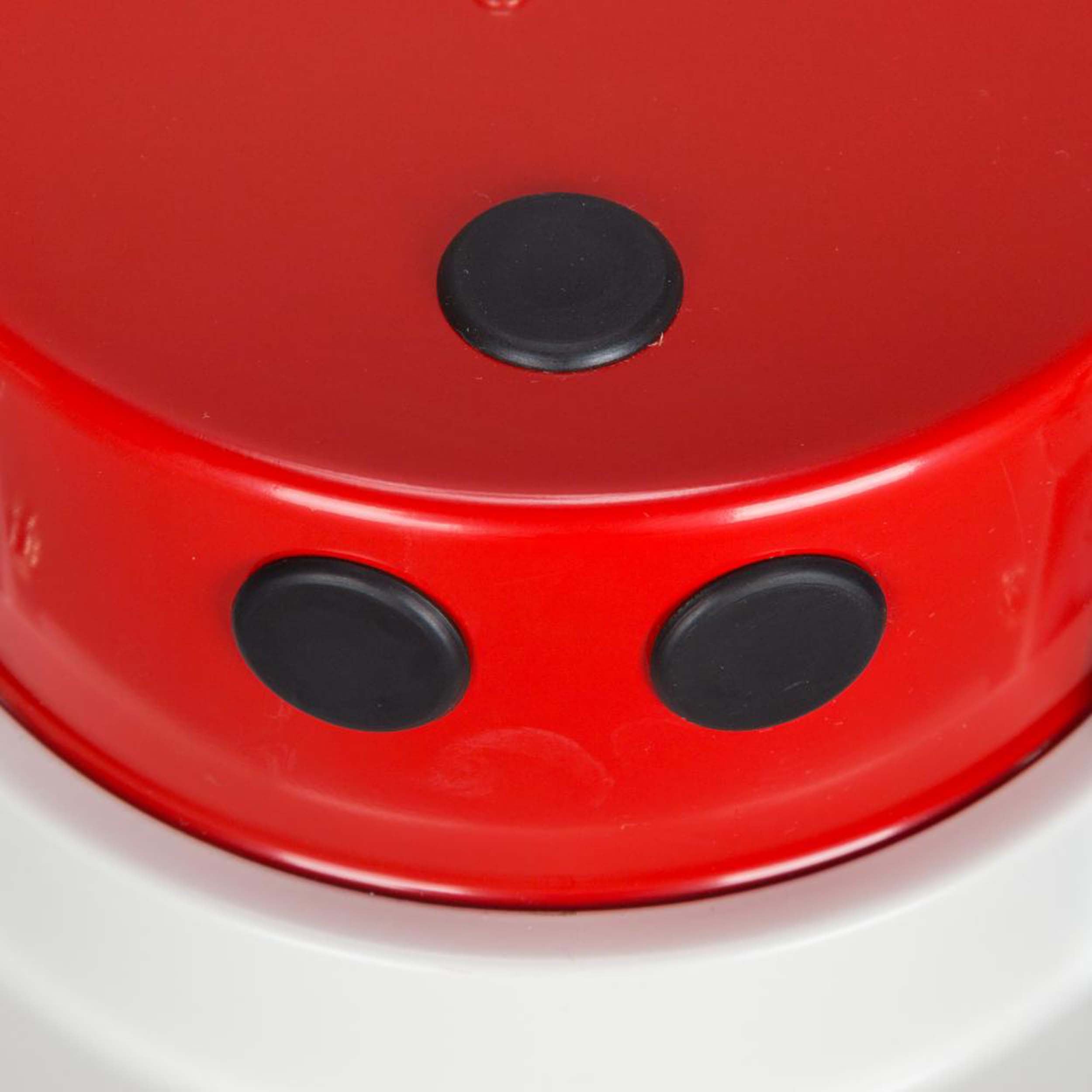

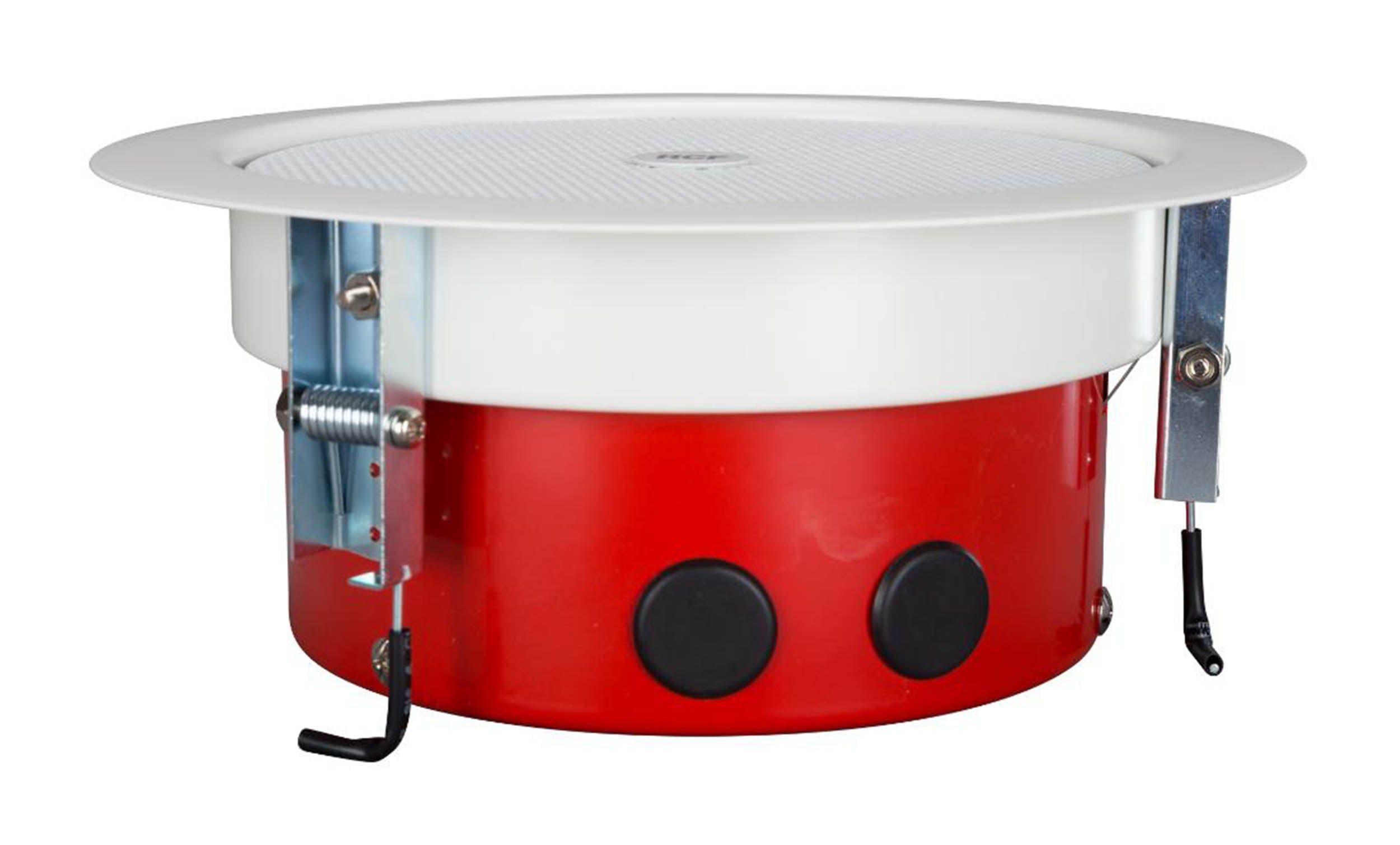

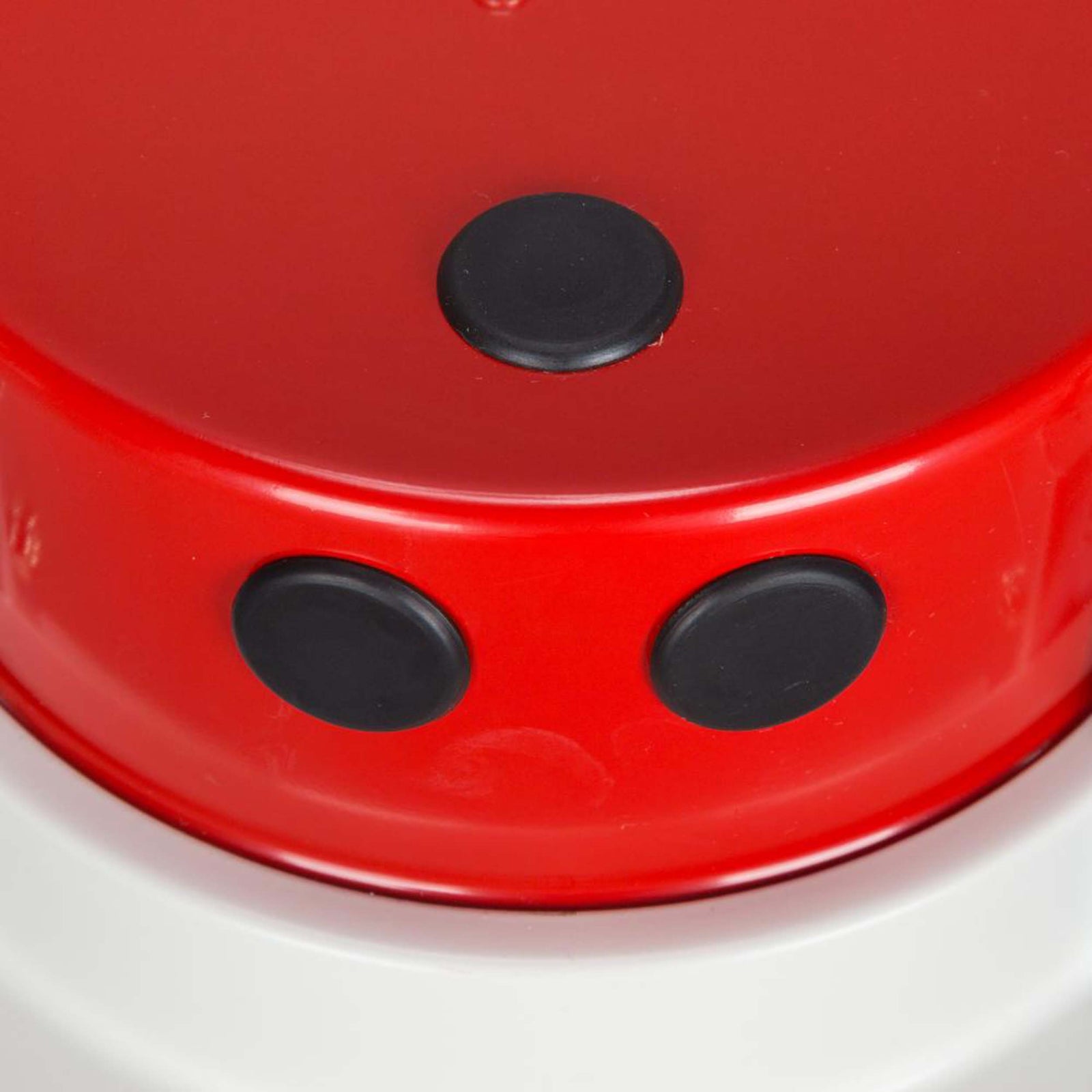

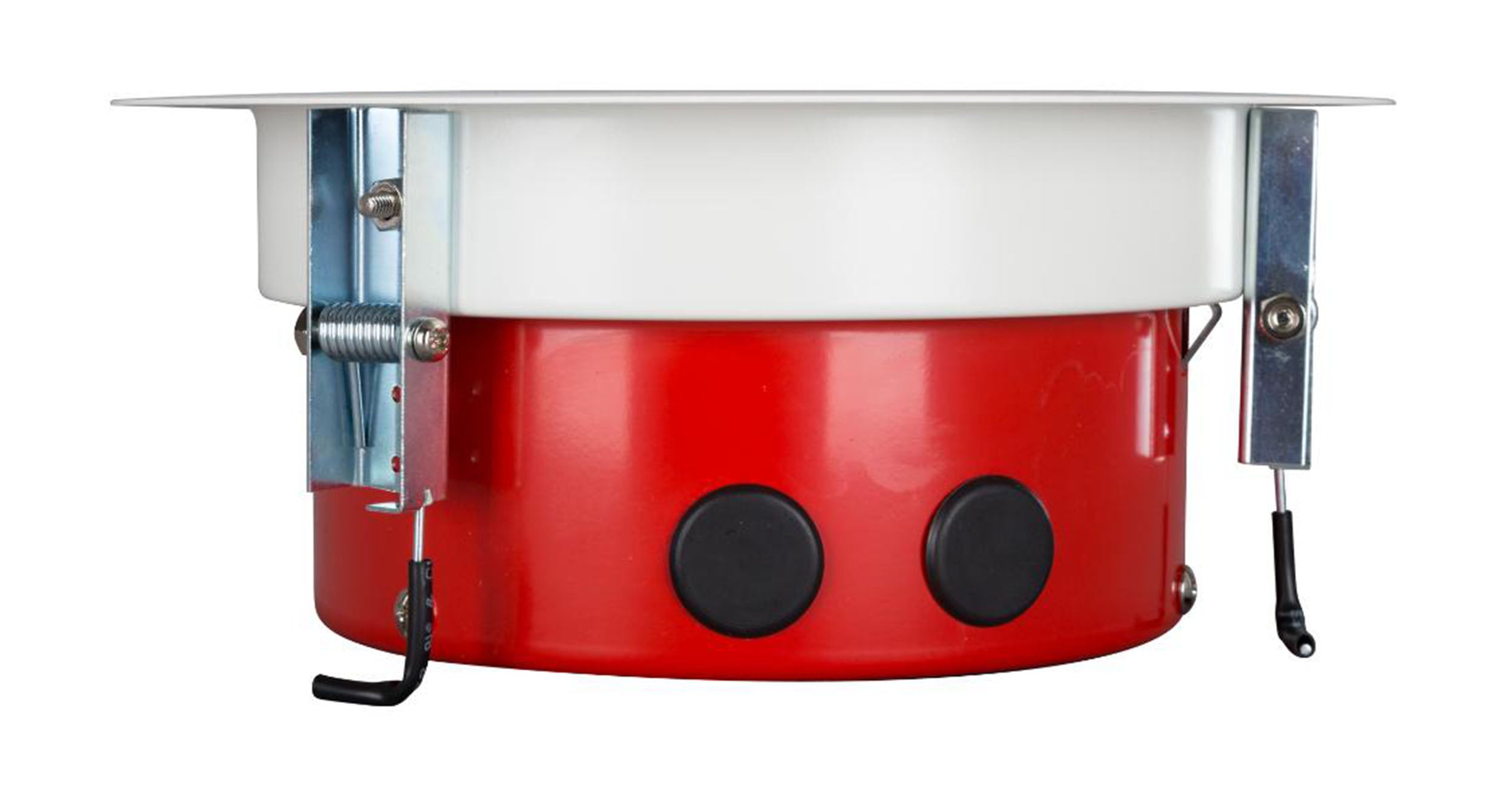

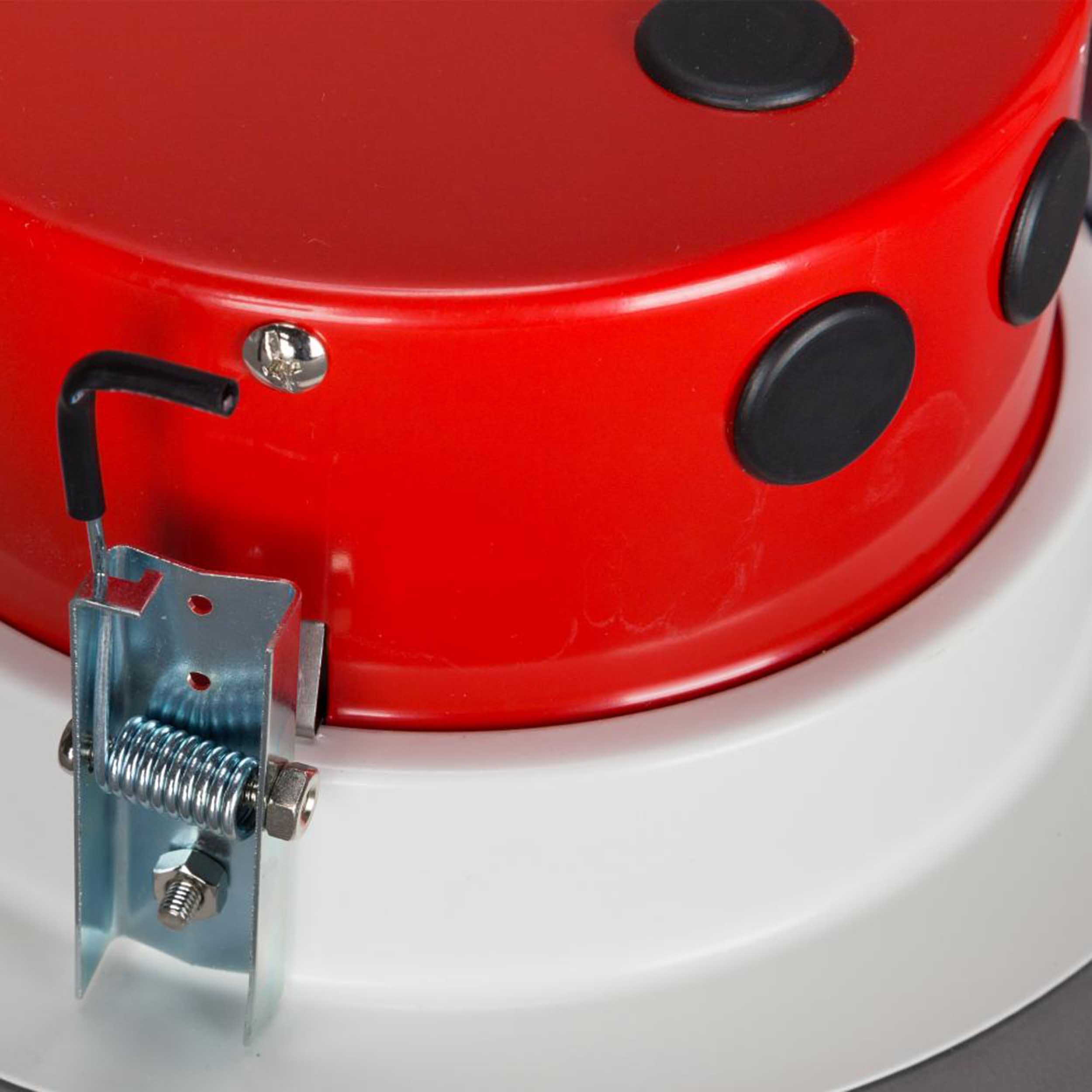

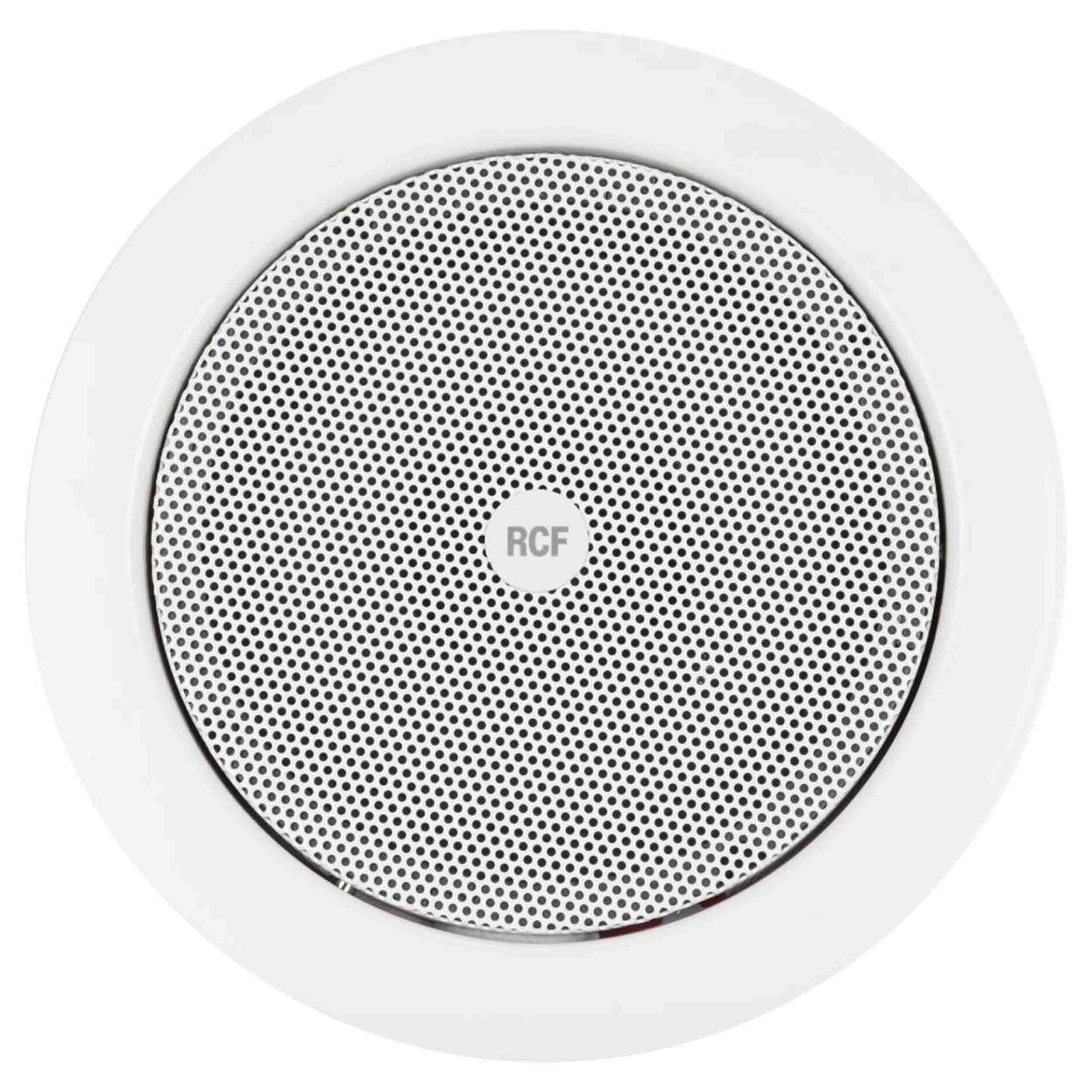

The RCF PL68-EN is a premium ceiling speaker designed with a flameproof steel back can, ensuring exceptional durability and reliability in safety-critical environments. Engineered specifically for recessed installation in ceilings or panels, it integrates seamlessly into a wide range of architectural settings while maintaining the ruggedness required for certified emergency audio systems. Its sturdy construction makes it an ideal choice for public buildings, commercial facilities, and any installation where enhanced fire protection is mandatory.
Optimized for voice-alarm and emergency communication applications, the PL 68EN offers highly intelligible sound reproduction, ensuring that spoken messages remain clear and understandable even in acoustically challenging spaces. The speaker is built to withstand the elevated temperatures that occur during fire conditions, allowing it to continue functioning long enough to support evacuation procedures and maintain compliance with rigorous safety standards.
To further enhance its safety profile, the PL 68EN incorporates ceramic terminal blocks for secure input and output connections with flameproof cabling. A built-in thermal fuse protects the audio line from potential heat-related damage, while internal wiring is constructed using flame-resistant leads for added reliability. A dedicated ground screw is available when grounding is required, contributing to a stable and compliant installation. These protective features make the PL 68EN a dependable choice for certified emergency, evacuation, and voice-alarm systems.
Product Specifications:
Cabinet/Case Material: Metal
Hardware: Steel back cover

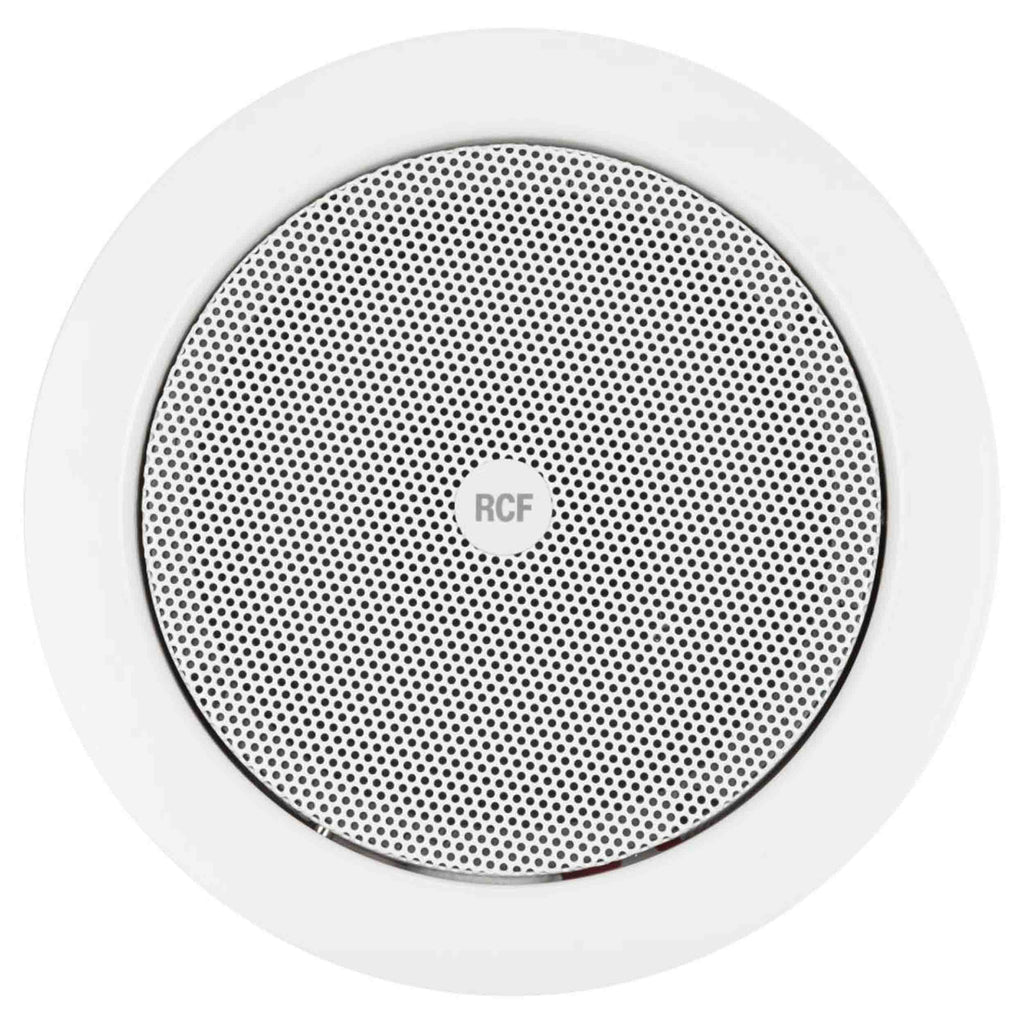

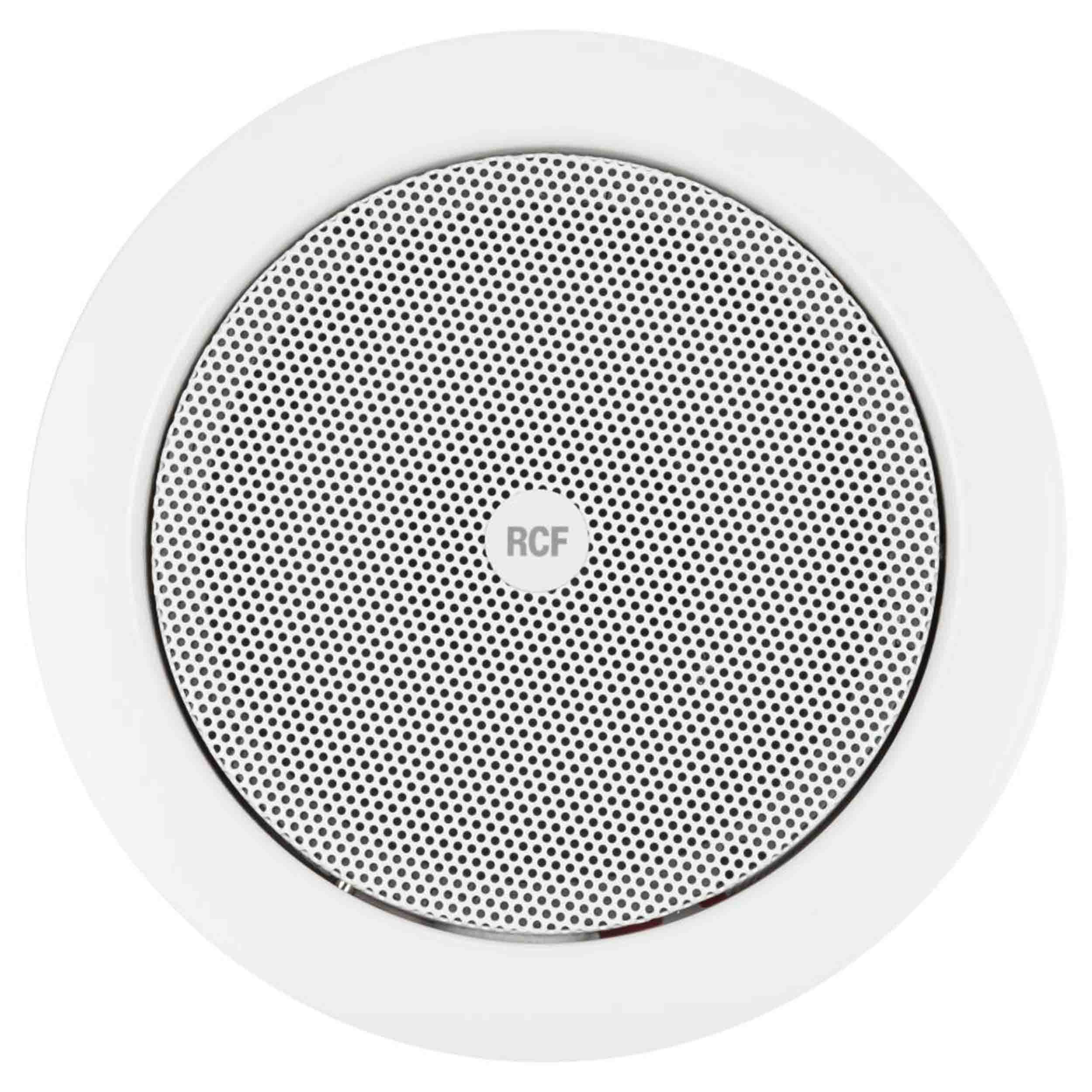

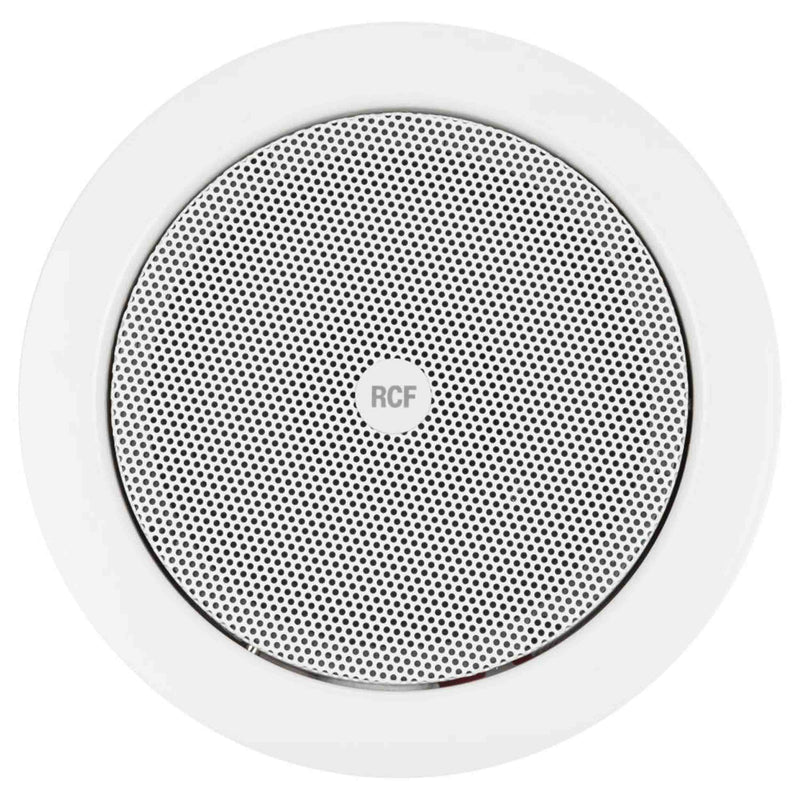

Grille: Steel
Color: White (RAL 9003)
Frequency Response (-10 dB): 230 Hz – 20,000 Hz
Maximum SPL @ 1 m: 102 dB
Maximum SPL @ 4 m: 90 dB
Coverage Angle: 126°
System Sensitivity: 94 dB
System Sensitivity (1 W @ 4 m): 82 dB
Power Section:
Amplification: Full range
Power Handling: 6 W
Peak Power Handling: 24 W (Peak)
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
Transducers:
Full-Range Driver: 1 × 6.0"
Input/Output Section:
Input Connectors: Ceramic screw terminals
Output Connectors: Ceramic screw terminals
Constant Voltage Transformer:
Line Voltage: 100 V
Power Taps:
6 W – 1667 Ω
3 W – 3333 Ω
1.5 W – 6667 Ω
Standard Compliance:
Safety Agency: CE compliant
EN54-24 Certified: Yes
CPR Number: 1488-CPR-0486/W
Product Weight: 2.47 lbs.
Product Dimensions (L × W × H): 3.54 in × 8.66 in × 3.58 in
Shipping Weight: 3.53 lbs.
Shipping Dimensions (L × W × H): 4.65 in × 9.06 in × 4.72 in
