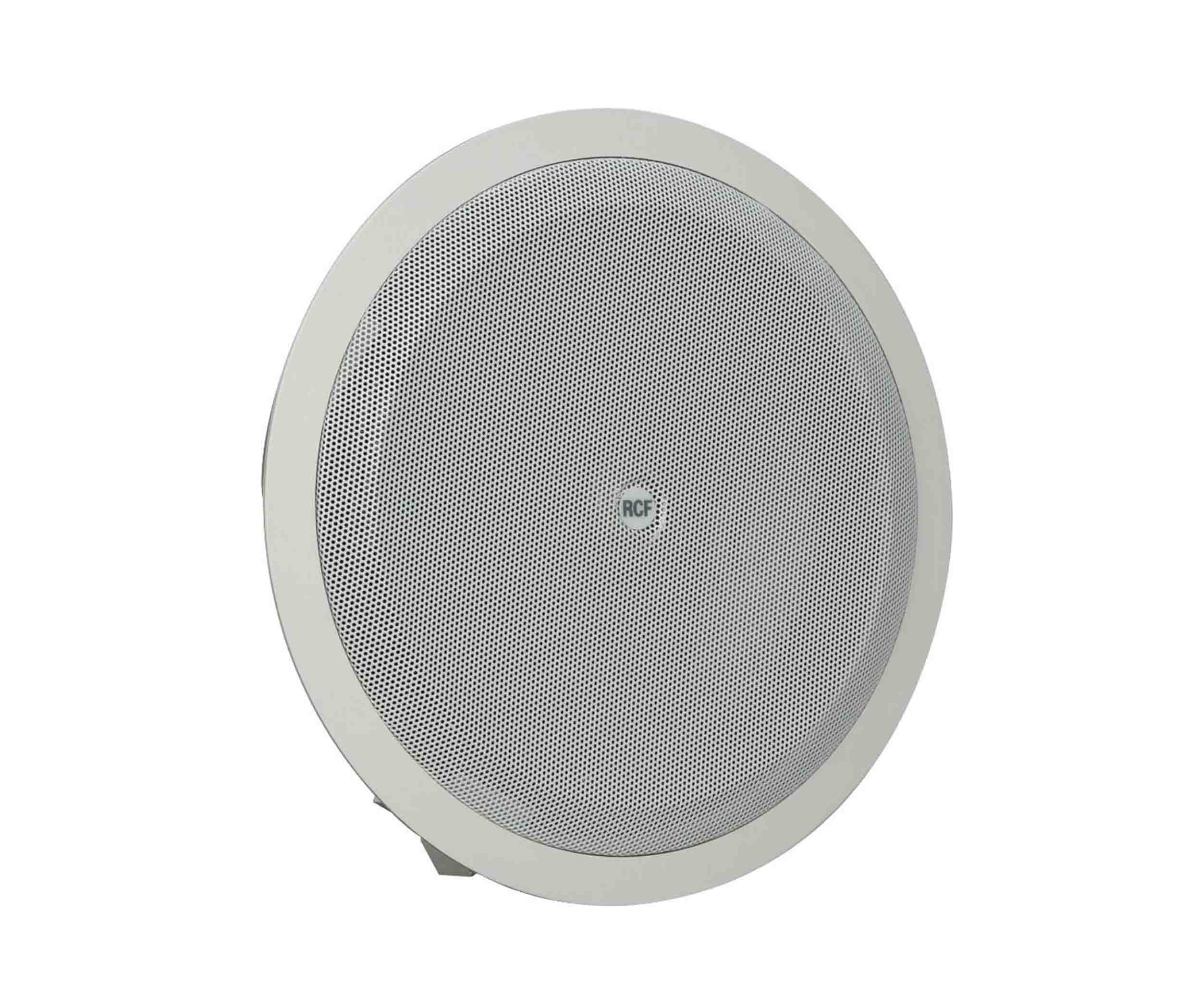

RCF PL8X 2-Way Coaxial Ceiling Passive Speaker w/ Transformer 8"

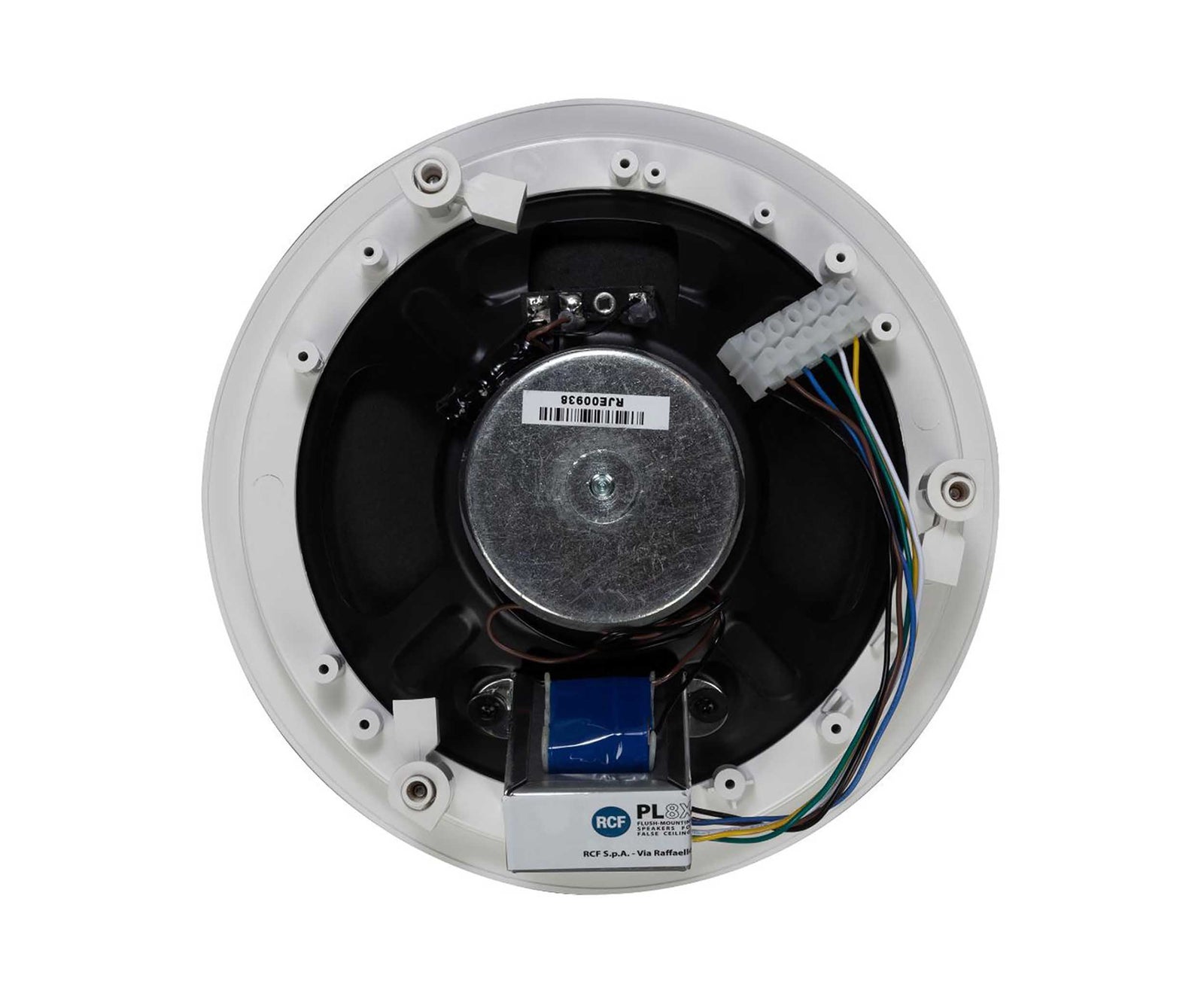

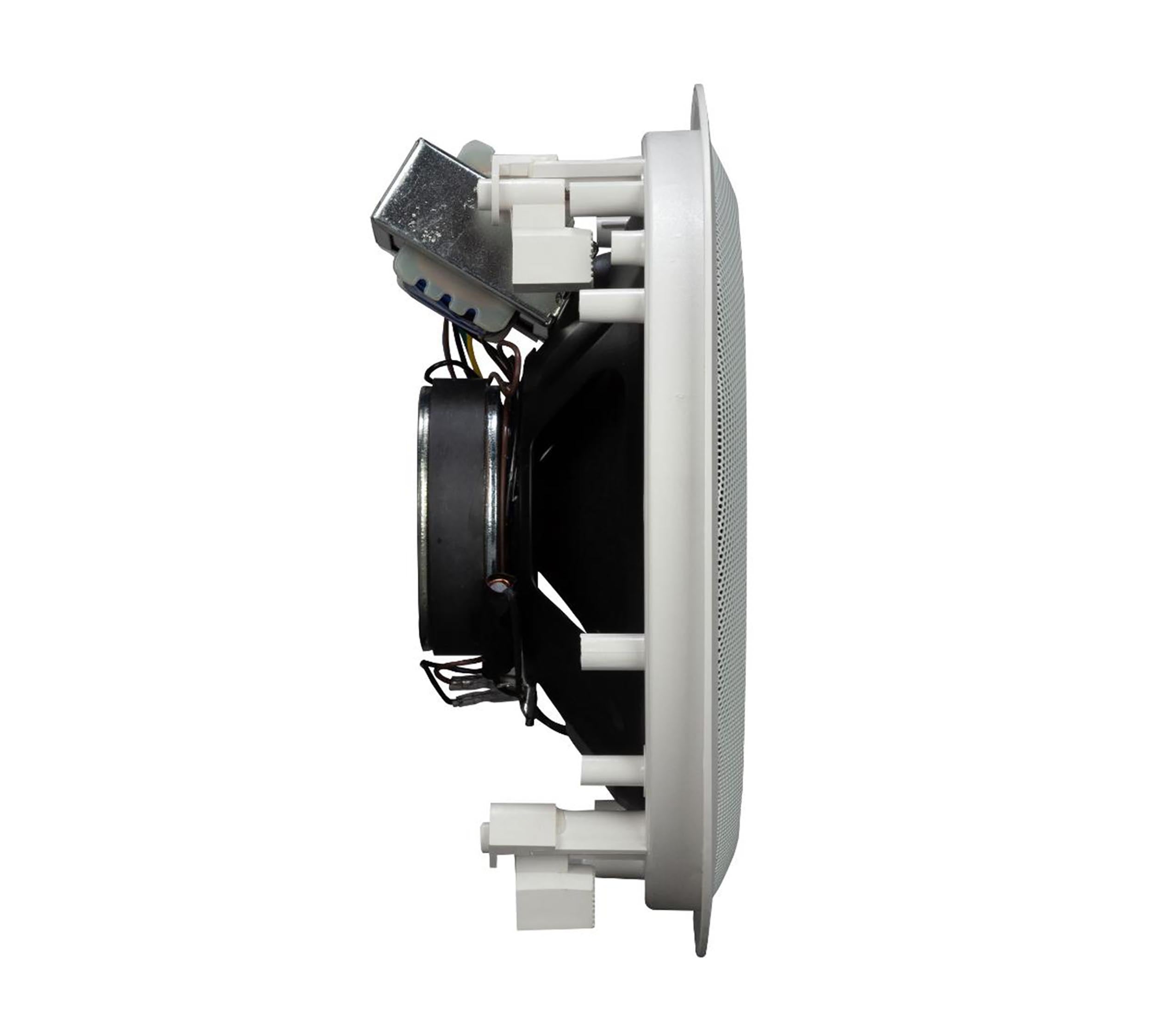

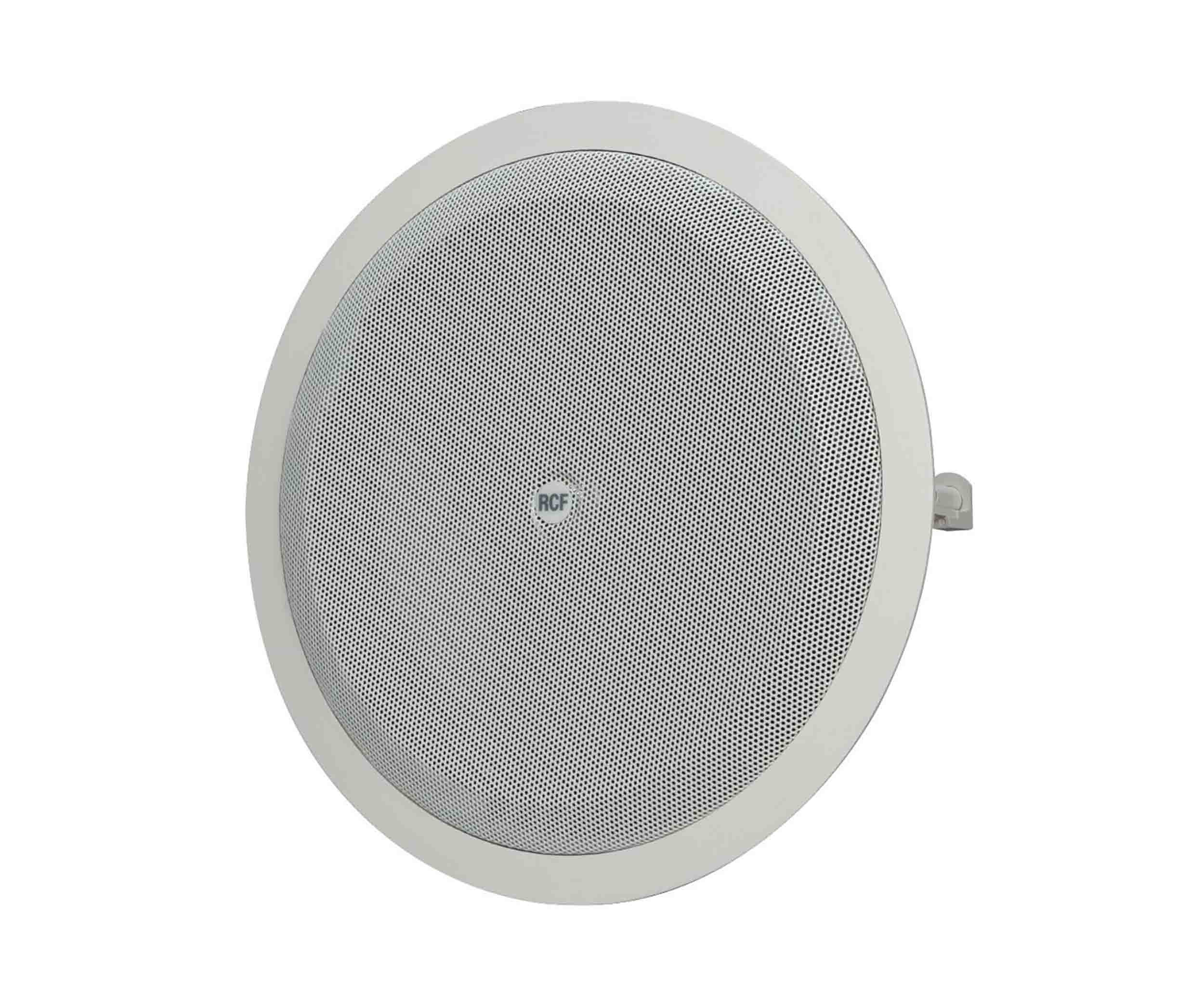

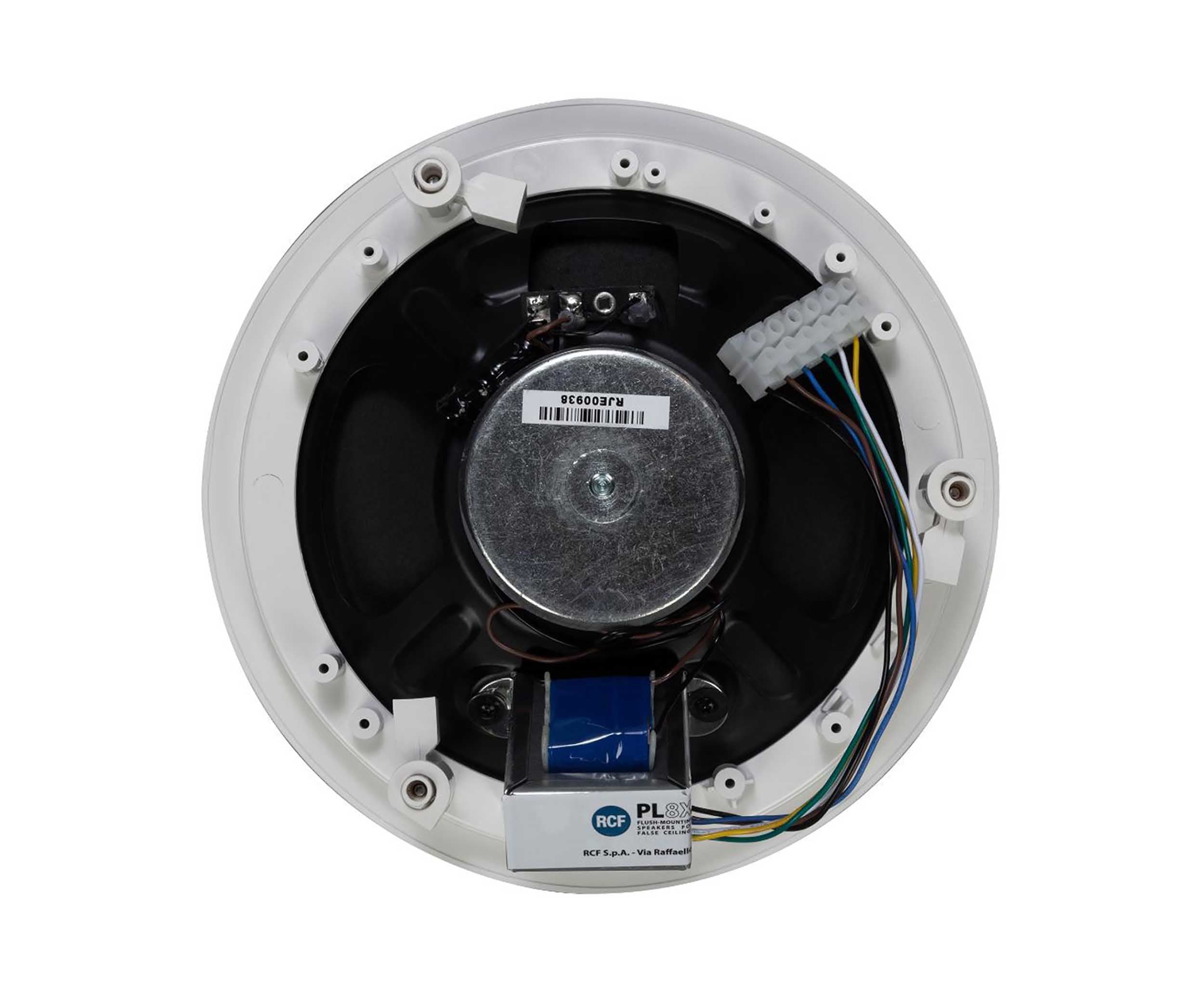

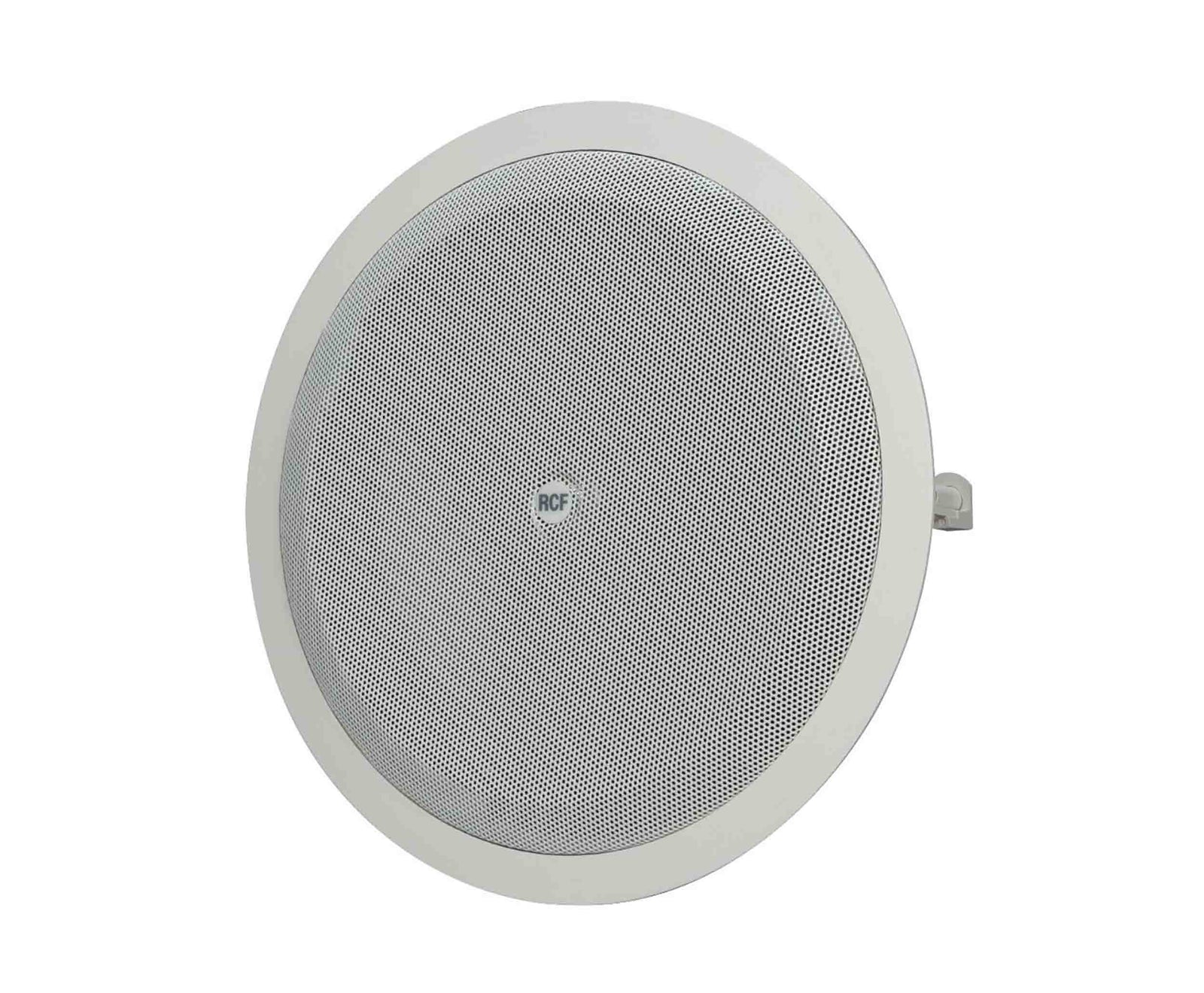

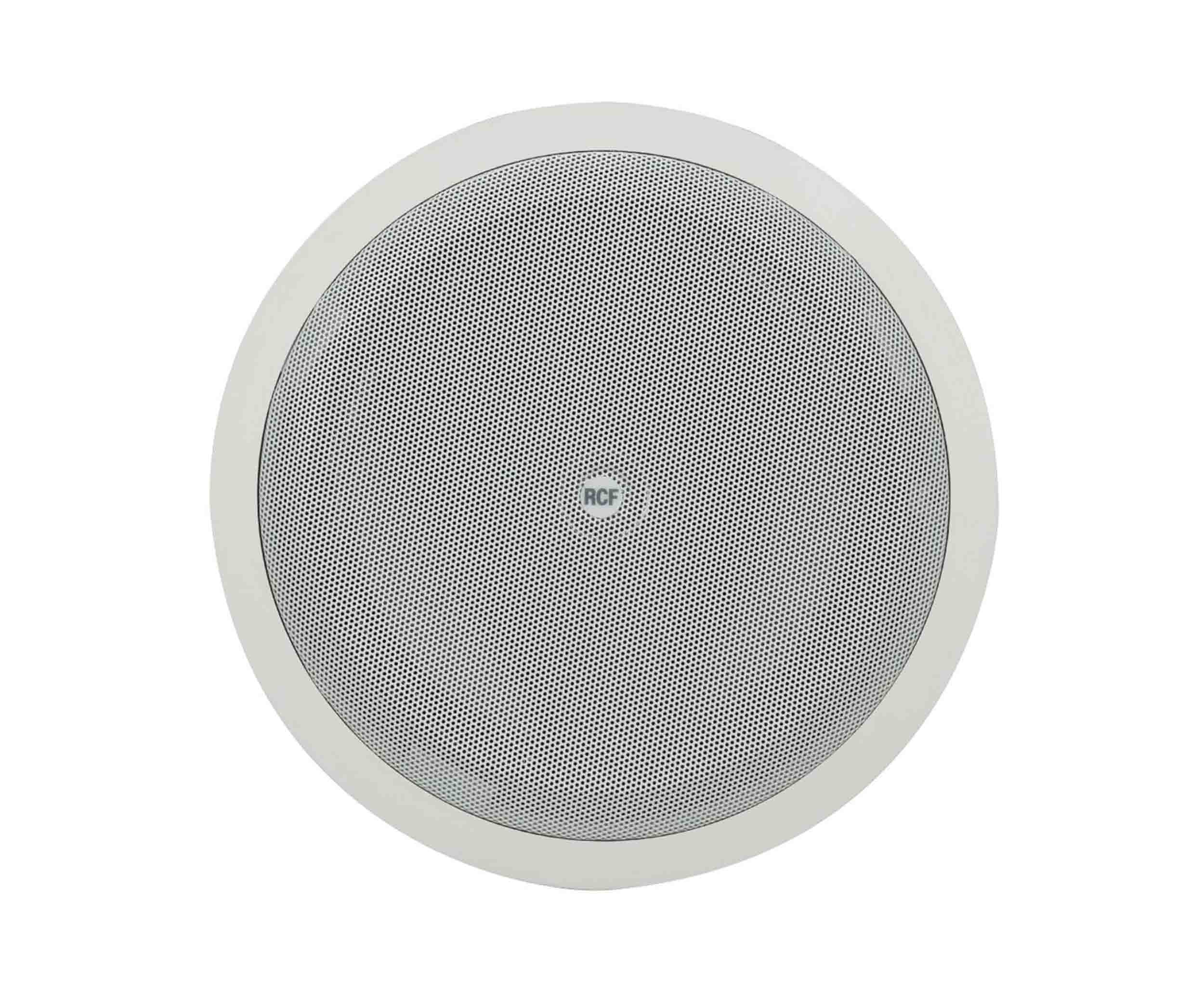

The RCF PL 8X is a ceiling speaker featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating an 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Product Specifications:

Acoustical:

Frequency Response (-10dB): 60 Hz – 20000 Hz

Max SPL @ 1m: 109 dB

Coverage angle: 80°

System Sensitivity: 93 dB

Power section:

Amplification: Full Range

Power Handling: 20 W RMS

Peak Power Handling: 80 W PEAK

Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162

Transducers:

Dome Tweeter: 1.0"

Woofer: 8"

Input/Output section:

Input connectors: Screw Terminals

Output connectors: Screw Terminals

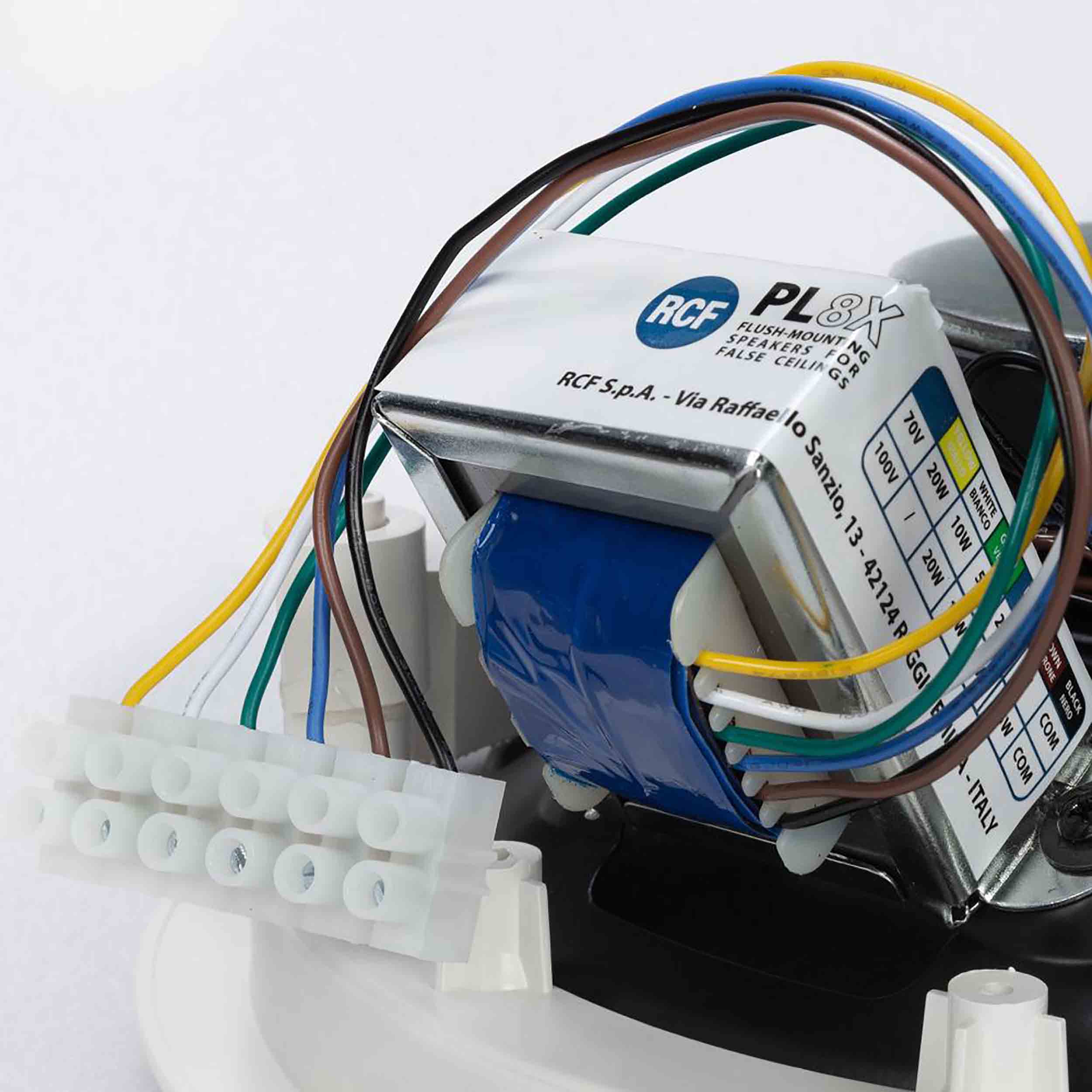

Constant Voltage Transformer: 70/100 V

Power selection 1: 20 W – 500 ohms

Power selection 2: 10 W – 1000 ohm

Power selection 3: 5 W – 2000 ohm

Power selection 4: 2.5 W – 4000 ohms

Standard compliance:

IP protection grade: IP 44

Safety agency: CE compliant

Physical specifications:

Cabinet/Case Material: Plastic

Hardware: Plastic Material

Grille: Aluminium

Color: White – RAL 9003

Product Depth: 88 mm / 3.46 in

Recessed Depth: 80 mm / 3.15 in

Product Diameter: 247 mm / 9.72 in

Cut-out diameter: 224 mm / 8.82 in

Product Weight: 1.23 kg / 2.71 lbs.

Shipping Height: 280 mm / 11.02 in

Shipping Width: 280 mm / 11.02 in

Shipping Depth: 130 mm / 5.12 in

Shipping Weight: 2.09 kg / 4.61 lbs.
