Description

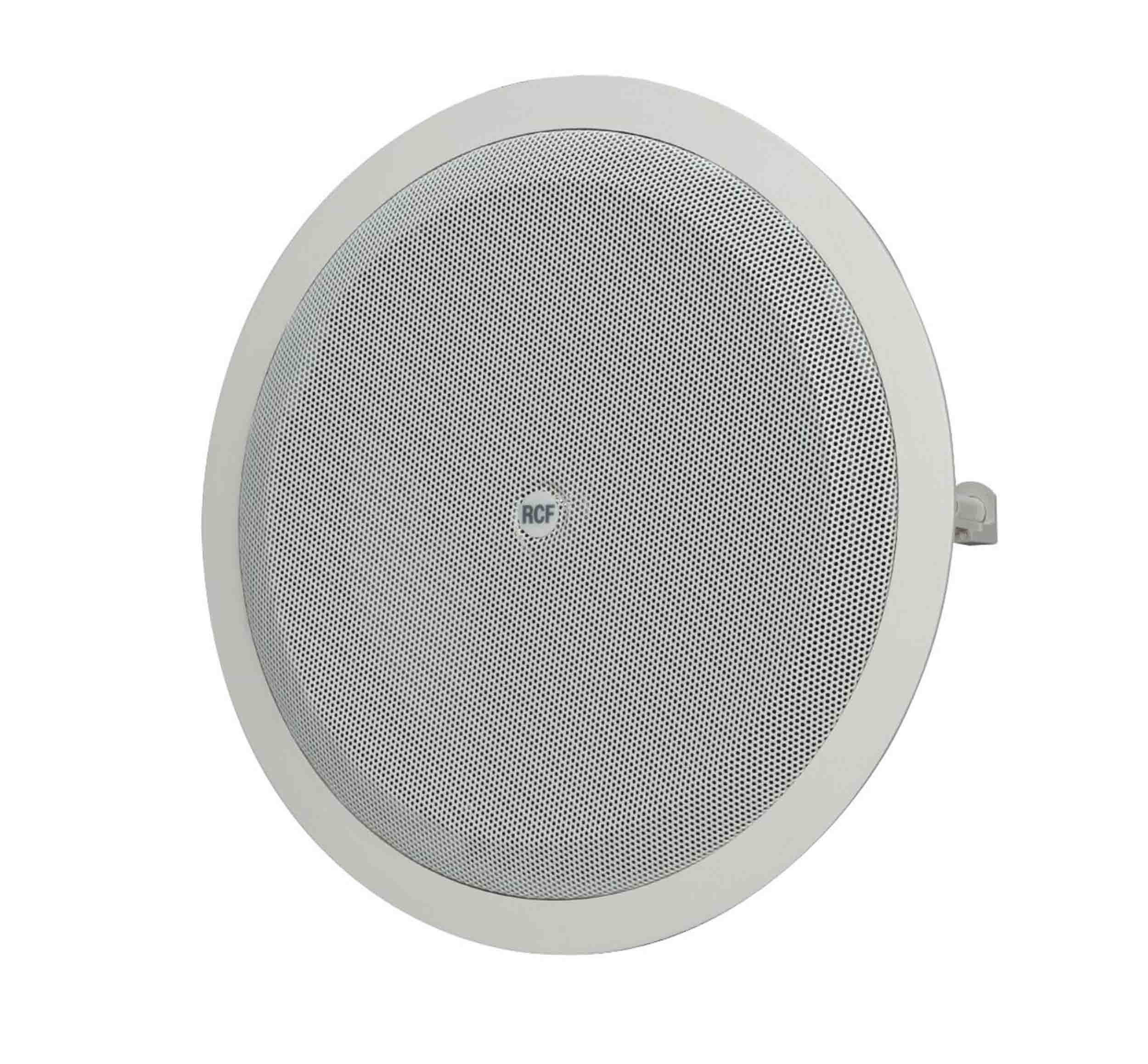

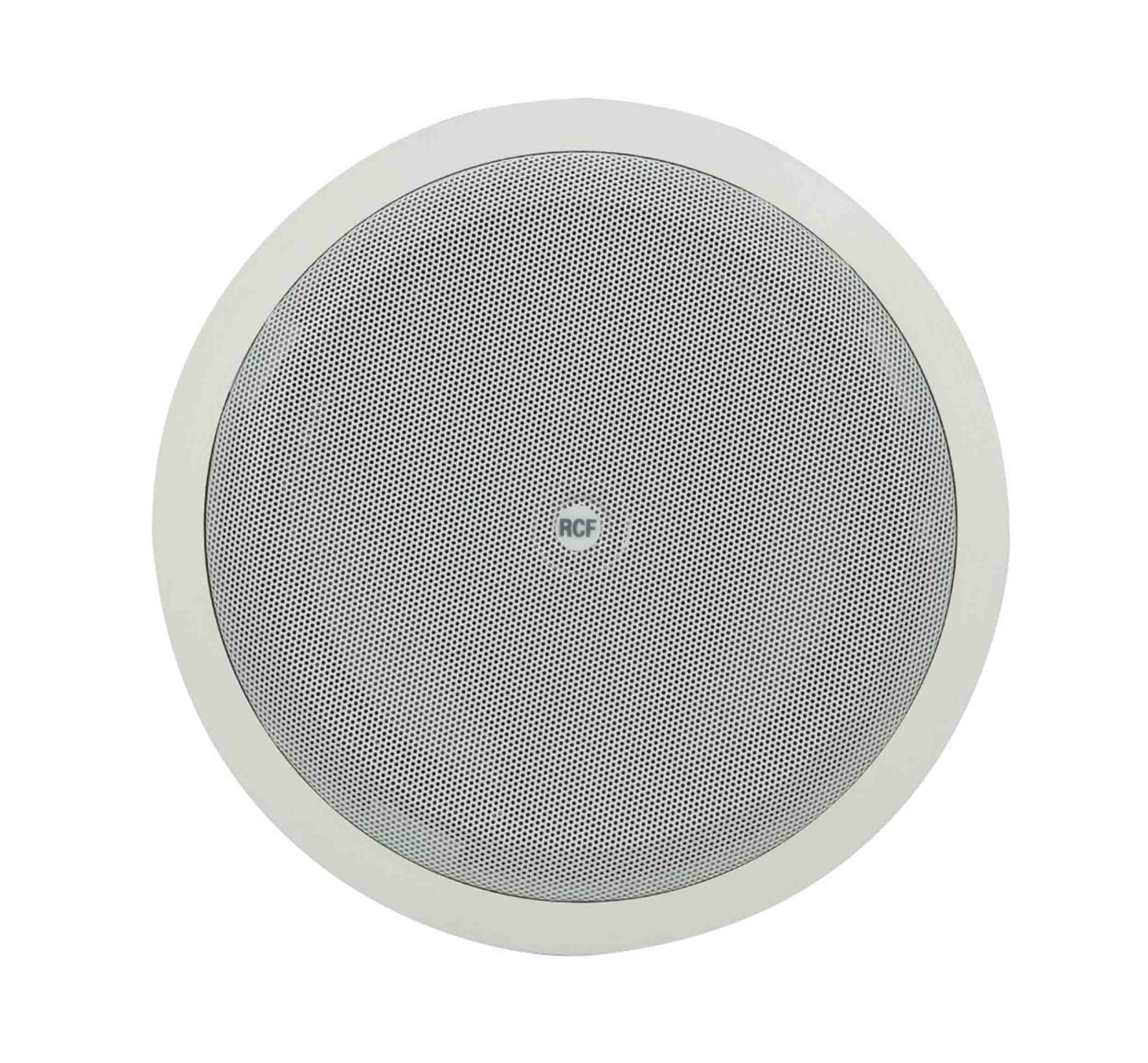

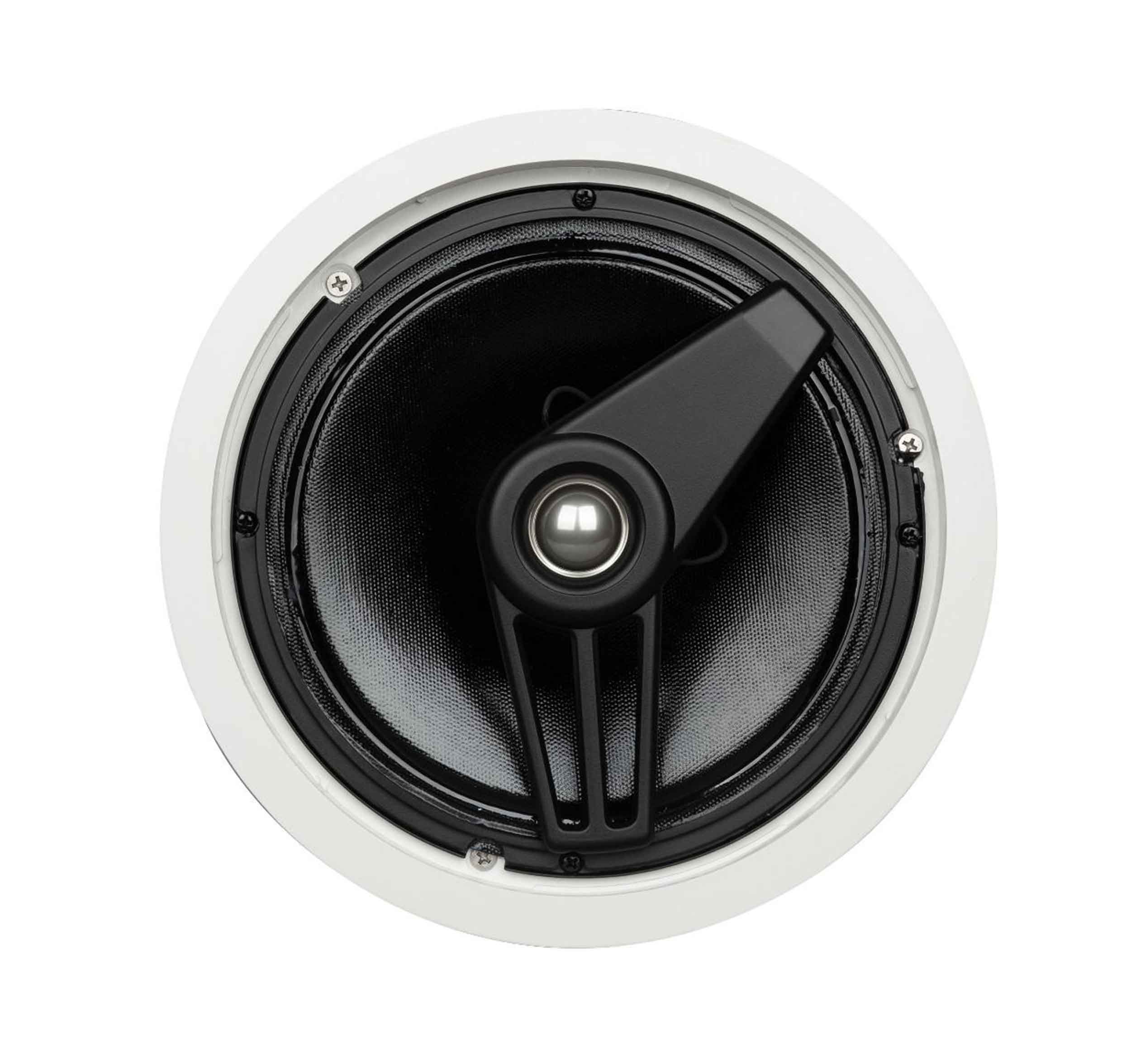

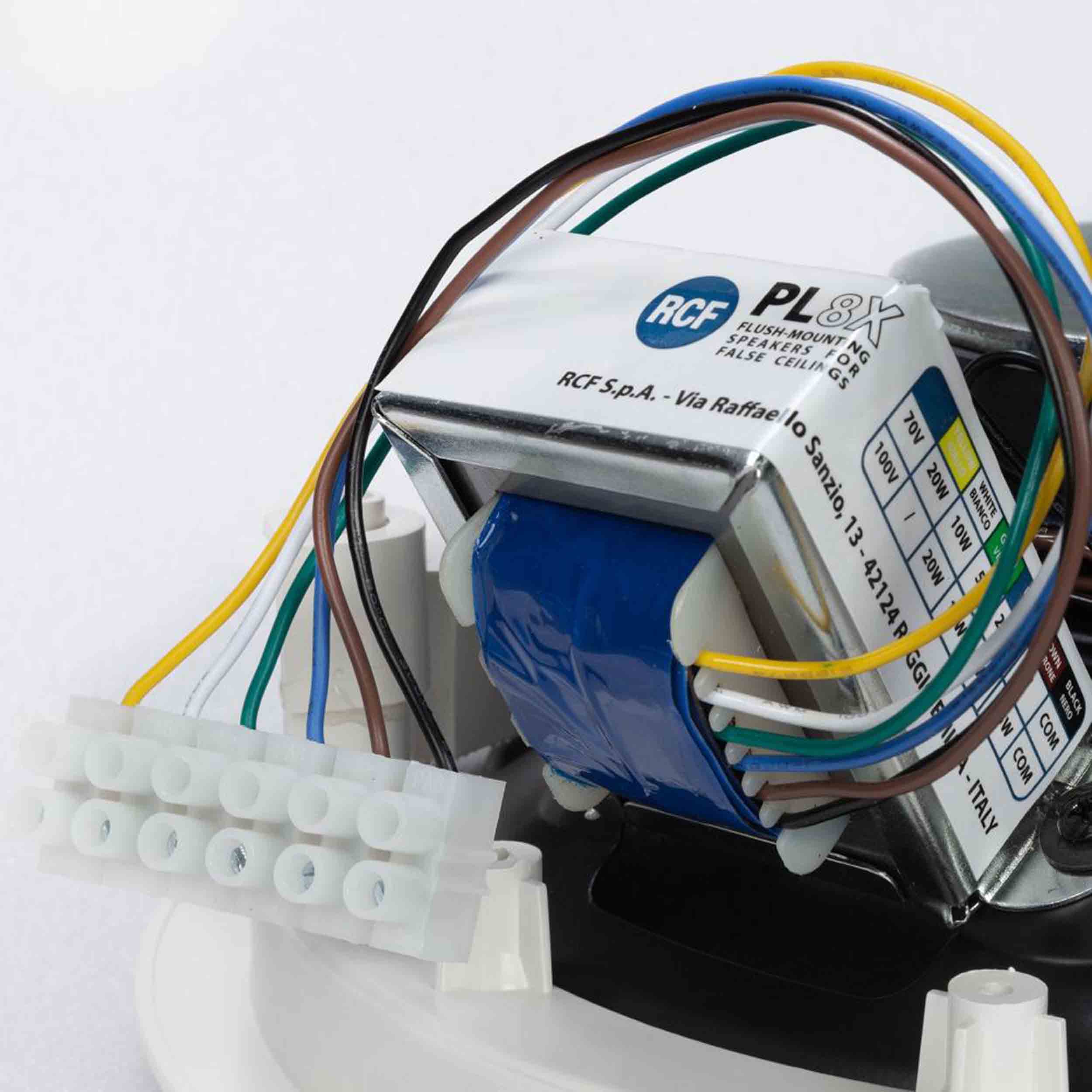

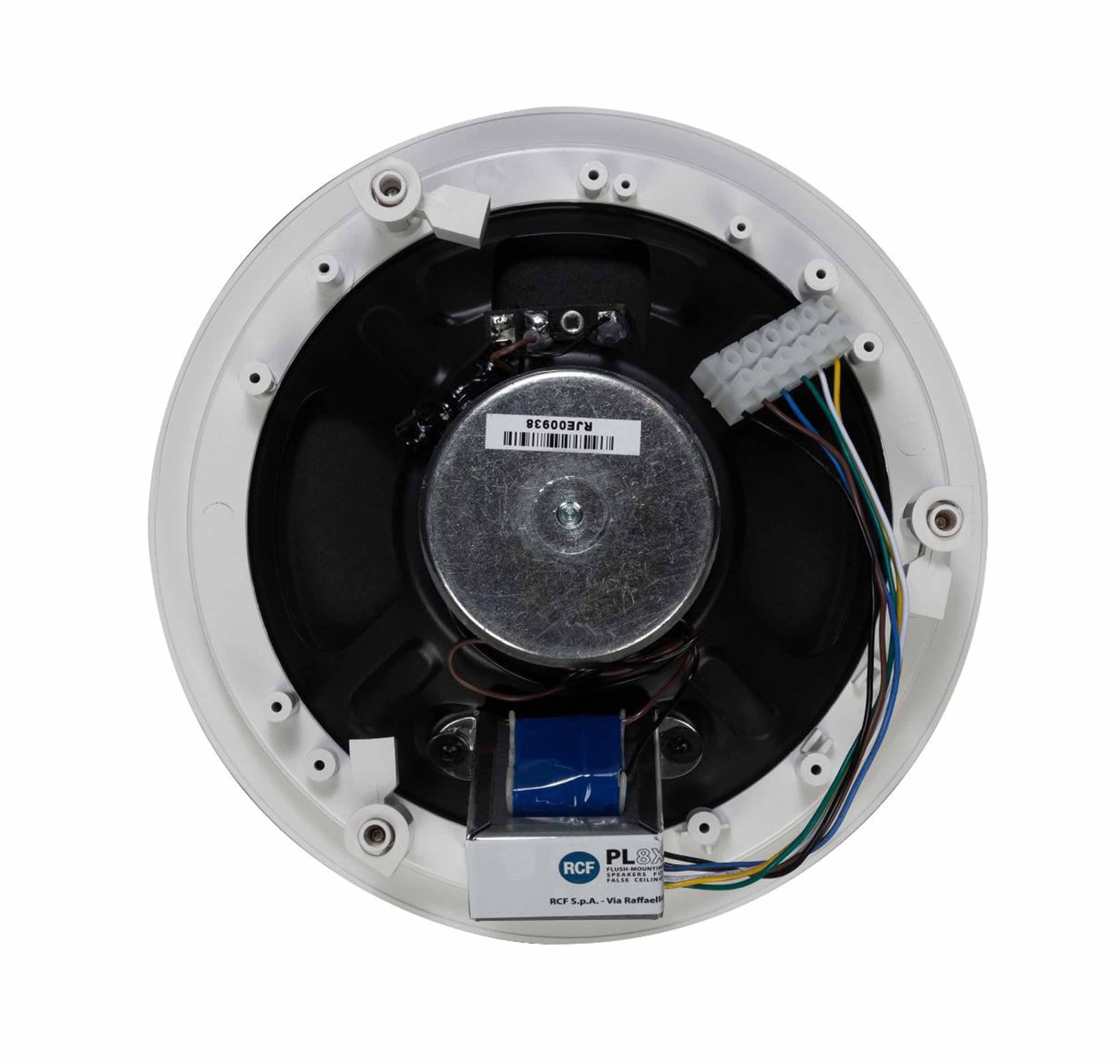

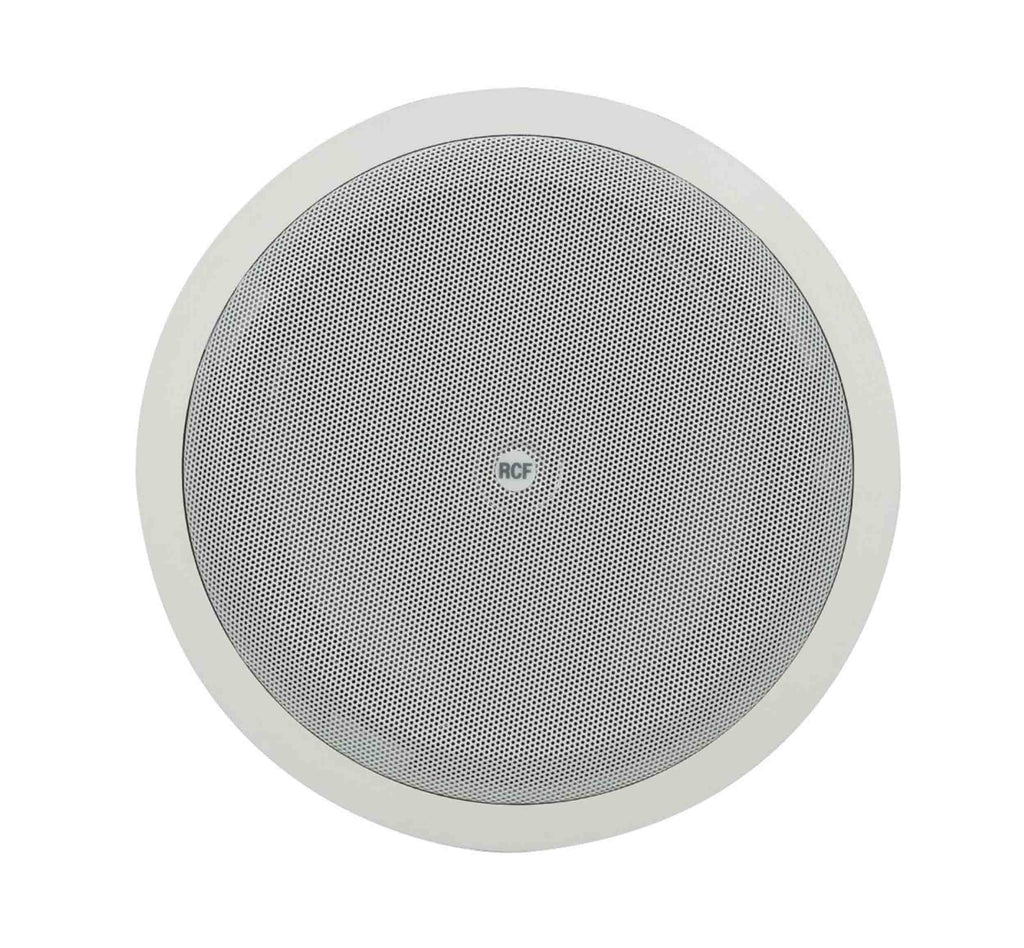

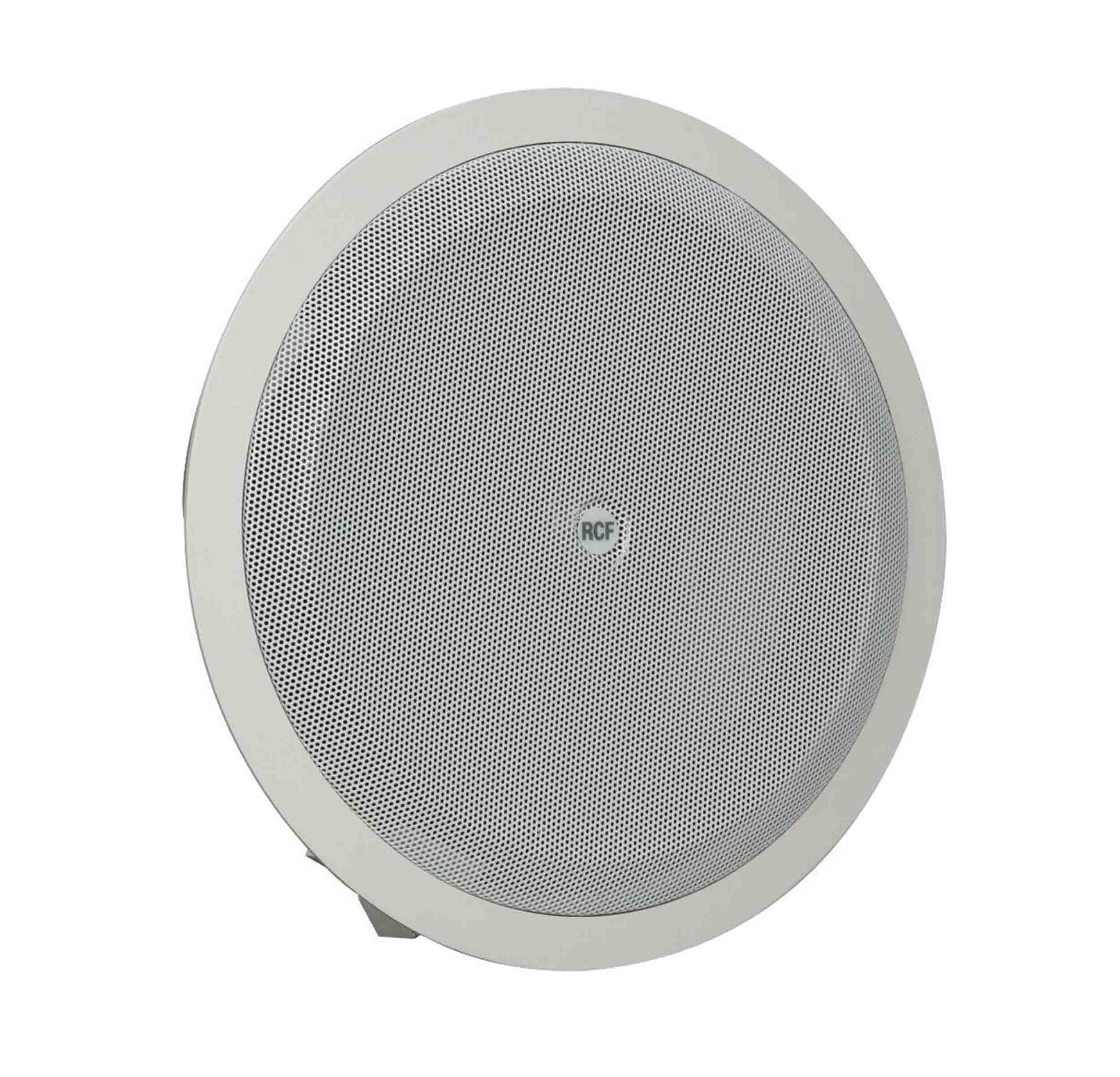

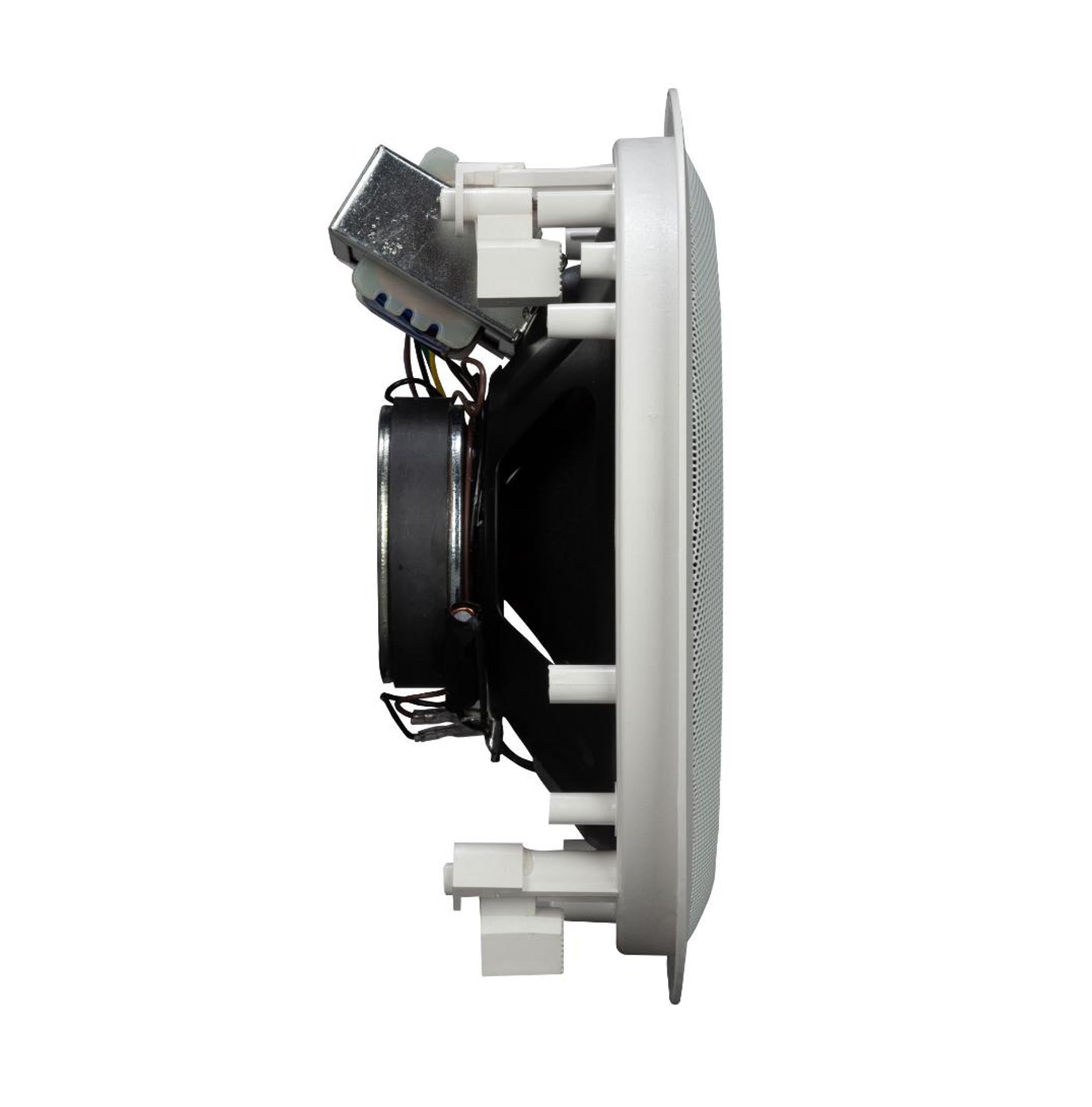

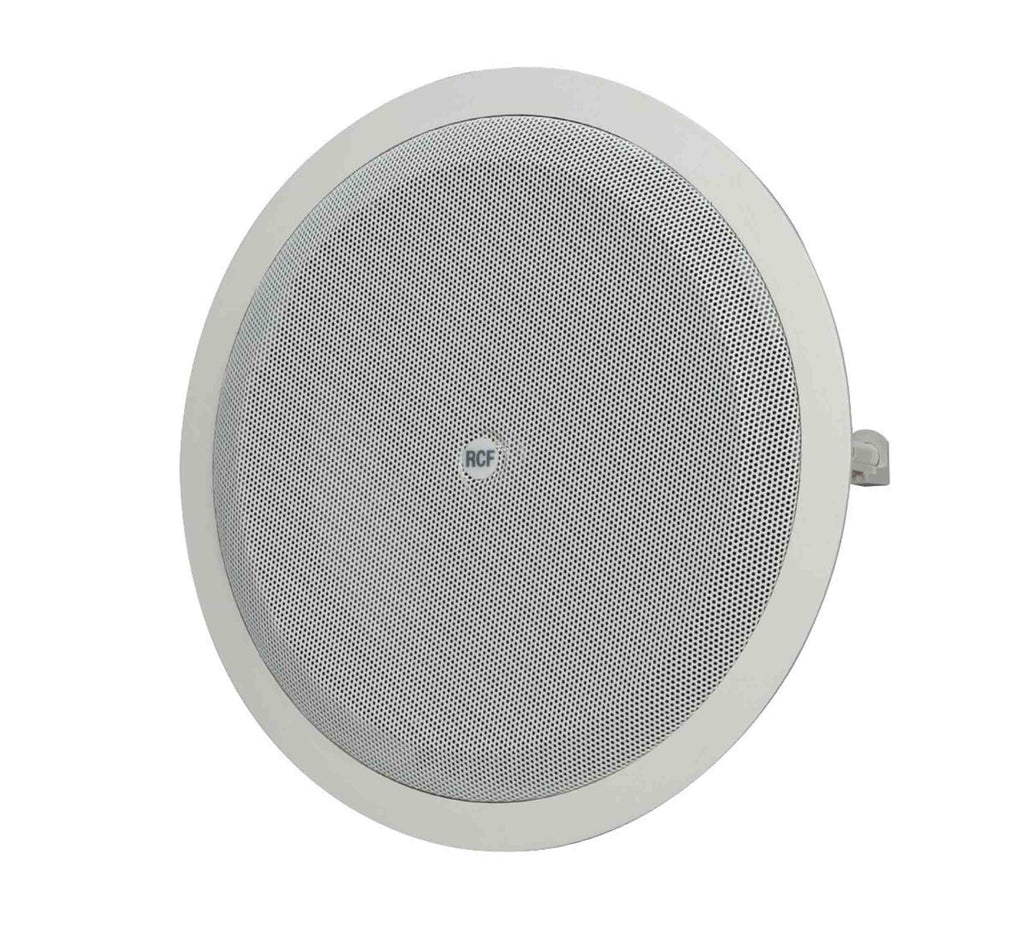

The RCF PL 8X W is a premium coaxial ceiling speaker (white) designed for flush-mount installation in false ceilings and panels. It features an 8" woofer and 1" dome tweeter mounted on a bridge for clear and balanced audio reproduction. A built-in 70/100 V transformer allows flexible power selection, making it ideal for distributed audio systems. The innovative three-hook fixing system ensures fast installation without screws or additional accessories. Perfect for paging and background music in commercial spaces, hotels, offices, and retail environments.
Product Specification:
Acoustical:
Frequency Response: (-10 dB): 60 Hz – 20 kHz
Max SPL: @ 1 m: 109 dB
Coverage Angle: 80°
System Sensitivity: 93 Db
Power Section:
Amplification: Full Range
Power Handling: 20 W RMS
Peak Power: 80 W
Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM
2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
Transducers:
Tweeter: 1" Dome
Woofer: 8"
Input / Output:
Input Connectors: Screw Terminals
Output Connectors: Screw Terminals
Constant Voltage: 70/100 V
Power Selection 1: 20 W - 500 ohm
Power Selection 2: 10 W - 1000 ohm
Power Selection 3: 5 W - 2000 ohm
Power Selection 4: 2.5 W - 4000 ohm
Standard Compliance:
IP Rating: IP 44
Certification: CE Compliant
Physical:
Material: Plastic enclosure / Aluminium grille
Colour: White – RAL 9003
Size / Weight:
Depth: 88 mm / 3.46 in
Recessed Depth: 80 mm / 3.15 in
Diameter: 247 mm / 9.72 in
Cut-out Diameter: 224 mm / 8.82 in
Weight: 1.23 kg / 2.71 lb
Shipping Information:
Shipping Height: 280 mm / 11.02 in
Shipping Width: 280 mm / 11.02 in
Shipping Depth: 130 mm / 5.12 in
Shipping Weight: 2.09 kg / 4.61 lb
