Description

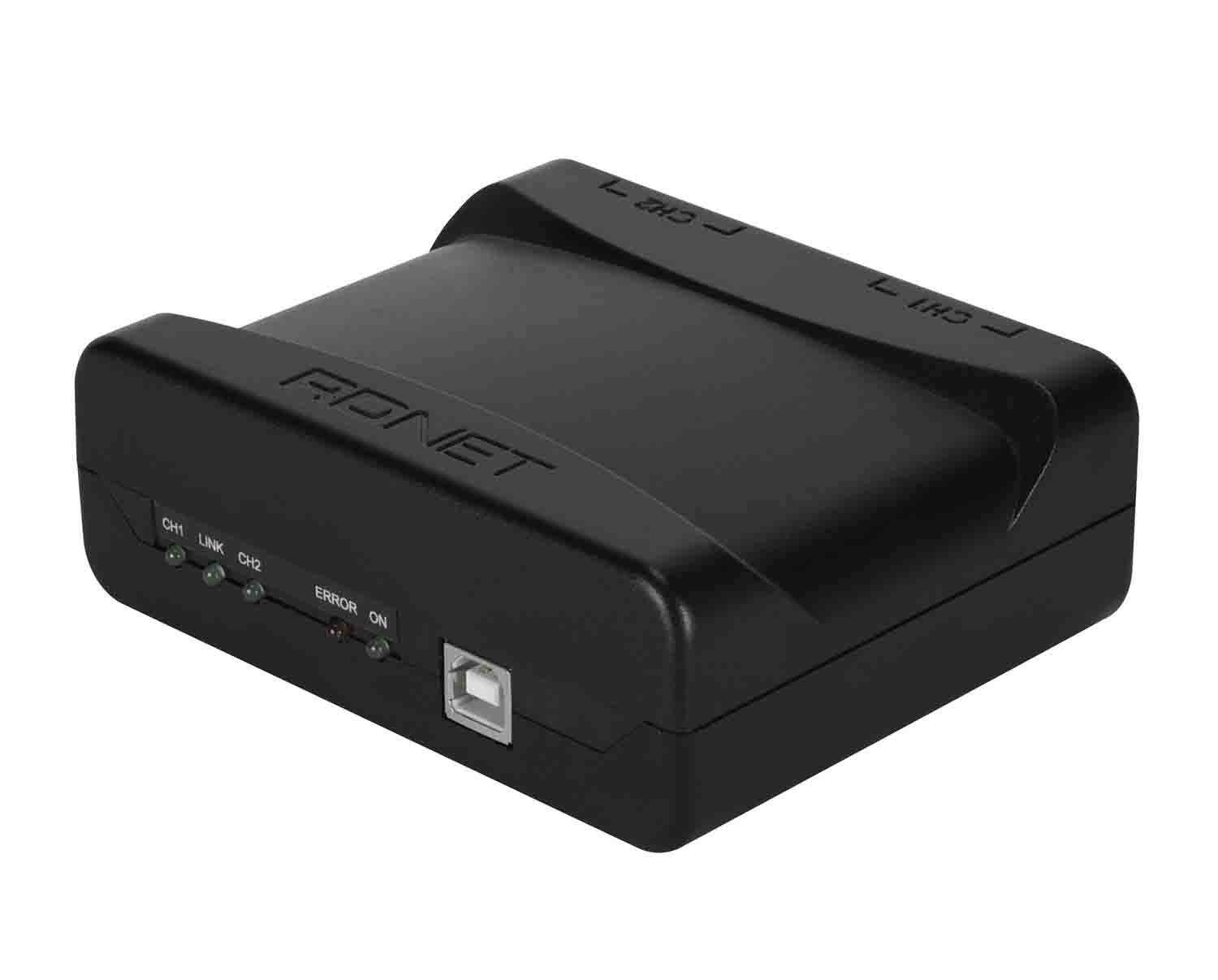

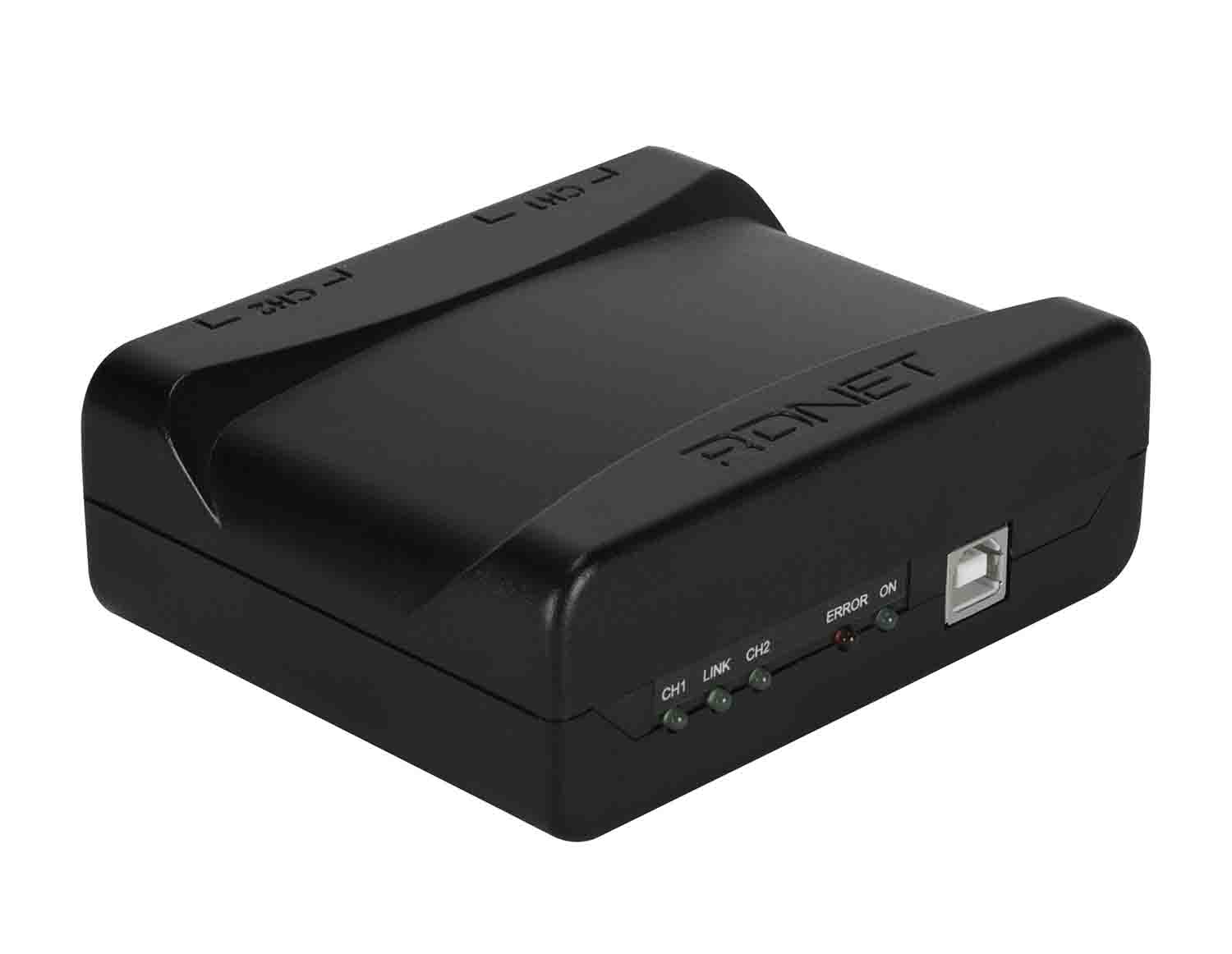

The RCF RDNet Control 2 is a Compact 2-Output USB Interface. The RDNet Control 2 is a hardware interface to connect RCF RDNet compatible devices (TTL55-A, TTL33-A II, TTL31-A II, etc.) to a Personal Computer (PC) by means of an USB connection. The RDNet system was purposely developed to create a data network for monitoring and command of more systems. The RDNet Control 2 unit can manage up to 2 subnets. Up to 32 devices can be connected to each subnet (2 subnets x 32 = total 64 devices). The addressing of the various devices is handled automatically by RDNet Control 2 interface. Each device is assigned a unique address during the power on procedure of network. For the RDNET network operating, it is necessary to install the appropriate Software on PC, on Microsoft Windows® environment. From PC it is possible to check the operating of each single device connected to the network and edit its parameters output level, mute, equalization, delay, etc. The network and devices configuration can be saved as file in the PC and later reloaded. RDNET is a “real-time” system: Information relating to the functioning of the devices is acquired in real-time, a feature that allows a global view of connected devices.
RDNet to Computer
The RDNet Control 2 is a hardware interface for connecting RCF RDNet compatible devices (TTL55-A, TTL33-A II, TTL31-A II, etc.) to a Windows computer by means of a USB connection. The RDNet system was purposely developed to create a data network for monitoring and command of more systems. RDNET is a real-time system; information relating to the functioning of the devices is acquired in real time, a feature that allows a global view of connected devices.
Supports up to 64 Devices
The RDNet Control 2 unit can manage up to two subnets. Up to 32 devices can be connected to each subnet (two subnets x 32 = 64 total devices). The addressing of the various devices is handled automatically by the RDNet Control 2 interface. Each device is assigned a unique address during the power-on procedure of the network.
RDNet Software
For the RDNET network operating, it is necessary to install the appropriate software on a computer equipped with Microsoft Windows. From the computer, it is possible to check the operating of each single device connected to the network, and edit its parameters such as output level, mute, equalization, delay, etc. The network and devices configuration can be saved and later reloaded.
Auto Scanning
When online, the RDNet Control 2 unit sequentially scans all audio devices (10 scans per second), automatically labeling them with digital addresses. The loudspeaker objects are immediately added to the software synoptic as an object for each speaker (or any other audio device) found on the network.
Product Specifications:
Number of subnets: 2

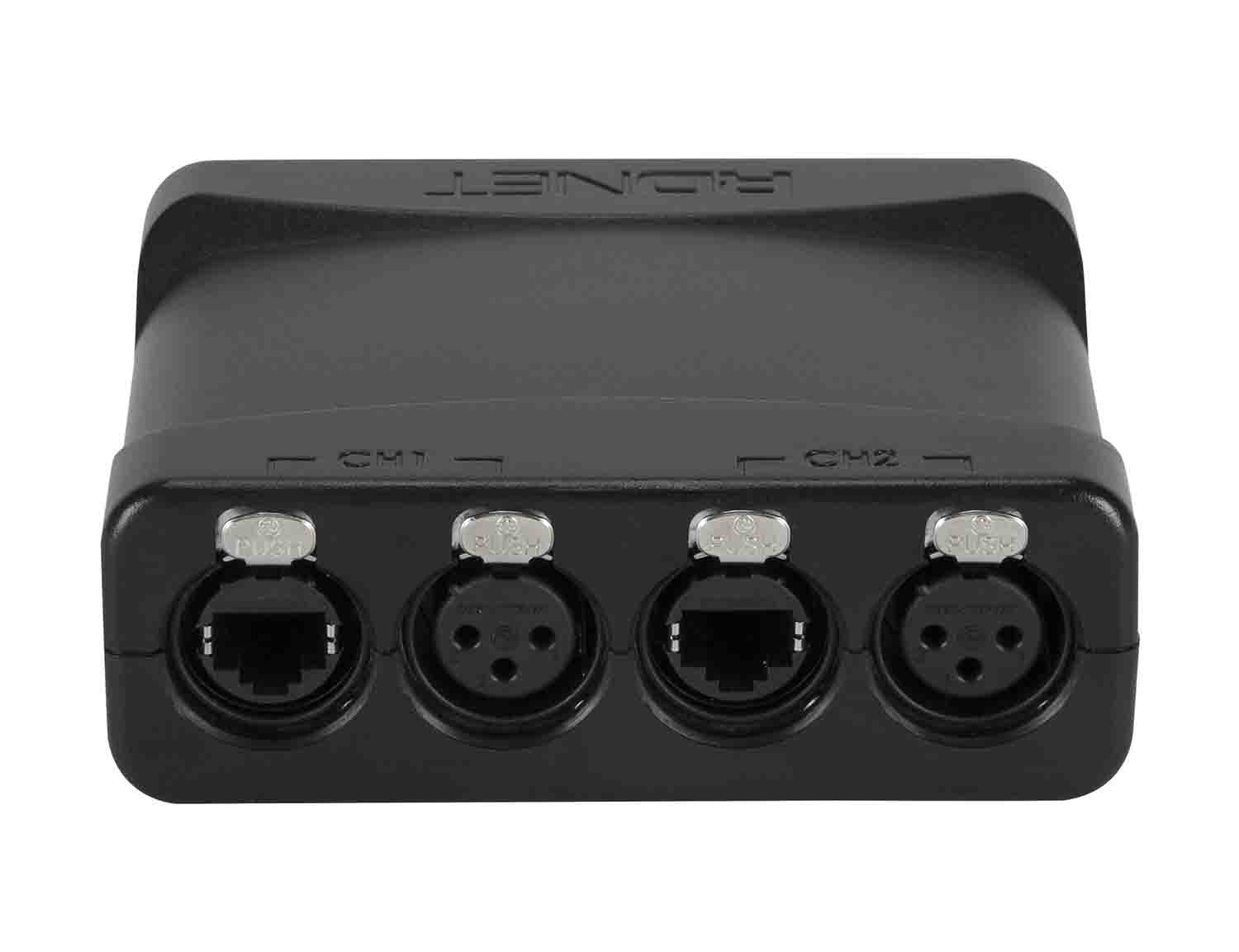

Connectors: RJ 45, XLR
Max number of devices (for each subnet): 32
Configuration: PC software

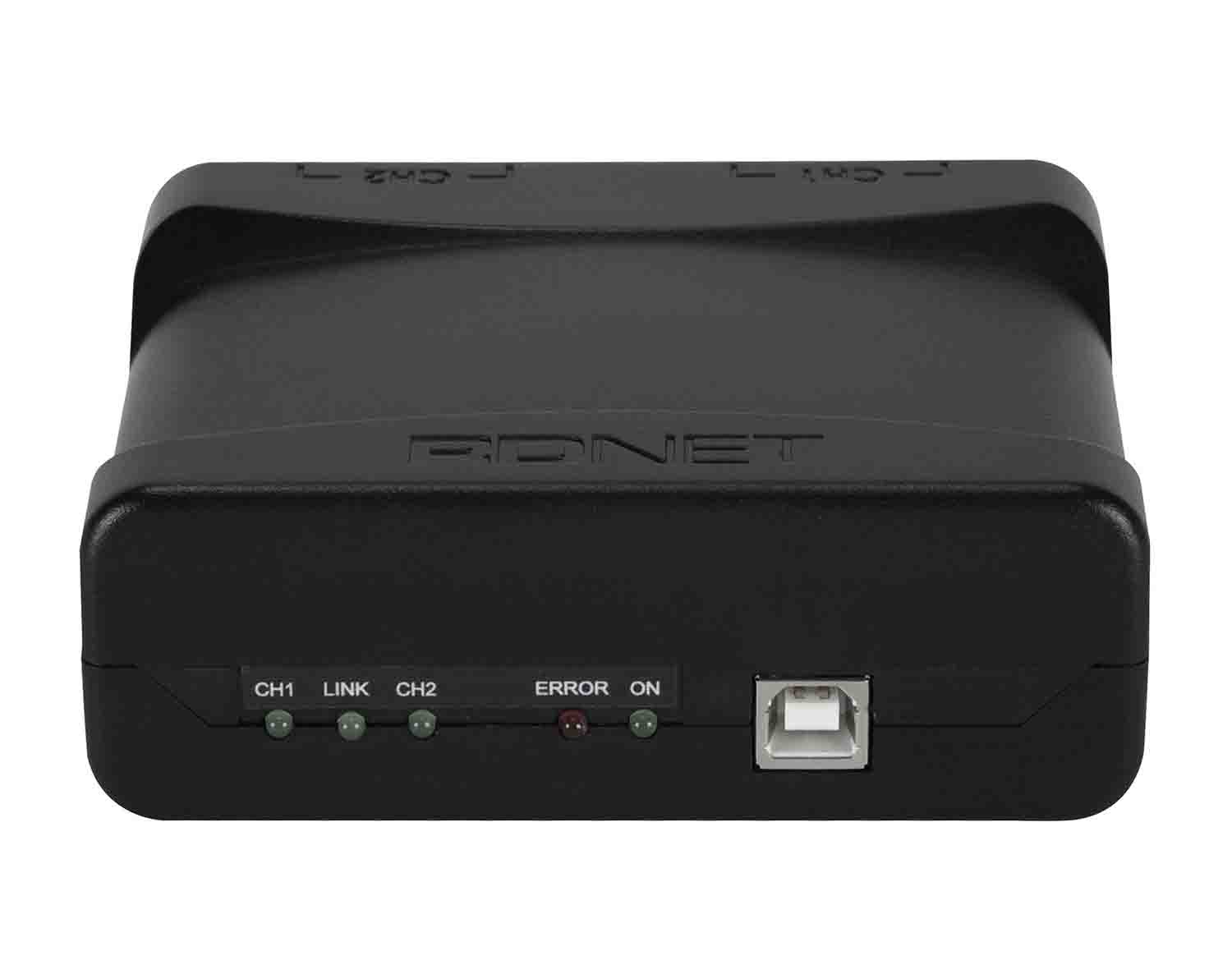

PC connection: USB (typeB)
Power supply: Powered by USB socket
RDNet: Yes
Dimensions: 1.6 x 4.4 x 3.5" / 4.1 x 11.1 x 9.0 cm
Weight: 0.4 lb / 0.2 kg
