Description

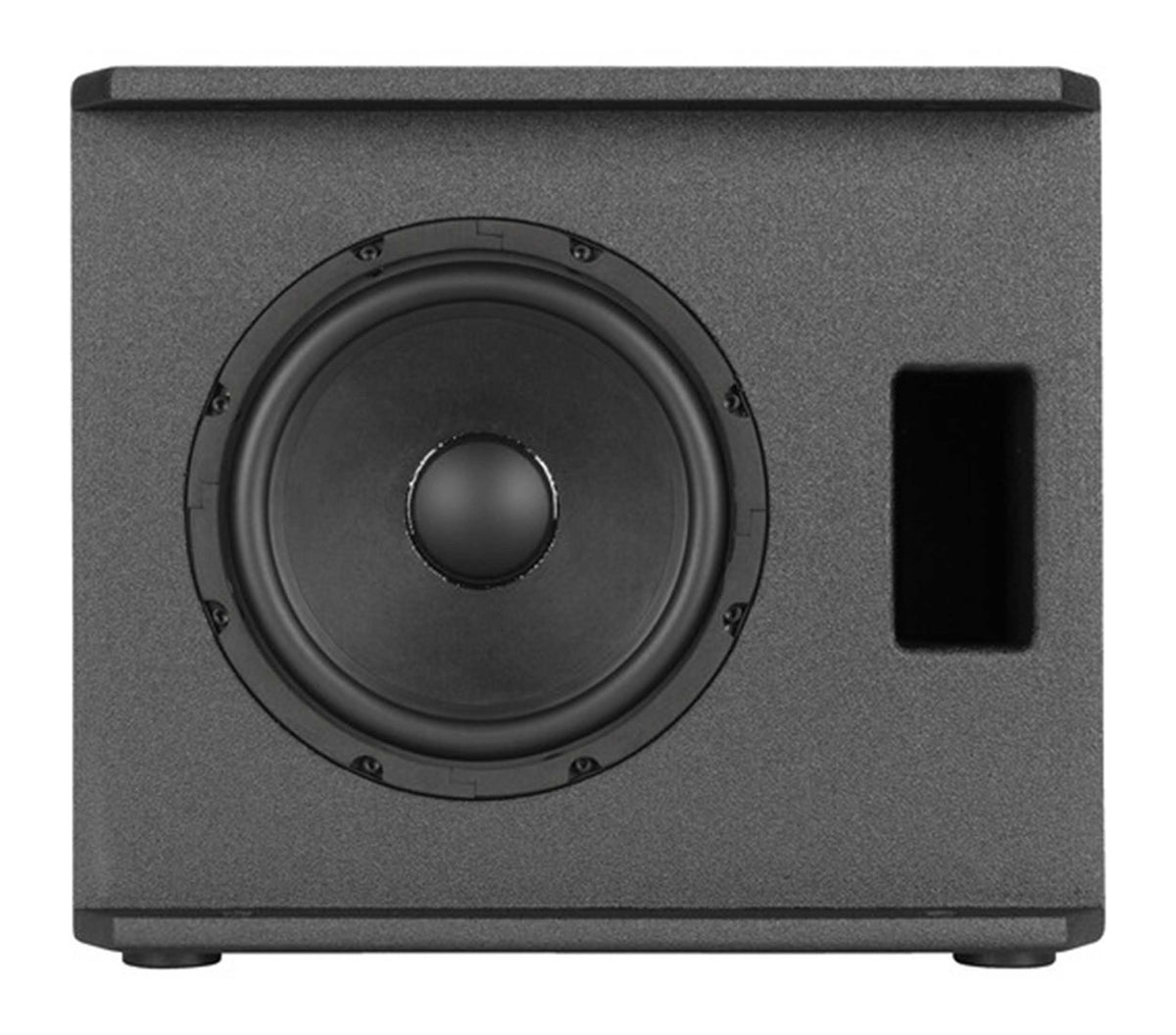

The RCF S-08-A is a self-powered 4-channel audio system designed to provide a complete and flexible solution for environment sonorization. Its integrated 4 × 250W Class-D amplifier powers the built-in 8-inch woofer while also providing outputs for two satellite loudspeakers and an additional passive S 08 subwoofer.
Flexible Input & Bluetooth Connectivity

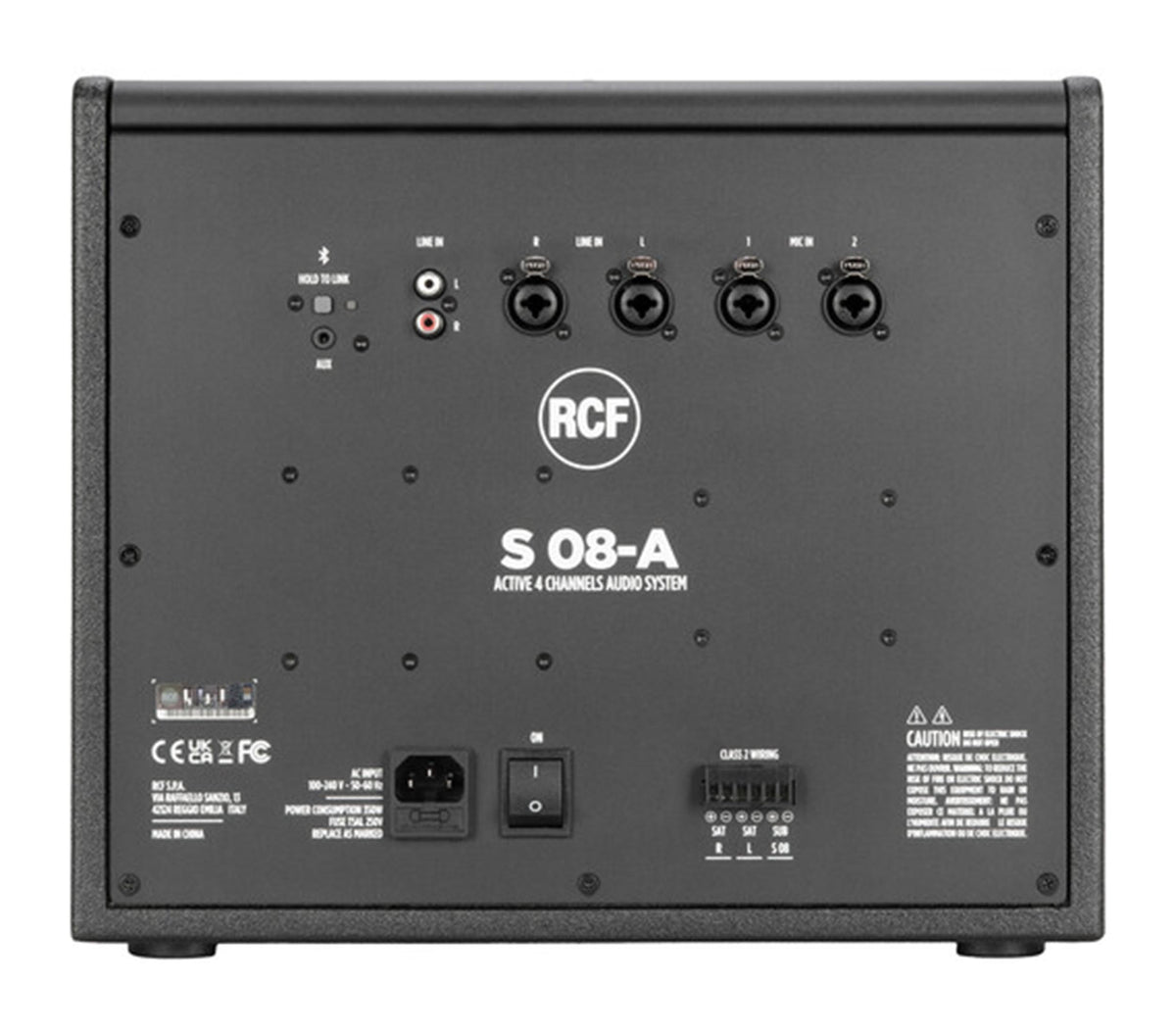

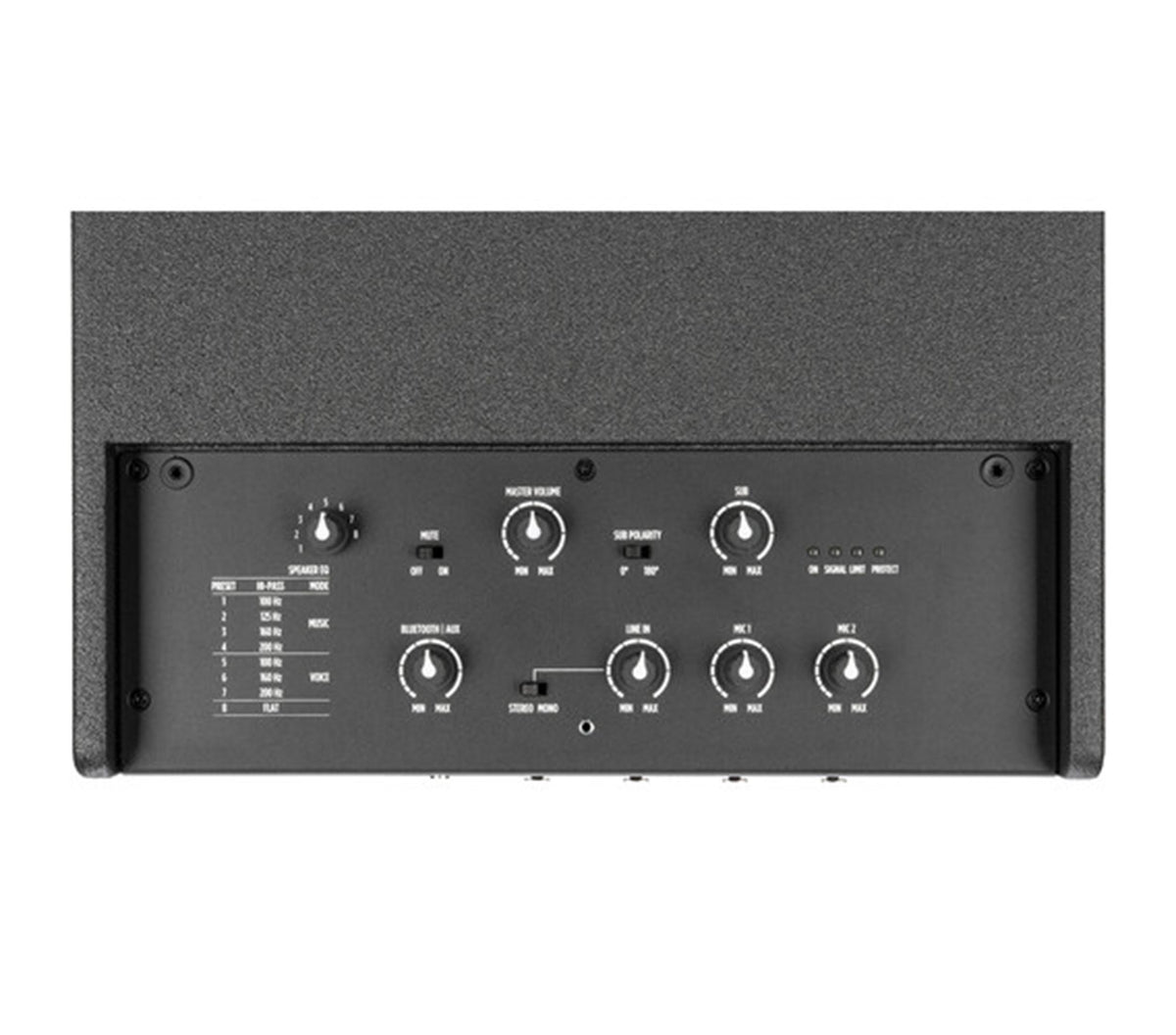

The four-channel input section combines two microphone inputs with line-level connectivity through combo XLR/Jack, 3.5mm Jack, and RCA connections. Bluetooth audio streaming allows wireless playback from compatible mobile devices, while independent source-level mixing makes it easy to balance multiple audio sources. A sturdy metal cover protects the mixer controls from accidental or unauthorized adjustments.
DSP Processing & System Expansion
Eight onboard EQ presets are optimized for music and voice reproduction, while dedicated high-pass filter settings allow the S-08-A to be matched with a wide range of RCF satellite speakers. Its high-quality plywood enclosure and steel grille with protective cloth provide durable construction for professional installations and portable sound applications.
Product Specifications:
System Configuration: Self-Powered Audio System
Amplifier Class: Class D
Number of Channels: 4
Output Power: 4 × 250W @ 4Ω/4 × 250W @ 8Ω
Integrated Subwoofer: 8"
Subwoofer Voice Coil: 1.5"
Subwoofer Configuration: Integrated
Frequency Response: 20 Hz – 20 kHz (-3 dB)
Input Channels: 4
Microphone Inputs: 2
Line Inputs: 2
Mic Connectors: Combo XLR/Jack
Line Connectors: Combo XLR/Jack, 3.5mm Jack, RCA
Audio Streaming: Bluetooth
Power Output Connectors: Euroblock
Power Output Connector Type: 6-Pole Euroblock
DSP Processing: Yes
EQ Presets: 8
EQ Configuration: Music & Voice Optimized
High-Pass Filter: Dedicated System Matching Filters
Configuration Controls: Front Panel
Presets/Programs: 8
Additional Subwoofer Support: Passive RCF S 08 Subwoofer
Satellite Speaker Support: 2 Satellite Loudspeakers
System Configuration: Mono or Stereo
Protection: Short Circuit, Thermal, DC, Fuse & VHF
Short-Circuit Protection: Yes
Thermal Protection: Yes
DC Protection: Yes
Fuse Protection: Yes
VHF Protection: Yes
Operating Voltage: 90–240V AC, 50/60 Hz
Cabinet Material: Plywood
Grille Material: Steel with Cloth
Design: Self-Powered Multi-Channel Audio System
Application: Environment Sonorization, Music, Voice & Commercial Audio
Product Weight: 22.49 lbs
Product Dimensions: 12.56" H × 14.57" W × 13.27" L
Shipping Weight: 26.9 lbs
Shipping Dimensions: 14.45" H × 16.38" W × 15.08" L
