Description

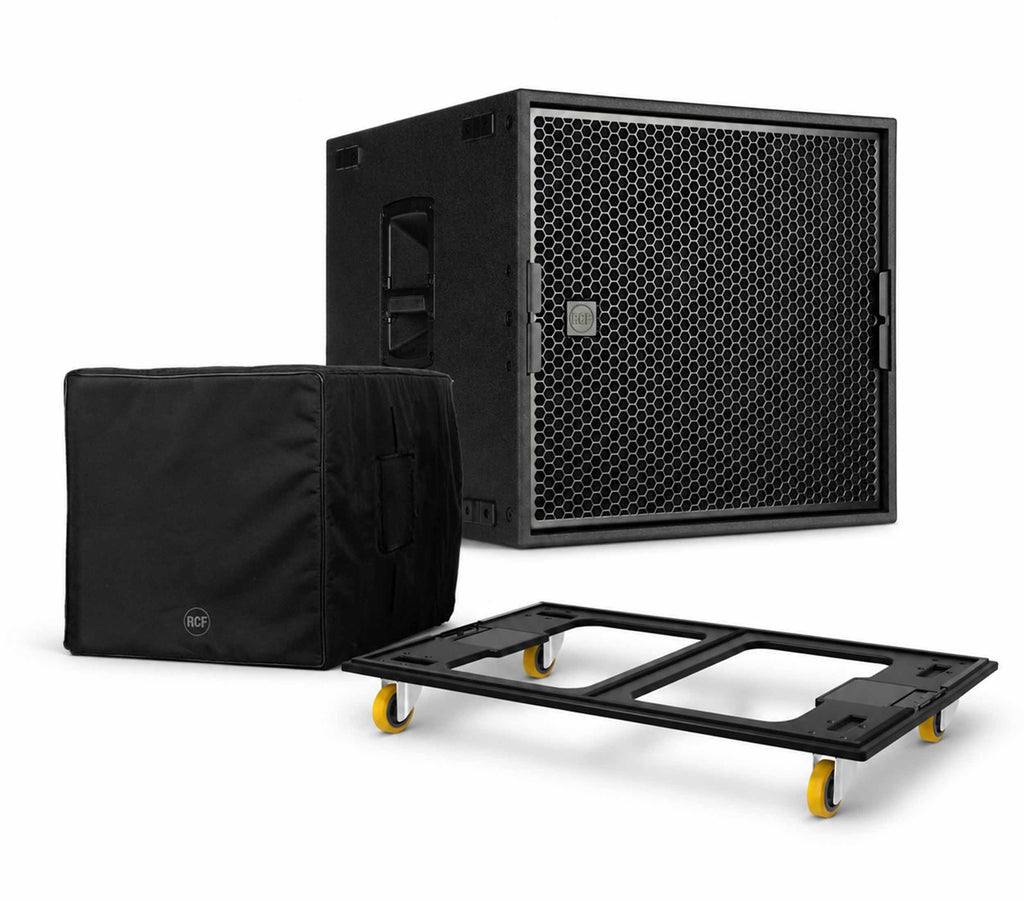

This package includes one RCF SUB 9016-AS 4000W 16-Inch High-Power Active Subwoofer, one RCF CVR60736 protective cover, and one RCF CRT60667 front wheel board. The SUB 9016-AS delivers powerful, deep bass performance for professional live sound, touring, and installed audio applications. The included protective cover helps safeguard the subwoofer during transport and storage, while the front wheel board provides enhanced mobility for easier handling and setup. Together, these components create a complete solution for professionals seeking powerful low-frequency performance, reliable protection, and convenient transport.
This Package Includes
- 1 x RCF SUB 9016-AS 16-Inch-High Power Active Subwoofer Black - 4000 Watt
- 1 x RCF CVR60736 Protective Cover for SUB9016AS Subwoofer - Black
- 1 x RCF CRT60667 Front Wheel Board for SUB9016-AS Subwoofer
1 x RCF SUB 9016-AS 16-Inch-High Power Active Subwoofer Black - 4000 Watt
The RCF SUB 9016-AS is a high-performance 16" active subwoofer delivering up to 137 dB Max SPL, powered by a robust 4000W Class-D amplifier. Designed for rigorous touring, the SUB 9016-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet, the SUB 9016-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
RCF has created a groundbreaking solution for offline/unpowered device configuration. With RDTap, users can inspect and configure devices without needing to power them. Sound engineers can design a system within the RDTap App on the move and configure each subwoofer by tapping the RDTap logo, with RCF [patent-pending] contactless technology. As an alternative, RDNet management software enables comprehensive real-time control and monitoring of compatible, network-connected devices.
Drive the Rhythm of The Beat
With up to 8000 Watts of power, our Class-D amplifier can manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low thermal loss.
The stereo input circuit features a low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch-Mode Power Supply section that combines high efficiency with minimum weight.
Transducers
SUB 9000 Series subwoofers incorporate the latest transducer technology from our labs. Employing lightweight aluminium core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass gains high power with fast acceleration. Despite their small and lightweight footprints, SUB 9000 Series subwoofers produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
High-Class Neodymium
Neodymium, a rare-earth material, enhances efficiency, power handling, and weight reduction. Using a 20% stronger magnetic field than typical neodymium grades, this new design enables precise control and higher force.
Product Specifications:
Acoustical:
Frequency Response: 30 Hz – 200 Hz
Max SPL @ 1m: 137 dB
Woofer: 1 × 16" Neodymium, 4.0" voice coil
Input/Output:
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: -2 dBu / +4 dBu
Processor Section:
Protections: Thermal
Limiter: Soft Limiter
Controls: MUTE, VOL, PRESETS, RDTap
RDNet: Onboard
Power Section:
Amplifier Power: 4000W Peak
Cooling: Convection / Forced
Connections: PowerCON TRUE1 TOP IN/OUT
Safety Compliance: CE Certified
Physical Specifications:
Cabinet Material: Plywood
Finish: Polyurea Weatherproof Coating
Hardware: 2 × M20 Pole Mounts
Handles: 1 per side
Grille: Steel with acoustic cloth
Colour: Black
Product Height: 533 mm / 20.98 in
Product Width: 570 mm / 22.44 in
Product Depth: 600 mm / 23.62 in
Product Weight: 45 kg / 99.21 lbs.
Package Height: 560 mm / 22.05 in
Package Width: 595 mm / 23.43 in
Package Depth: 647 mm / 25.47 in
Shipping Weight: 50 kg / 110.23 lbs.
1 x RCF CVR60736 Protective Cover for SUB9016AS Subwoofer - Black
The RCF CVR60736 Protective Cover for SUB9016AS Subwoofer - Black provides durable protection for your RCF speaker or subwoofer during transport and storage. Made from 600D polyester on a PVC base with a 190T taffeta inner lining, it guards against scratches, dust, and light impacts. The 10 mm foam rubber padding ensures reliable cushioning, while the Zip and Velcro closure offer quick access and a secure fit. Finished with an embroidered black RCF logo, this cover combines practicality with a professional look.
Product Specifications:
Material: Nylon
Safety agency: CE compliant
Protection: Scratches and hits
Colour: Black
Shipping Weight: 5.51 lbs.
Shipping Dimensions (L x W x H): 26 x 3.74 x 26.3"
1 x RCF CRT60667 Front Wheel Board for SUB9016-AS Subwoofer
The RCF CRT60667 is a front wheel board specially designed for transporting the RCF SUB9016-AS subwoofer. Built from durable plywood and coated with a scratch-resistant black finish, this cart ensures safe and smooth mobility for heavy subwoofers. Its solid construction and high-quality wheels provide reliable performance during setup and transport. CE-compliant and built to last, the CRT60667 offers both strength and convenience for professional audio applications.
Product Specifications:
Material: Plywood
Colour: Black
Product Weight: 17.64 lbs.
Shipping Weight: 22.05 lbs.
ShippingDimensions (L × W × H): 21.46 × 22.83 × 7.09"
