Description

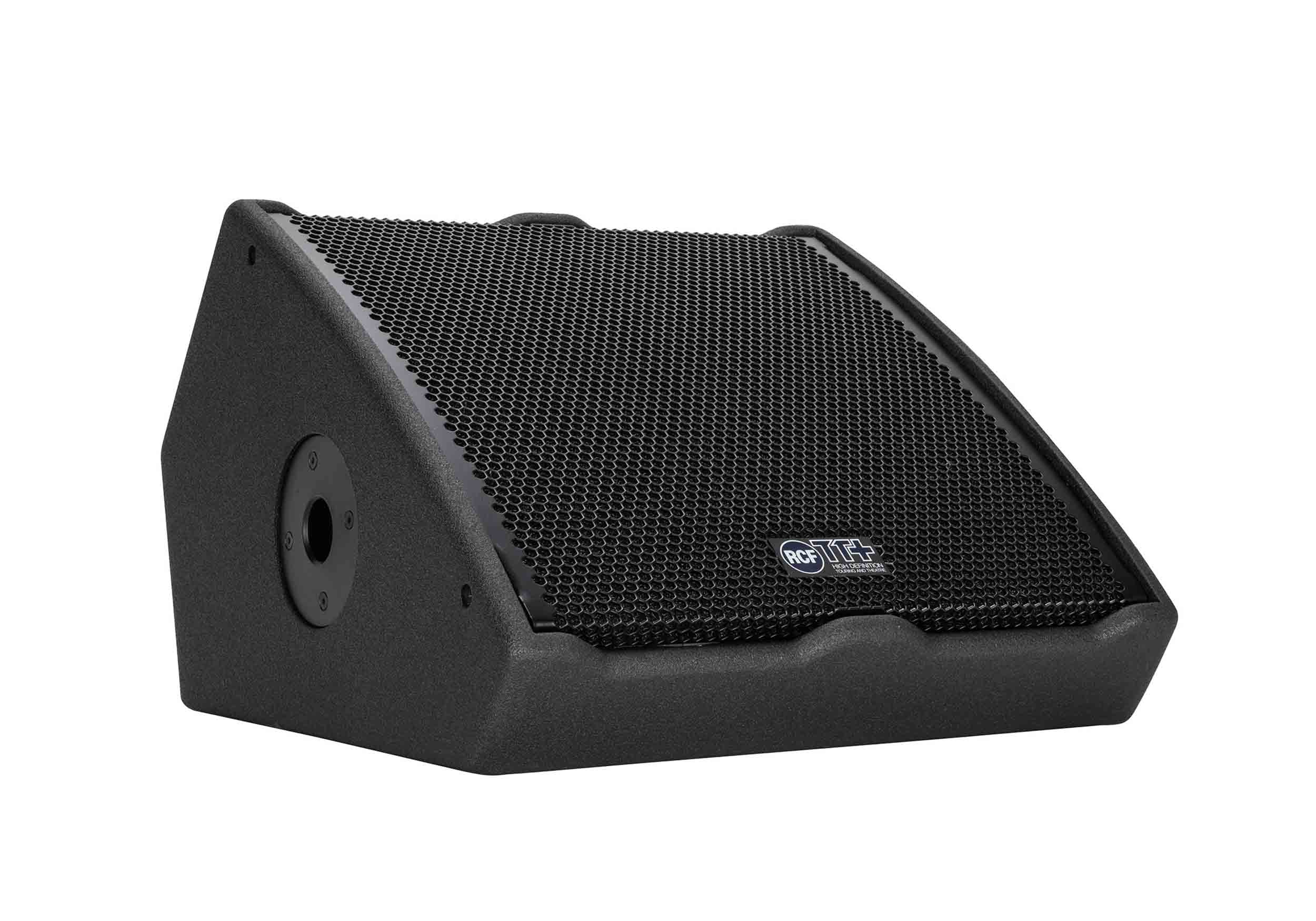

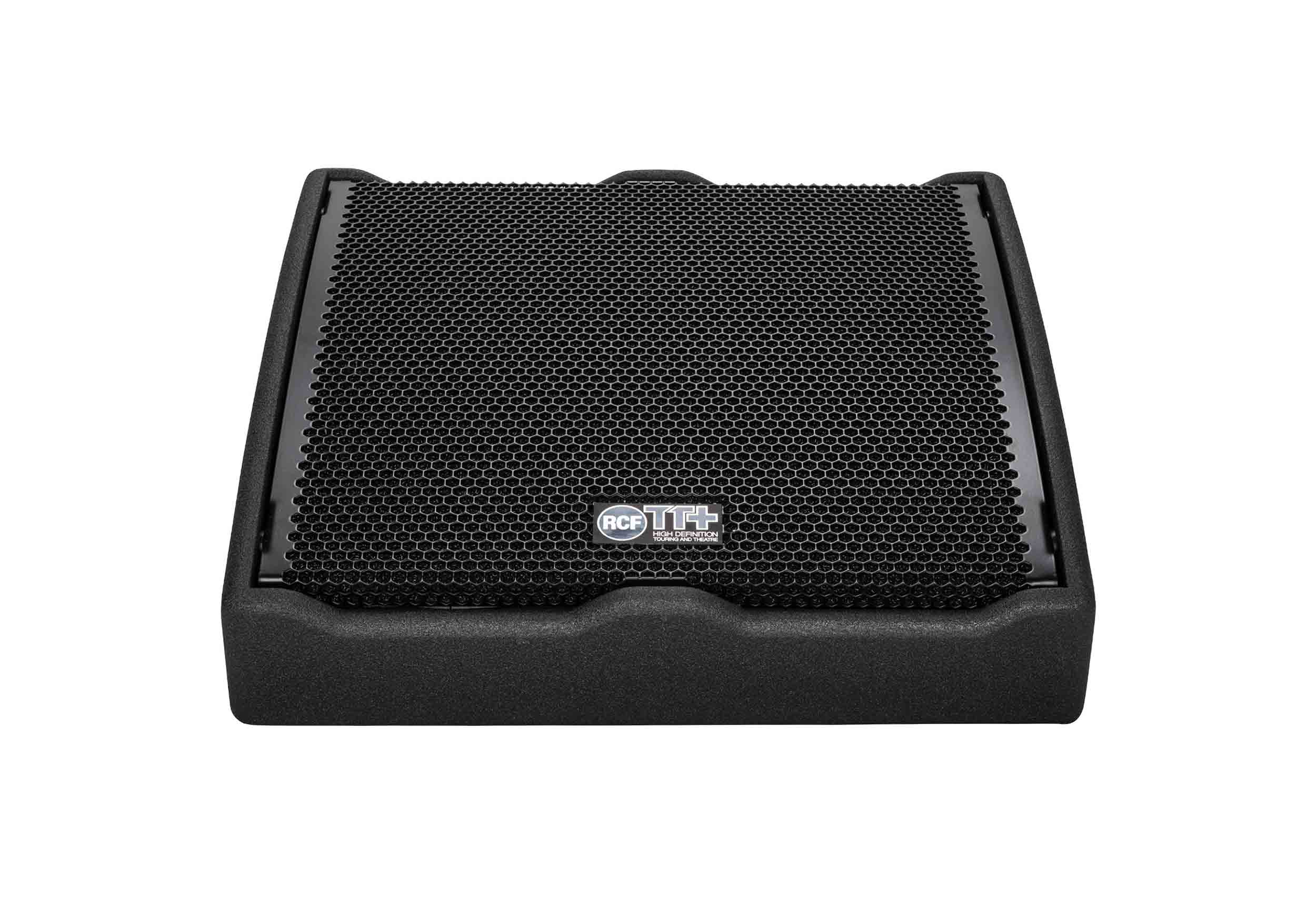

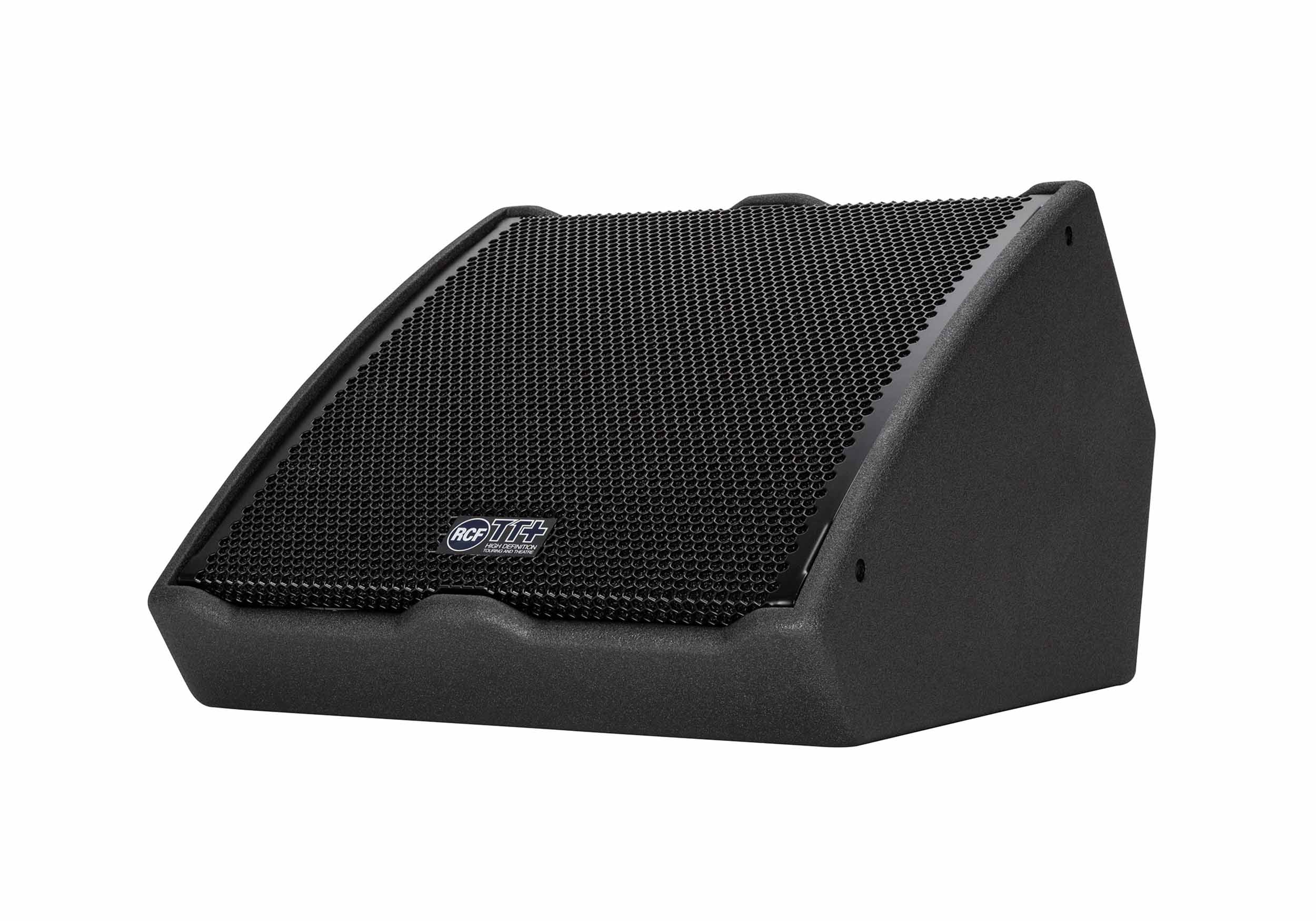

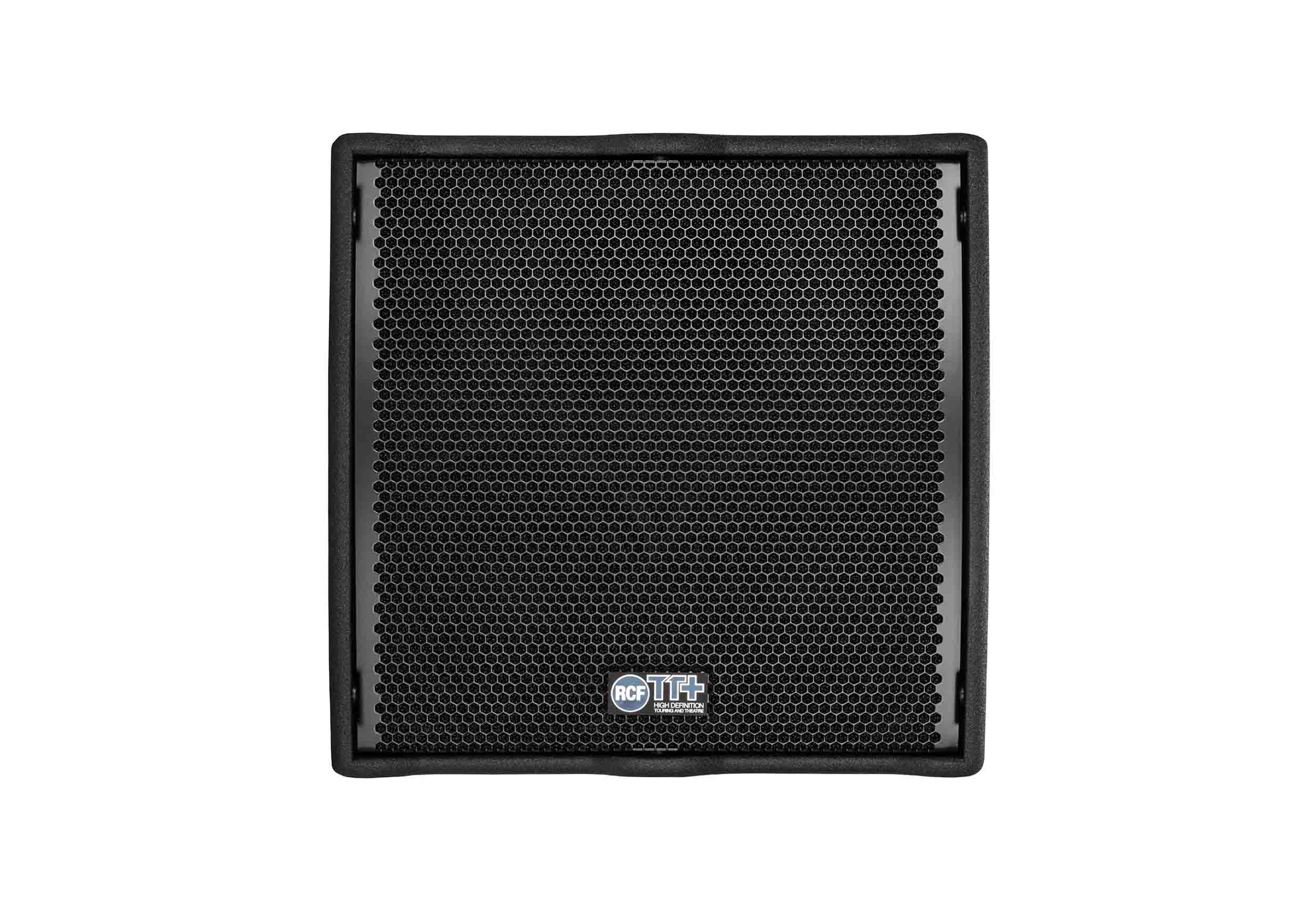

The RCF TT 20-CXA Dual 8-Inch Two-Way High-Definition Active Monitor Black - 2000W is high output stage monitor is a full range, low-profile enclosure with symmetrical transducers arrangement. The optimized frequency and phase response, consistent coverage of 90° x 70°, and potent acoustic output make the TT20-CXA the professional choice for any stage as a monitor or, thanks to the pole socket, as full range front of house system. With an exceptional transient response and the powerful FiRPHASE processing, the TT CXA series far exceeds the capabilities of conventional stage monitors.
Networked Control and Much More
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.
Top Quality Transducers

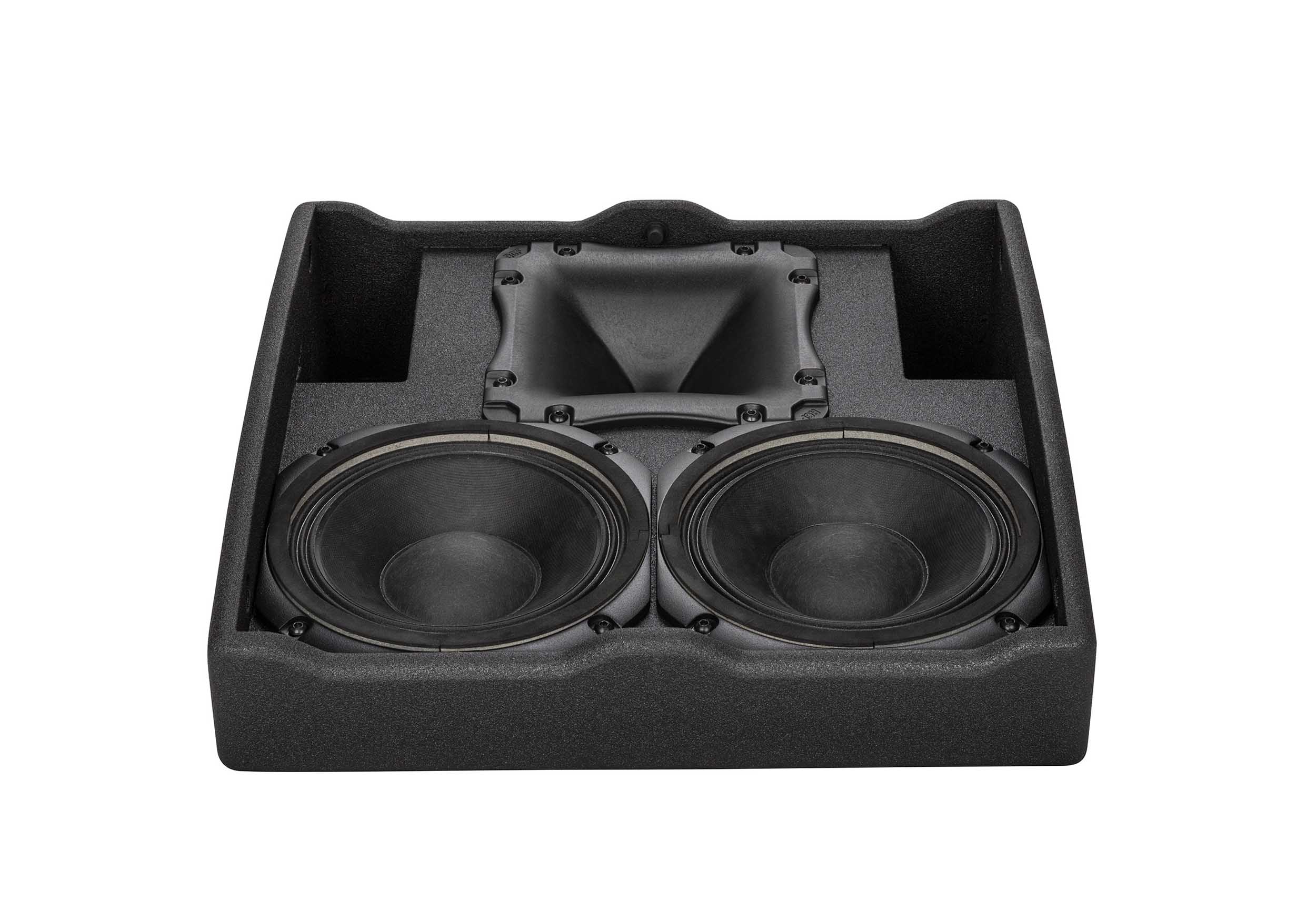

The high frequencies section features a 70° x 90° horn-loaded 2,5” compression driver with constant directivity coverage angle. The Direct Drive technology provides exceptional sound pressure levels. The loudspeaker’s low-frequency section comprises two 8” high-power neodymium woofers in a symmetrical configuration. The 2.5’’ voice coil with an innovative design ensure extreme power-handling, making the TT20-CXA the right choice for medium to large-scale applications.
Amplifier and DSP
The amplifier section features class-D dual switching power supply module, 700 W low frequency, 300 W high frequency. The onboard RDNet functionality includes remote monitoring, special custom-made equalizations and high-pass, two-way position, high-frequency distance correction and many other features. The embedded FiRPHASE filters achieve coherent musical sound without phase distortions.
All You Need

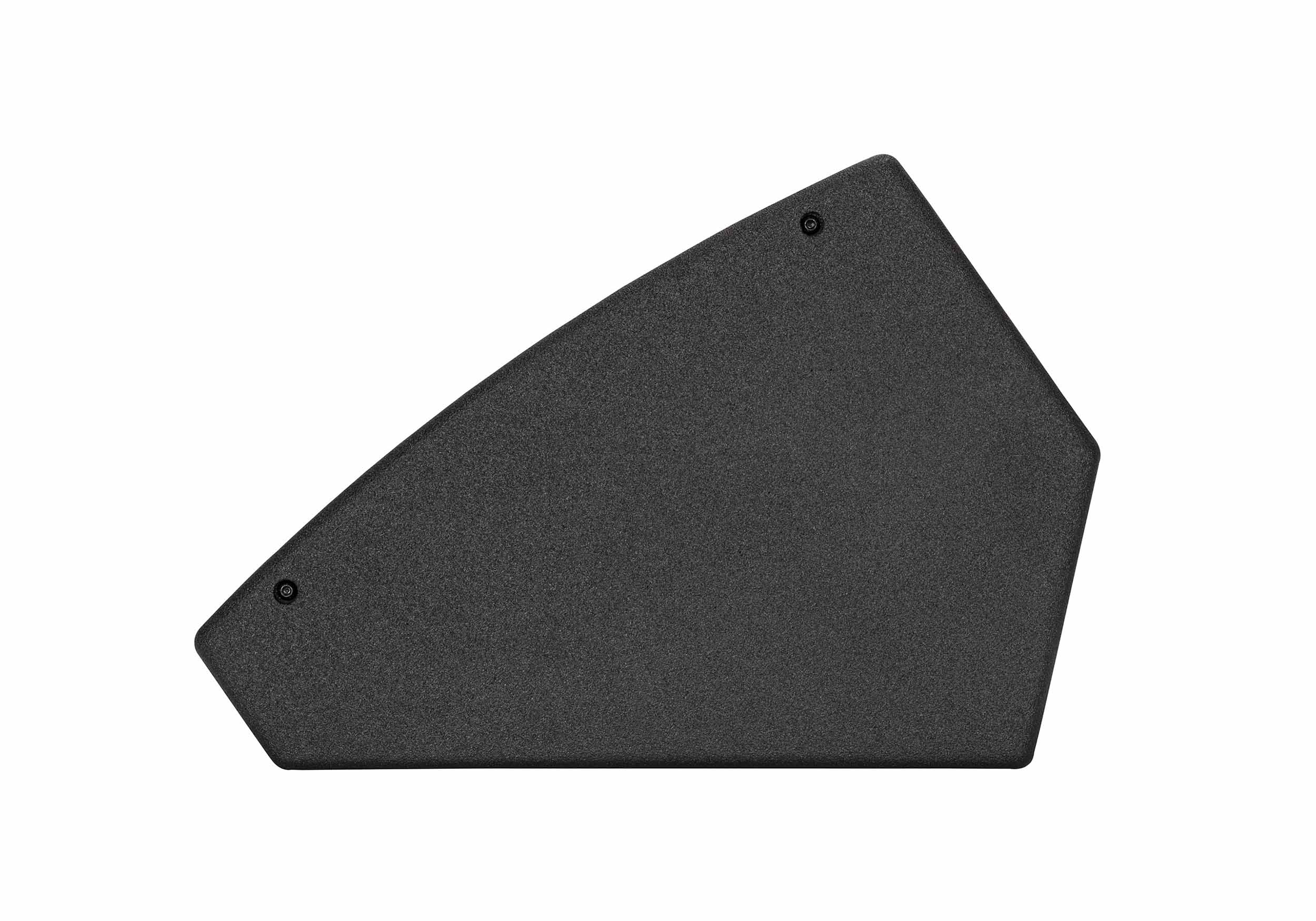

The speaker features an aluminum top handle designed to facilitate transport positioning and loading operations. The side pole socket allows the use as the main speaker on a stand or a subwoofer pole. The speaker’s cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the box completely water resistant even before the special polyurea paint, applied to make it highly resistant to scratches and bumps.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Product Specifications:
Acoustical:
Frequency Response: 60 Hz – 20,000 Hz
Max SPL @ 1m: 131 dB
Horizontal Coverage Angle: 90°
Vertical Coverage Angle: 70°
Transducers
Compression Driver: 1 × 1.5" neo, 3.0" v.c
Woofer: 2 × 8" neo, 2.5" v.c

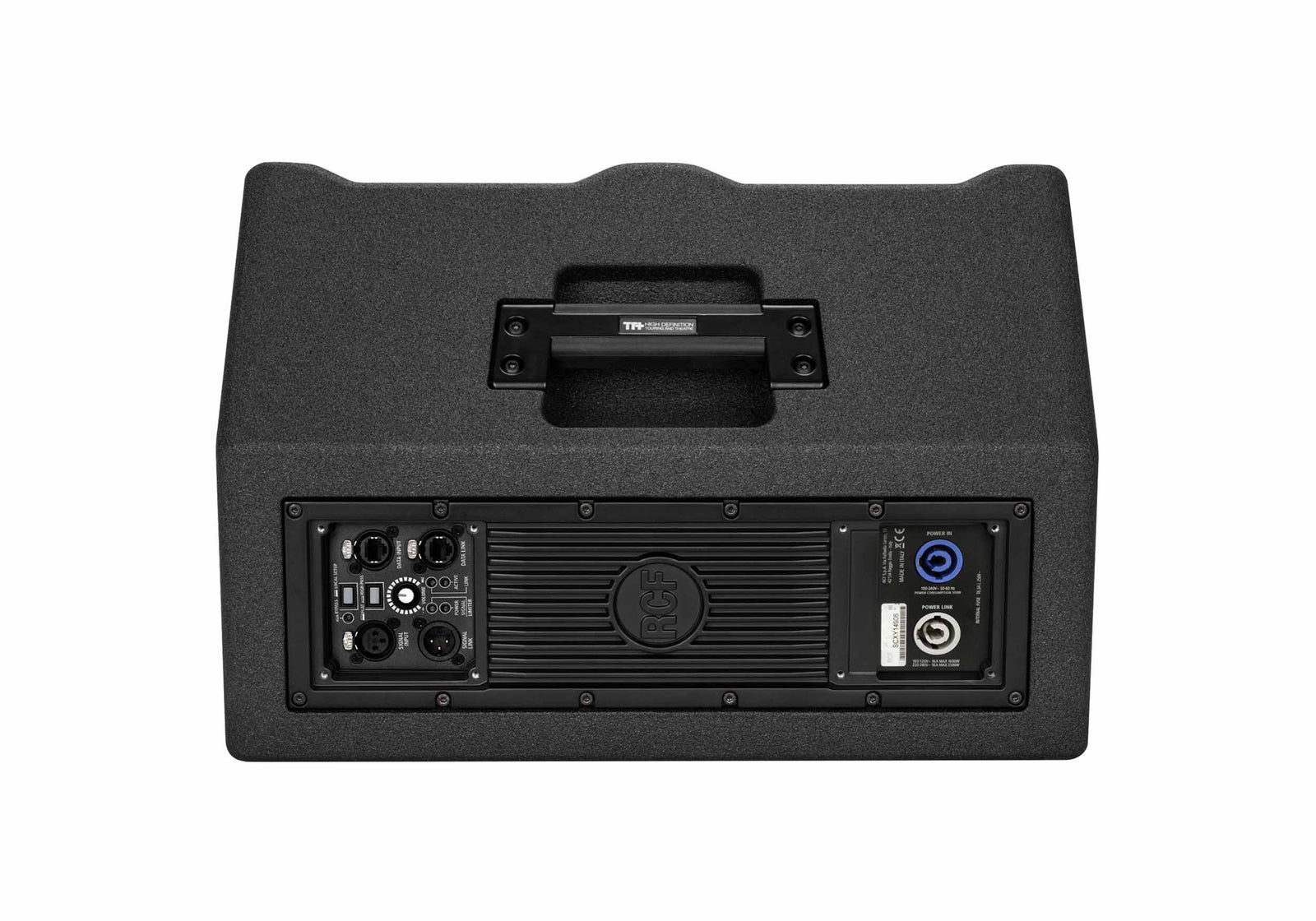

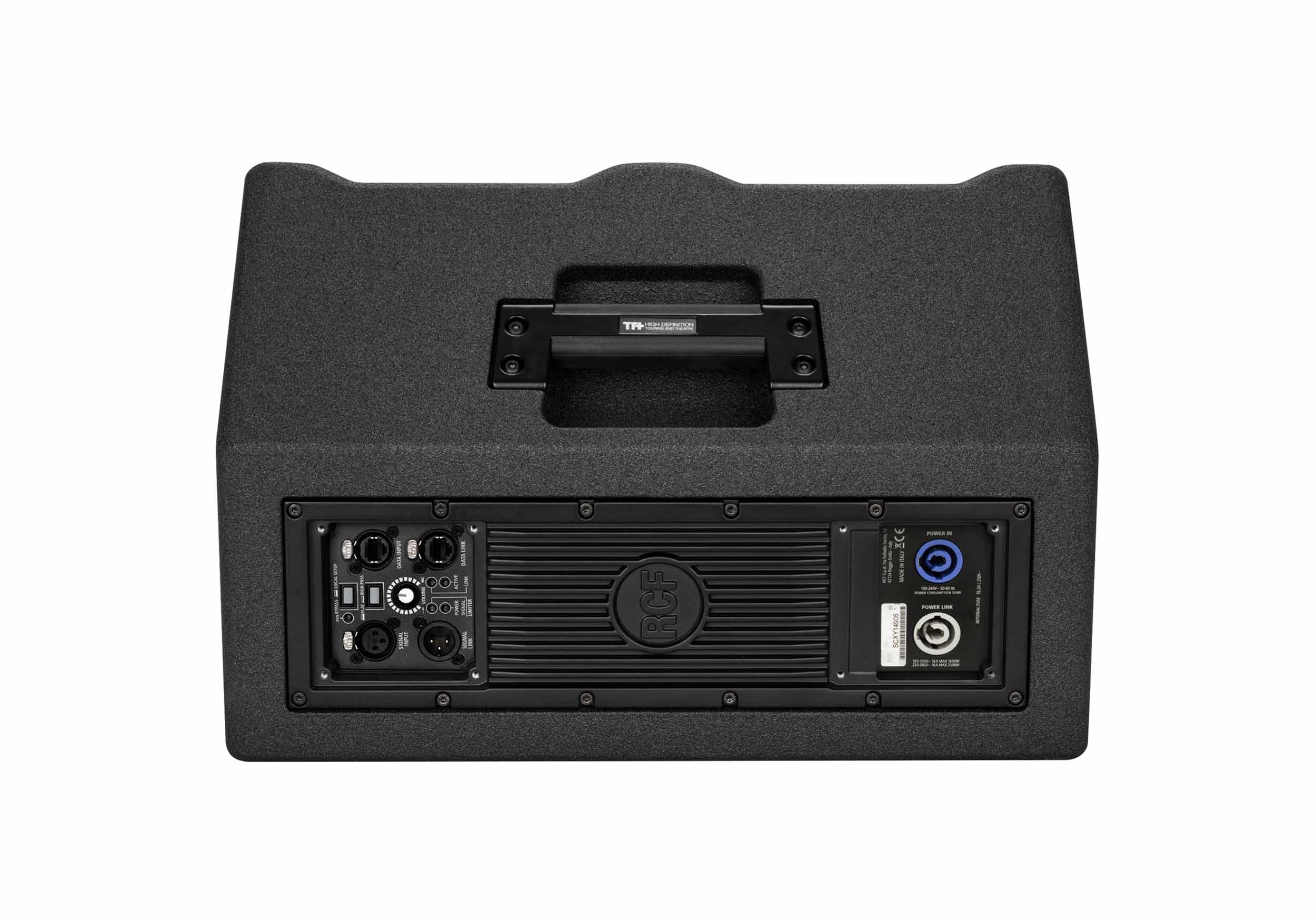

Input / Output Section
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: –2 dBu / +4 dBu
Processor Section
Crossover Frequency: 900 Hz
Protections: Thermal, HF
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume, RDNet on board
RDNet: Onboard
Power Section
Total Power:
2000 W Peak
1000 W RMS
High Frequencies:
600 W Peak
300 W RMS
Low Frequencies:
1400 W Peak
700 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard Compliance:
Safety Agency: CE Compliant
Physical Specifications:
Cabinet Material: Baltic birch plywood
Handles: 1 × Top
Grille: Steel
Color: Black
Product Height: 318 mm / 12.52 in
Product Width: 445 mm / 17.52 in
Product Depth: 450 mm / 17.72 in
Product Weight: 14 kg / 30.86 lbs
Shipping Height: 500 mm / 19.69 in
Shipping Width: 490 mm / 19.29 in
Shipping Depth: 375 mm / 14.76 in
Shipping Weight: 16.4 kg / 36.16 lbs
