Description

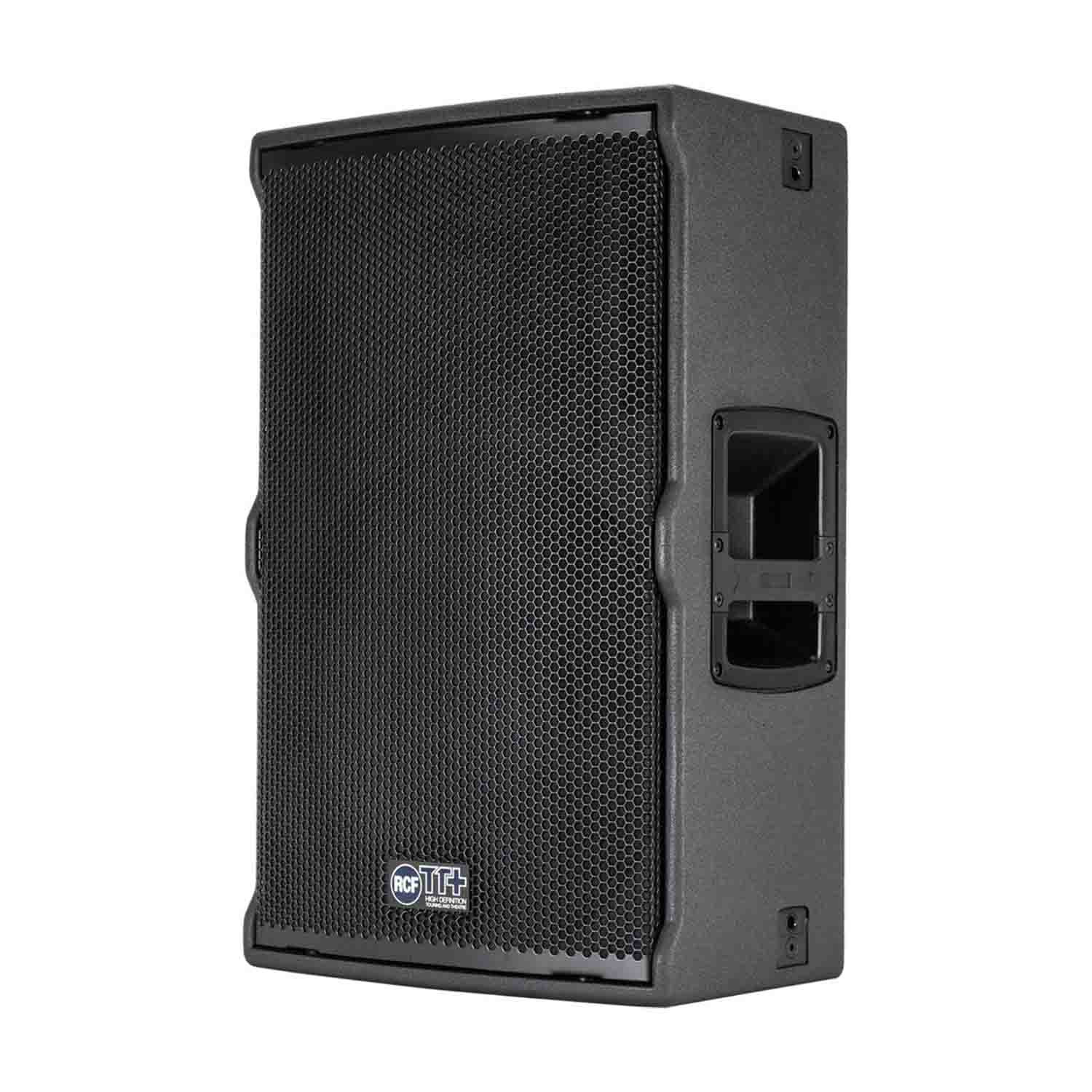

The RCF TT25-A-II 2-Way Active High-Output Speaker - Black is an active, 2-way, sound-reinforcement speaker that features a 15" neodymium woofer, 86mm voice coil in a bass reflex configuration, and a 1.4” exit, 75mm voice coil neo-compression driver. It also features two independent digital amplifiers, one with 800W for low frequencies and the other with 300W for the high-frequency driver. The Class-D amplifiers offer hi-fi sound, extremely low distortion with negligible quiescent noise, and stable burst response. The TT25-A II is equipped with a state-of-the-art input board which features XLR in/Out, a rotating encoder for gain reduction, time delay, speaker presets, RDNet input/output, 4 status LEDs, and a Powercon input/output.
The woofer features 32-bit/96 kHz, DSP processing and a networking board. With DSP on board each cabinet, the unit can be configured to address to single cabinets or groups of cabinets with specific presets or modifications of parameters like gain, equalization, or delay. The RDNet protocol is based on RS-485 communication protocol, which is very stable, and it is possible to send and receive data on a simple XLR cable.
The TT+ two-way system features a multi-functional rear encoder to easily control all the speaker functions (gain reduction, delay, speaker presets), even without network connection. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation.
Product Specifications:
Frequency Response: -3 dB: 50 Hz to 20 kHz
Maximum SPL: 134 dB
Angle: Horizontal: 90°, Vertical: 60°
Compression Driver: 1.5", 4.0" voice coil
Woofer: 15", 3.5" voice coil
Input Signal: Balanced/unbalanced
Input Connectors: XLR, RDNet on-board
Input Sensitivity: -2 dBu / + 4 dBu
Crossover Frequencies: 800 Hz
Protections: Thermal, HF
Limiter: Fast limiter, dynamic
Total Power: 1100 W RMS
Frequencies: High: 300 W RMS, Low: 800 W RMS
Cooling: Convection
Connection: VDE connector
Material: Baltic birch plywood
Handles: 2 side
Pole Mount/Cap: Yes
Box Dimensions: 27.0 x 17.0 x 17.0"
Box Weight: 57.3 lb
