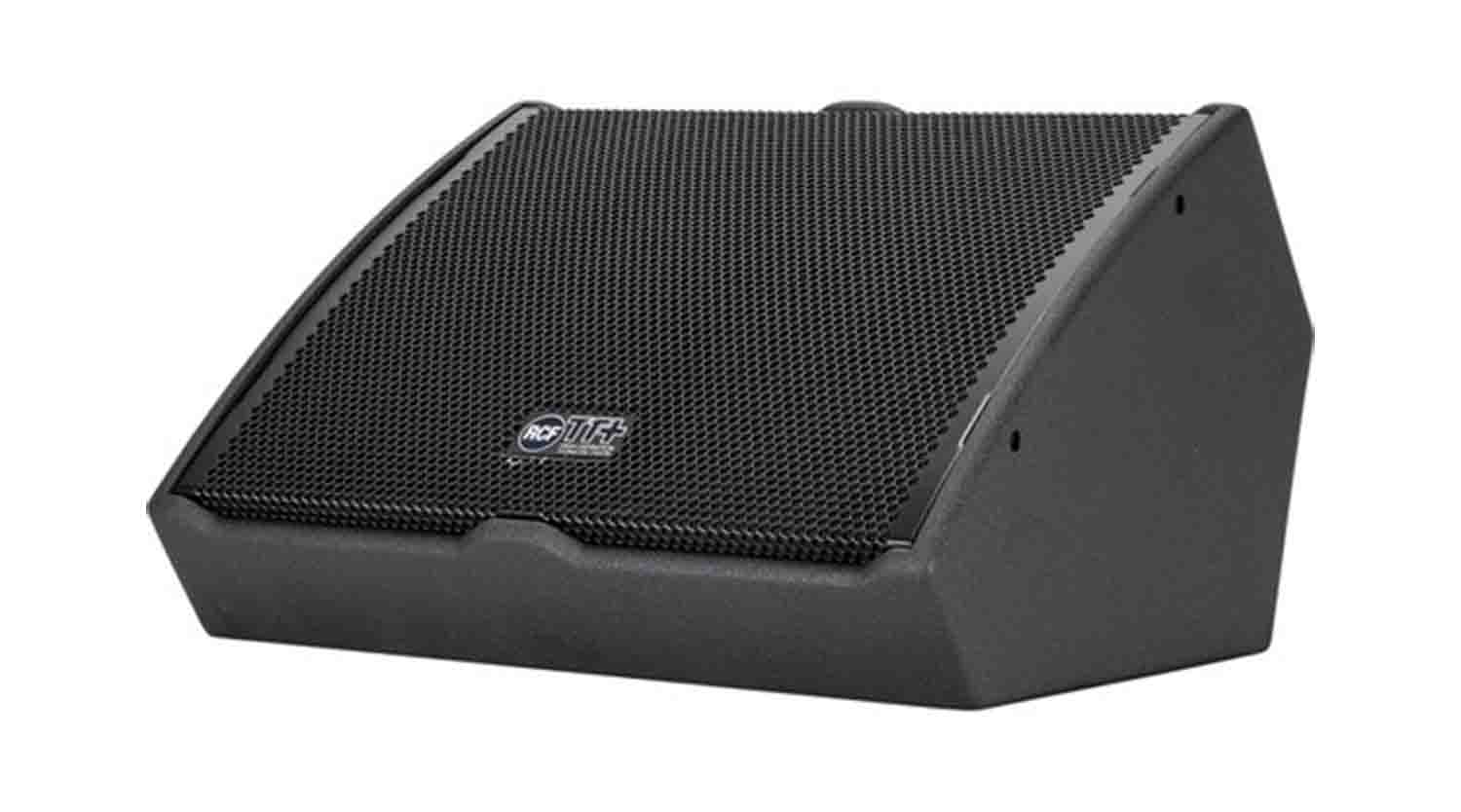

RCF TT25-CXA 15" Active Coaxial Monitor Speaker nch High-Definition

The RCF TT25-CXA 15-Inch Active High-Definition Coaxial Monitor Speaker - Black is a full-range, sound-reinforcement speaker that features a coaxial 15” woofer driver and a 64mm-diaphragm compression driver, along with phase-corrected control electronics, and amplification. Its horn on a coaxial transducer exhibits constant Q. The frequency response is uniform across the specified beam width, with minimal side lobes. The HF transducer is a high-performance 2.5”-diaphragm compression driver with a 1.5” exit throat featuring several state-of-the-art technologies.

The monitor/speaker features two independent digital amplifiers with 800W for low frequencies and 300W for the high-frequency driver. The Class-D amplifiers offer hi-fi sound, extremely low distortion with negligible quiescent noise, and stable burst response. It is equipped with a state-of-the-art input board which features XLR input/output, a rotating encoder for gain reduction, time delay, speaker presets, RDNet input/output, 4 status LEDs, and Powercon input/output.

The TT25- CXA features 96 kHz/32-bit DSP processing and a networking board. With each cabinet having its own DSP, it is possible to address (to single cabinets or groups of cabinets) specific presets or modifications of parameters like gain, equalization, or delay. The RDNet protocol is based on RS-485 communication protocol. It is very stable and is able to send and receive data on a simple XLR cable. The TT+ two-way systems features a multifunctional rear encoder to easily control all the speaker functions (gain reduction, delay, speaker presets), even without network connection. The cabinets feature an aluminum top handle and a side pole mount for easy mobility.

Product Specifications:

Frequency Response: -3 dB: 50 Hz to 20 kHz

Maximum SPL: 133

Angle:   Horizontal: 60°, Vertical: 60°

Compression Driver: 1.5", 2.5" voice coil

Woofer: 15", 3.5" voice coil

Input Signal: Balanced/unbalanced

Input Connectors: XLR, RDNet on-board

Input Sensitivity: -2 dBu / + 4 dBu

Crossover Frequencies: 900 Hz

Protections: Thermal, HF

Limiter: Soft limiter, dynamic

Total Power: 1100 W RMS

Frequencies: High: 300 W RMS, Low: 800 W RMS

Cooling: Convection

Connection: Powercon input/output

Material: Baltic birch plywood

Handles: 2 side

Pole Mount/Cap: Yes

Box Dimensions: 14.0 x 23.0 x 19.2"

Box Weight: 40 lbs
