Description

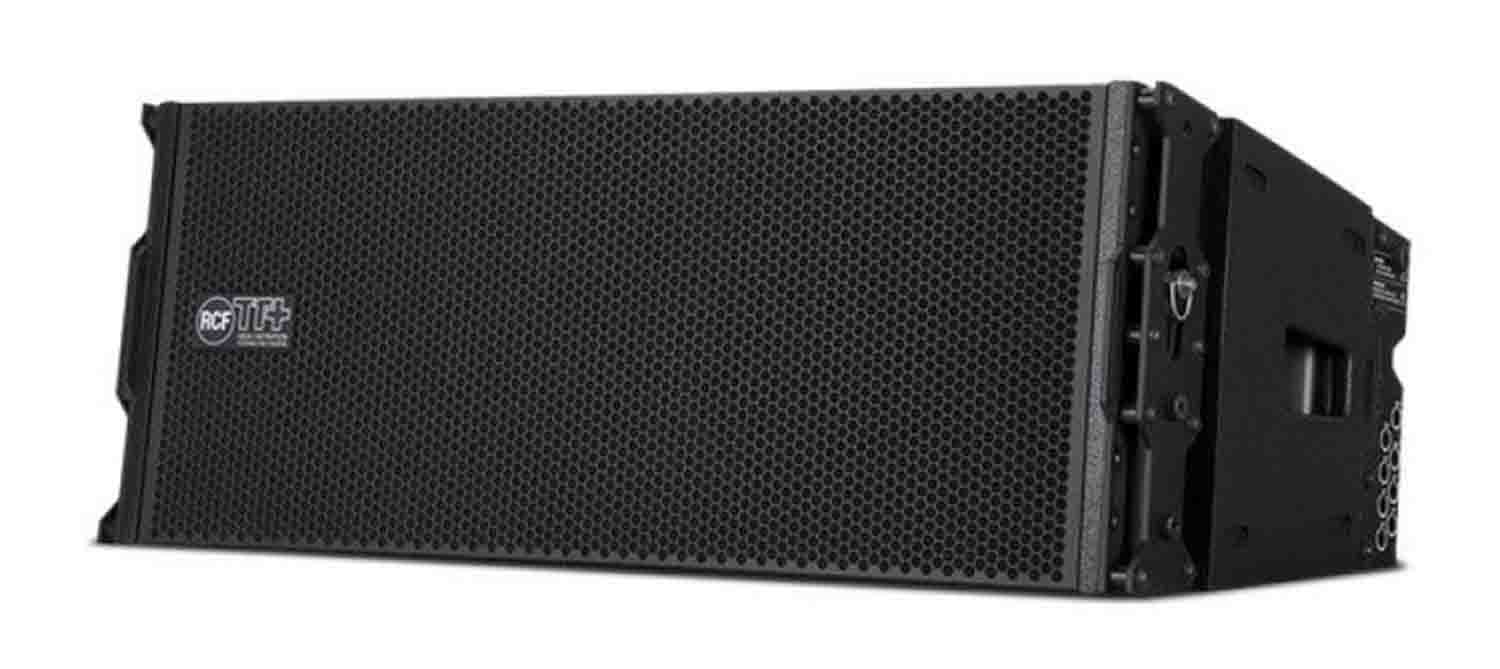

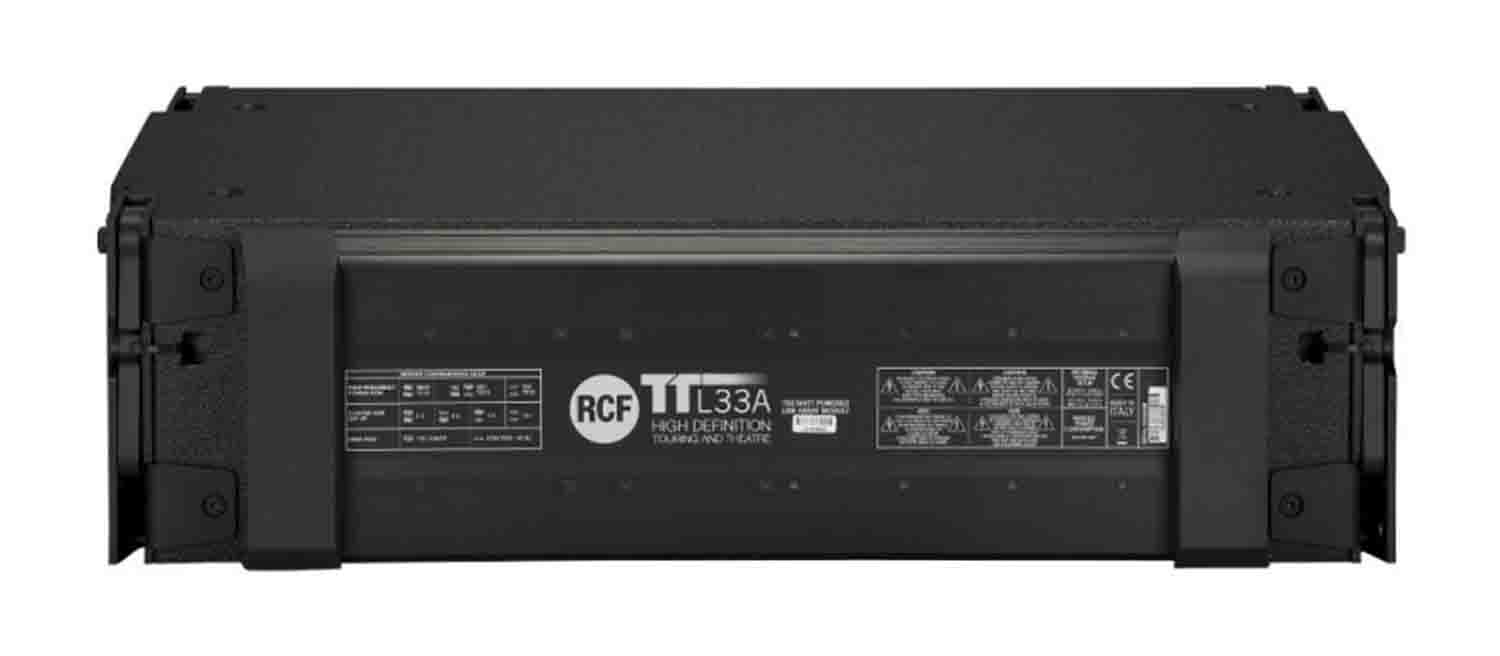

The RCF TTL33-A-II Active Three-Way Line Array Module is a full-range compact wide-dispersion line array. TTL33-A II is a three-way active system featuring a 2 x 8" neodymium woofer with a 64mm voice coil in a band-pass low-frequency configuration, a 1 x 8" neodymium midrange with a 64mm voice coil in horn-loaded configuration, and a 3 x 1" neodymium compression driver with a 37mm titanium dome voice coil in horn-array configuration.

The woofer provides large excursion and is lightweight, the midrange has a high BL for vocal presence, and the compression driver design offers minimum spacing between throats to avoid HF cancellation. The TTL33-A II amplifier has a DSP controlled multiway digital amplification. The cabinet is marine Baltic birch plywood, coated with high-resistance epoxy paint. The mechanical suspension & orientation system is made of high-quality steel, and is precise and easy to use. The suspension system is directly connected to the sides of the cabinet.

Product Specifications:

Frequency Response: 60 Hz - 20 kHz @ -3 dB

Maximum Sound Pressure Level (SPL): 135 dB

Compression Driver: 3 x 1.0" neodymium, 1.5" (37 mm) voice coil

Midrange: 8" neodymium, 2.5" (64 mm) voice coil

Woofer: 2 x 8" neodymium, 2.5" (64 mm) voice coil

Input / Output Connectors: XLR, RDNet Ethercon

Input Sensitivity: -2 dBu / + 4 dBu

Crossover Frequencies: 400 Hz / 1800 Hz

Protections: Thermal, HF

Limiter: RMS, fast limiter

Material: Baltic birch

Hardware: Array side fittings

Handles: 2

Dimensions: 11.8 x 29.9 x 17.7" (300 x 760 x 450 mm)

Weight: 71.5 lb (32.5 kg)

Box Dimensions: 34, 21, 15"

Box Weight: 83 lb
