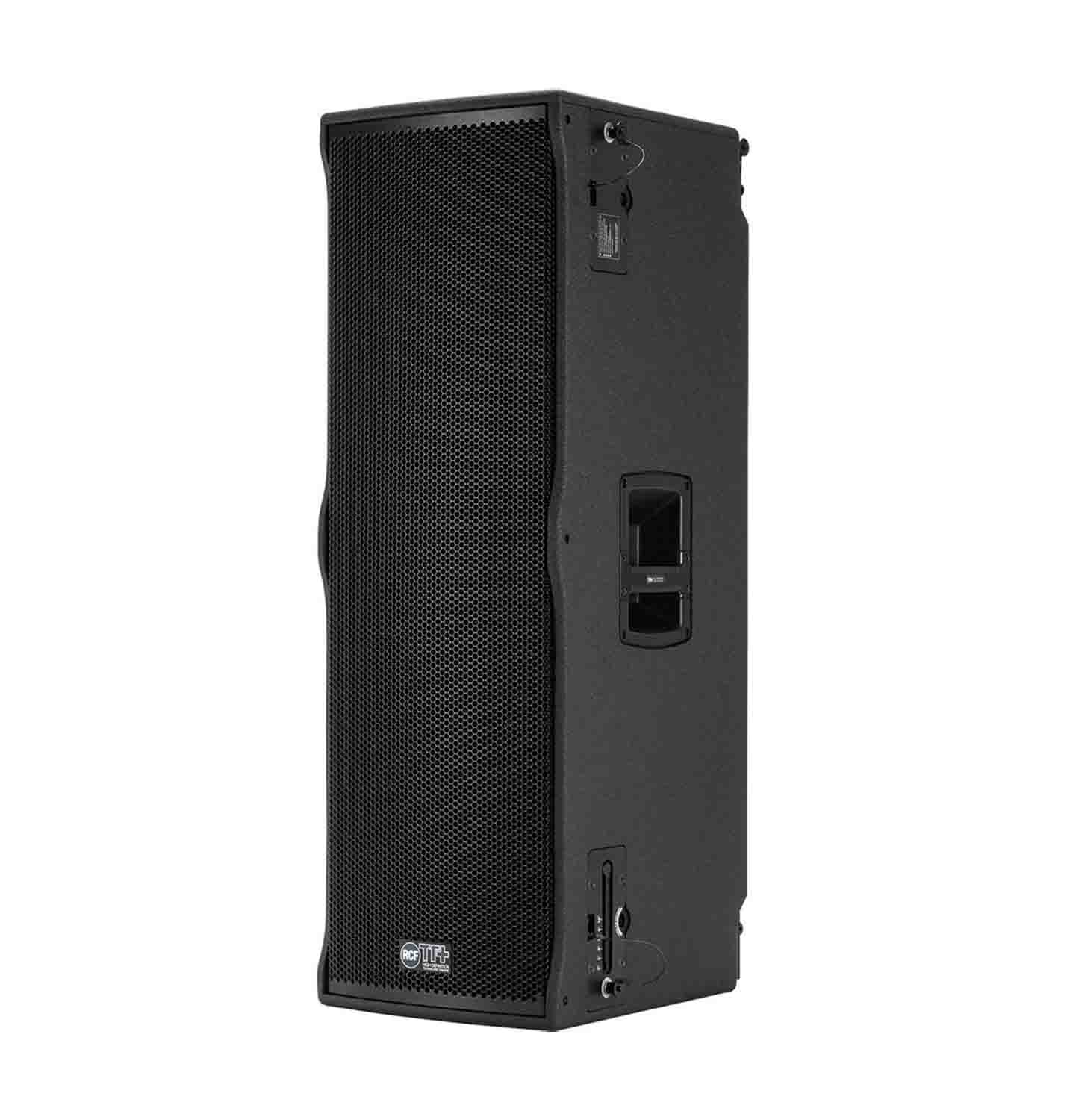

RCF TTL6-A Active Line Array Bass Module for TTL6-A 3-Way System

The RCF TTL6-A Active Line Array Bass Module for TTL6-A 3-Way System is an active subwoofer ready to use out of the gate, giving you 1650W of class-D digital amplification and three 12" woofers. With fixing points for the TTL6-A, setting up is quick and simple. The unit is relatively compact at 43.3 x 14.9 x 18.4", and is suitable for live gigs and installations, be they indoor or outdoor in space.

The TTL6-AS' three 12" neodymium woofers sport 3.0" inside-out voice coils. With features such as a hyper-vented magnetic structure and a water-resistant fiber doped cone, the unit's woofers have been crafted to promote durability and versatility. Class-D amplifiers have been employed, making the sub highly efficient on power, yet low on distortion and noise. The unit delivers frequency responses of 35 to 400 Hz at a maximum SPL of 139 db. On the rear of the TTL6-AS you'll find a rotary encoder to control all built-in functions. Additionally, a seven-segment display gives you a readout of your current settings. 32-bit DSP processing operating at 48 kHz digitally manages the crossover, transducer alignment, equalization, input sensitivity, limiting, and other facets of the device.

In addition to its XLR connections, the TTL6-AS sports Ethercon ports for RDNet control; this allows you to slave, manage, and control multiple RCF systems from a single point of access. The ability to solo, mute, apply high-pass filtering, low-pass filtering, delay modification, and more are controllable through this system of networked control. Within the cabinet itself, you'll find ten different presets for a variety of applications, some of which give you low-pass filtering at various frequencies. A modicum of control over delay settings and gain-reduction is also possible via the rotary encoder. Furthermore, the construction of this module allows for wide, horizontal, and constant dispersion, making sure that the majority of your crowd will feel the bass.

Product Specifications:

Configuration: Active 3-Way

Total Power Capacity: 1650 W RMS

LF Driver: 3 x 12" / 30.5 cm Woofer

LF Voice Coil: 3" / 7.6 cm

Magnet  LF: Neodymium

Frequency Response: 35 Hz to 400 Hz -3 dB

Maximum SPL: 139 dB

Input Sensitivity: +4 dBu

Protections: RMS, Thermal

Cooling: Forced Convection

Construction Material: Metal Grille, Plywood

Dimensions: 43.3 x 14.9 x 18.4"

Weight: 99 lb

Package Weight: 129 lb

Box Dimensions (LxWxH): 48, 22, 20"
