Description

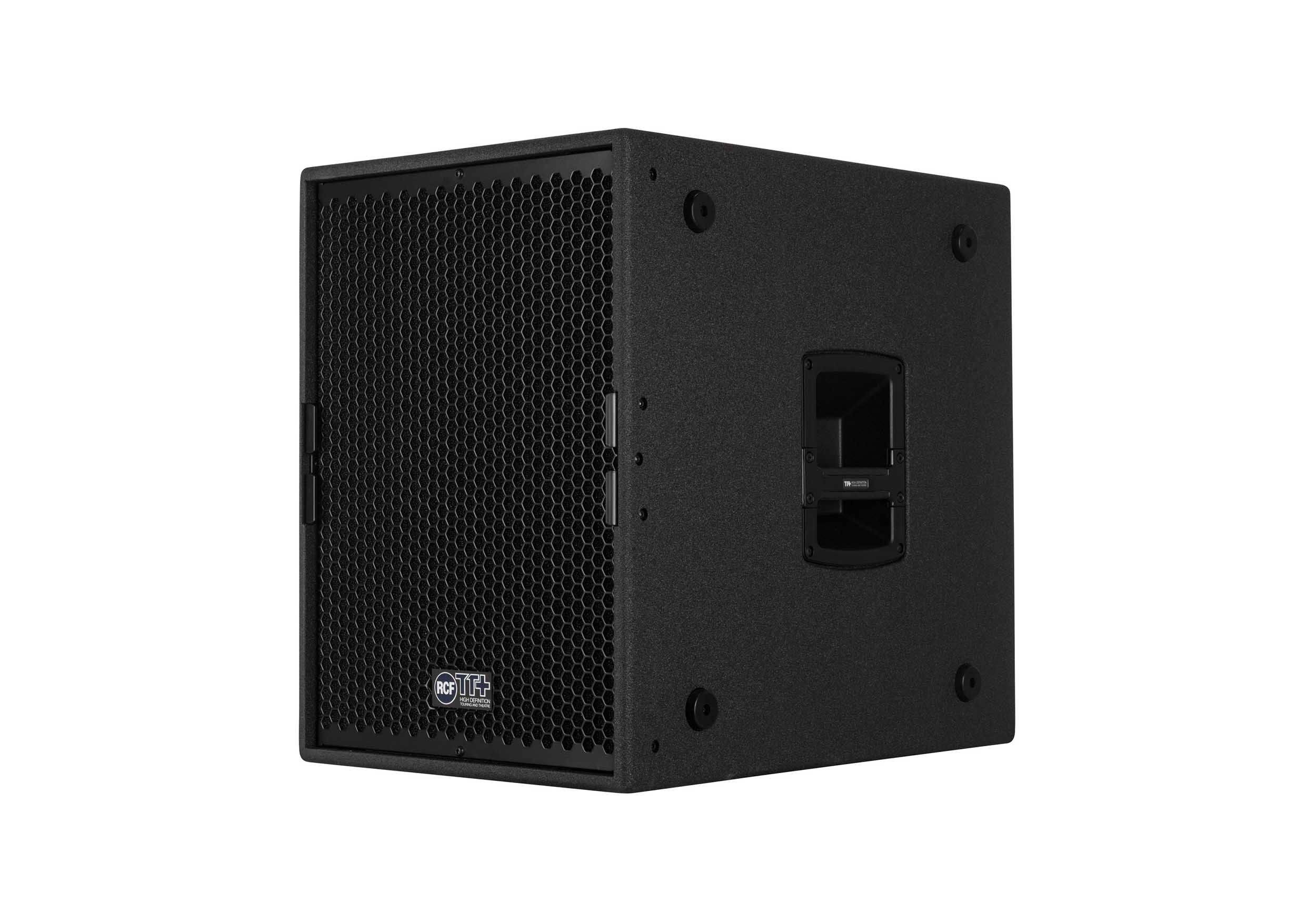

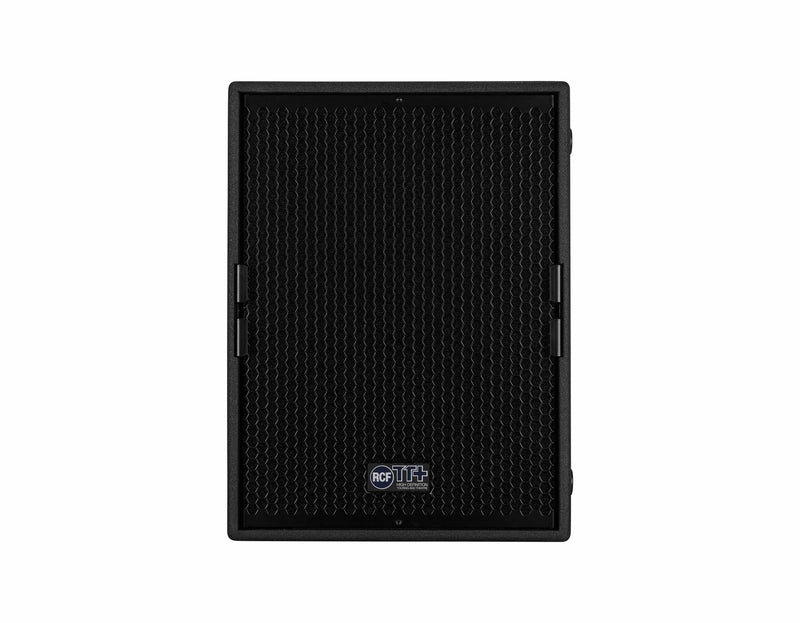

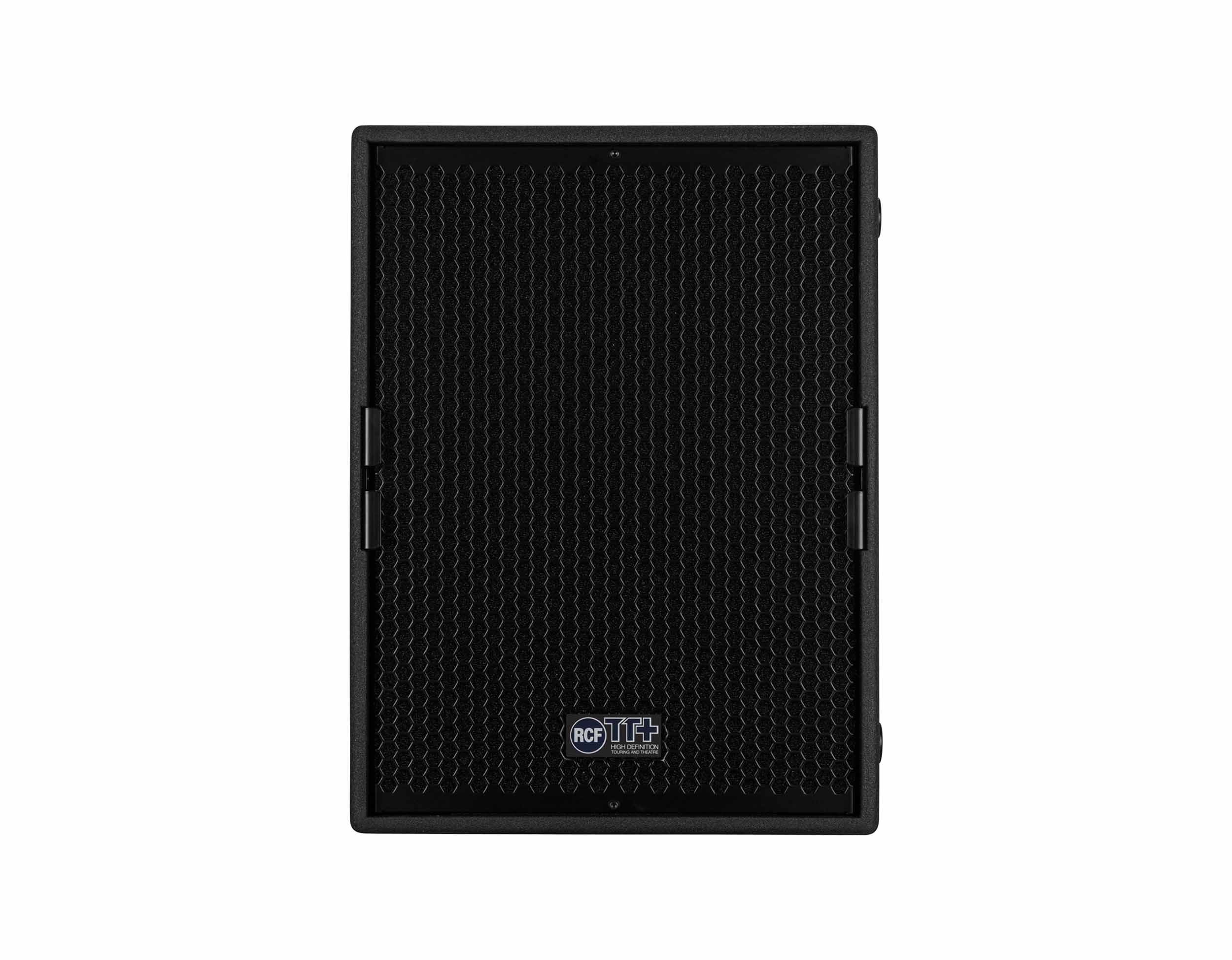

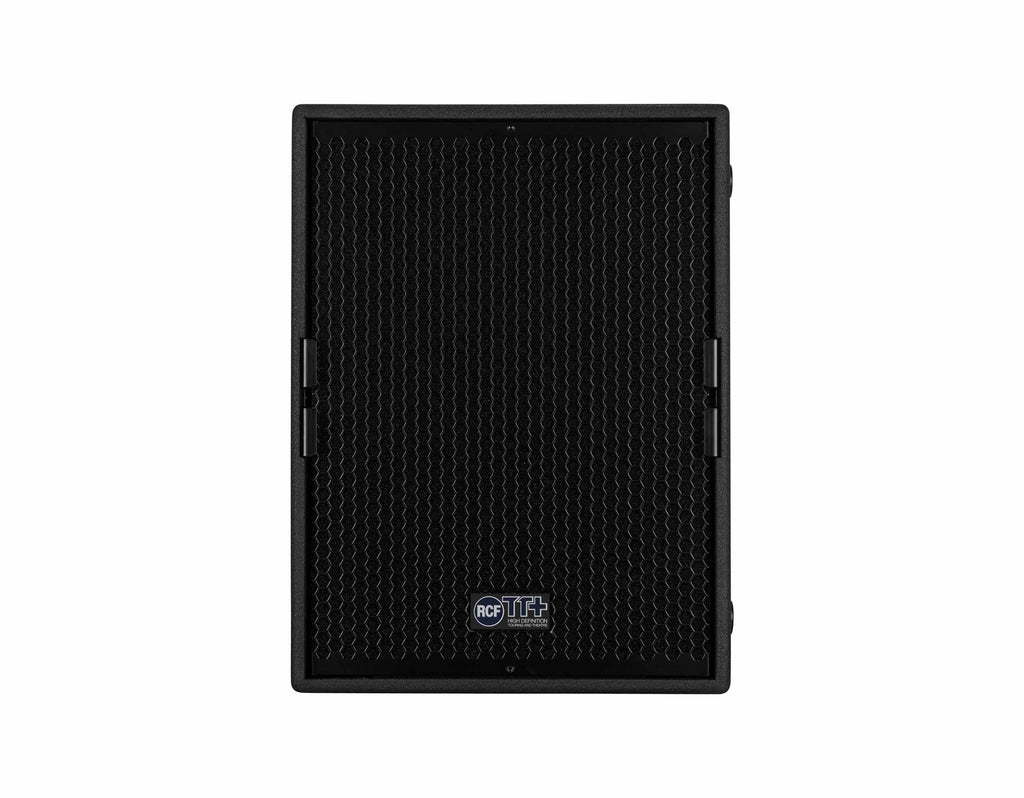

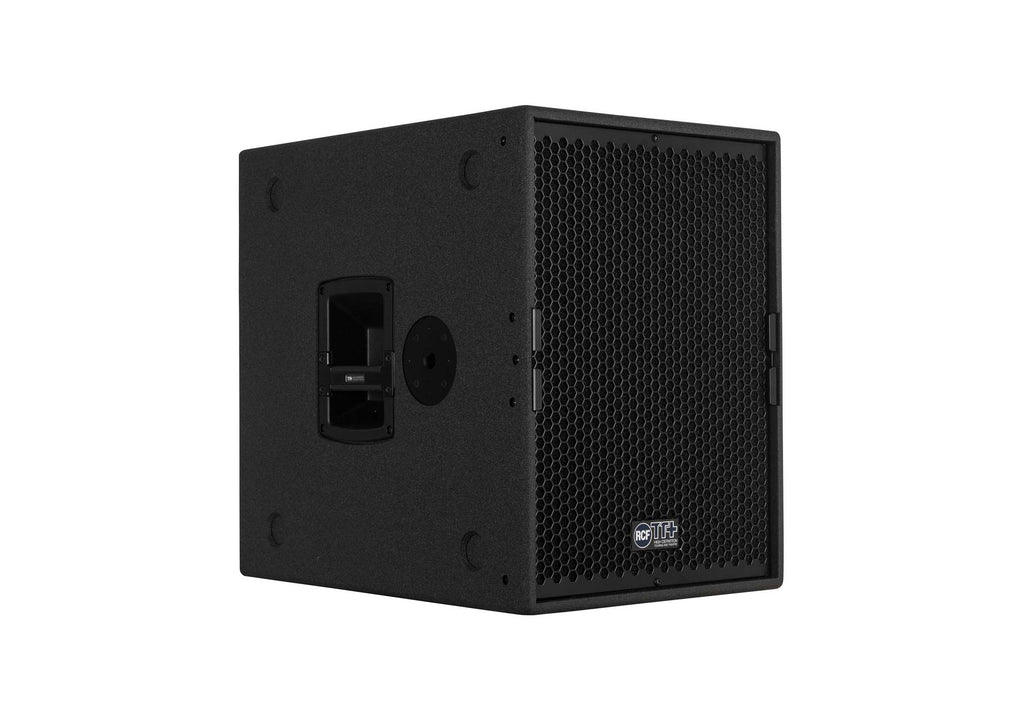

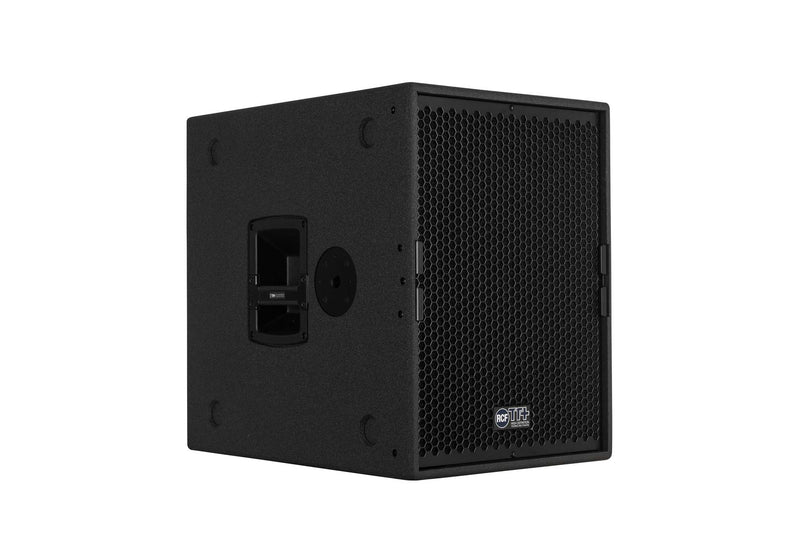

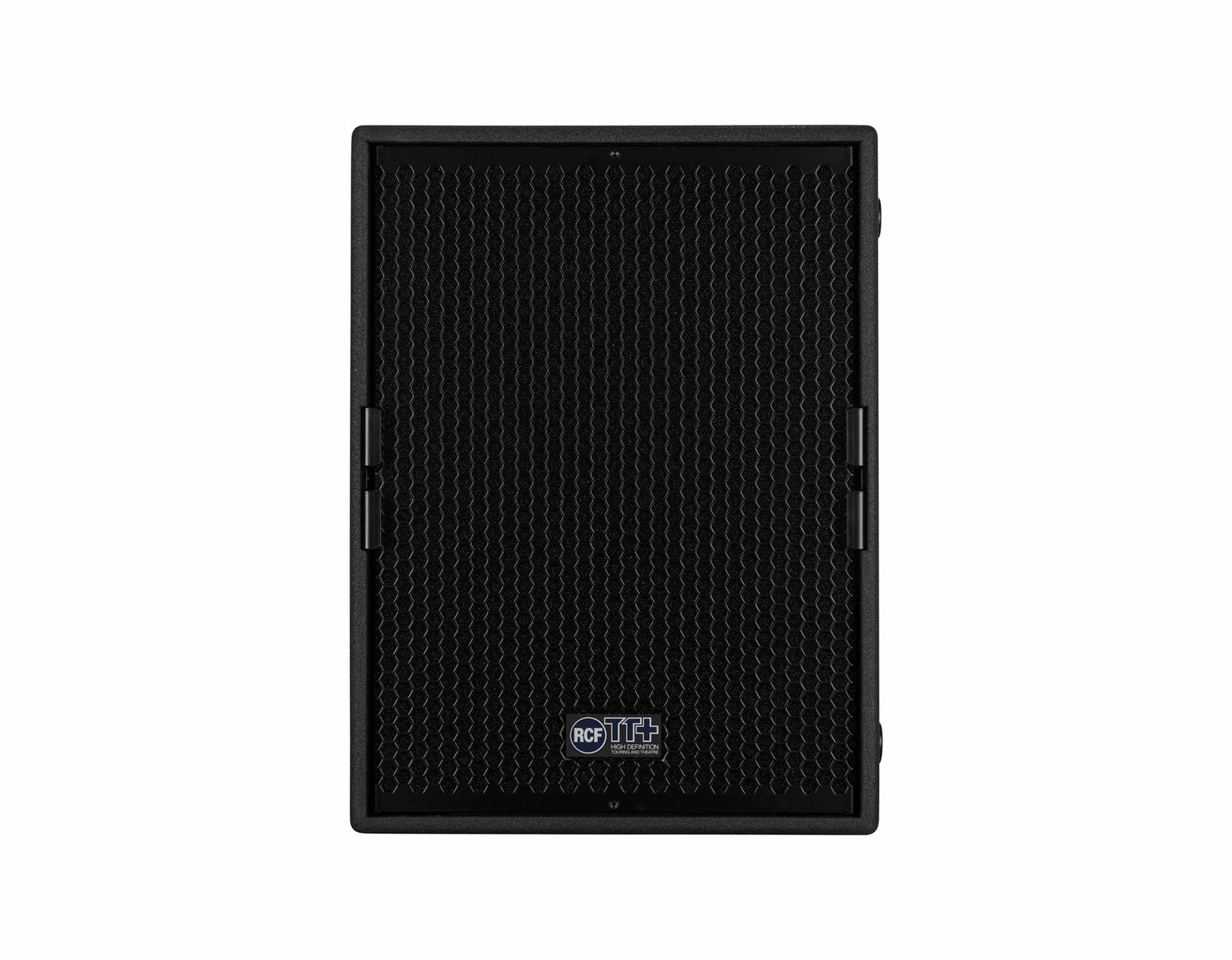

The RCF TTS 15-A is a compact, high output subwoofer module ideal in combination with TT+ two-way touring systems. The RCF TTS 15-A features low weight for easy handling, weatherproof cabinet, a 15” woofer powered by a 1100-watt RMS SMPS class-D Amplifier with full DSP and RDNet network capabilities.
Networked Control and Much More
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.
Active Advantage
An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages:
Reduced setup time
Daisy chain signal and power connection of the entire system or by groups
No additional amplifier rack(s), saving space in the truck
The sound quality and performance are optimized to the individual components inside the speaker
The RDNet Networked Control can monitor each component of the system
Top and Electronics

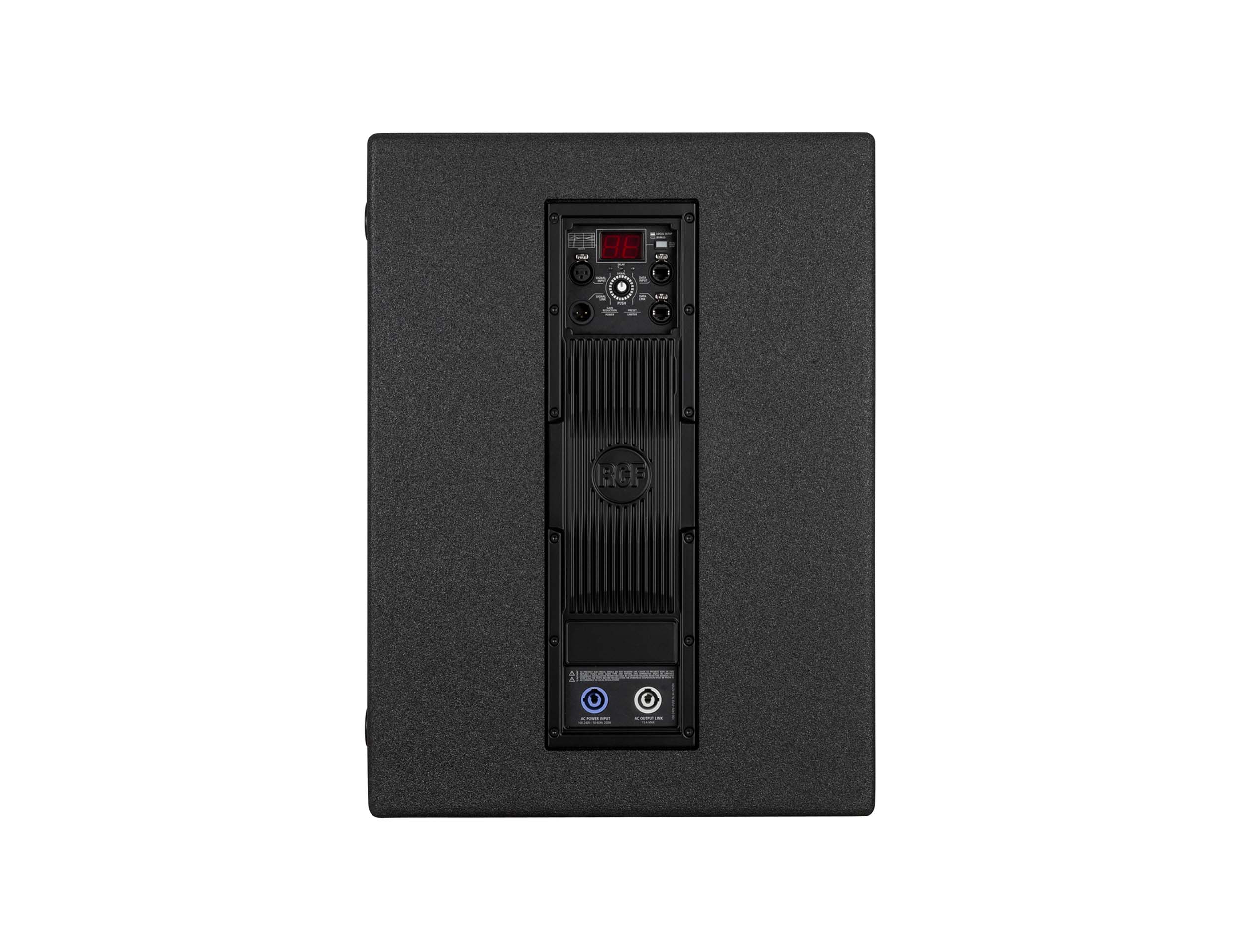

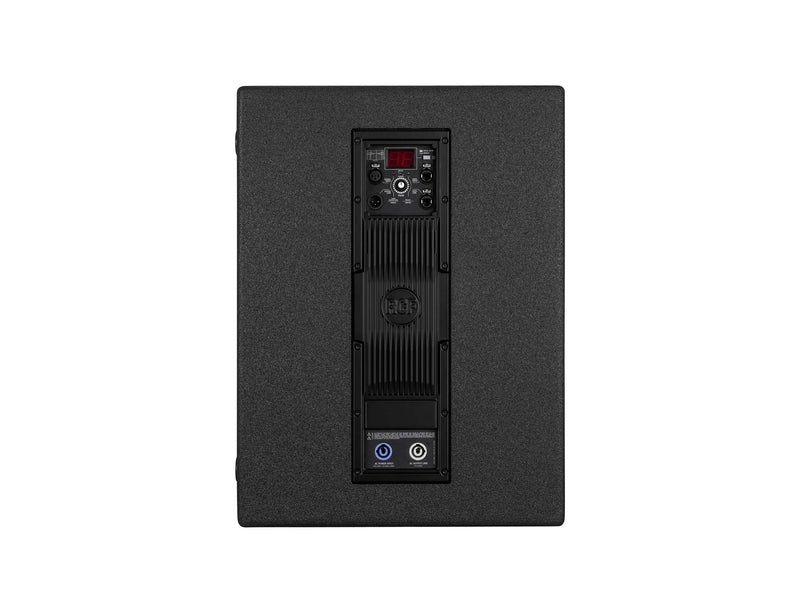

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and advanced features are available inside the integrated RDNet Networked Management software. The control panel on the back adjusts volume, bypass, delay, presets and advanced functions.
High Performance Hypervented

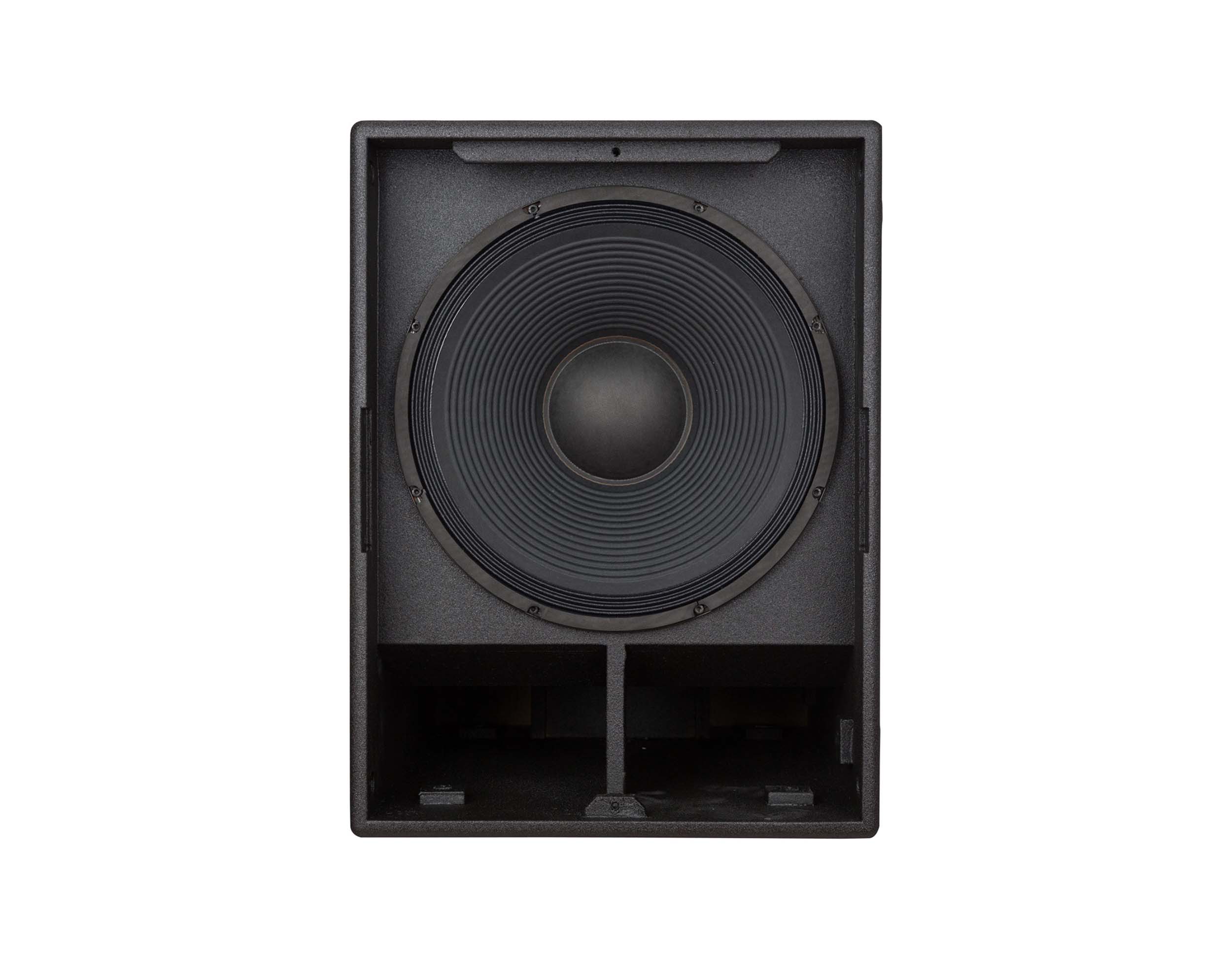

RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.
Cabinet

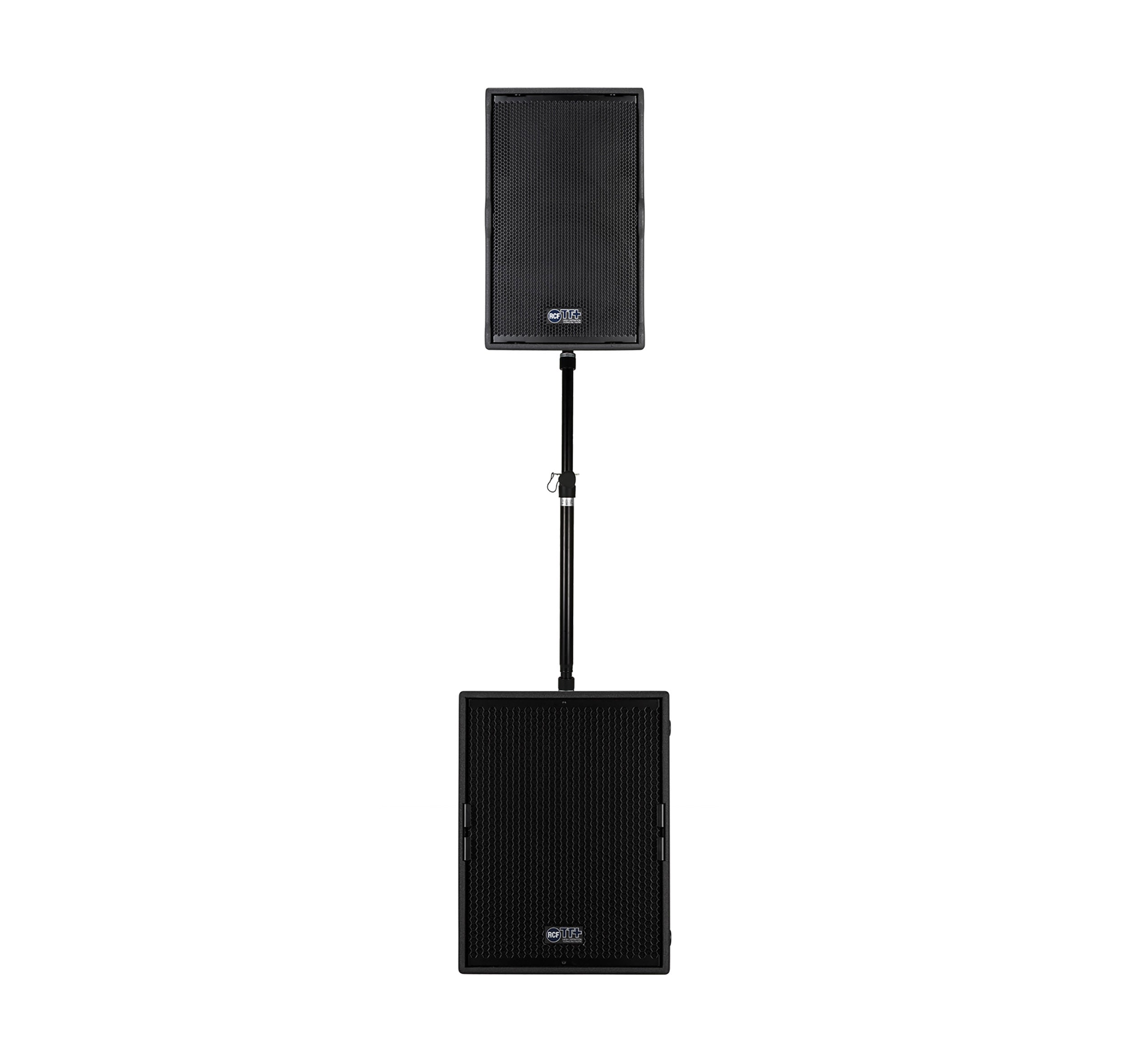

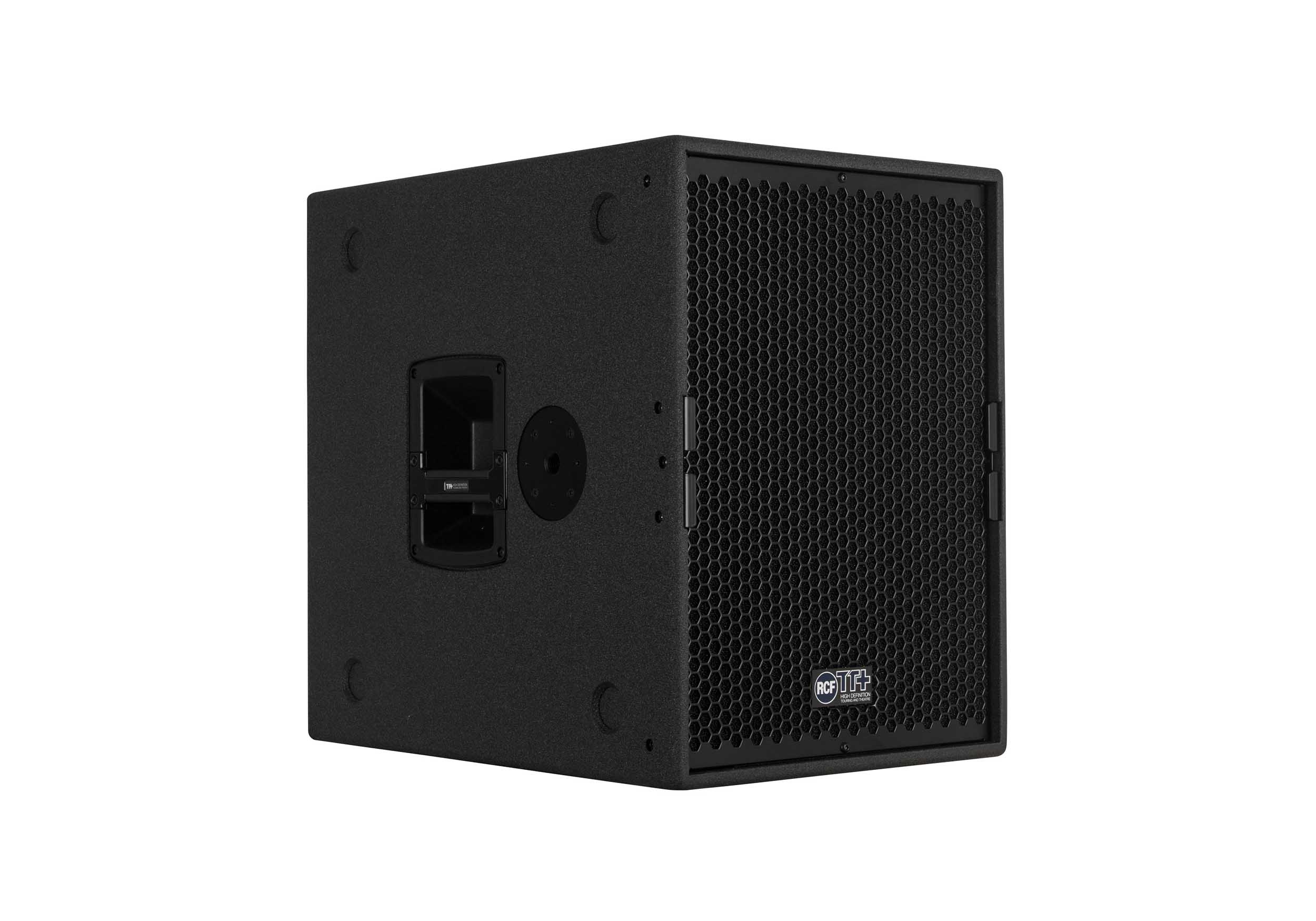

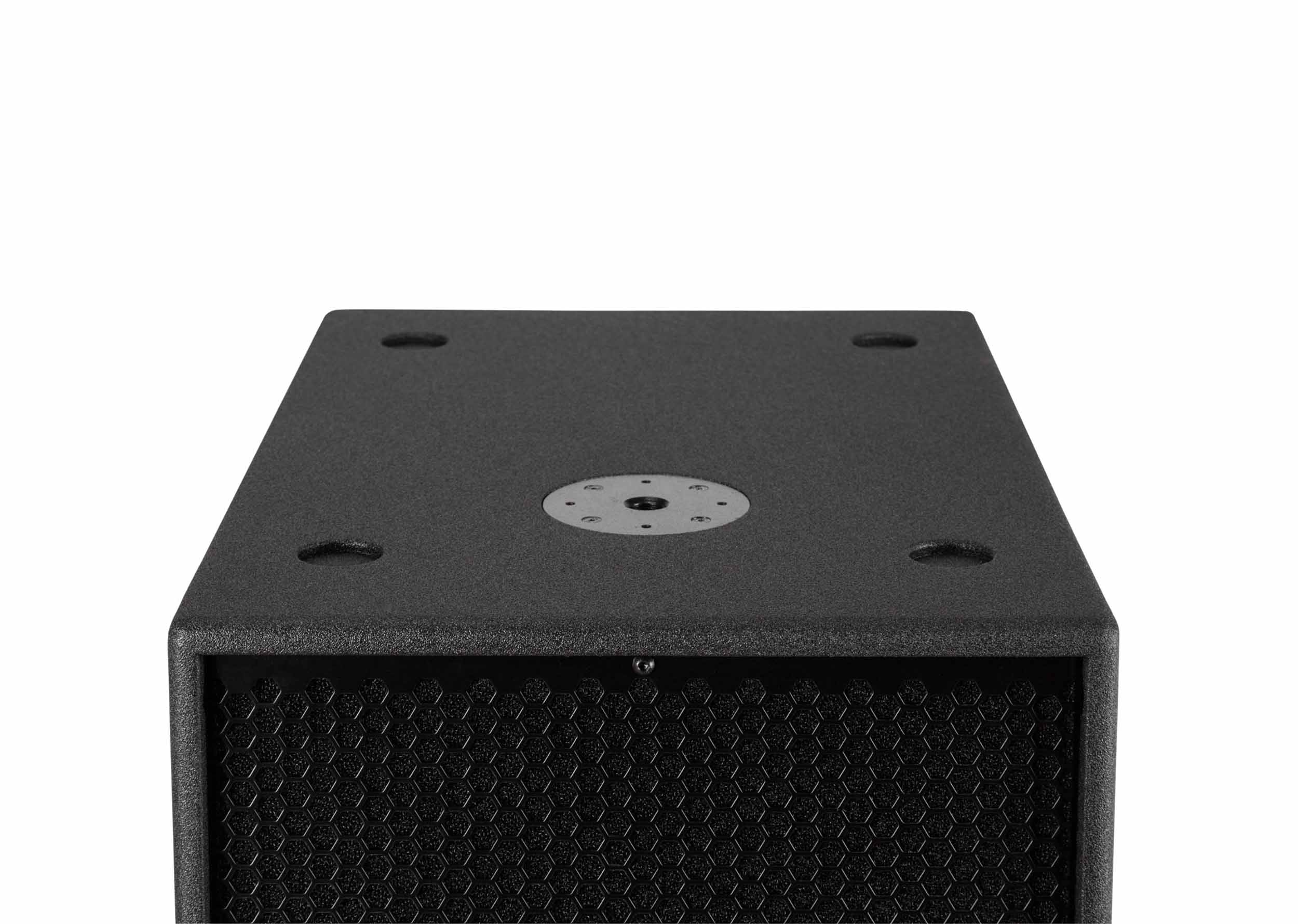

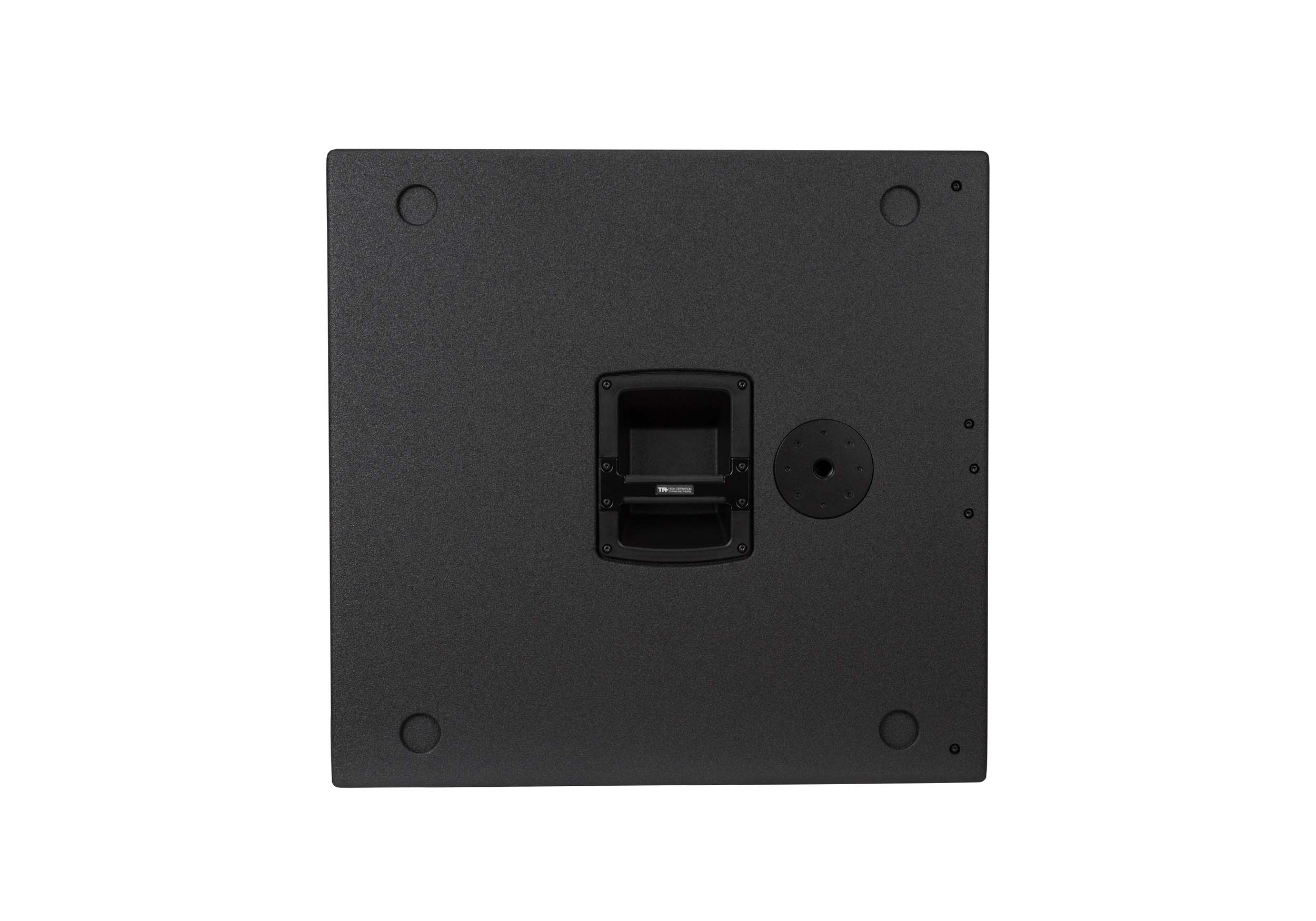

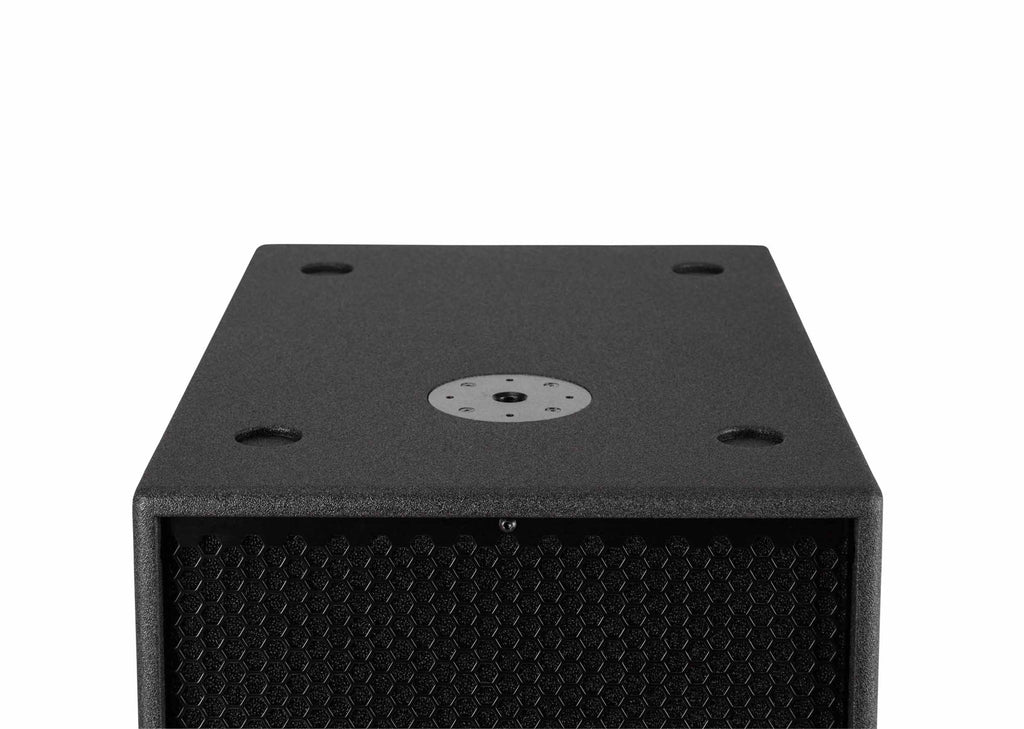

The RCF TT+ cabinets are made of high-quality birch plywood with weatherproof treatments. The subs are stackable and light-weight, for easy set-up and tear down. The polyurea coating and the rugged structure of the cabinet withstand long-term use and transportation and the separate housing for the amplifier guarantee the best components efficiency and reliability. A pole receptacle on the top and side allows the woofer to be used in various configurations. Transportation is fast thanks to the detachable Kart kit, a dolly caster-board with rugged tour grade casters and rotating cam mechanism.
The Good Flow
It’s common knowledge in fluid dynamics that the turbulent airflow is reduced with a smart design of the port. The improved vented port is a proprietary solution that helps to achieve a good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortion.
Classic Bass Reflex Port
The flow becomes turbulent and the vortices are evident.
Laminar Flow Vented Port
Good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortions.
Product Specifications:
Acoustical:
Frequency Response: 40 Hz – 400 Hz
Max SPL @ 1m: 134 dB
Transducers:
Woofer: 1 × 15" neo, 4.0" v.c
Input / Output Section:
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: +4 dBu
Processor Section:
Hi-Pass Frequencies: 40 Hz, 50 Hz
Low-Pass Frequencies: Variable from 60 Hz to 400 Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Gain, EQ, Preset Switch, Output Delay
RDNet: Onboard
Power Section:
Total Power:
2800 W Peak
1100 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard Compliance:
Safety Agency: CE Compliant
Physical Specifications:
Cabinet Material: Baltic birch plywood
Hardware: 2 × M20
Handles: 2 × Side
Pole mount/Cap: M20 thread
Grille: Steel
Color: Black
Product Height: 600 mm / 23.62 inches
Product Width: 445 mm / 17.52 inches
Product Depth: 633 mm / 24.92 inches
Product Weight: 36.5 kg / 80.47 lbs.
Shipping Height: 670 mm / 26.38 inches
Shipping Width: 705 mm / 27.76 inches
Shipping Depth: 520 mm / 20.47 inches
Shipping Weight: 41.3 kg / 91.05 lbs.
