Description

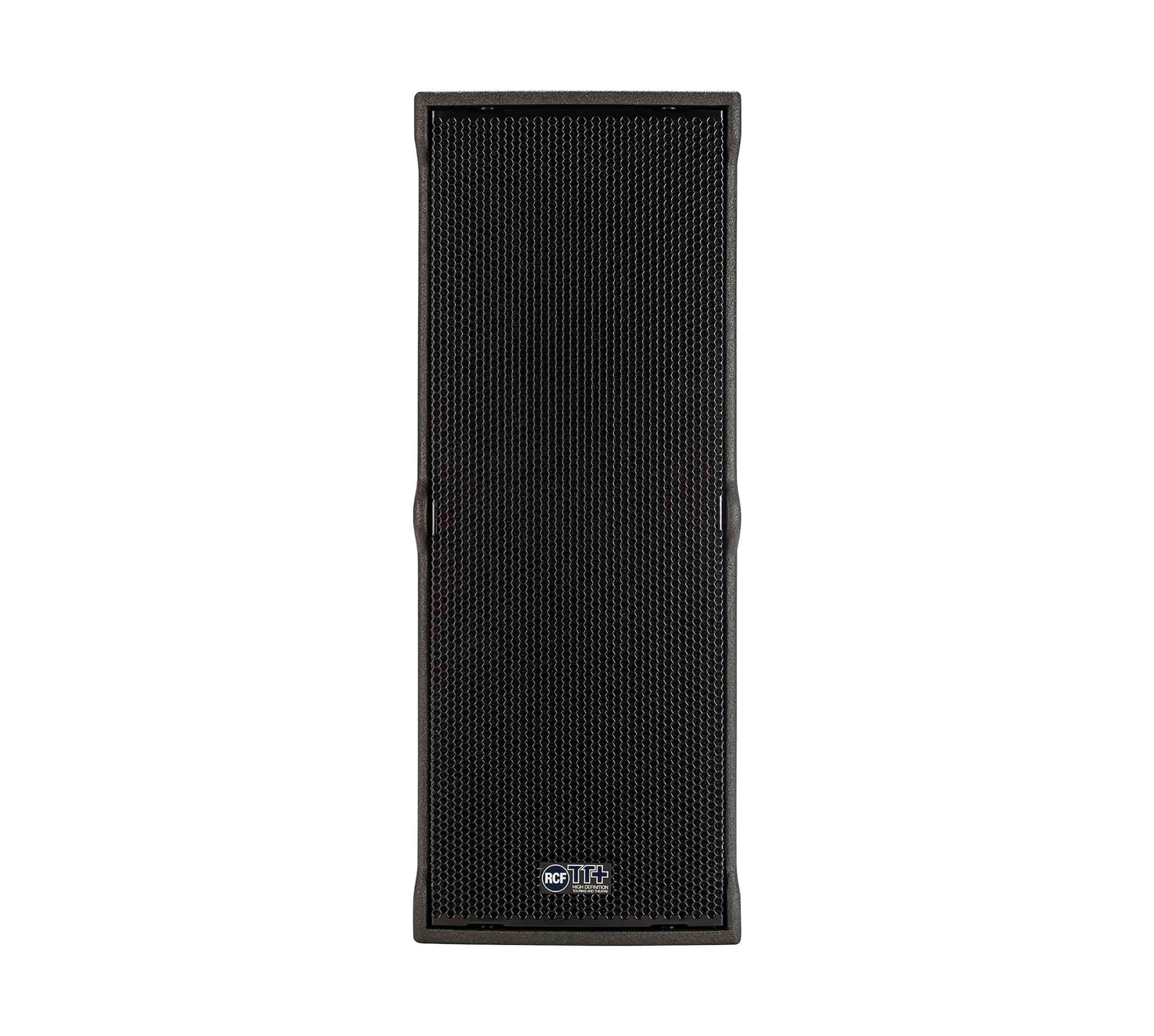

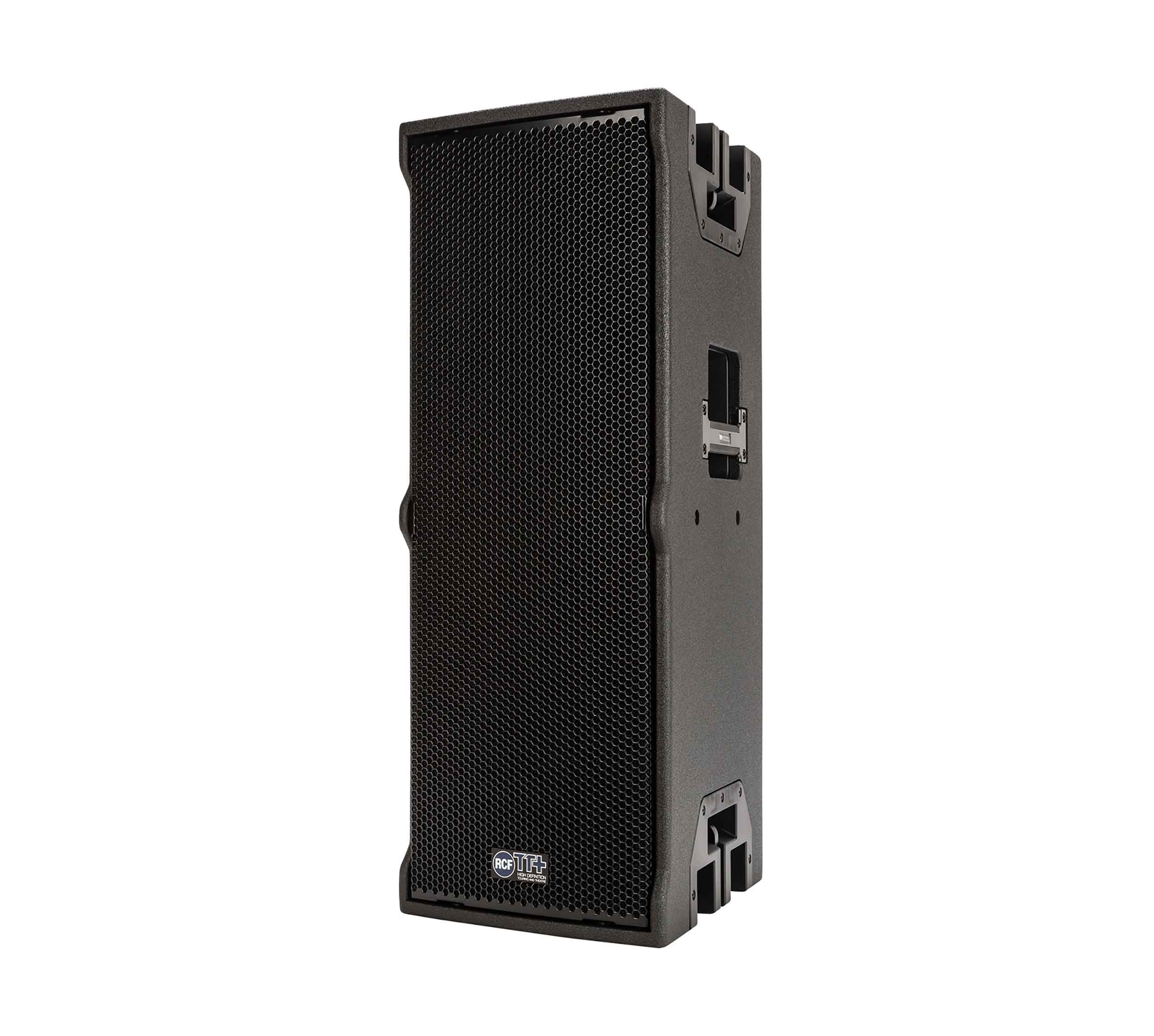

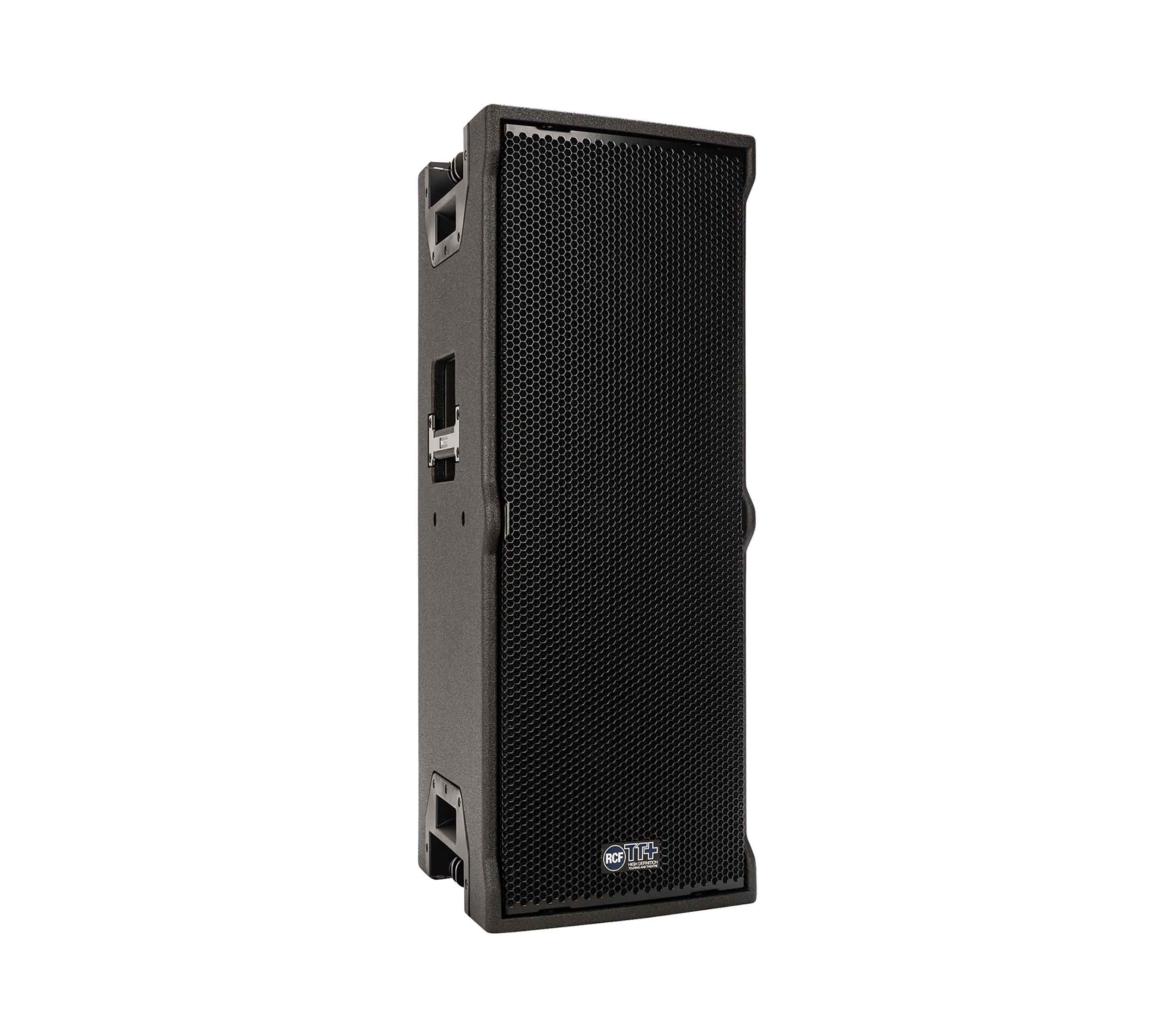

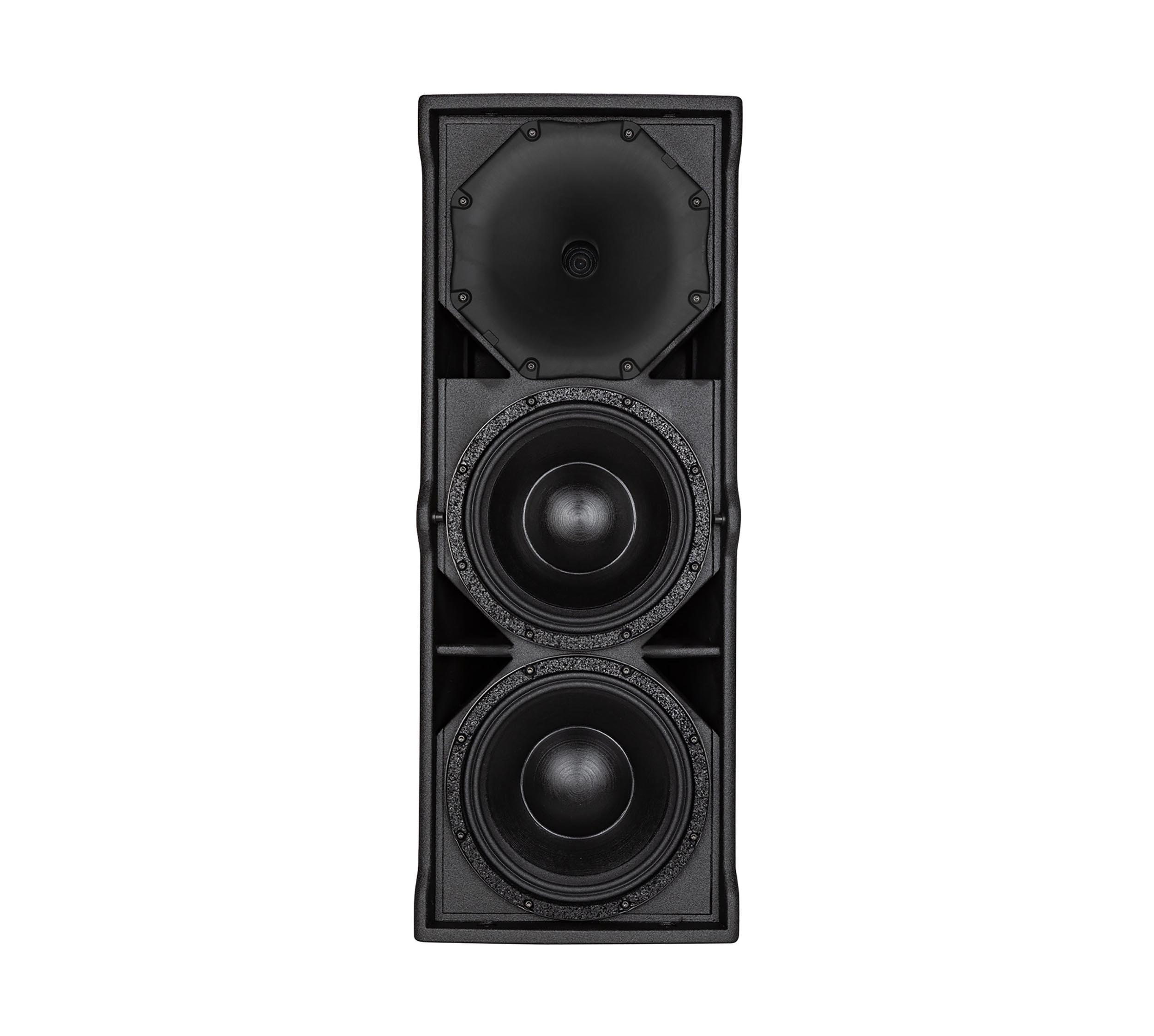

The RCF TTW4-A Dual 10-Inch Two-Way Wide Directivity Active Speaker 3200W - 100˚ X 50˚ Coverage is point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. It is especially suitable for stacked and flown systems when a wide dispersion is required. With all the advantages of TT+ technology, such as coherent directivity, power, and precision, it’s designed for professional applications.
TT 4-A
The Solution Speakers
Top-quality sound for highly demanding events indoors or outdoors in small to medium-sized areas. The TT 4 series flexibility fills the gaps between point source and line array speakers, providing the audio engineer with augmented coverage adaptability. This approach combines all the advantages of TT+ technology, such as controlled dispersion, outstanding clarity and extreme power with three coverage options, multiple rigging accessories, remote control and recallable presets. A groundbreaking solution for a vast range of applications.
100°X50° Waveguide with Coherent Directivity
This special waveguide design allows the deployment of multiple TTW 4-A for excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.
Networked Control and Much More
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Product Specifications:
Acoustical:
Frequency Response: 45 Hz – 20,000 Hz
Max SPL @ 1m: 134 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 50°
Transducers:
Compression Driver: 1 × 1.5" neo, 4.0" v.c
Woofer: 2 × 10" neo, 3.0" v.c

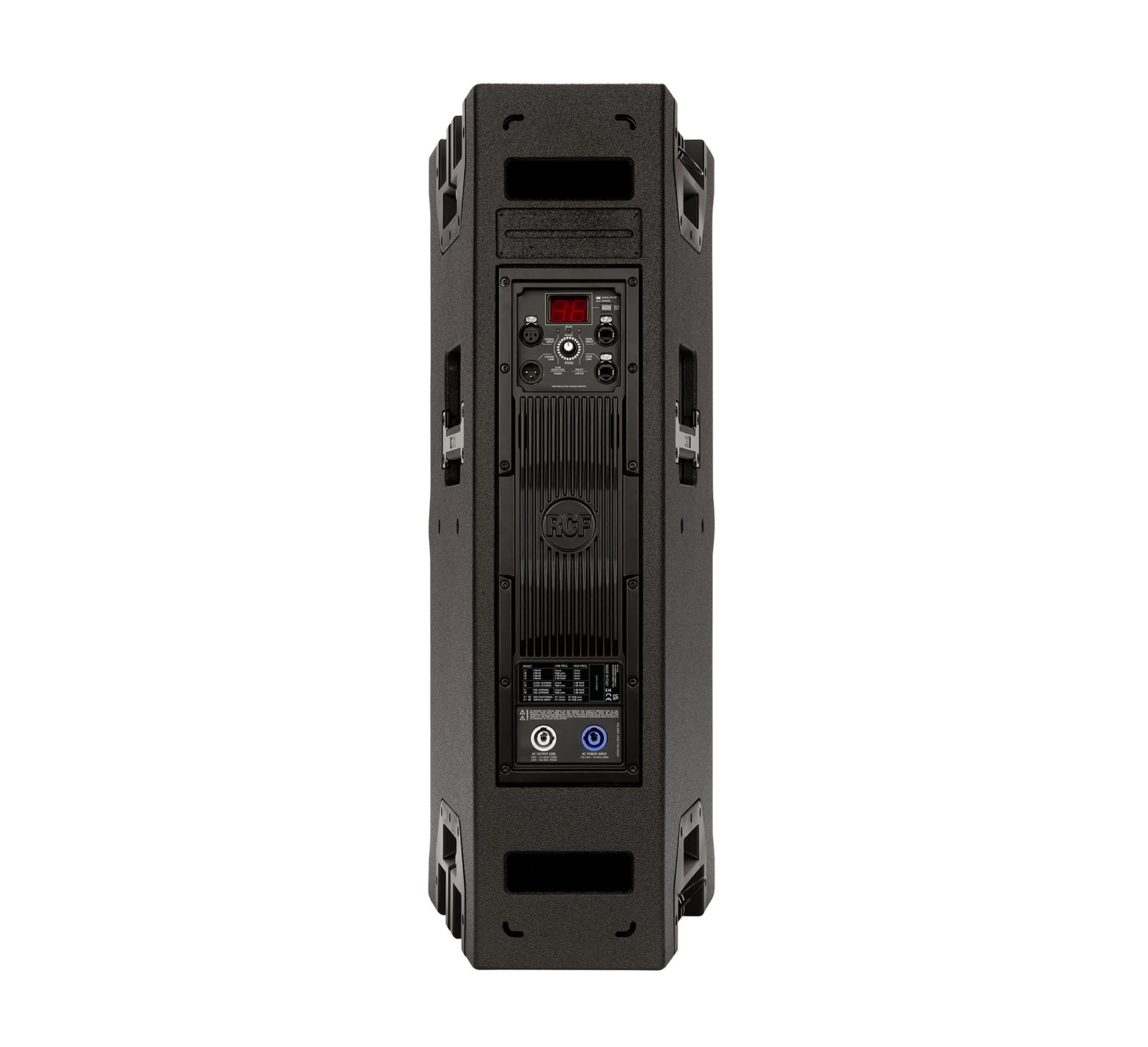

Input / Output Section:
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: +4 dBu
Processor Section:
Crossover Frequency: 900 Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Selectable preset, volume, delay
RDNet: Onboard
Power Section:
Total Power:
3200 W Peak
1600 W RMS
High Frequencies:
1200 W Peak
600 W RMS
Low Frequencies:
2000 W Peak
1000 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard Compliance:
Safety Agency: CE Compliant
Physical Specifications:
Cabinet Material: Baltic birch plywood

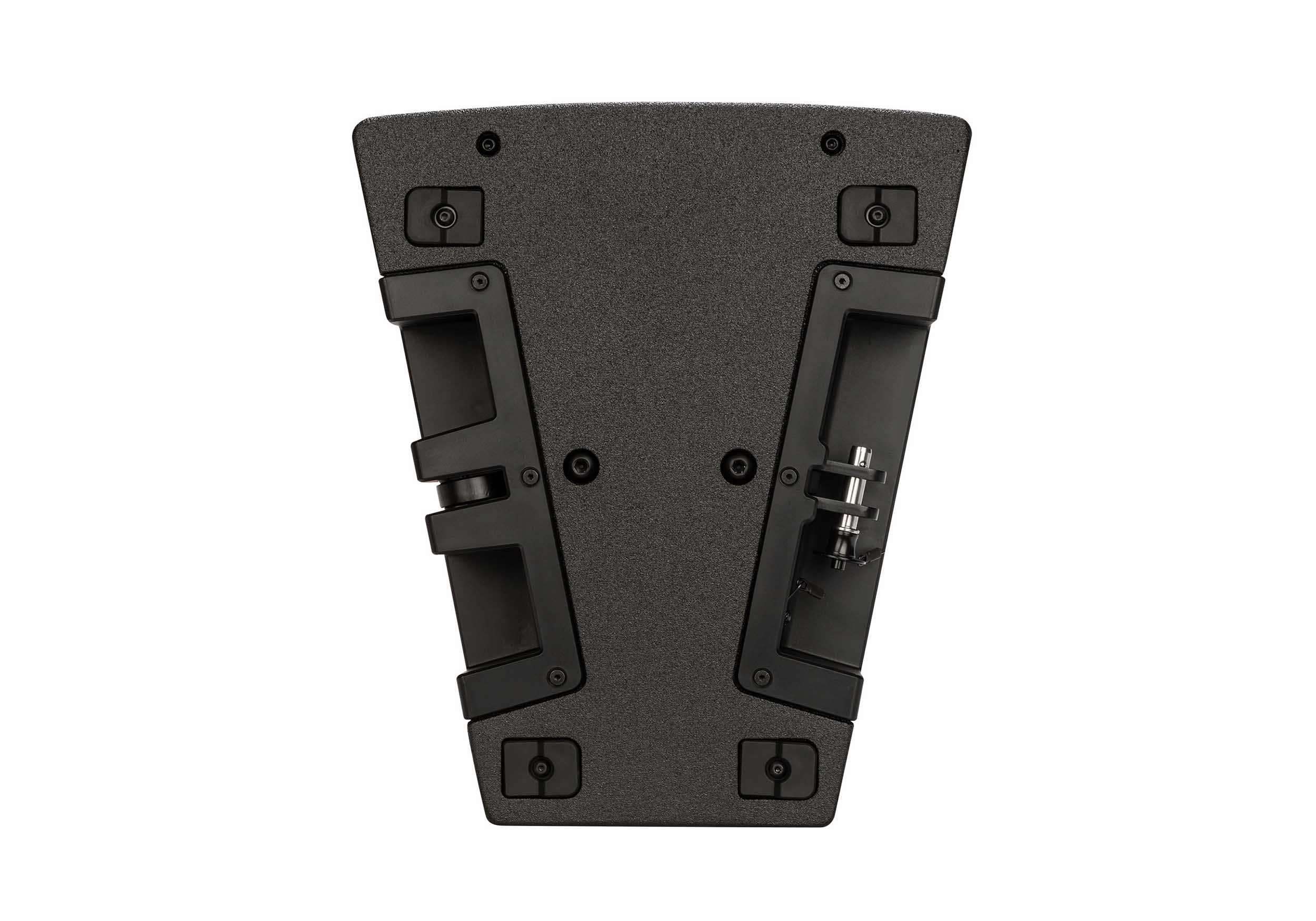

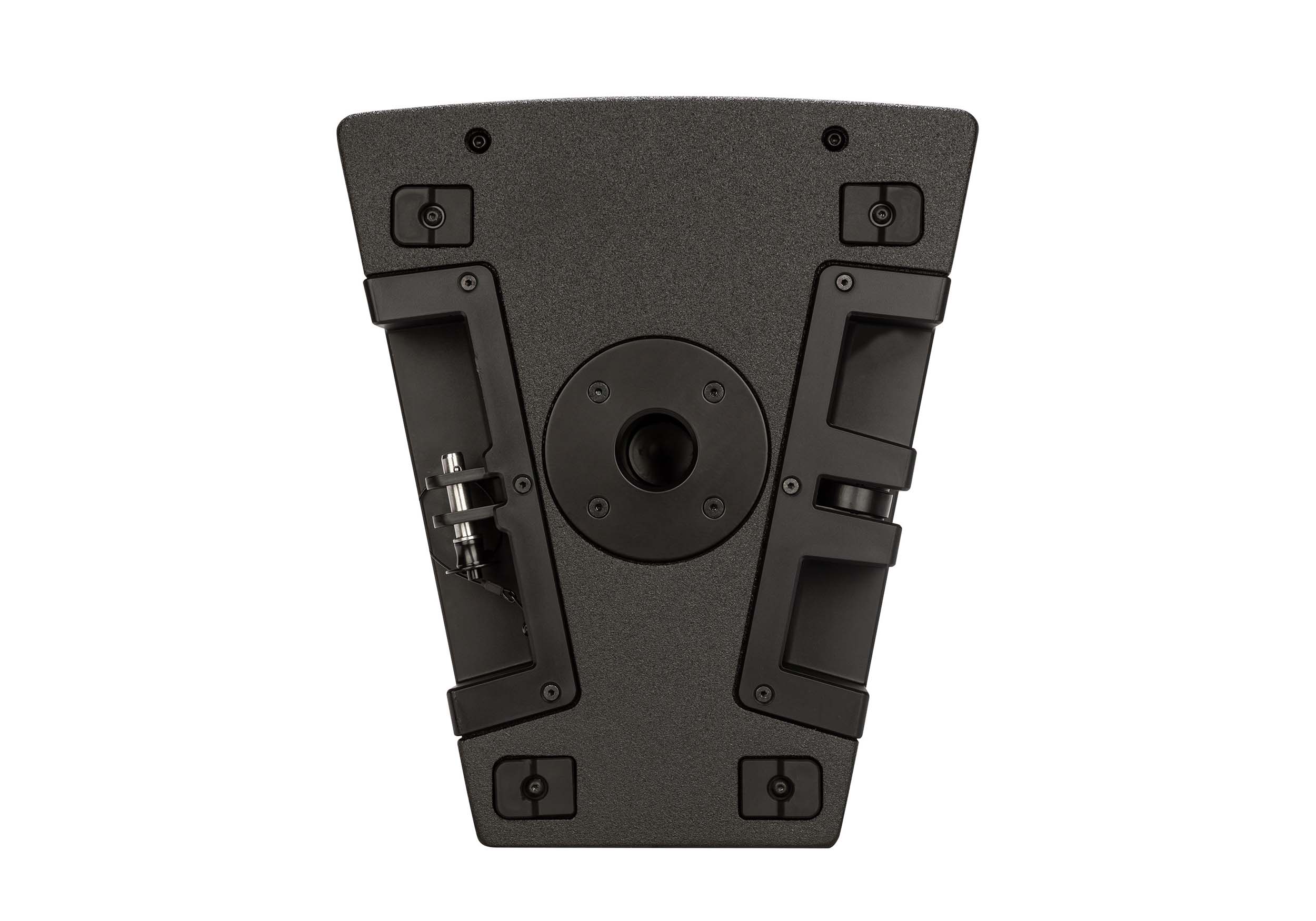

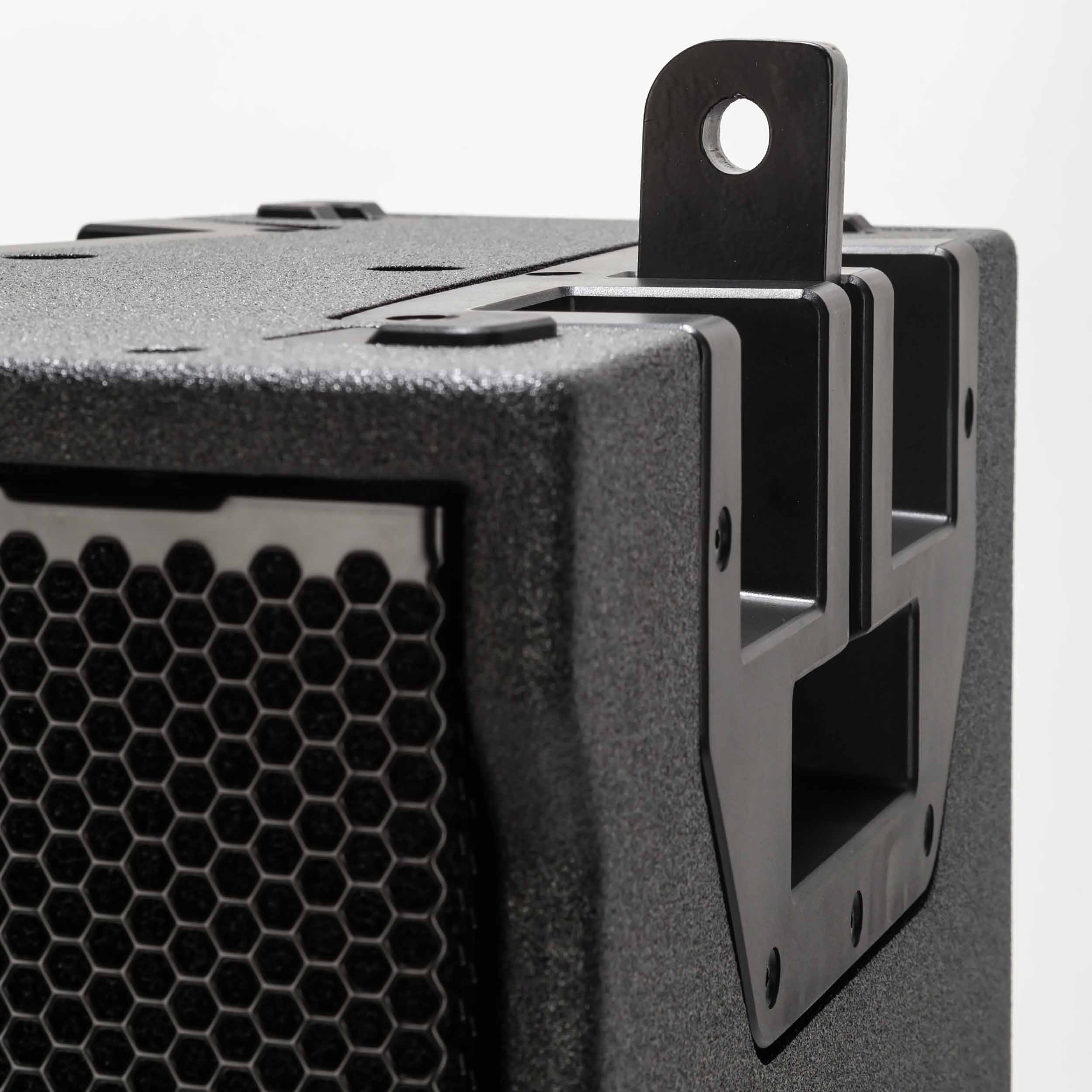

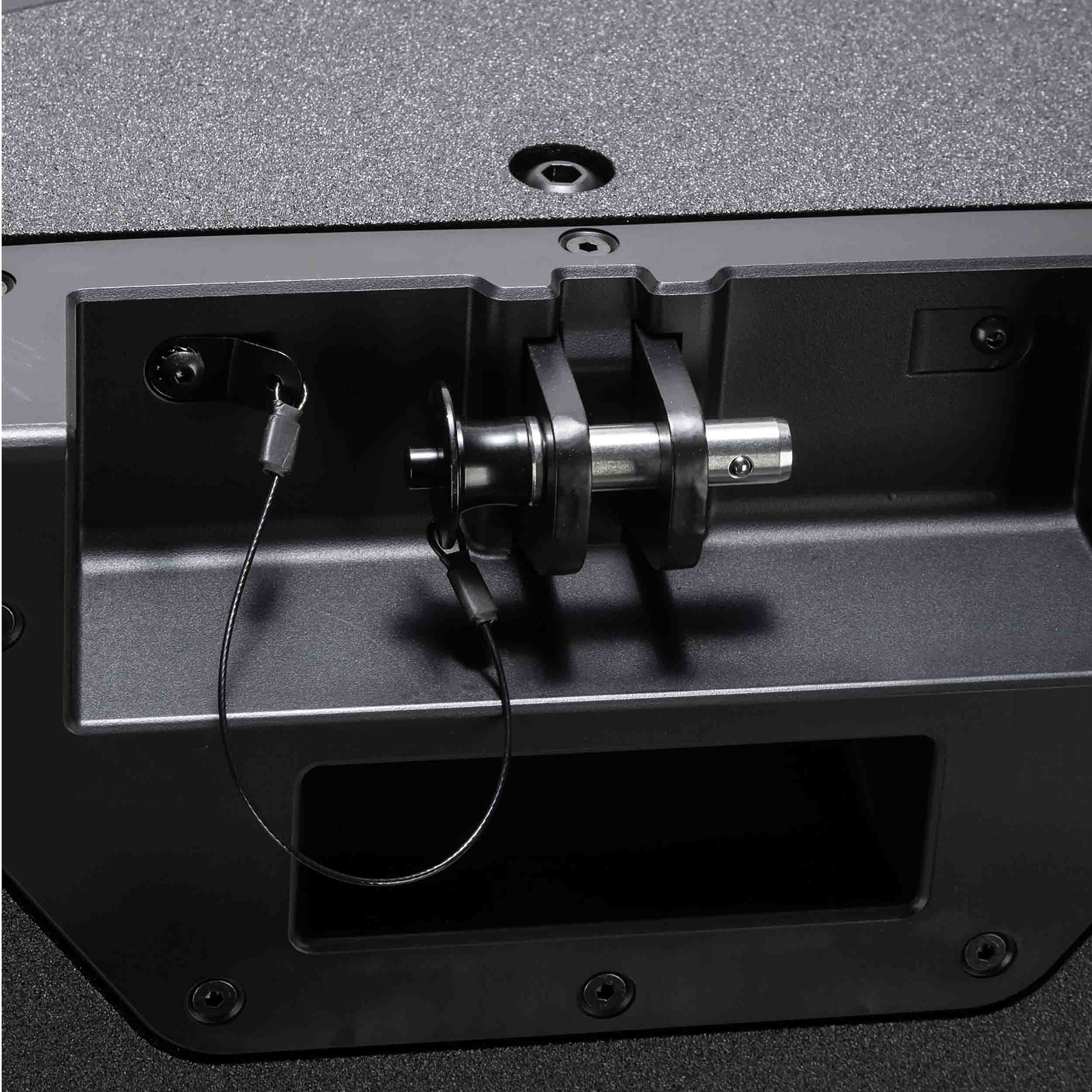

Hardware: Array fittings, 2 × M10 on top, 2 × M8 on each side

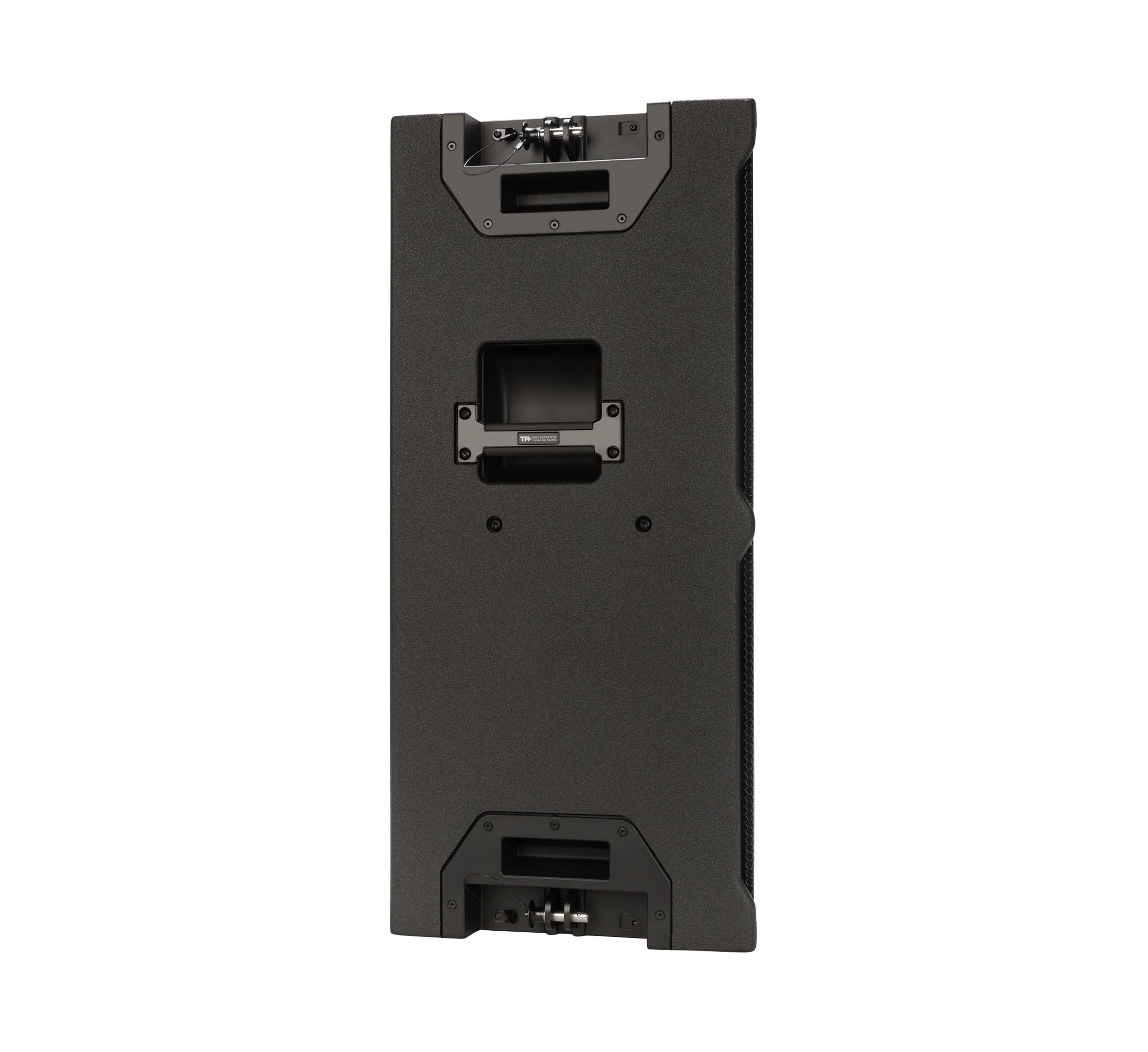

Handles: 2 × Side, 2 × Rear
Grille: Steel
Color: Black
Product Height: 825 mm / 32.48 in
Product Width: 316 mm / 12.44 in
Product Depth: 369 mm / 14.53 in
Product Weight: 30.4 kg / 67.02 lbs.
Shipping Height: 410 mm / 16.14 in
Shipping Width: 865 mm / 34.06 in
Shipping Depth: 365 mm / 14.37 in
Shipping Weight: 33.5 kg / 73.85 lbs.
