Description

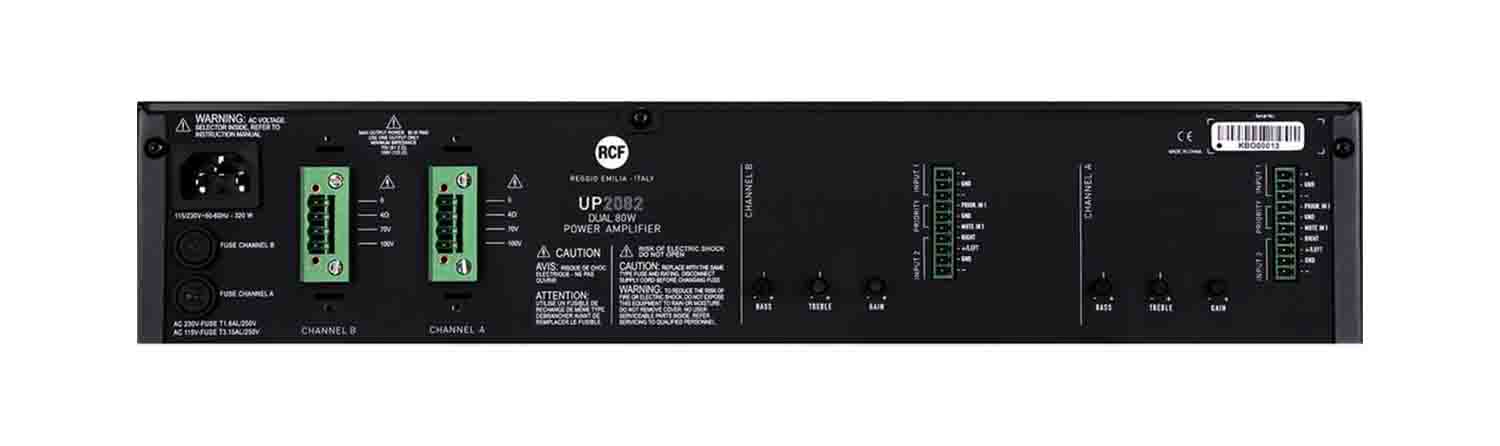

The RCF UP-2082, 2 Channel Power Amplifier - 2 x 80-Watt features two separated and independent 80W amplifiers. Each amplifier section has two audio inputs, of which one is with Priority function through a closing contact. Both audio inputs are at Line level for pre-amplified signals or music sources such as CD players and tuners. The amplifier output is available for either low impedance (min. 4 ohm) loudspeakers, or for loudspeakers with a 100-70V transformers. This Class D amplifier features a switching power supply. It is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems and similar applications.
Product Specifications:
Power Output: 2 x 80W RMS
Frequency Response: 50 Hz to 18 kHz
Distortion: < 0.3%
Signal / Noise: 80 dB
Crosstalk: 80 dB
Line Input Impedance: 20 kOhms
Auxiliary Input Impedance: 20 kOhms
Tones Bass/Treble: 100 Hz, ±8 dB
Output Impedance: 4 ohms
Output Voltage: 70 V (31 ohms) / 100 V (62 ohms)
Operating Voltage: 115-230 VAC, 50/60 Hz
Power Consumption: 2 x 175 W
Controls: Master volume, Treble, Bass, Gain
Protections: Overload, short circuit, thermal
Dimensions: 3.4 x 17.4 x 8.6" (88 x 444 x 220 mm)
Weight: 8.37 lb (3.8 kg)
Package Weight: 10 lb
Box Dimensions (LxWxH): 20 x 13 x 8"
