Description

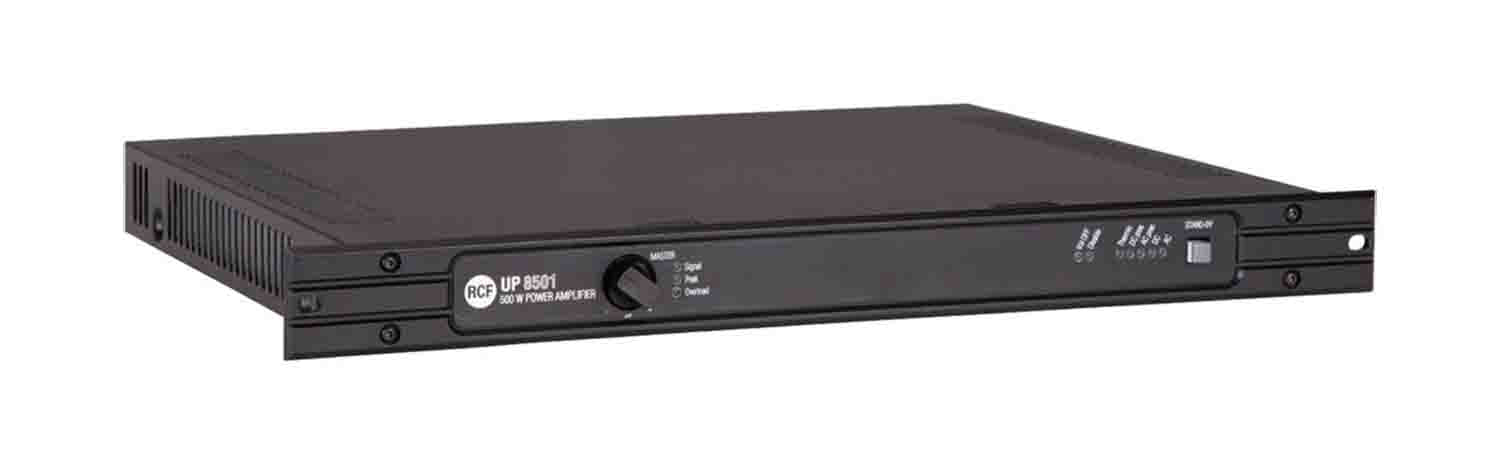

The RCF UP-8501, 8000 Series UP 8501 Power Amplifier - 1 x 500-Watt amplifier uses digital technology, and allows AC and DC power operation. The switching mode power supplies includes an independent 48 VDC section designed for redundancy. Each channel is provided with two inputs and dedicated priority circuit to get mix/mute and priority operation. The amplifier is suitable for 70/100V applications. It features front panel status LEDs and a rear panel DIP switch which allows you to disable the frontal volume controls. All connectors are removable screw terminals. The UP 8501 is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems, and similar venues.
Product Specifications:
Power Output: 500 W RMS
Frequency Response: 40 Hz to 16 kHz
Distortion: 0.3%
Signal / Noise: 86 dB
Crosstalk: 86 dB
Mic Input Impedance: 10 kOhms
High-Pass Filter: 200 Hz to 8 kHz (passband)
Output Level: 100 - 70 V
Output Voltage: 70 V (10 ohms) 100 V (20 ohms)
Power Consumption: 1 x 500 W
Fuse: 5 x 20 /FKS
Controls: Volume
Protections: Overload, thermal
Dimensions: 1.7 x 19.0 x 14.7" (44 x 482 x 375 mm)
Weight: 12 lbs
Package Weight: 14 lbs
Package Dimension: 20, 10, 4”
