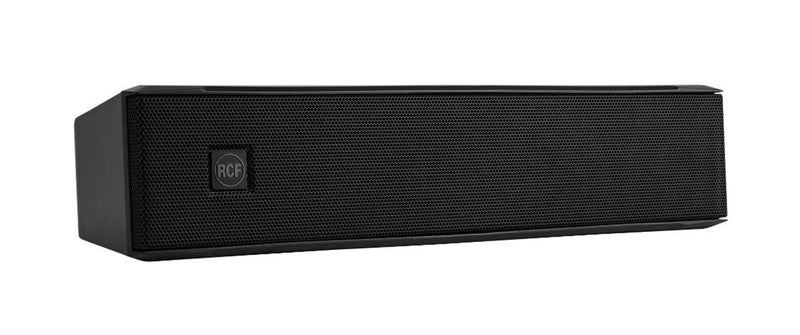

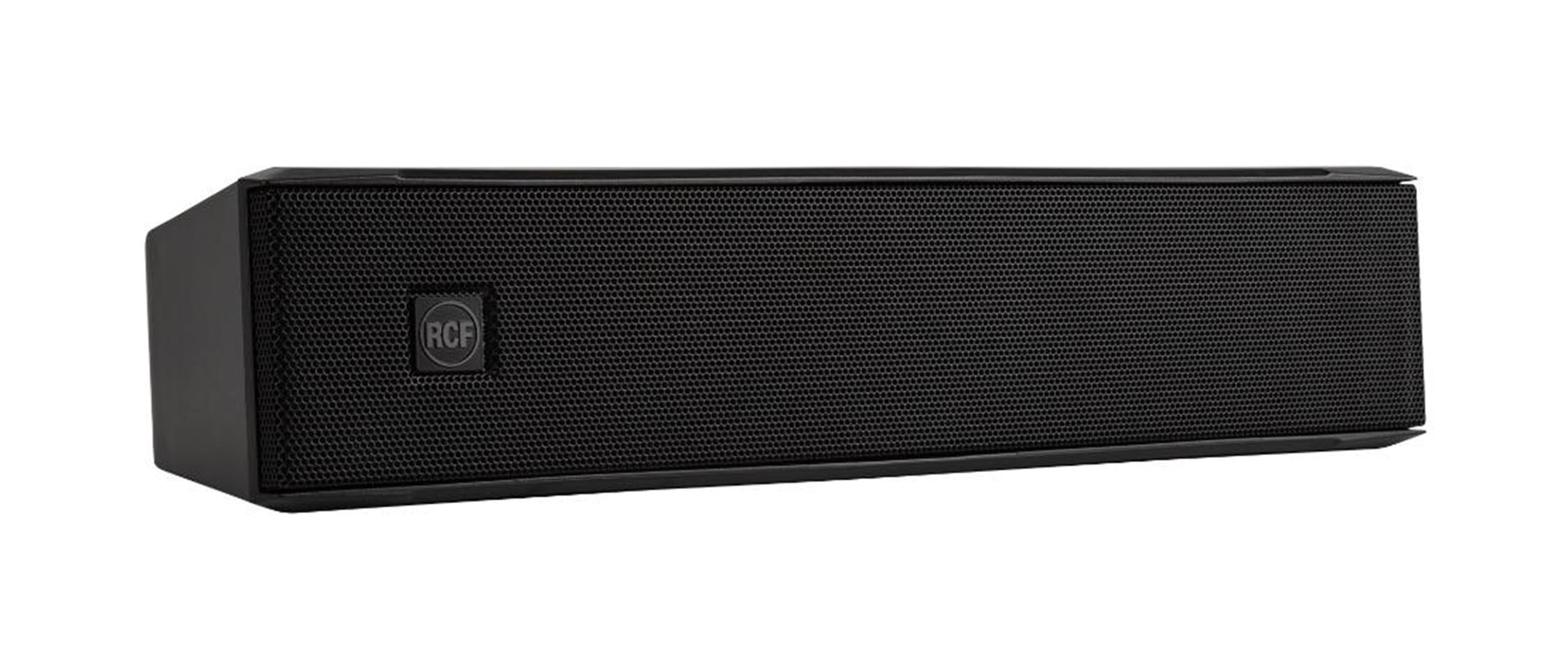

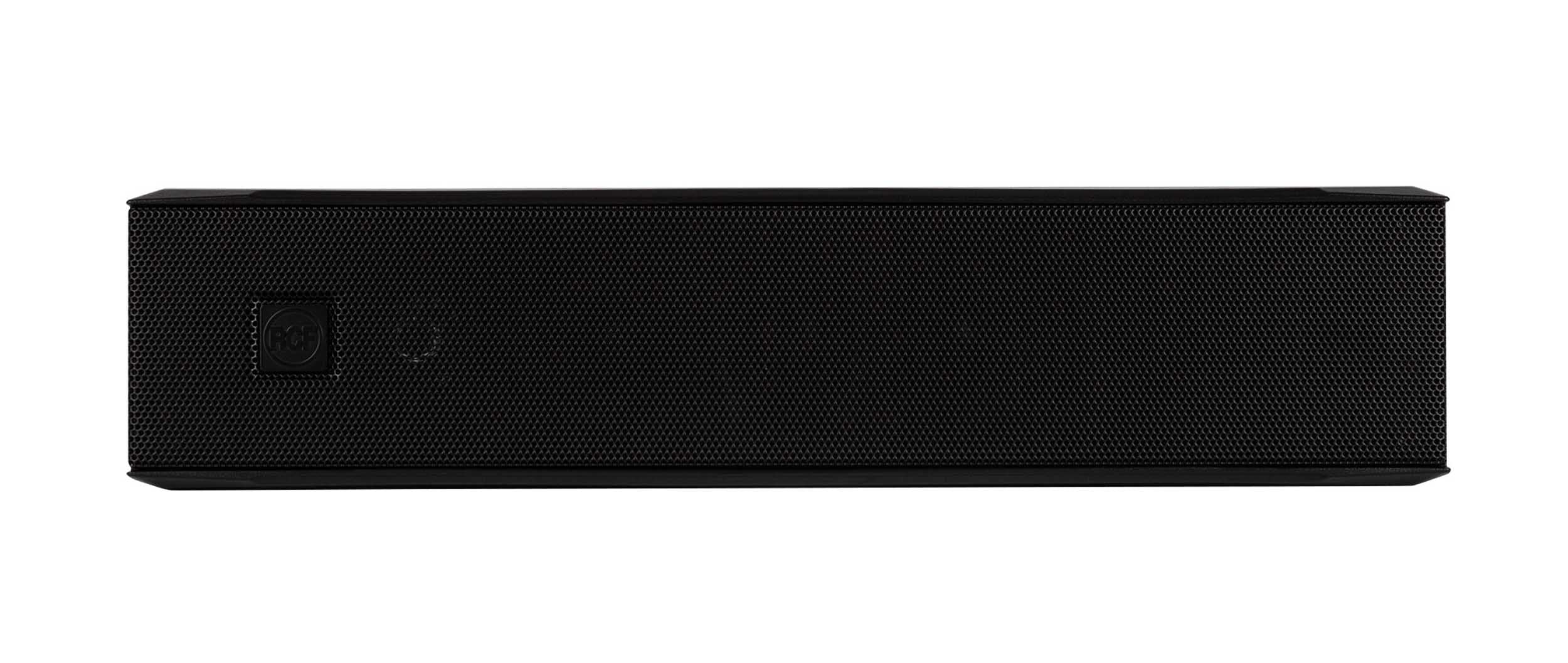

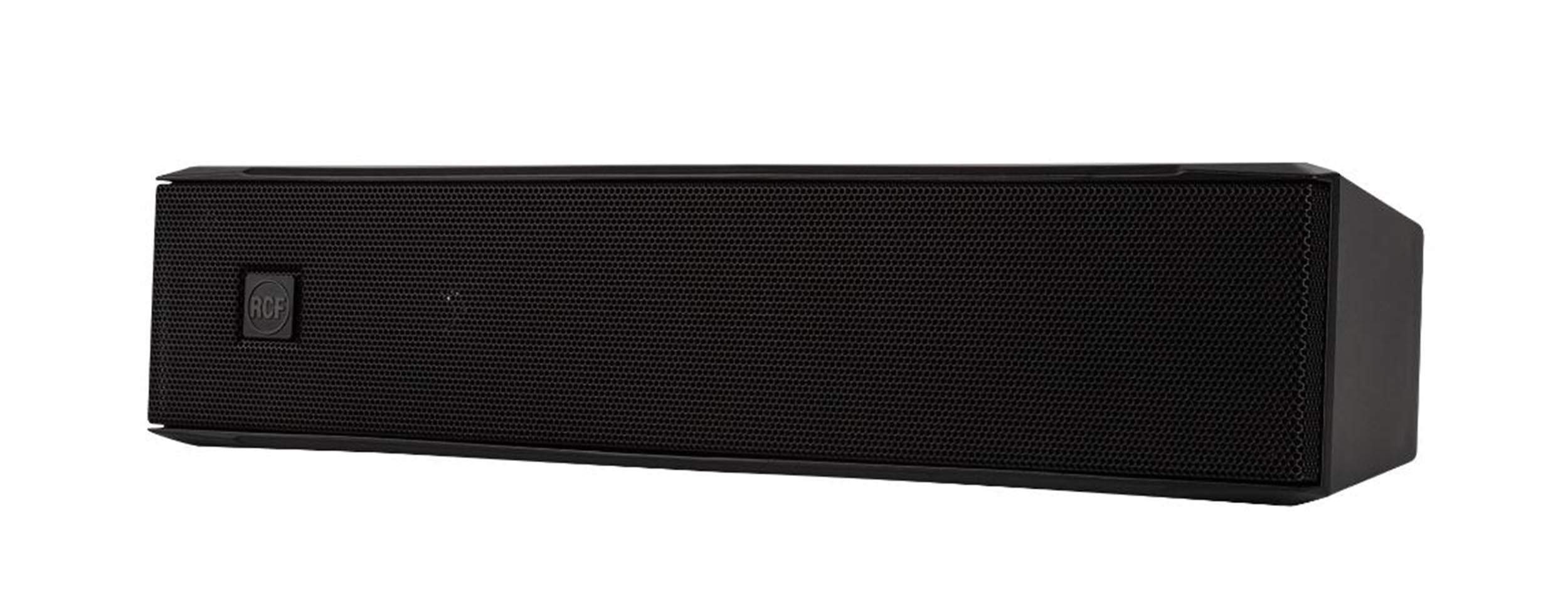

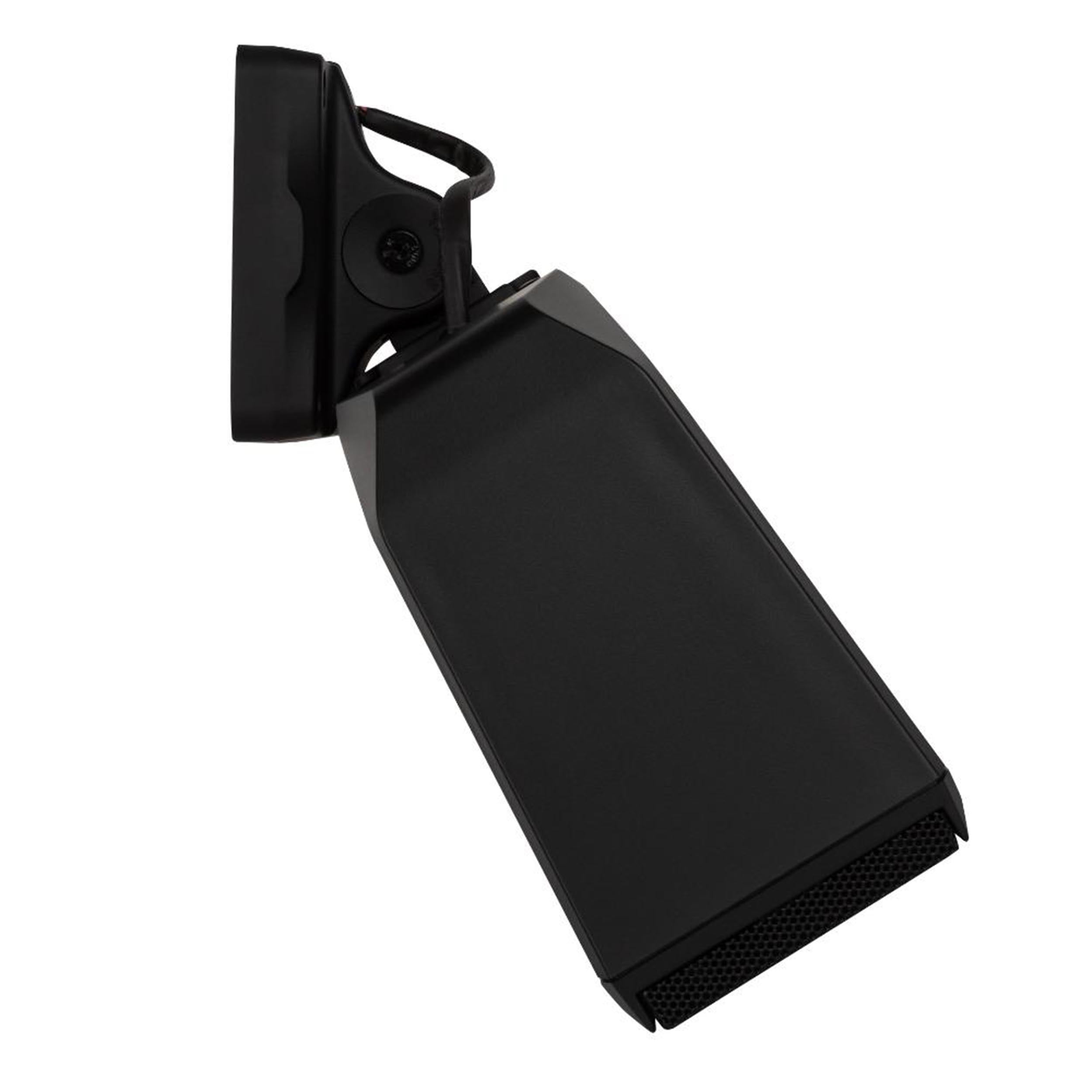

RCF WMF33-EN Dual 3-Inch 2-Way Passive Wall Mount Speaker - 160W

The RCF WMF33-EN is a two-way wall mount speaker designed for both horizontal and vertical installation. It is especially suitable for broadcasting background music into commercial spaces, but also includes alarm messages with highly intelligible voice reproduction and EN 54-24 certification. It features a UL rated plastic cabinet with a steel magnetic grille and is easy to install with its smart support system. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.

Multipurpose sound:

A combination of modern design, a wide coverage angle of 100°x160° and RCF signature sound quality to deliver a supreme audio experience in any application. Their 2-way / 3-transducers full-range reflex-loaded speaker design does not require complementary SUBs. There is enough power for a uniform and rich sound distribution for a wide range of installations.

The target application range is extremely wide and varies from retail stores to bars and restaurants, meeting rooms, education or public facilities, and in general to any A/V application and Voice Alarm installation.

Improve the audio atmosphere:

Music nurtures engagement and improves the feeling of hospitality provided by the environment. All products designed for Business Music applications offer optimal background performance preserving the same quality even during high-powered foreground music. Their extra-wide directivity allows you to significantly reduce the number of speakers and installation points.

Voice alarm ready:

The EN 54-24 certification and the highly intelligible voice reproduction make it perfect for voice alarm and EVAC messages (sensitivity 91 dB 1W @ 1m in the range 400 Hz ÷ 8000 Hz according to EN 54-24). The same speaker can be used for both music distribution and Voice Alarm applications.

Discreet power:

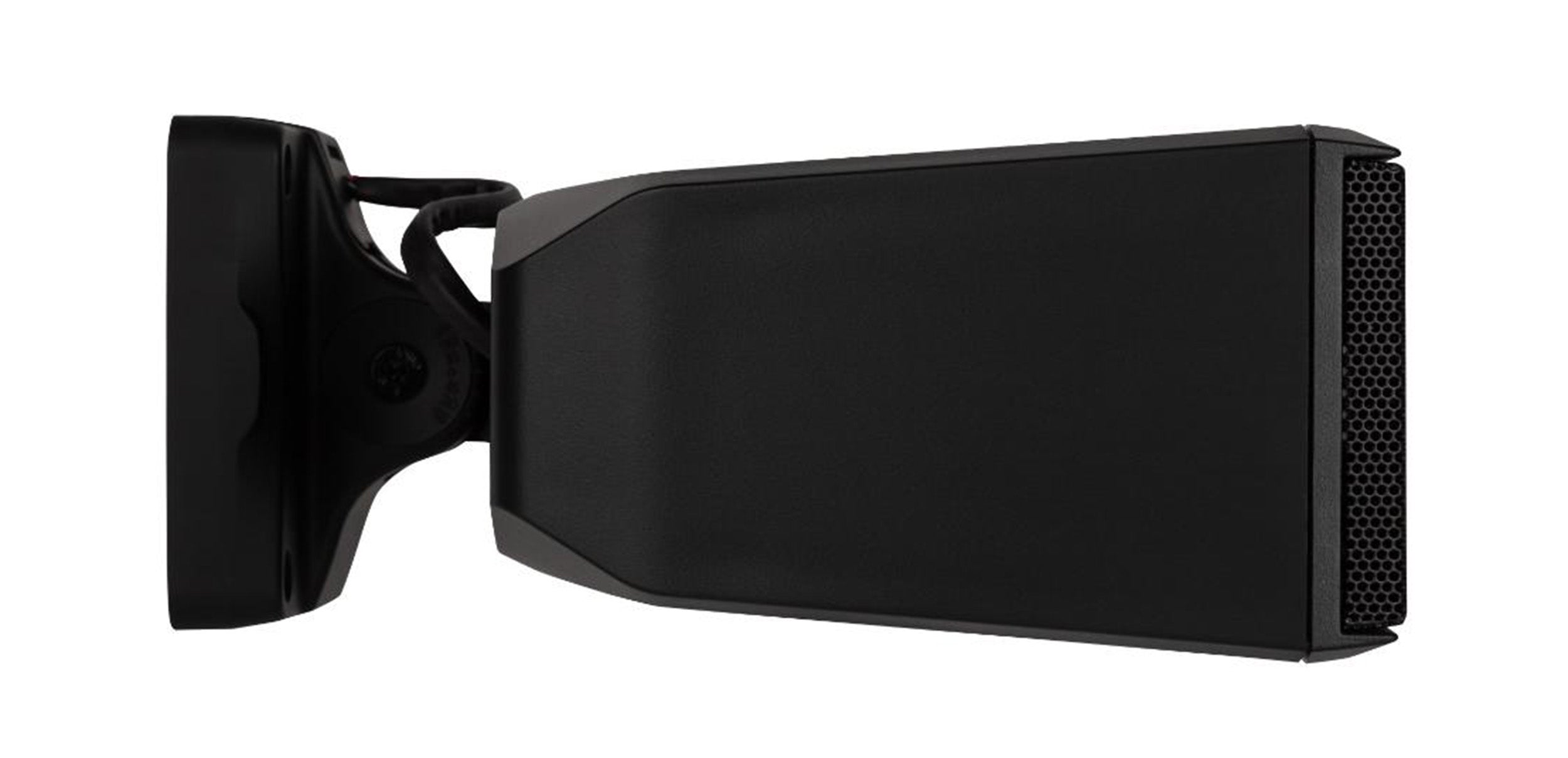

Our audio engineers maintain a strong focus on simplicity without compromising usability. The smooth and subtle design perfectly blends with any architecture, without compromising sound performance and ease of installation. WMF 33EN is so compact and slim that it can be aimed and rotated freely by its discrete swivel bracket, allowing a completely flexible installation. The grill is magnetically removable, ensuring practical and easy maintenance.

New shape of sound:

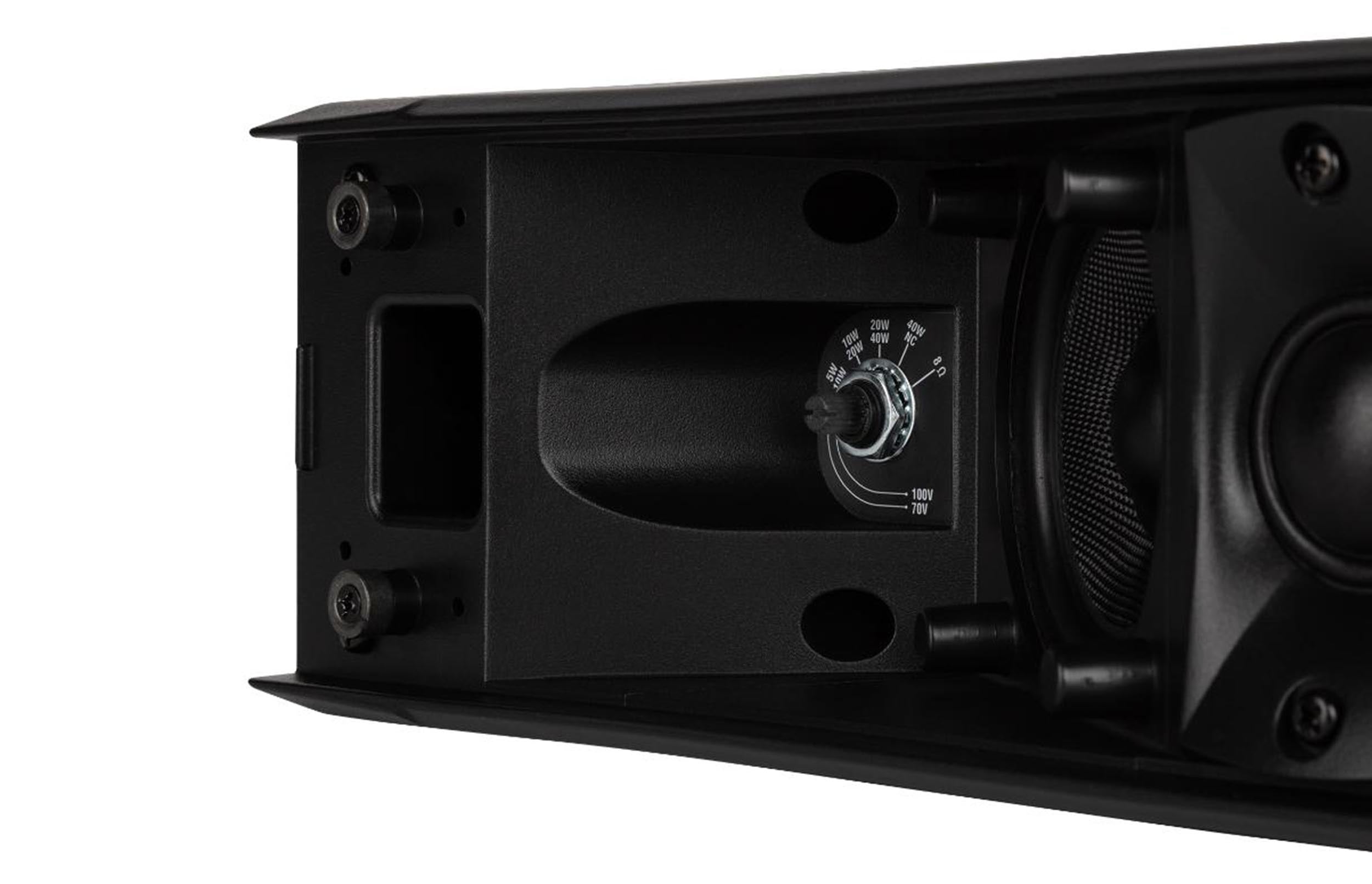

WMF speakers can be driven by both low impedance or constant voltage amplifiers, with mode and power selection, both accessible by simply removing the grille. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. Their extra-wide directivity significantly reduces the number of speakers and installation points.

Product Specifications:

Acoustical Specifications:

Frequency Response (-10 dB): 80 Hz – 22,000 Hz

Maximum SPL @ 1 m: 105 dB

Maximum SPL @ 4 m: 93 dB

Horizontal Coverage Angle: 100°

Vertical Coverage Angle: 160°

System Sensitivity: 88 dB

System Sensitivity (1 W @ 4 m): 76 dB

Power Section:

Amplification: Full Range

Nominal Impedance: 8 Ω

Power Handling: 40 W

Peak Power Handling: 160 W PEAK

Protections: Thermal fuse (PTC)

Crossover Frequency: 2,500 Hz

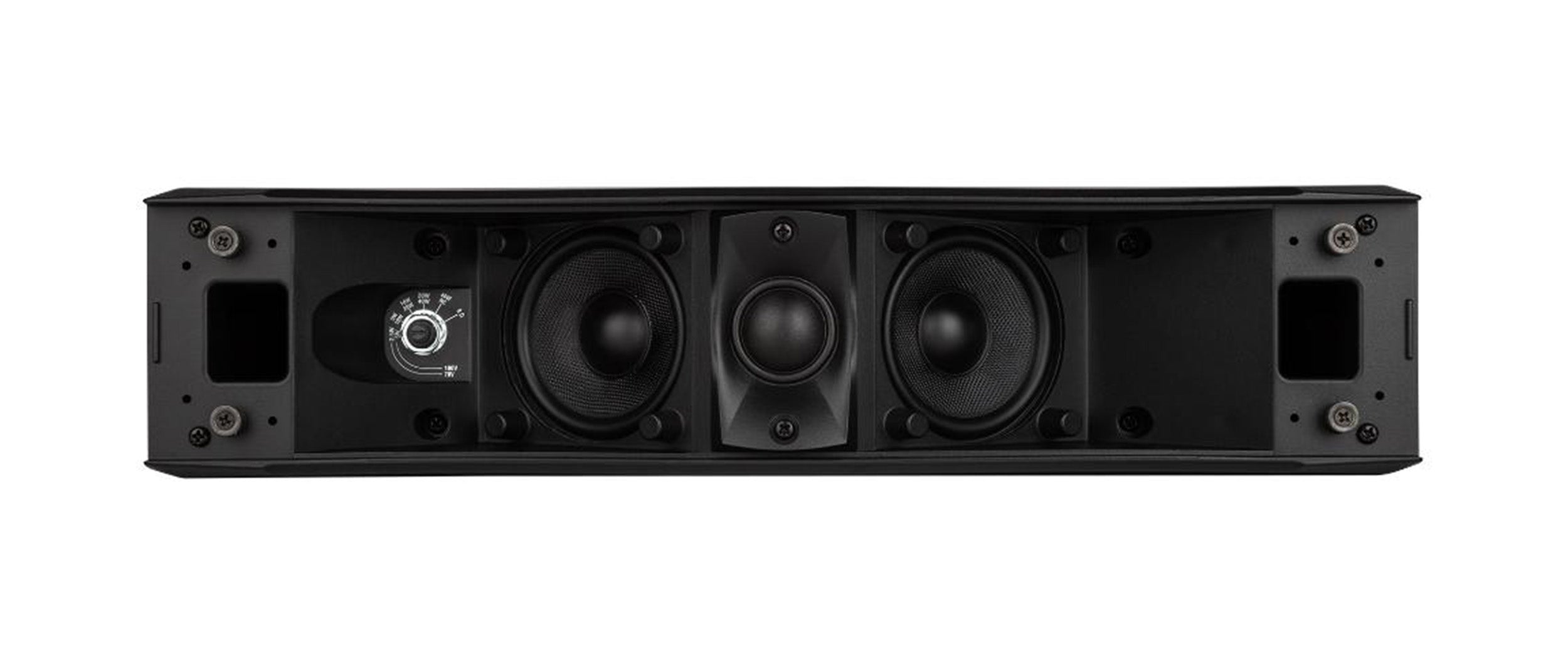

Transducers:

Dome Tweeter: 1 × 1.0″ Neo, 1.0″ V.C

Woofer: 2 × 3.0″, 1.0″ V.C

Input/Output Section:

Input Connectors: Ceramic screw terminals

Output Connectors: Ceramic screw terminals

Constant Voltage Transformer: 70/100 V

Power Selections:

40 W – 250 Ω

20 W – 500 Ω

10 W – 1,000 Ω

5 W – 2,000 Ω

2.5 W – 4,000 Ω

Standard Compliance:

Safety Agency: CE Compliant

EN54-24 Certified: Yes

CPR Number: 0068/CPR/057-2019

Cabinet/Case Material: ABS

Hardware: Wall mount bracket

Grille: Steel

Color: Black (RAL 9005)

Product Weight: 11.02 lbs.

Product Dimensions (L × W × H): 9.29 in × 3.62 in × 15.71 in

ShippingDimensions (L × W × H): 10.87 in × 23.46 in × 7.32 in

Shipping Weight: 15.43 lbs.
