Description

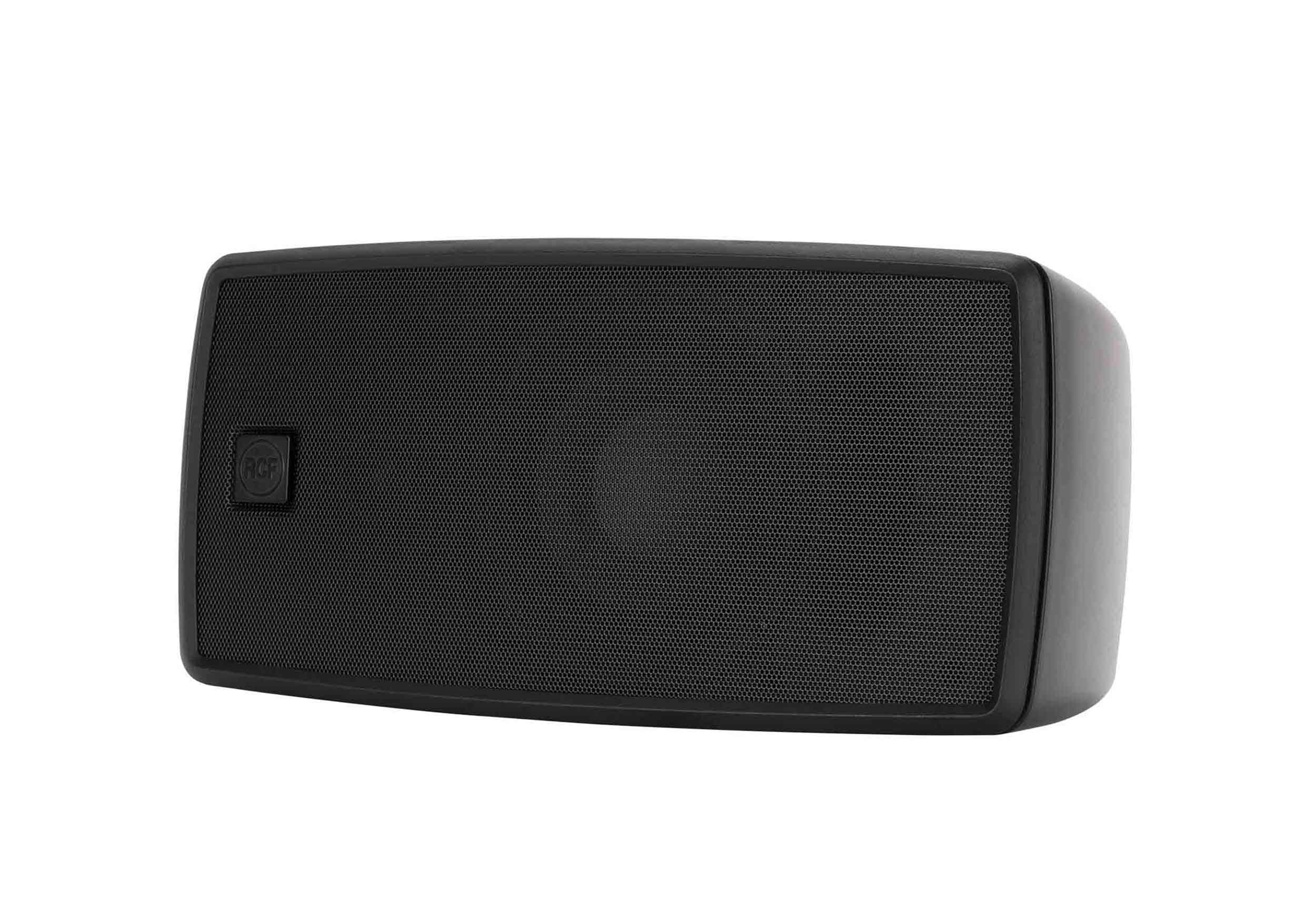

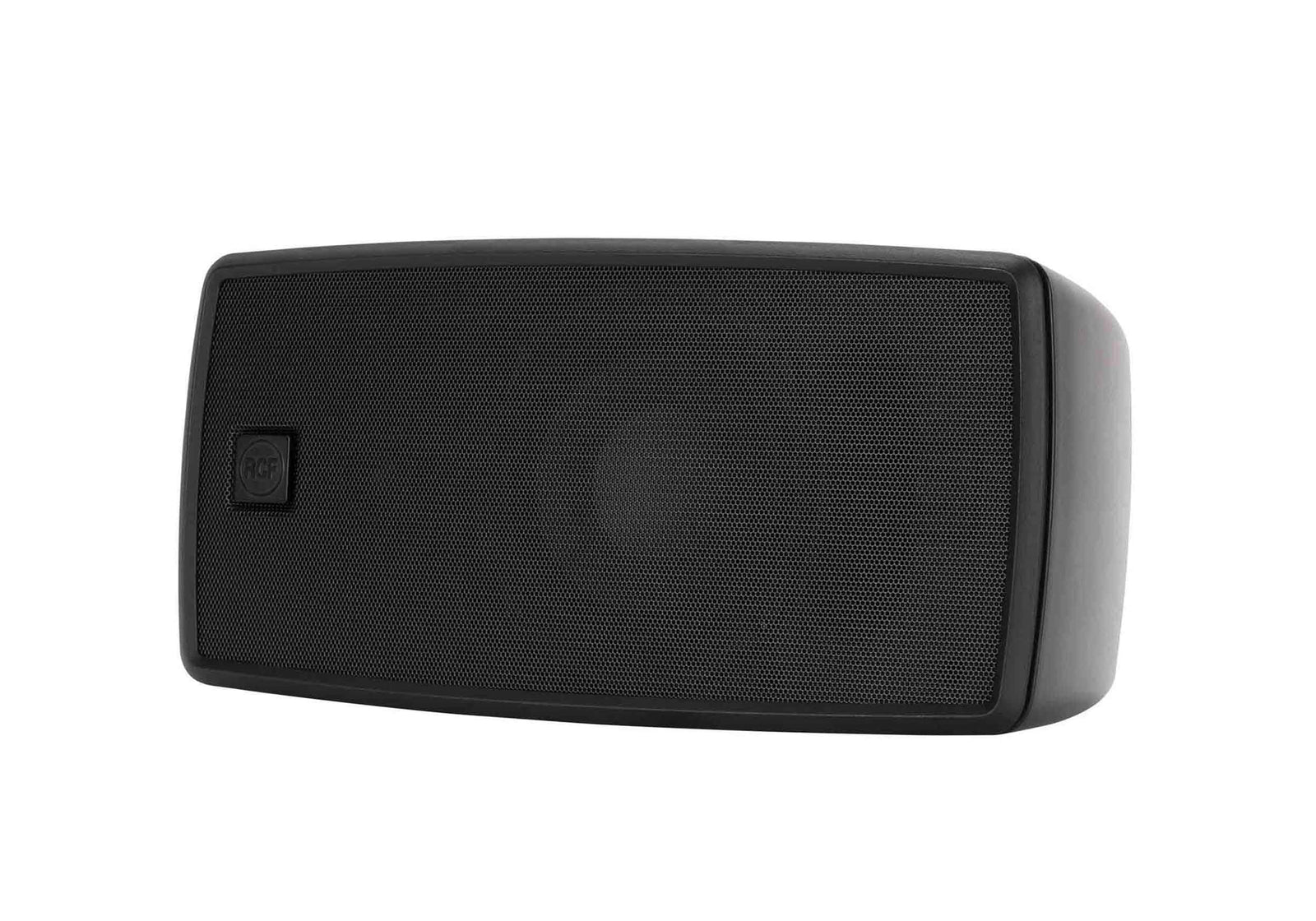

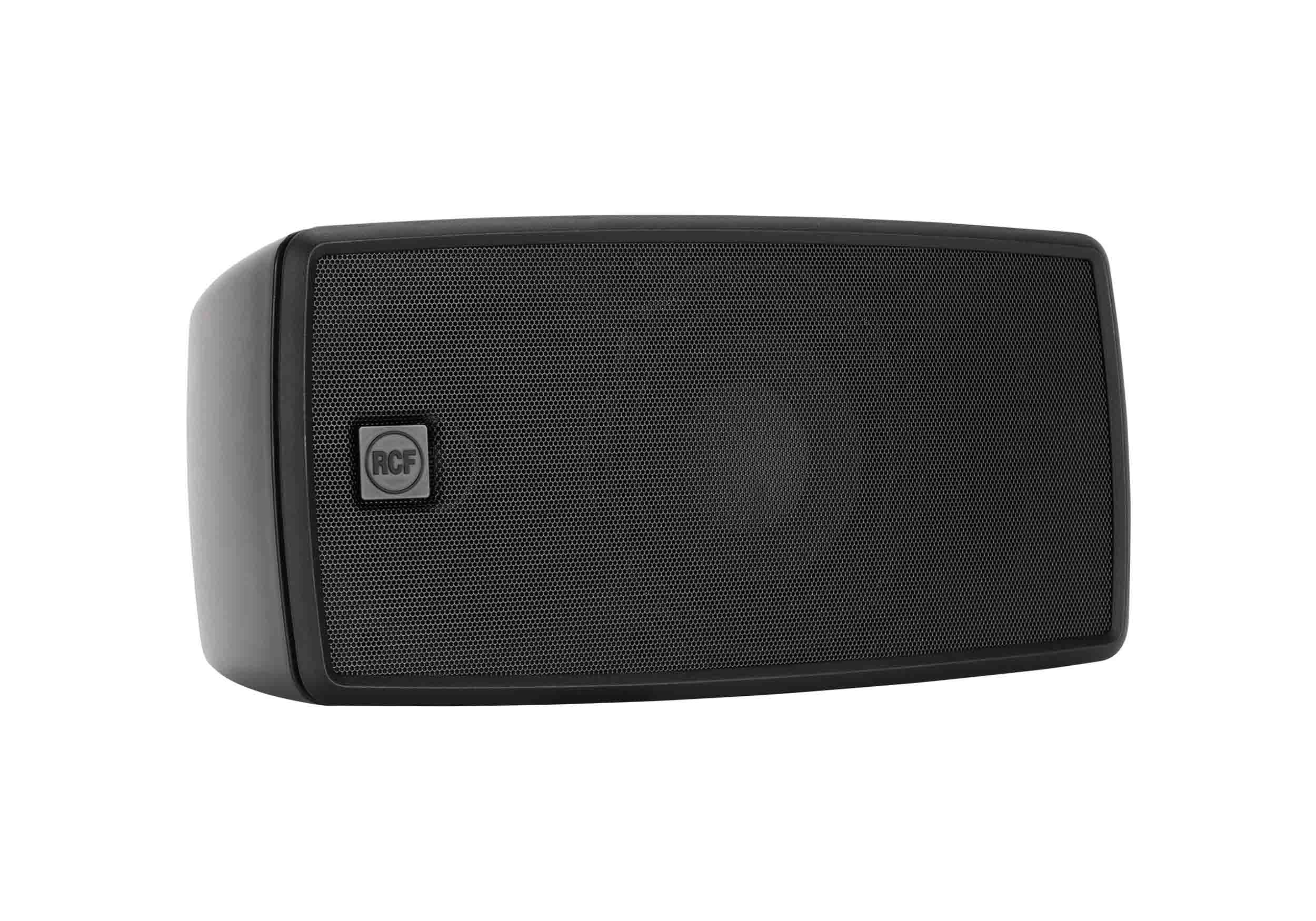

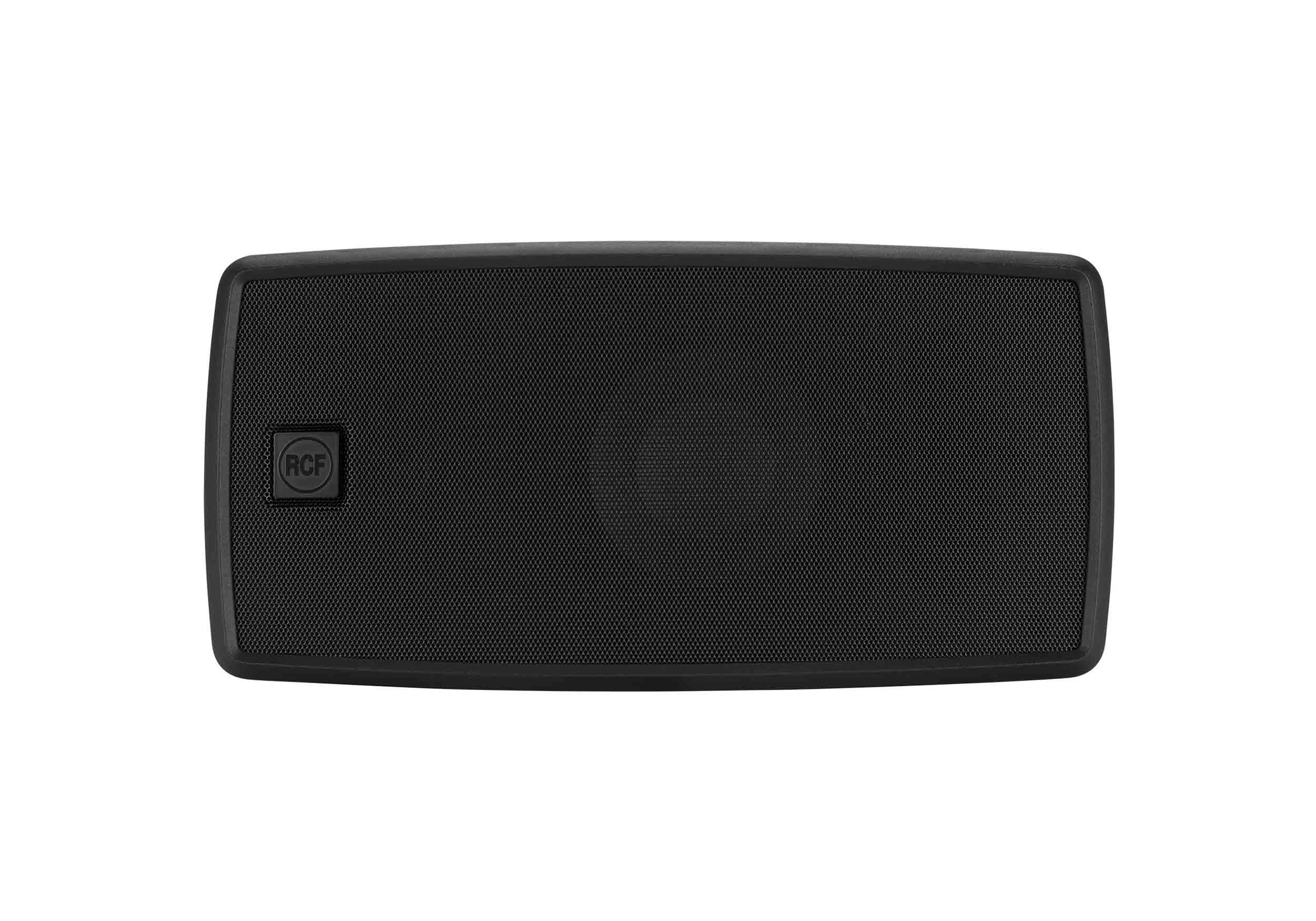

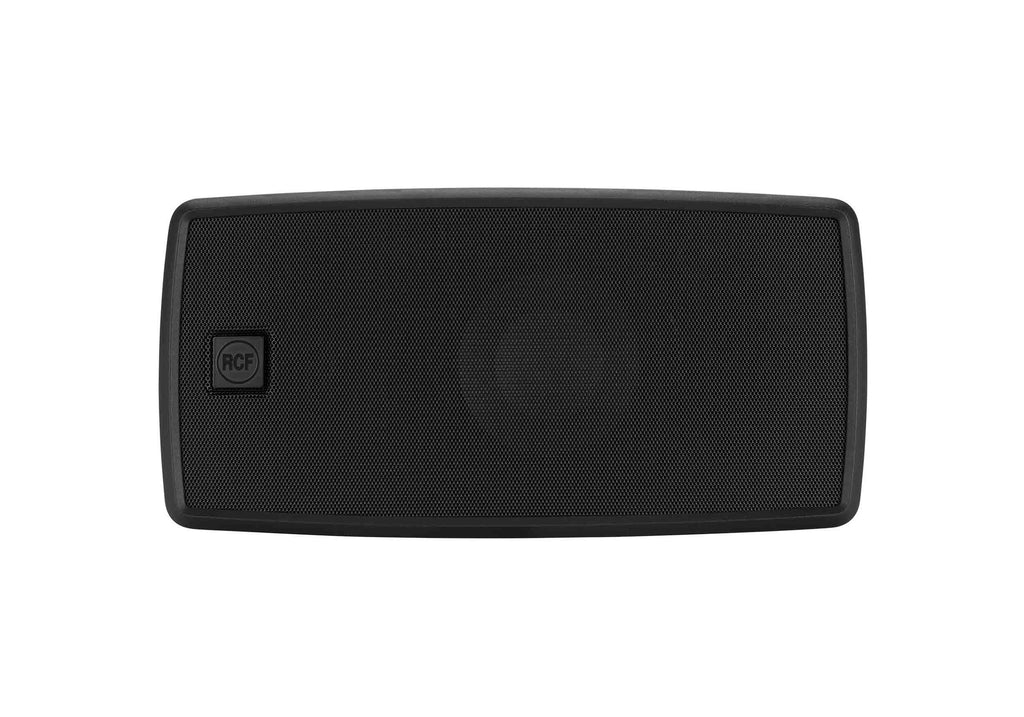

The RCF WMR 50T 5-Inch 2-Way Wall Mount Monitor Passive Speaker - 160W, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.
Multipurpose Sound
Music nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.
All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Uncompromised Performance
Quality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.
Smooth Installation

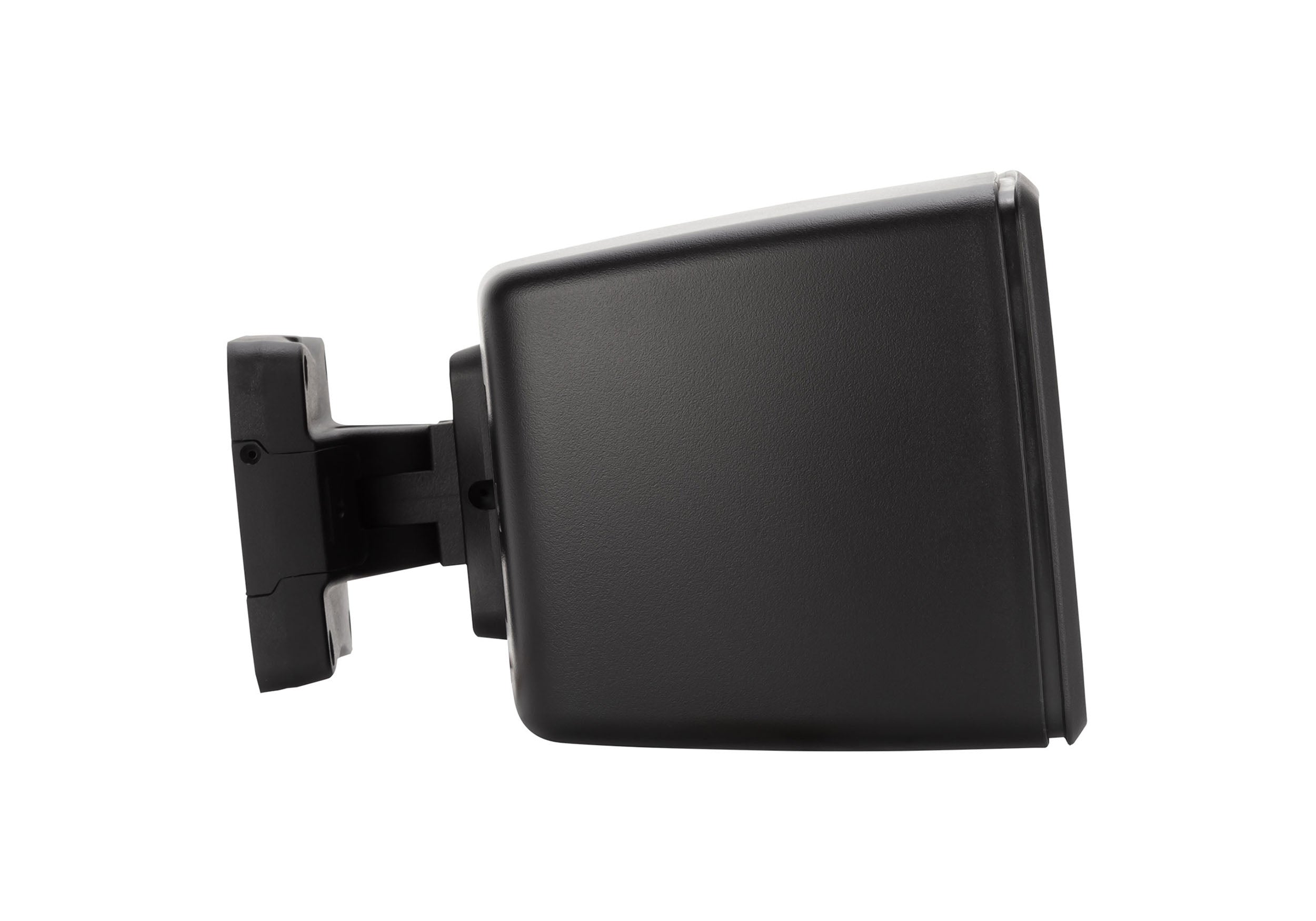

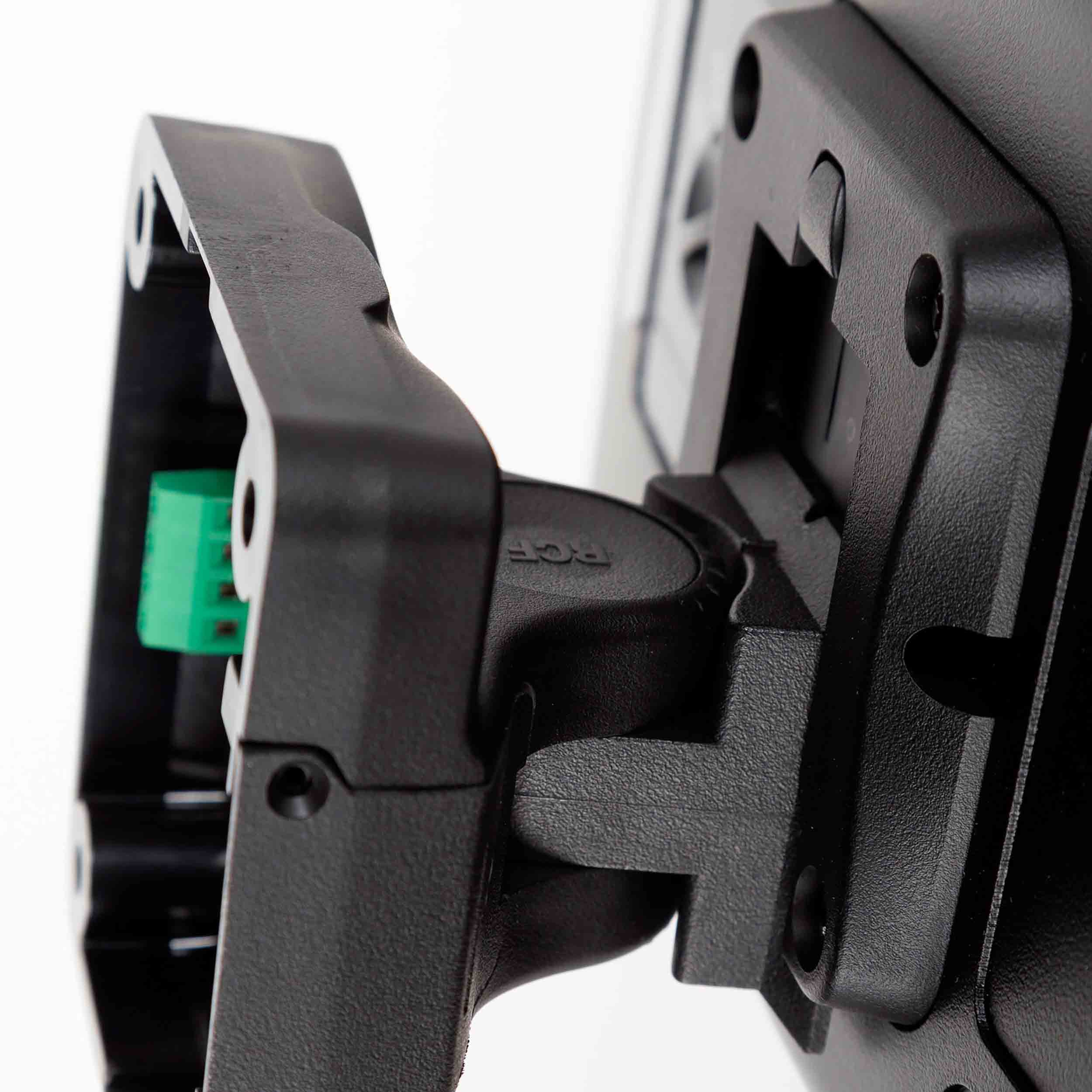

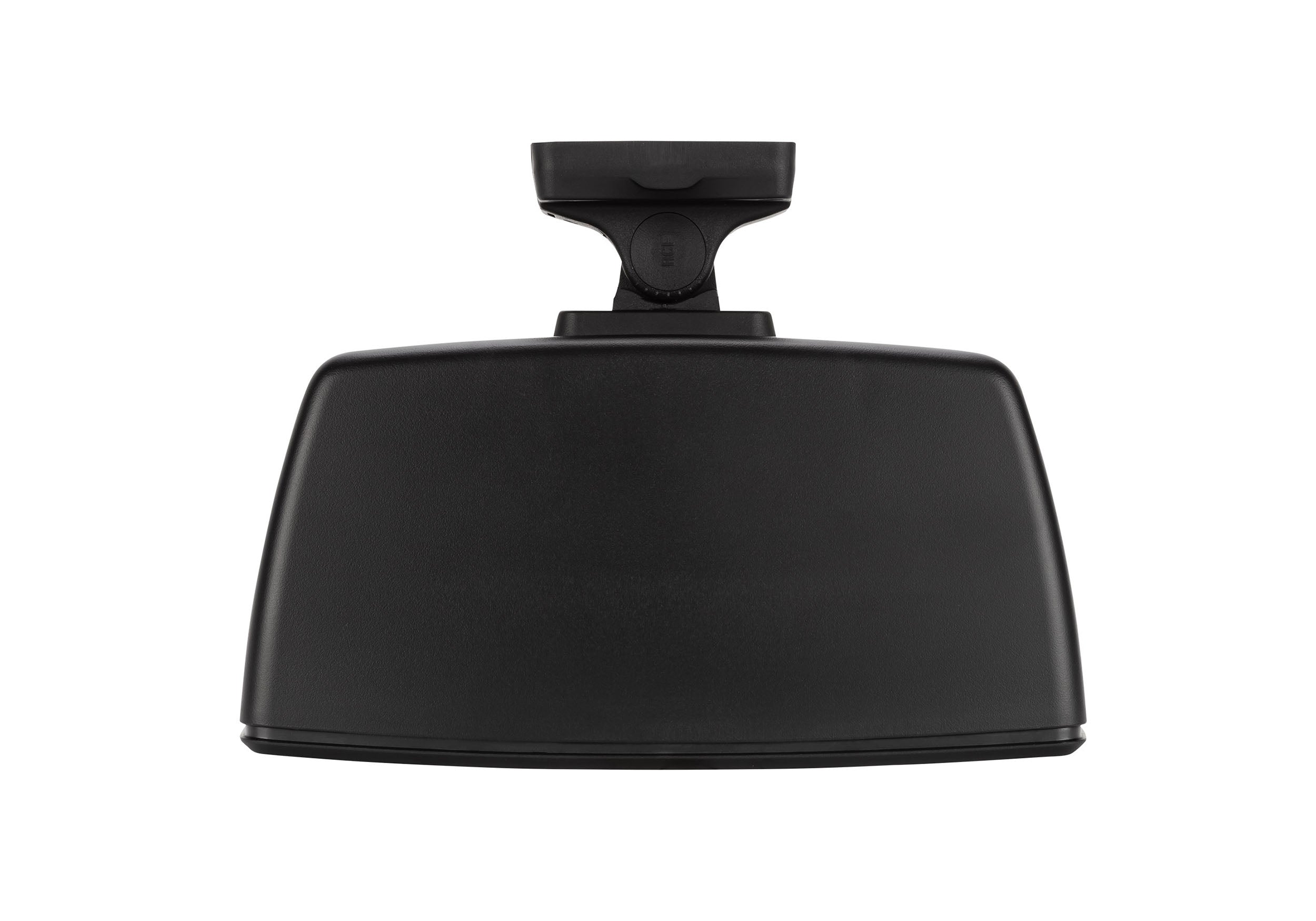

Housed in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.
Product Specifications:
Acoustical:
Frequency Response (-10dB): 80 Hz - 20000 Hz
Max SPL @ 1m: 110 dB
Horizontal coverage angle: 140°
Vertical coverage angle: 100°
System Sensitivity: 88 dB
Power section:
Amplification: Full Range
Nominal Impedance: 8 ohms
Power Handling: 40 W RMS
Peak Power Handling: 160 W PEAK
Protections: Bulb lamp
Crossover Frequencies: 2500
Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P
Transducers:

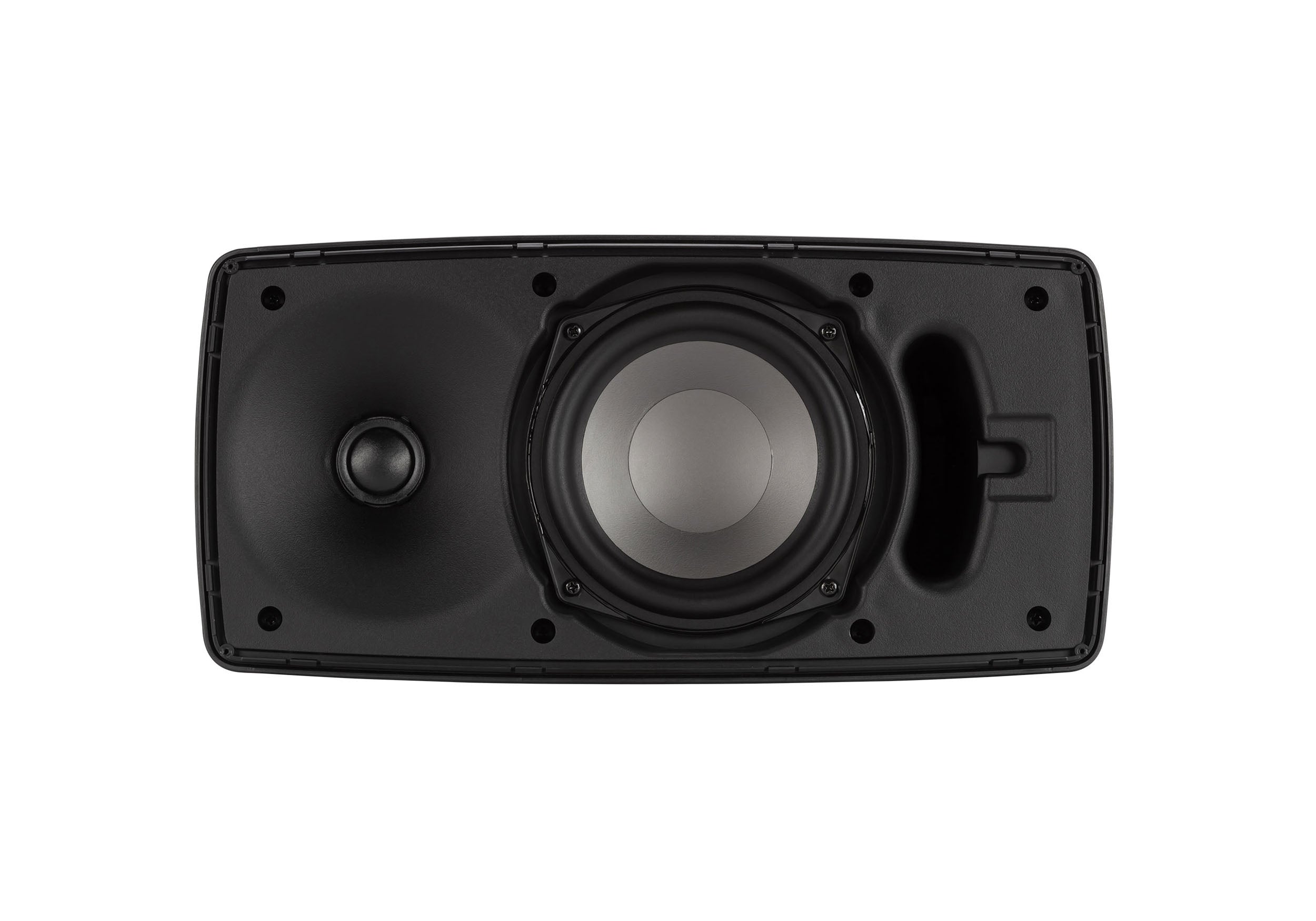

Dome Tweeter: 1 x 1.0'' neo, 1.0'' v.c
Woofer: 1 x 5.0'', 1.0'' v.c
Input/Output section:
Input connectors: Euroblock
Output connectors: Euroblock

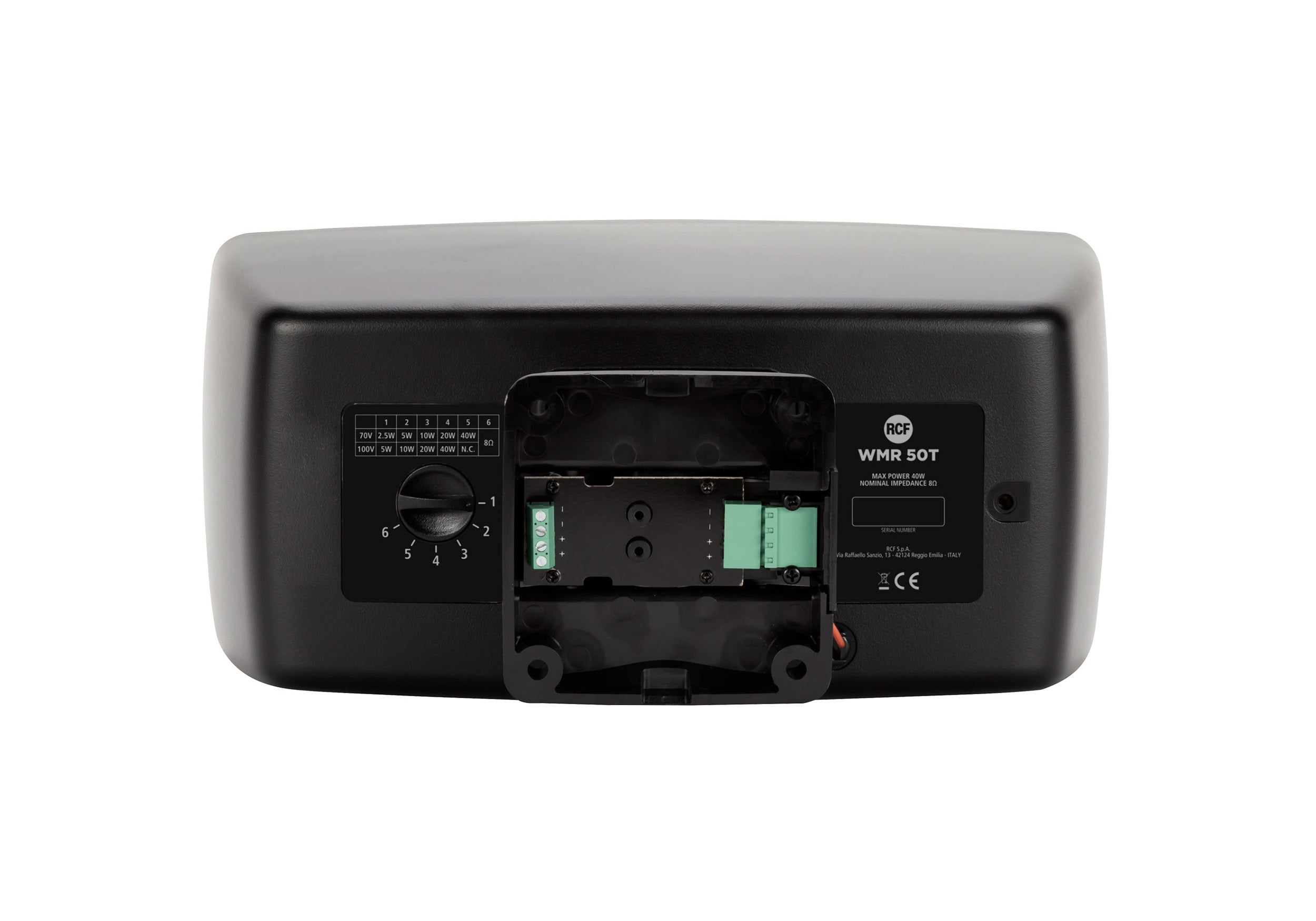

Constant Voltage Transformer: 70/100 V
Power selection 1: 40 W - 250 ohm
Power selection 2: 20 W - 500 ohm
Power selection 3: 10 W - 1000 ohm
Power selection 4: 5 W - 2000 ohm
Power selection 5: 2.5 W - 4000 ohm
Standard compliance:
IP protection grade: IP 55
Safety agency: CE compliant, UL 1480A
Physical specifications:
Cabinet/Case Material: ABS
Hardware: Wall mount bracket
Grille: Steel
Color: Black - RAL 9005
Size / Weight
Product Height: 349 mm / 13.74 inches
Product Width: 170 mm / 6.69 inches
Product Depth: 253 mm / 9.96 inches
Product Weight: 4.2 kg / 9.26 lbs
Shipping Height: 278 mm / 10.94 inches
Shipping Width: 418 mm / 16.46 inches
Shipping Depth: 308 mm / 12.13 inches
Shipping Weight: 5.3 kg / 11.68 lbs
