Description

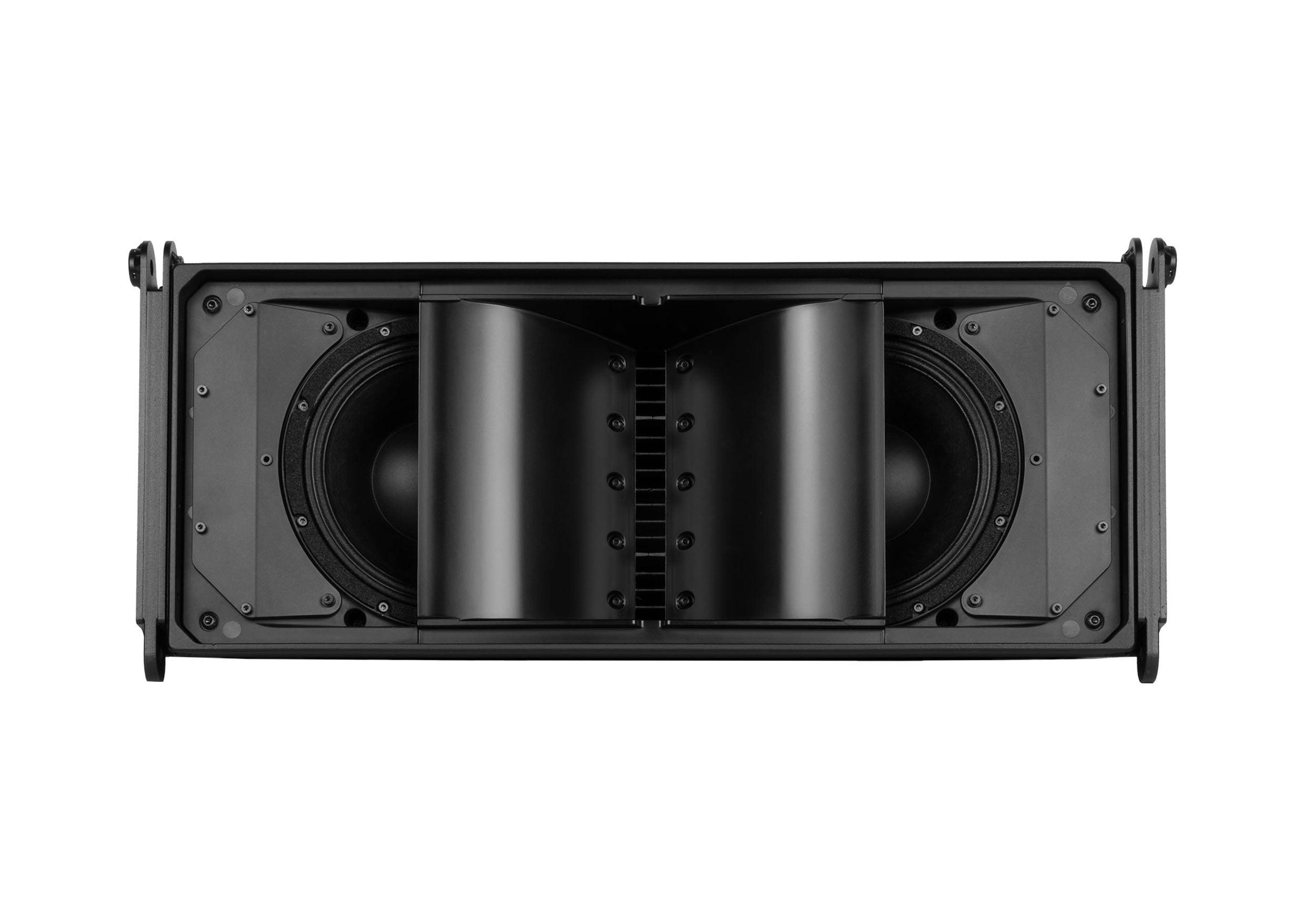

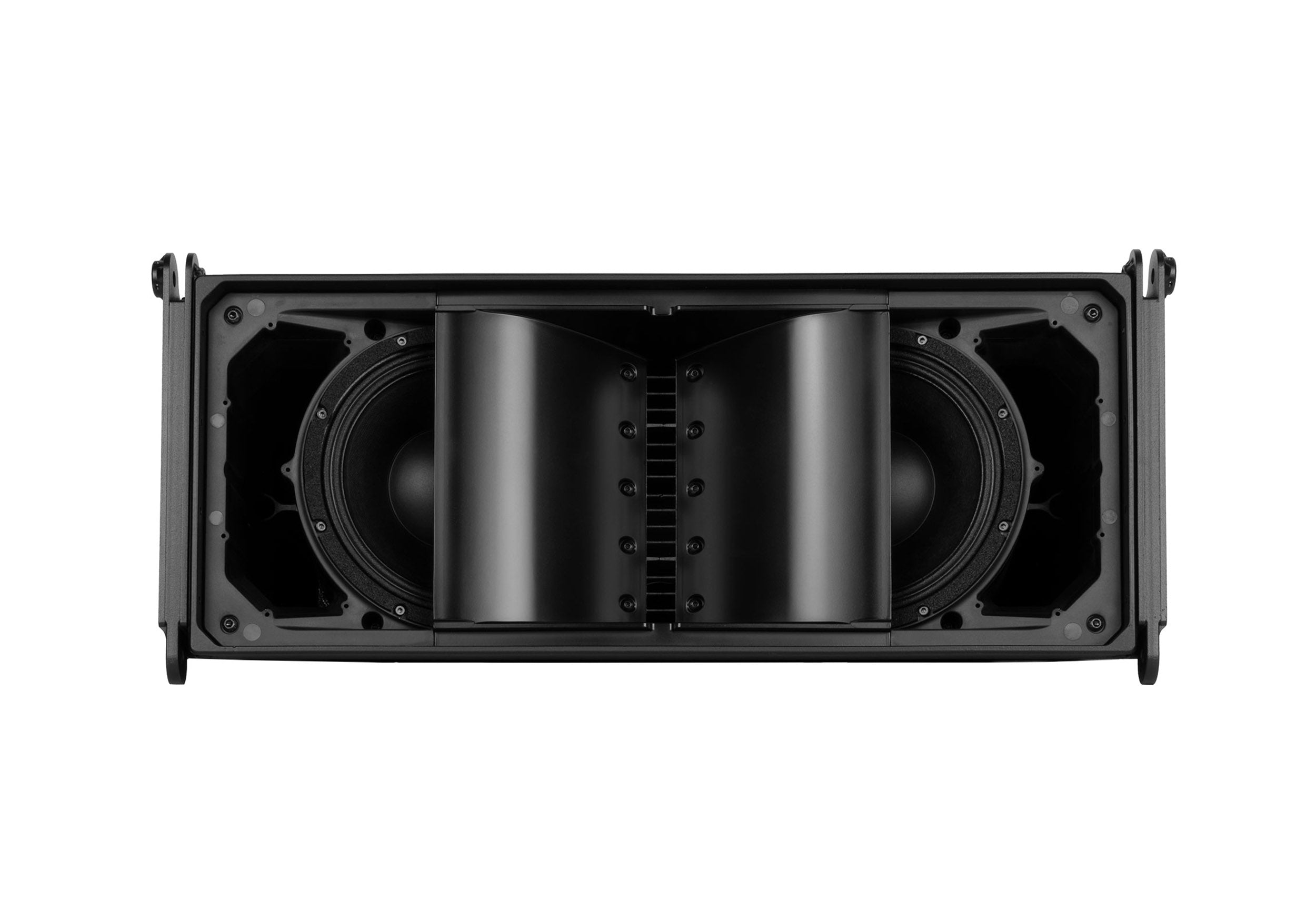

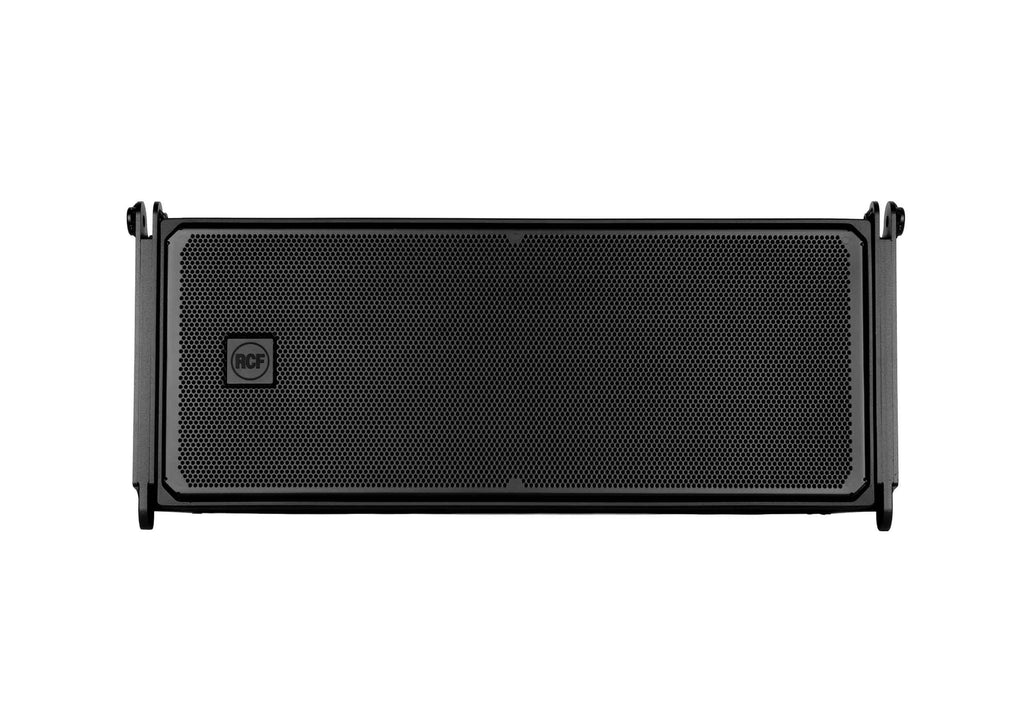

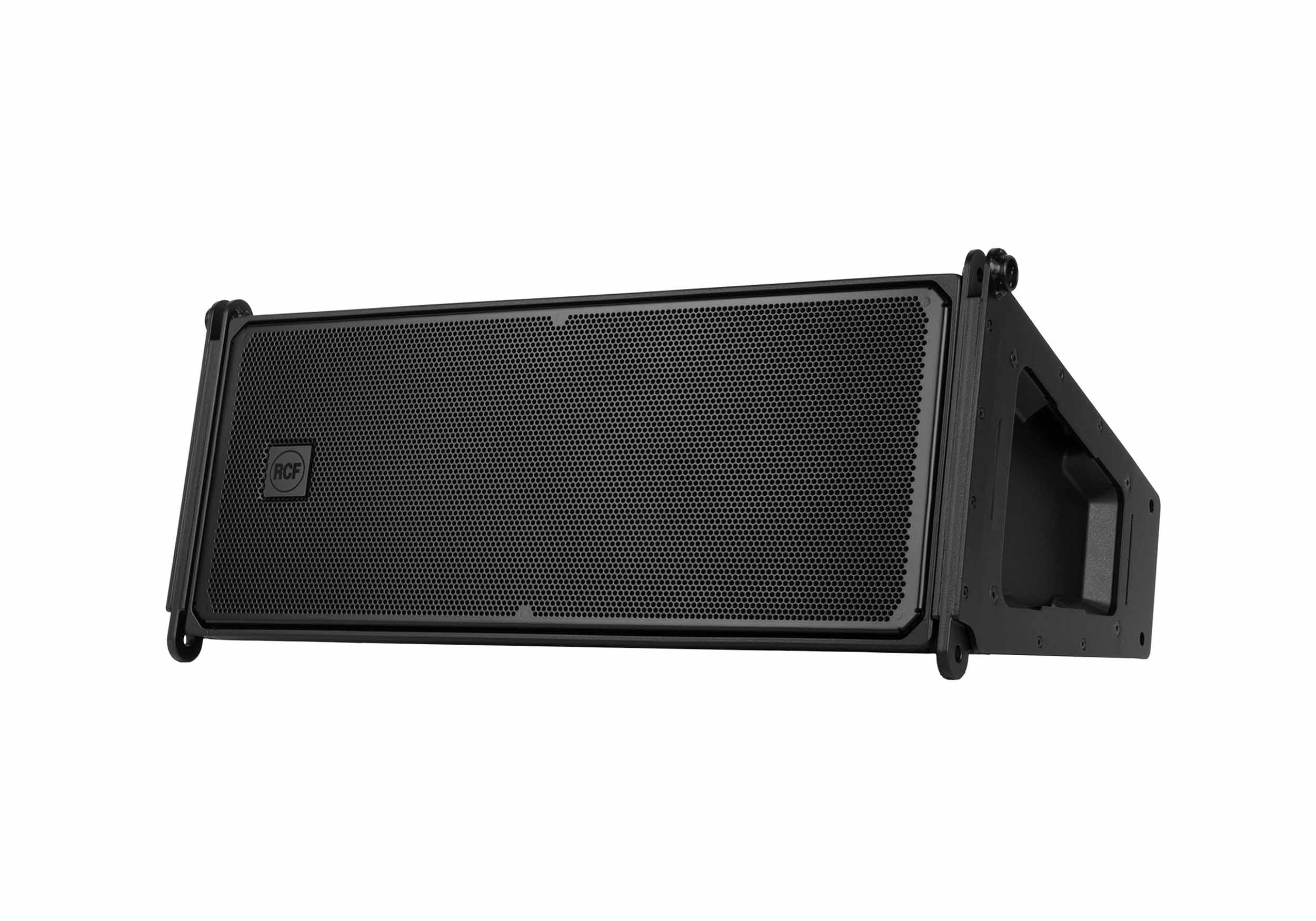

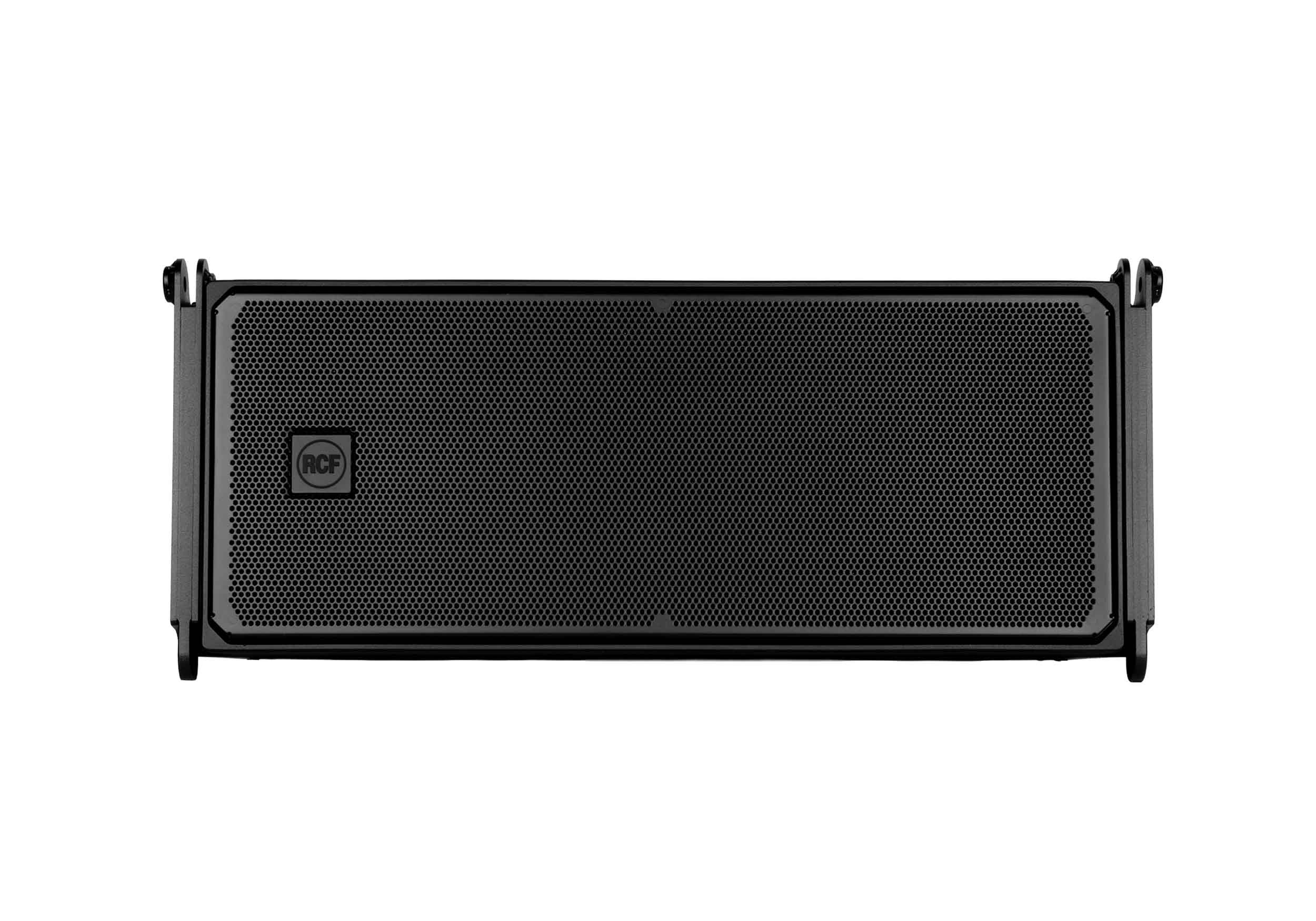

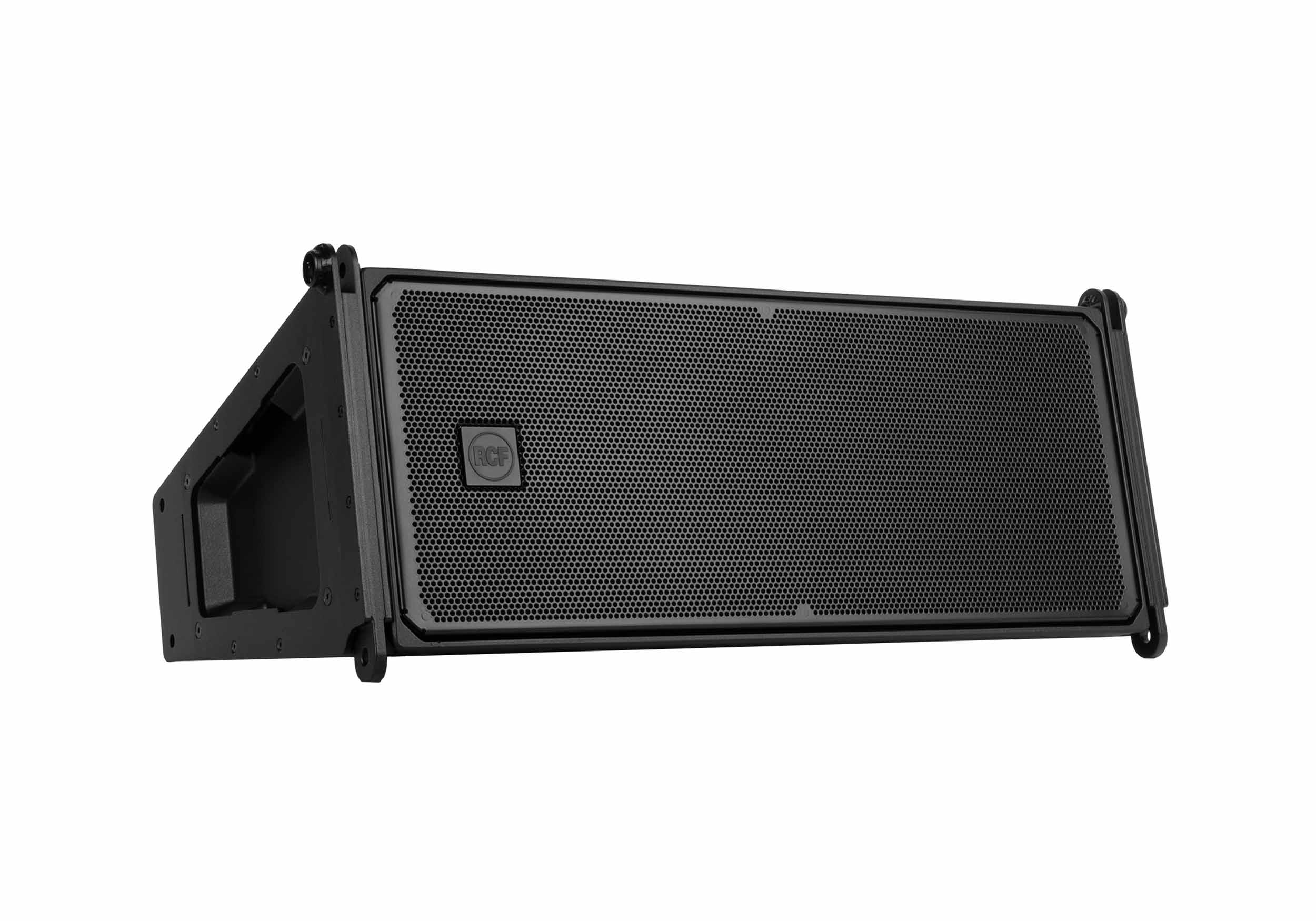

The RCF X 28L is a line array module designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 8'' woofers and the 3'' voice coil compression driver it offers a powerful and clear sound with constant 110° x 20° directivity. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. X 28L is equipped with array mechanics that allow angle adjustment between modules from 0° to 20° with 2° steps.
All-Weather Performance
Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.
Superior Transducers
Low Frequencies
RCF low-frequency transducers use high-flux neodymium magnets to deliver maximum current stability, reduced distortion, and excellent thermal efficiency. Each woofer undergoes a rigorous endurance signal tests to guarantee reliability under the most demanding conditions.
High Frequencies
The compression driver voice coil features high-performance materials—including neodymium magnets and titanium domes—for outstanding power handling, superior durability, and exceptionally natural sound reproduction across the spectrum.
TRW Waveguide
The new True Resistive Waveguide (TRW) is the result of extensive refinements in the design of the transducers, enclosure, and vented ports—developed together as part of a fully integrated system. Combined with FiRPHASE processing, the TRW enables the speaker to act as a single coherent source, delivering a precise and stable sound image. Acoustically, the waveguide behaves as a pure resistive load—free from resonances—significantly reducing high-frequency distortion typically associated with conventional horns.
LICC - Low Impedance Compensated Crossover
X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.
XPS SERIES
4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets for RCF speakers
2U Rack Space
for both touring and installed sound systems
Flexible 32-bit Routing
with analog, digital and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Versatility for Any Application

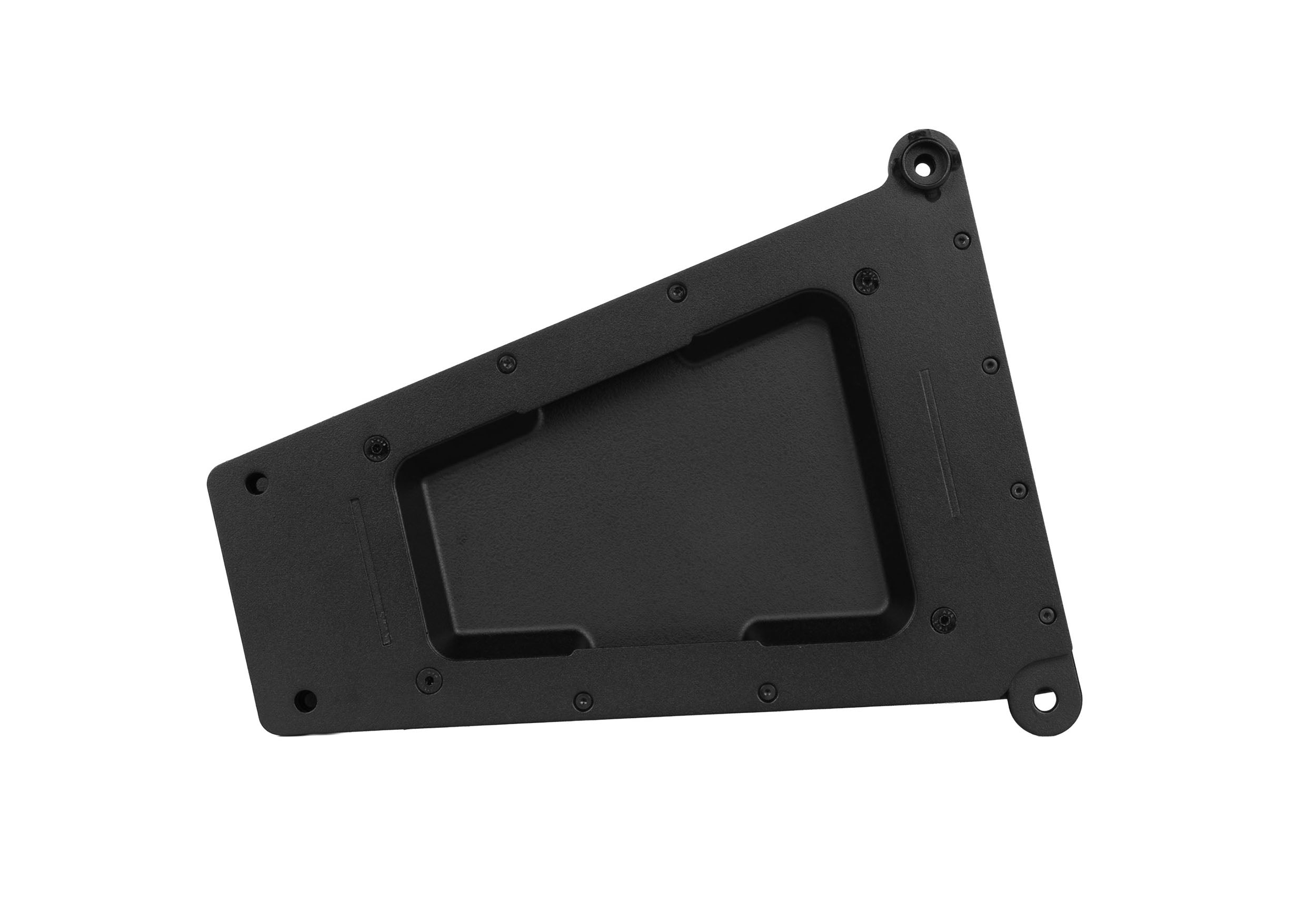

X 28L is equipped with array mechanics that allow angle adjustment between modules from 0° to 20°. Up to 16modules can be connected to the same fly bar.
Polyurethane: The Ultimate in Durability
Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.
Product Specifications:
Acoustical:
Frequency Response (-10dB): 50 Hz - 20000 Hz
Max SPL @ 1m: 140 dB
Horizontal coverage angle: 110°
Vertical coverage angle: 20°
Power section:
Amplification: Full Range
Nominal Impedance: 8 ohms
Power Handling: 800 W RMS
Peak Power Handling: 3200 W PEAK
Protections: Dynamic Active Mosfet
Crossover Frequencies: 750 Hz
Recommended Amplifiers: XPS 16K, XPS 16KD
Transducers:
Compression Driver: 1 x 1.4'' neo, 1.75'' v.c
Woofer: 2 x 8'' neo, 2.5'' v.c

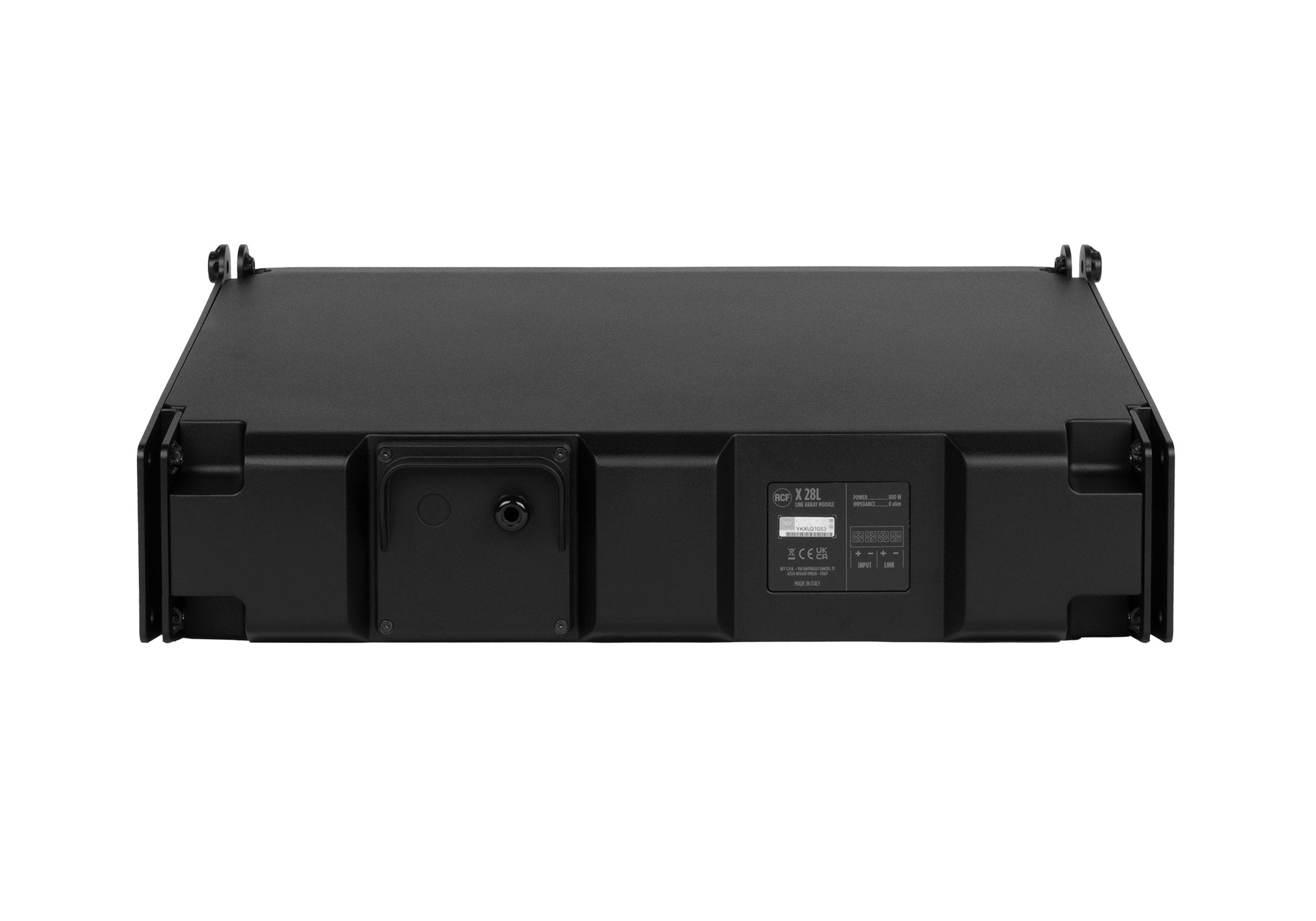

Input/Output section:

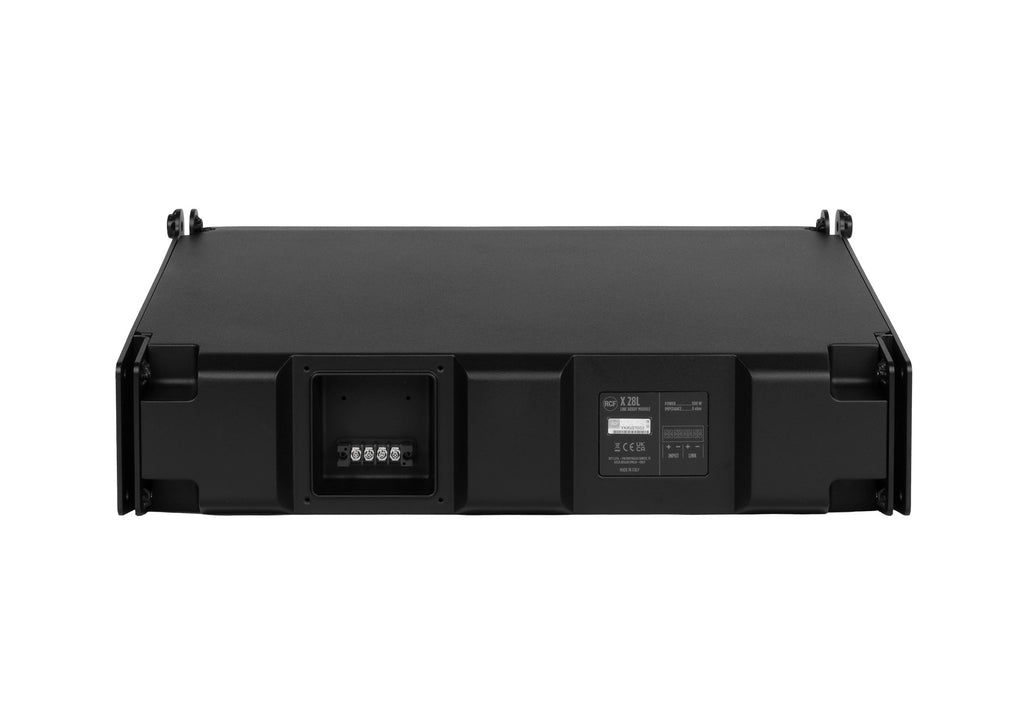

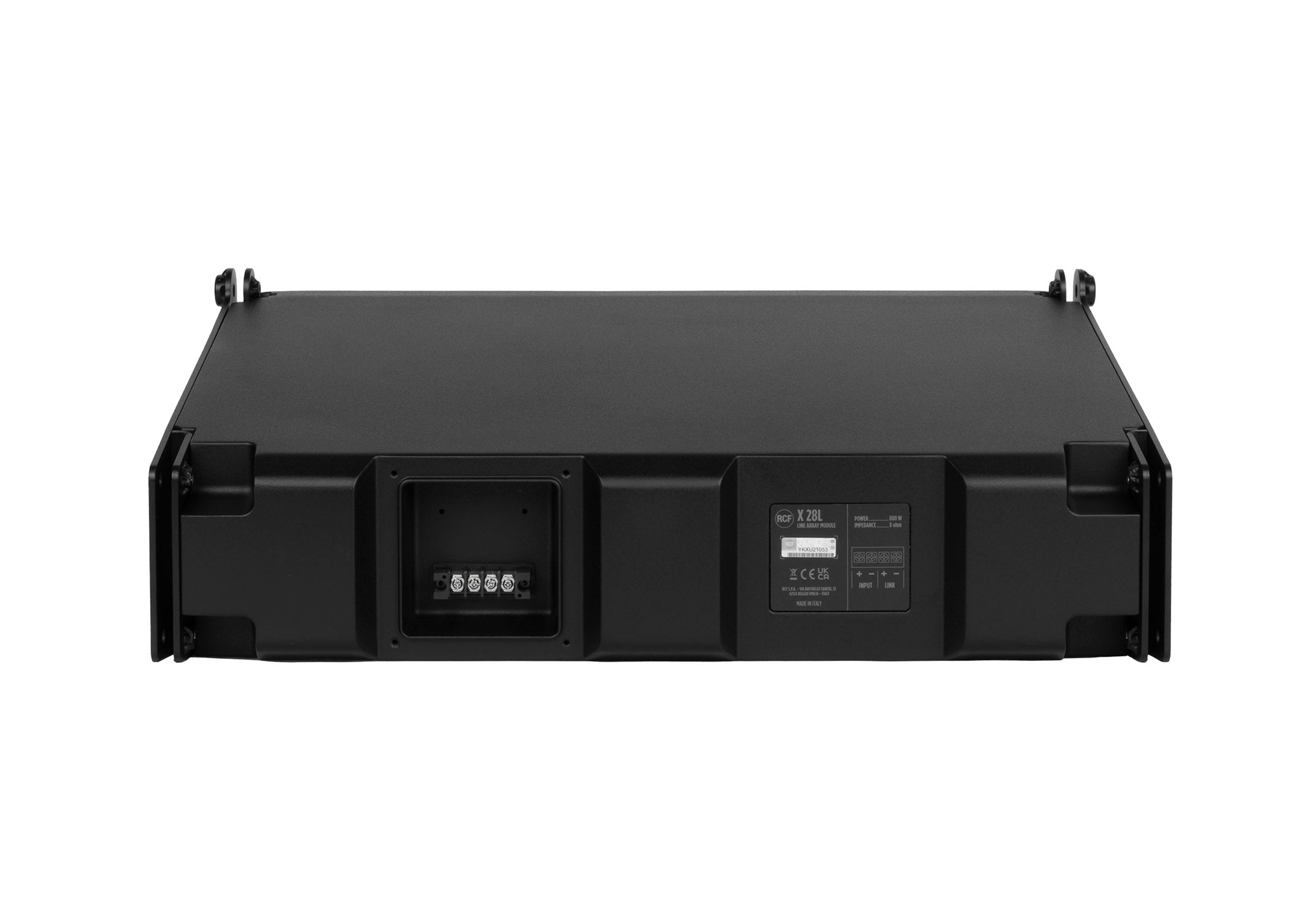

Input connectors: Screw Terminals
Output connectors: Screw Terminals
Standard compliance:
IP protection grade: IP 55
Safety agency: CE compliant
Physical specifications:
Cabinet/Case Material: Structural Polyurethane
Hardware: Array fittings
Grille: Aluminum with water-repellent protection
Color: Black - RAL 9005
Product Height: 290 mm / 11.42 inches
Product Width: 658 mm / 25.91 inches
Product Depth: 378 mm / 14.88 inches
Product Weight: 24 kg / 52.91 lbs.
Shipping Height: 390 mm / 15.35 inches
Shipping Width: 685 mm / 26.97 inches
Shipping Depth: 305 mm / 12.01 inches
Shipping Weight: 28.2 kg / 62.17 lbs.
