Description

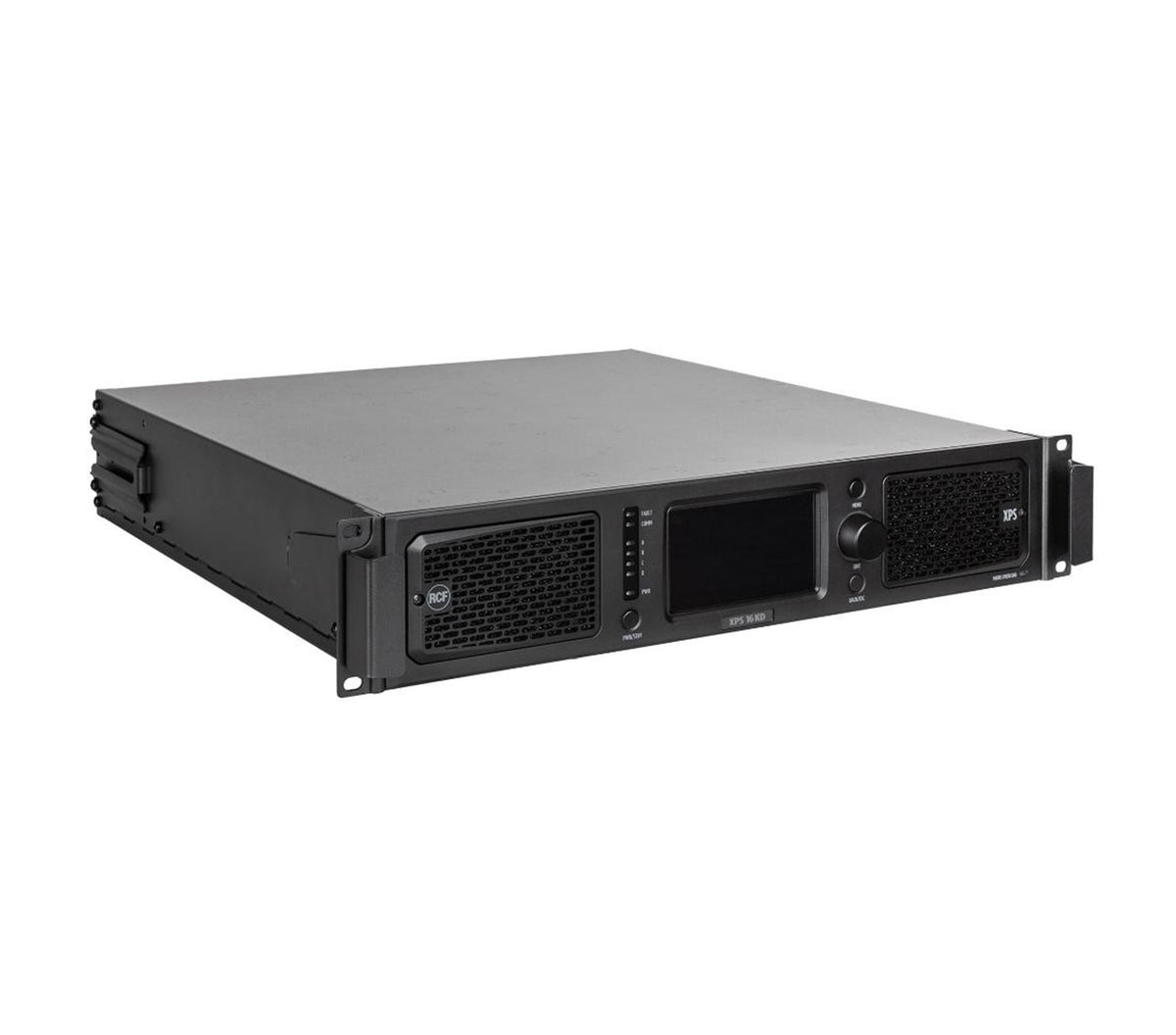

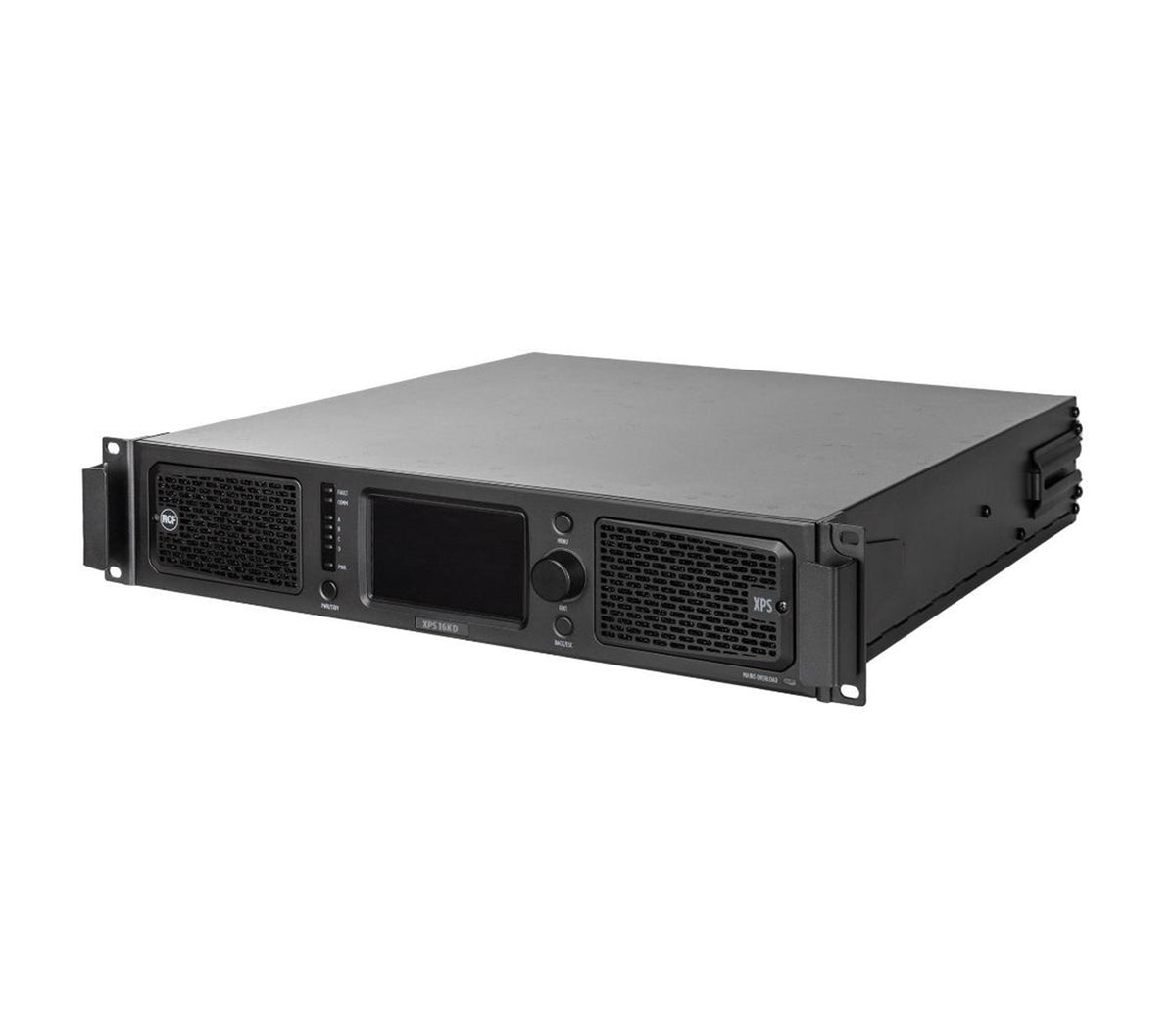

The RCF XPS 16KD is a high-density four-channel Class-D power amplifier delivering up to 16,000W of total continuous power. With 4 × 4,000W at 2.7 ohms, 4 × 2,600W at 4 ohms, and 4 × 1,400W at 8 ohms, it provides the substantial power required for high-performance touring and installed sound systems.
Advanced DSP Processing & System Optimization
The XPS 16KD combines 40-bit floating-point DSP at 96 kHz with 32-bit internal routing for precise system control and advanced audio processing. Each output provides up to 4,000 ms of delay, EQ filters, crossovers, FIR filters, multiband compression, RMS limiting, power limiting, and thermal protection. FiRPHASE, Bass Motion Control, Bass Shaper, and the onboard RCF speaker preset library further simplify system tuning and optimization.
Dante Networking & RDNet System Management

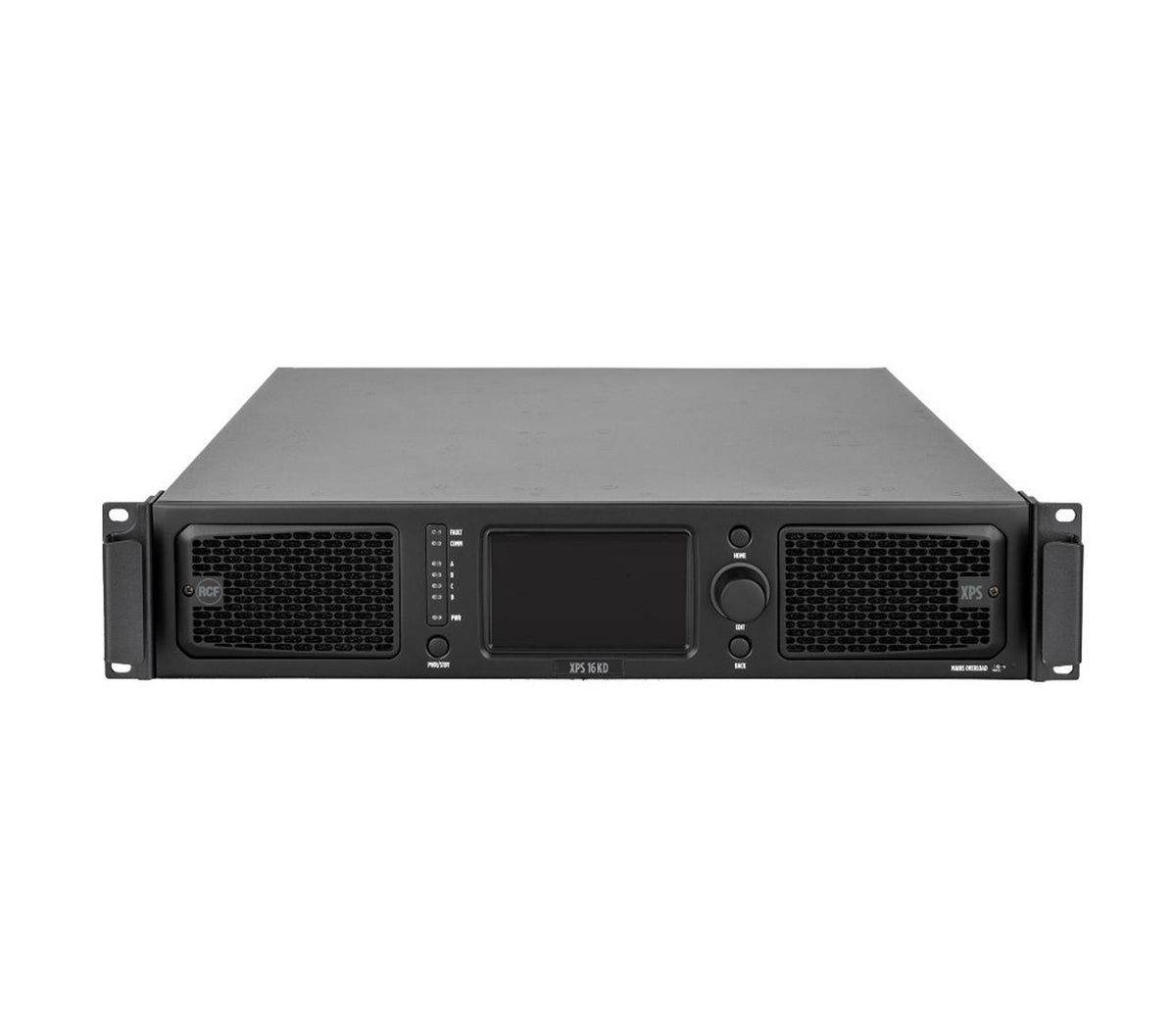

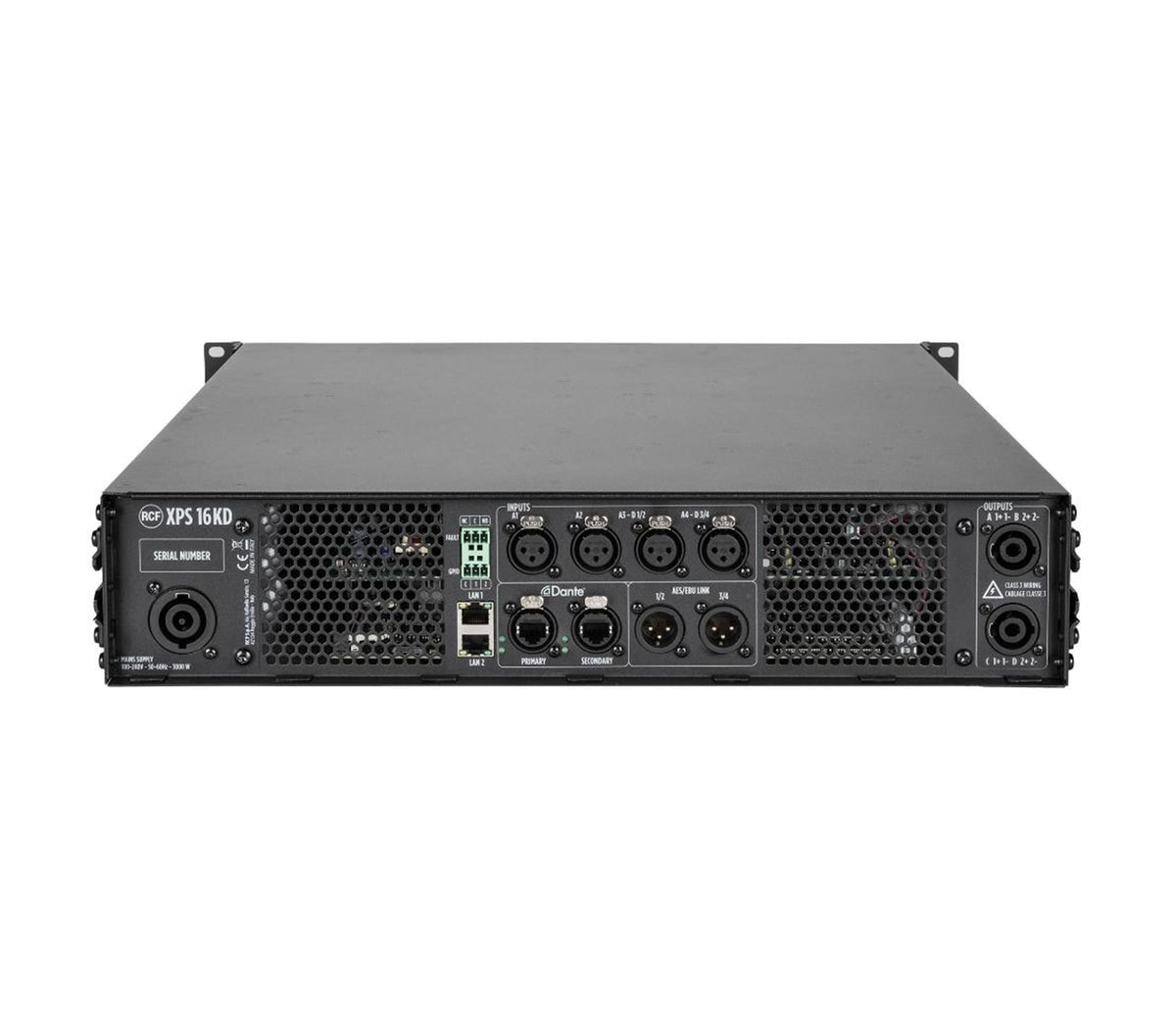

Designed for modern professional audio networks, the XPS 16KD provides Dante, AES/EBU, analog, and Gigabit Ethernet connectivity, along with onboard RDNet network management. A 4.3-inch color TFT touchscreen and PC software provide convenient configuration and monitoring, while programmable GPI/GPO connections, comprehensive protection circuits, and a compact 2U rackmount chassis make the amplifier suitable for demanding touring and installation applications.
Product Specifications:
Amplifier Class: Class D
Total Continuous Power: 16,000W
Output Power @ 2.7 Ohms: 4 × 4,000W
Output Power @ 4 Ohms: 4 × 2,600W
Output Power @ 8 Ohms: 4 × 1,400W
Frequency Response: 20 Hz–23,000 Hz
Analog Input SNR: >111 dB
Digital Input SNR: >115 dB
Crosstalk: <70 dB
THD+N: <0.2%
Gain: 32 dB
Damping Factor: >95
Total Inputs: 16
Analog Line Inputs: 4
Digital Inputs: 12
Digital Formats: AES/EBU, Dante
Digital Connectors: EtherCON, XLR
Line Connectors: XLR
GPI: 2
Programmable GPI: Yes
Photo-Coupled GPI: 2
Signal Outputs: 4
Signal Output Connectors: XLR
Power Outputs: Speakon
GPO: 3
Programmable GPO: Yes
DSP: 2 SHARC 40-bit Floating Point, 96 kHz + 2 ADAU 32-bit Fixed Point, 96 kHz
EQ Filters: Peaking, High/Low Shelving, High/Low Pass
Advanced Processing: FiRPHASE, BASS Shaper, Air Compensation, Mid-Low Correction, Driver Excursion Control, Dynamic PEQ
Compression/Limiting: RMS Limiter, Dynamic Compressor, Power Limiter, Thermal Compressor
Output Delay: 0–4000 ms per Channel
High-Pass Filter: 10–1000 Hz
Crossover: 2500–3500 Hz
Automatic Gain Control: Yes
Tone Controls: Yes
Speaker Presets: RCF Onboard Library
RDNet: Onboard
Network: Gigabit Ethernet
Control: Front Panel Touchscreen, PC Software
Cooling: Forced
Protection: Short Circuit, Thermal, DC, Fuses, VHF
Operating Temperature: -5°C to +40°C
Reduced Power Temperature: -5°C to +50°C
Fan Noise Idle: <35 dBA
Fan Noise Maximum: <64 dBA
Operating Voltage: AC 100–240V, 50/60Hz
Nominal Current @ 100–120V: 30A
Nominal Current @ 220–240V: 16A
Standby Power Consumption: 20W
Idle Power Consumption: 90W
Maximum Power Consumption: 5800W
Cabinet Material: Metal
Rack Mounting: 19-inch, 2U
Safety Compliance: CE, UL 62368-1 3rd Ed., CSA C22.2 No. 62368-1:19 3rd Ed.
Product Weight: 33.07 lbs
Product Dimensions: 3.49 H × 18.98 W × 18.99 L
Shipping Weight: 39.68 lbs
Shipping Dimensions: 5.91 H × 22.83 W × 23.62 L
