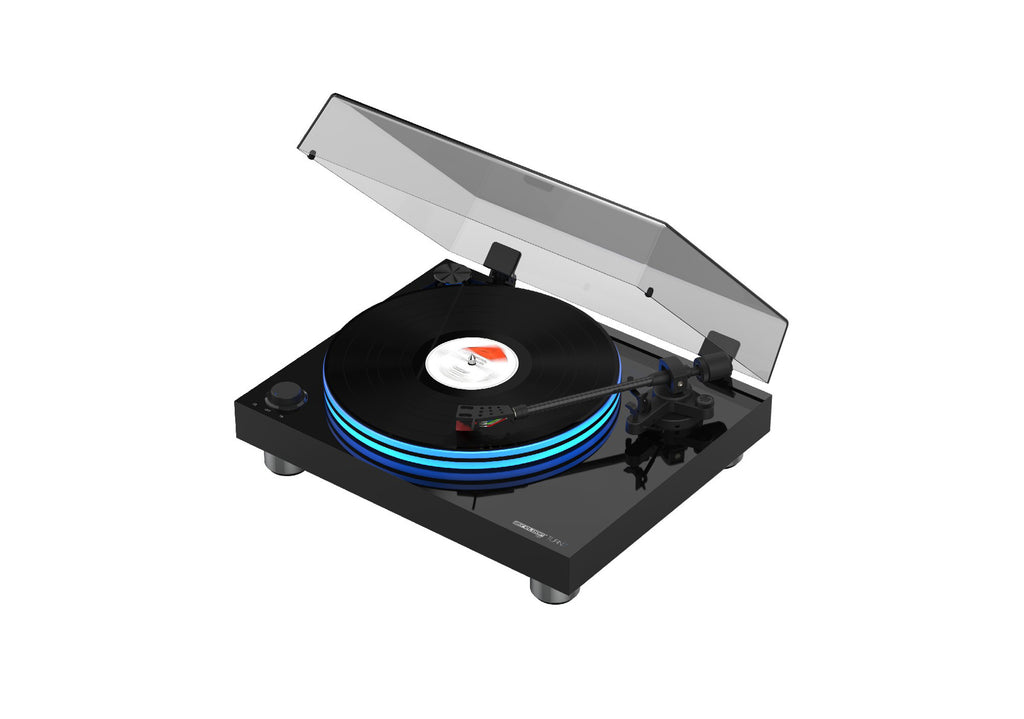

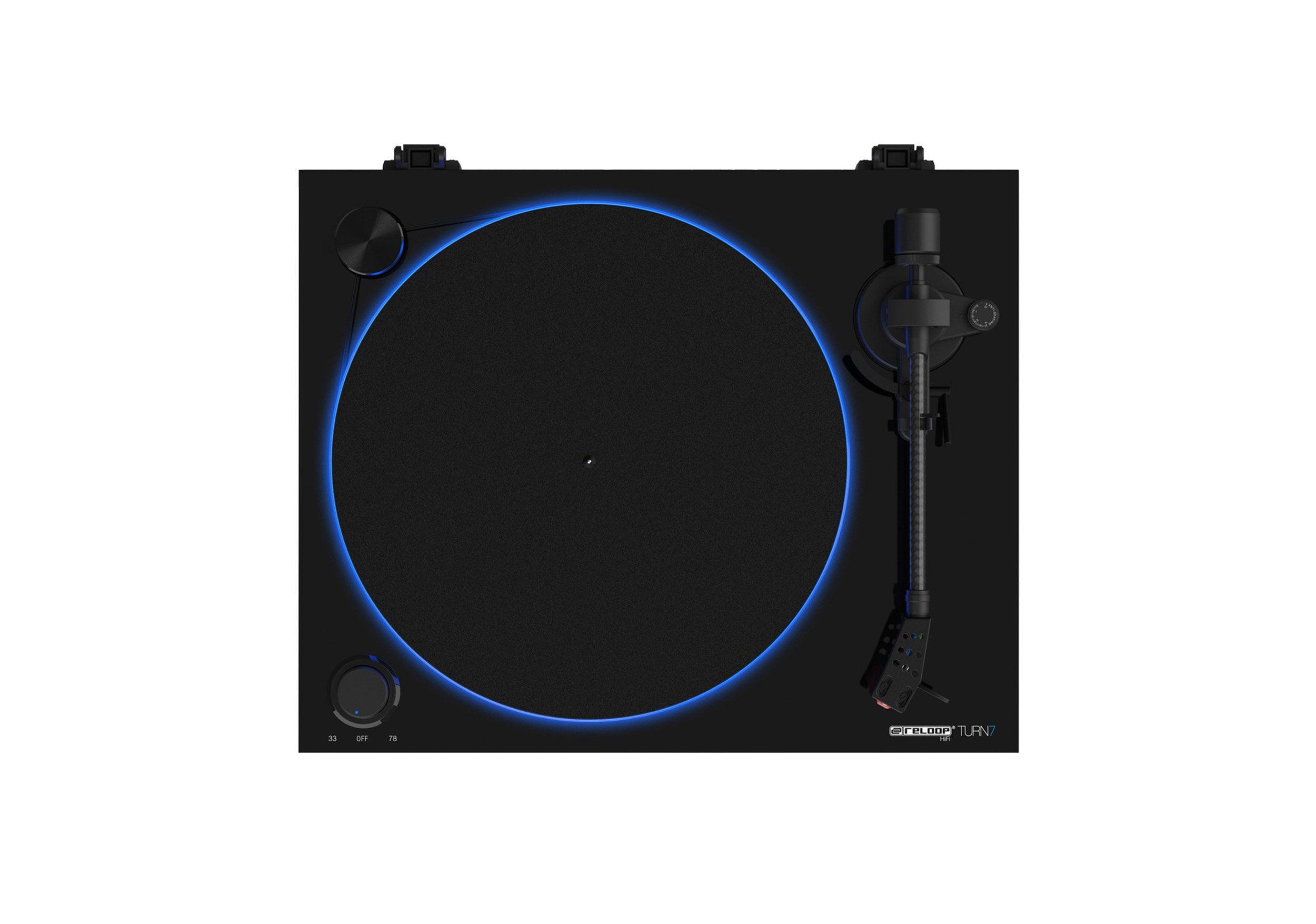

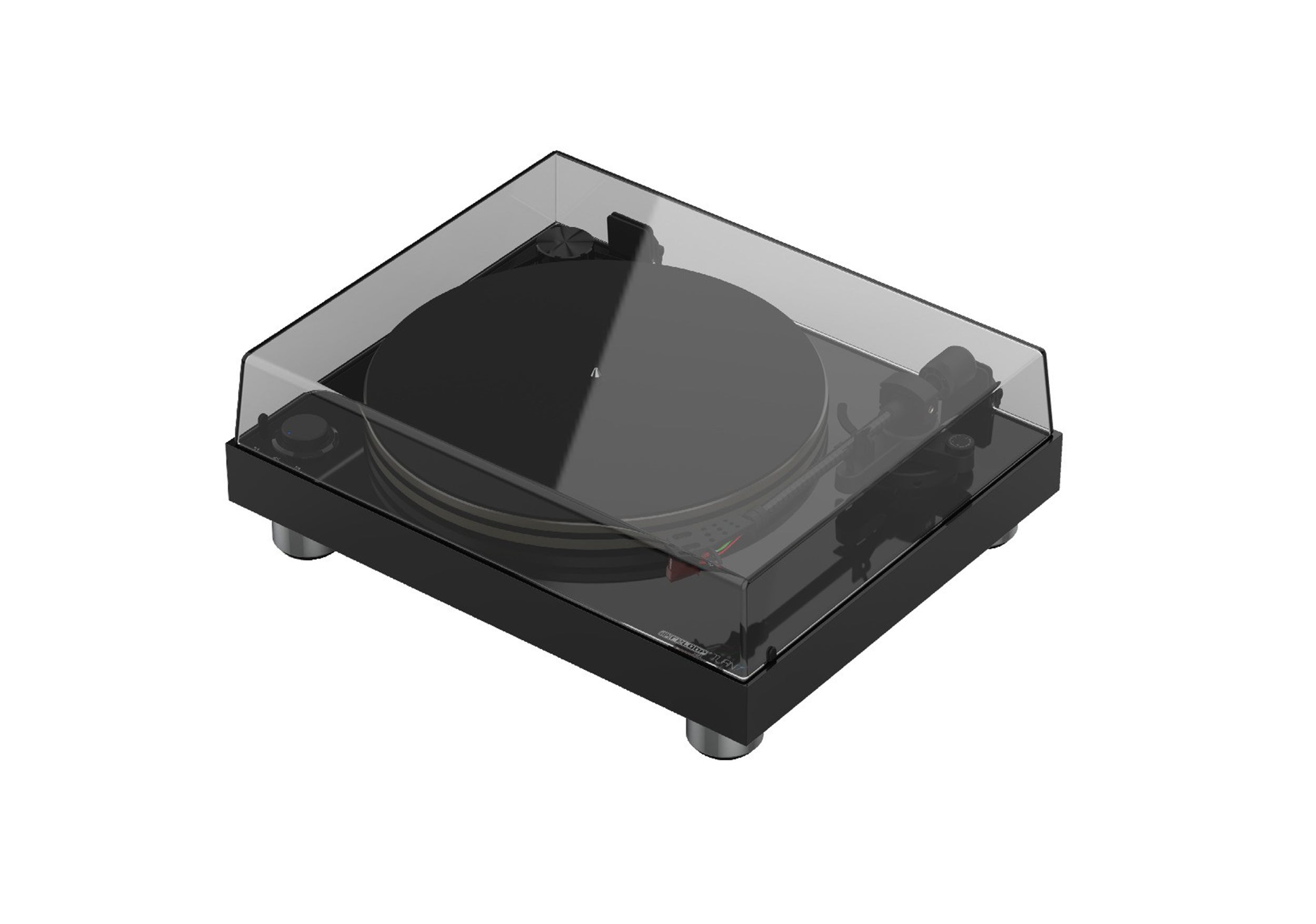

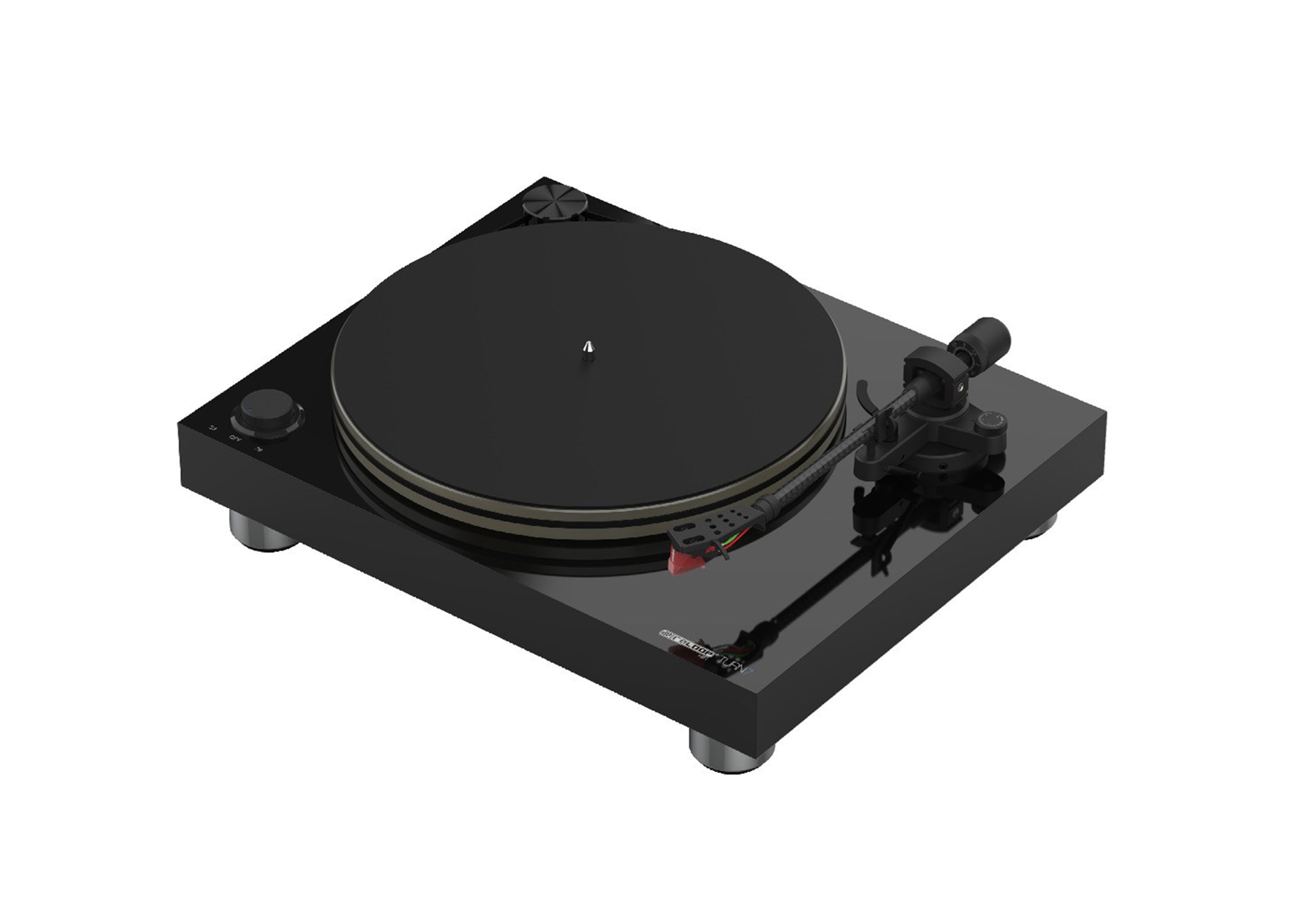

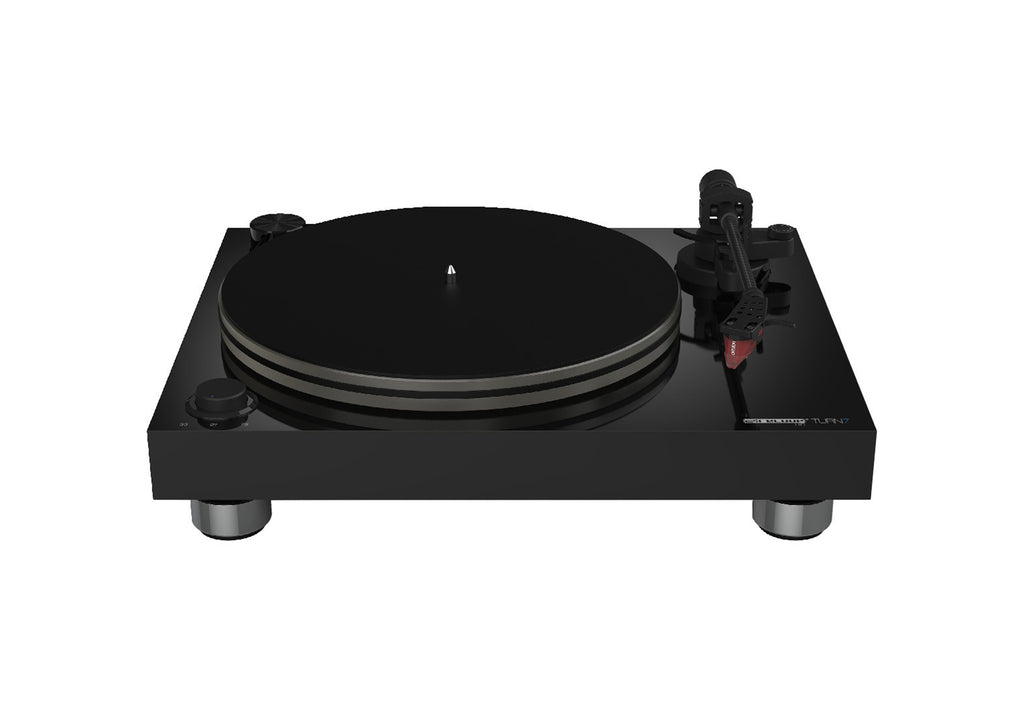

Reloop TURN-7 Premium Belt Drive USB Turntable System

The Reloop TURN-7 Premium Belt Drive USB Turntable System crafted for vinyl enthusiasts seeking analog warmth with modern digital flexibility. Featuring a precision belt drive mechanism, this turntable ensures smooth rotation and high-fidelity sound reproduction.

Sound Meets Design

The Turn 7 bridges the gap between high-end HiFi turntables and uncompromising design. The belt-driven turntable meets the exacting demands of audiophile music fans thanks to precisely manufactured components. The acrylic platter with LED lighting and the external drive belt makes the Turn 7 an absolute eye-catcher.

Powerful and Steady Drive

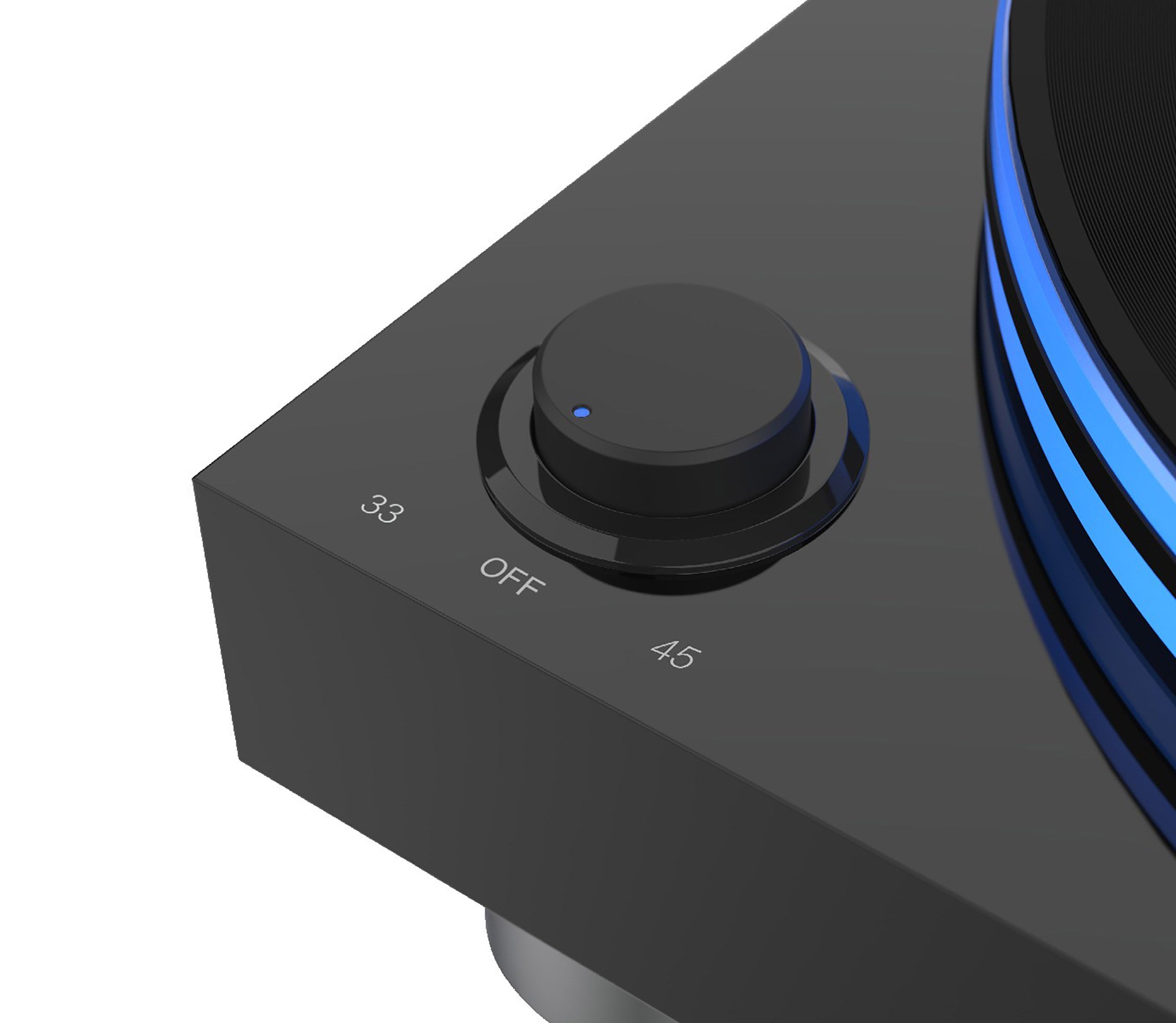

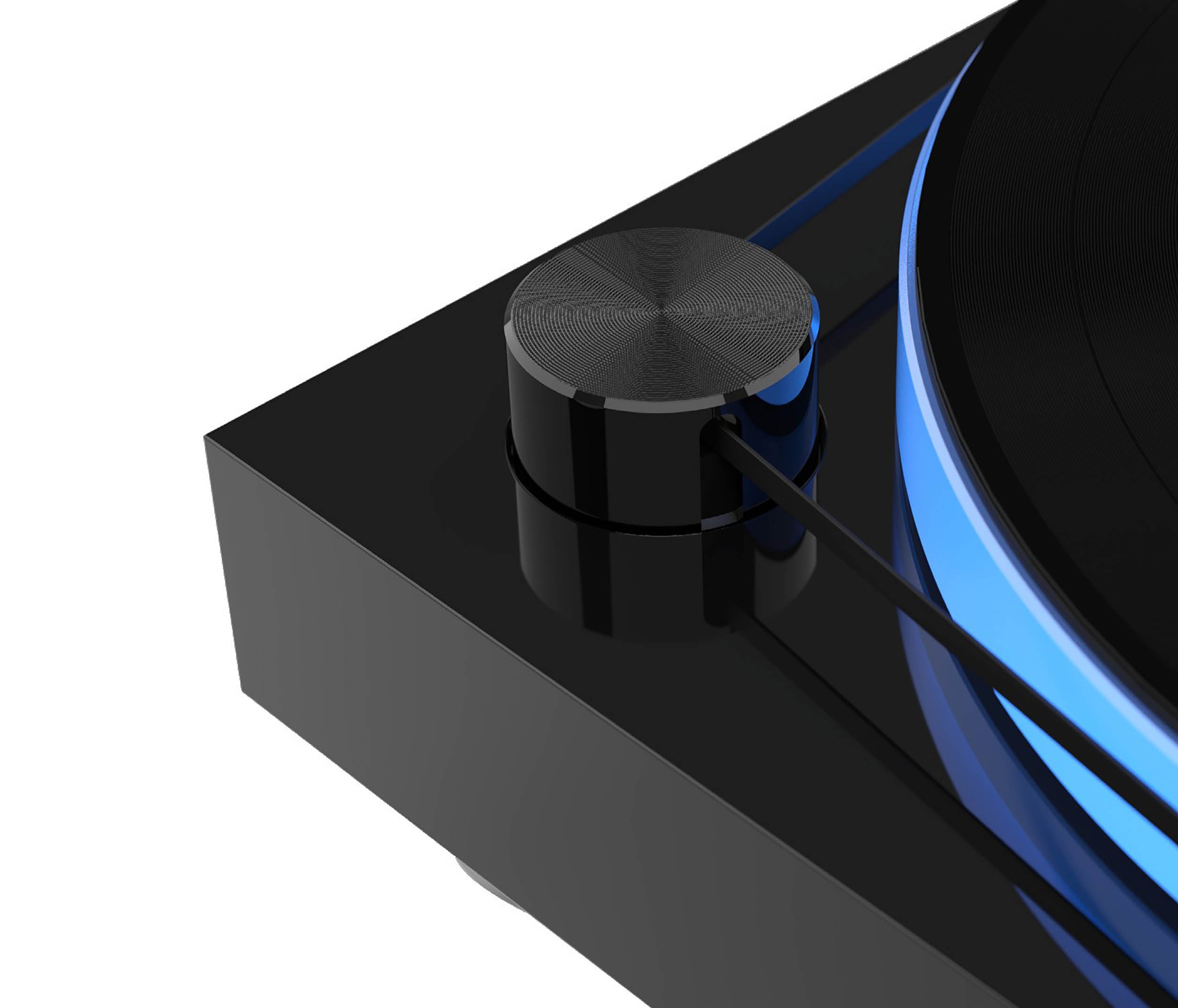

A decentralized, low-vibration DC motor drives the Turn 7. The integral flat belt runs gracefully along the turntable exterior, ensuring smooth operation and a sophisticated appearance. The start/stop rotary switch allows you to select between the turntable's two speeds (33 and 45 RPM).

Heart of Acrylic: The Turntable Platter

The acrylic platter is 20 mm thick, weighs 1.7 kg, and has outstanding evenness thanks to precision manufacturing. It also has excellent antistatic characteristics. As a result, crystal-clear audio is possible without using a platter mat. The satin finish of the material creates a focal point and contrasts with the otherwise plain design of the belt-driven turntable.

Let There Be Light – LEDs Inside

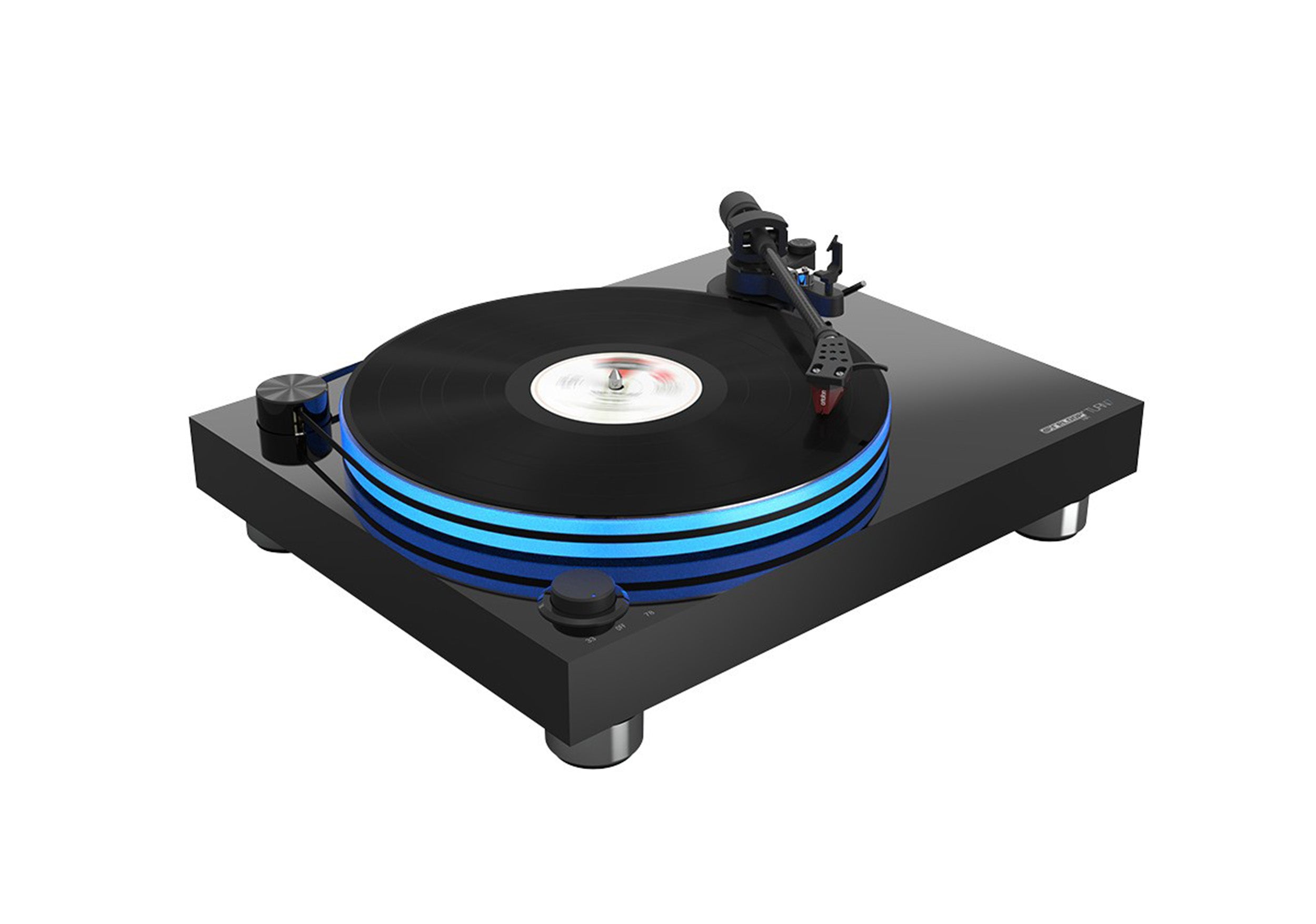

One of the unique features of the Turn 7 is the optional, blue platter illumination. Inconspicuously placed beneath the platter, multiple LEDs with a diffuser cover sets the mood and creates a warm and inviting ambience.

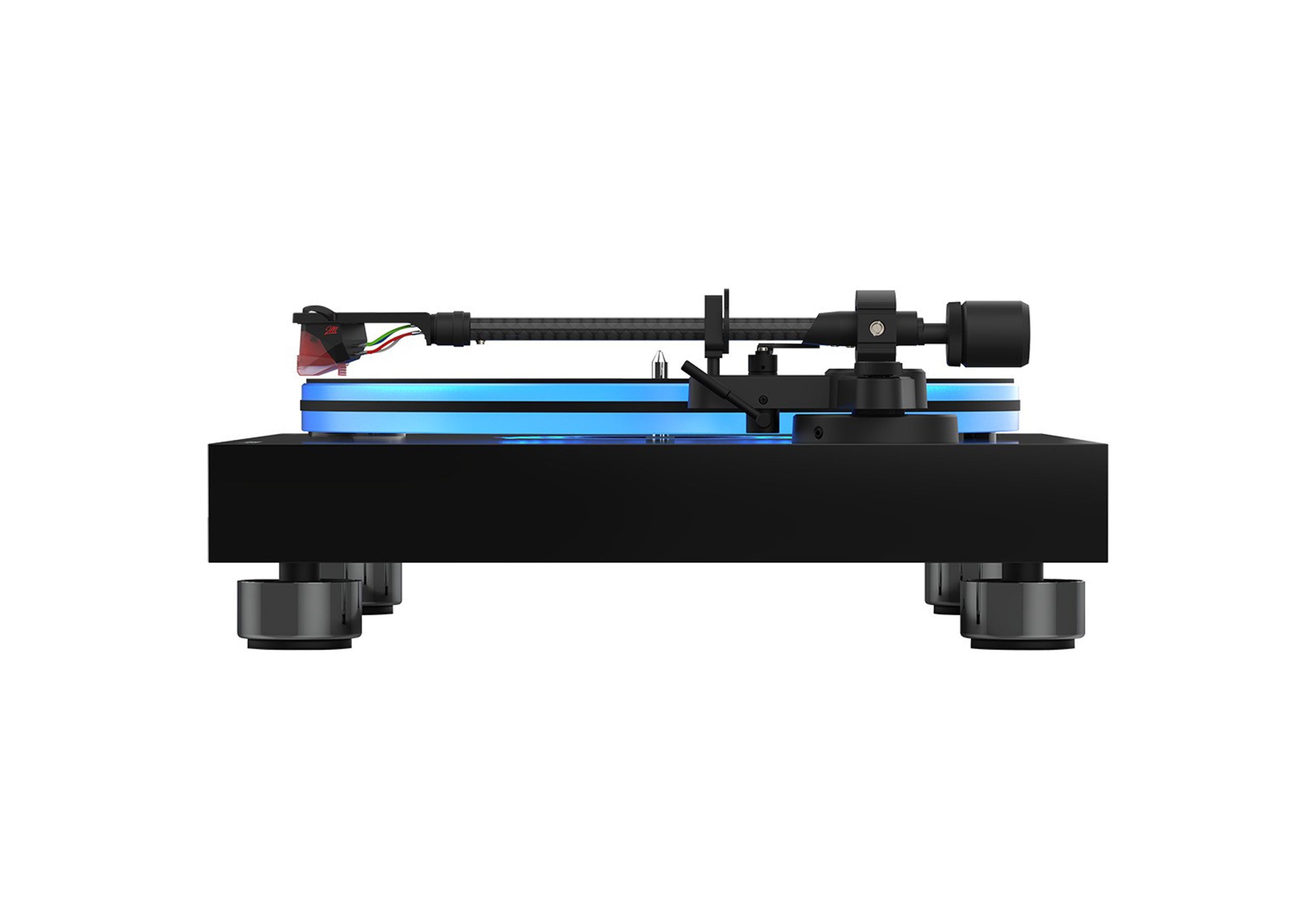

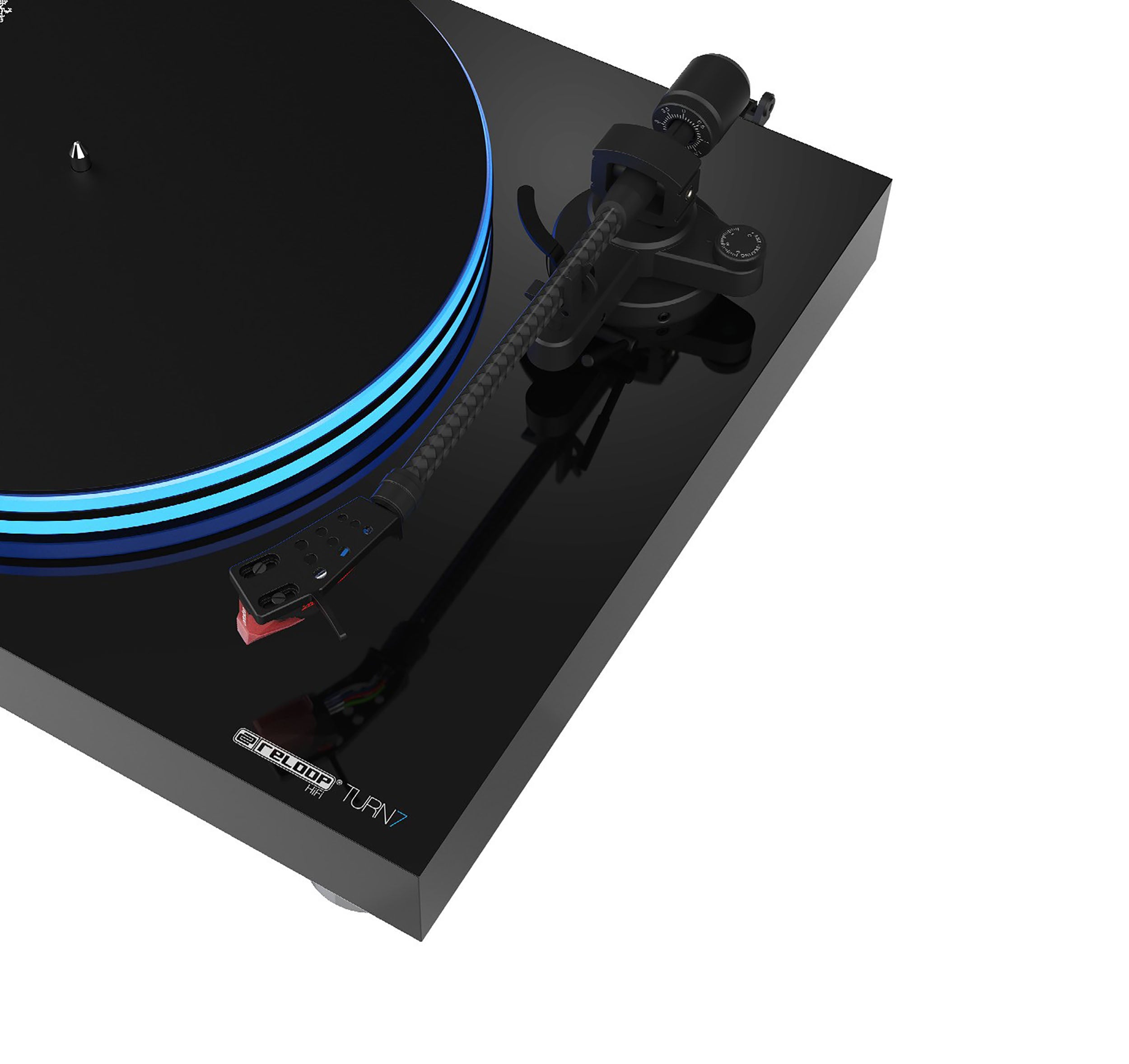

Top-Class Tone Arm

The high-quality carbon tone arm has exceptional acoustic properties. The turntable's authentic sound is brought out to its full potential by effectively cancelling out vibrations. The ability to adjust the height (vertical tracking angle – VTA) and an anti-skating adjustment ensure maximum precision.

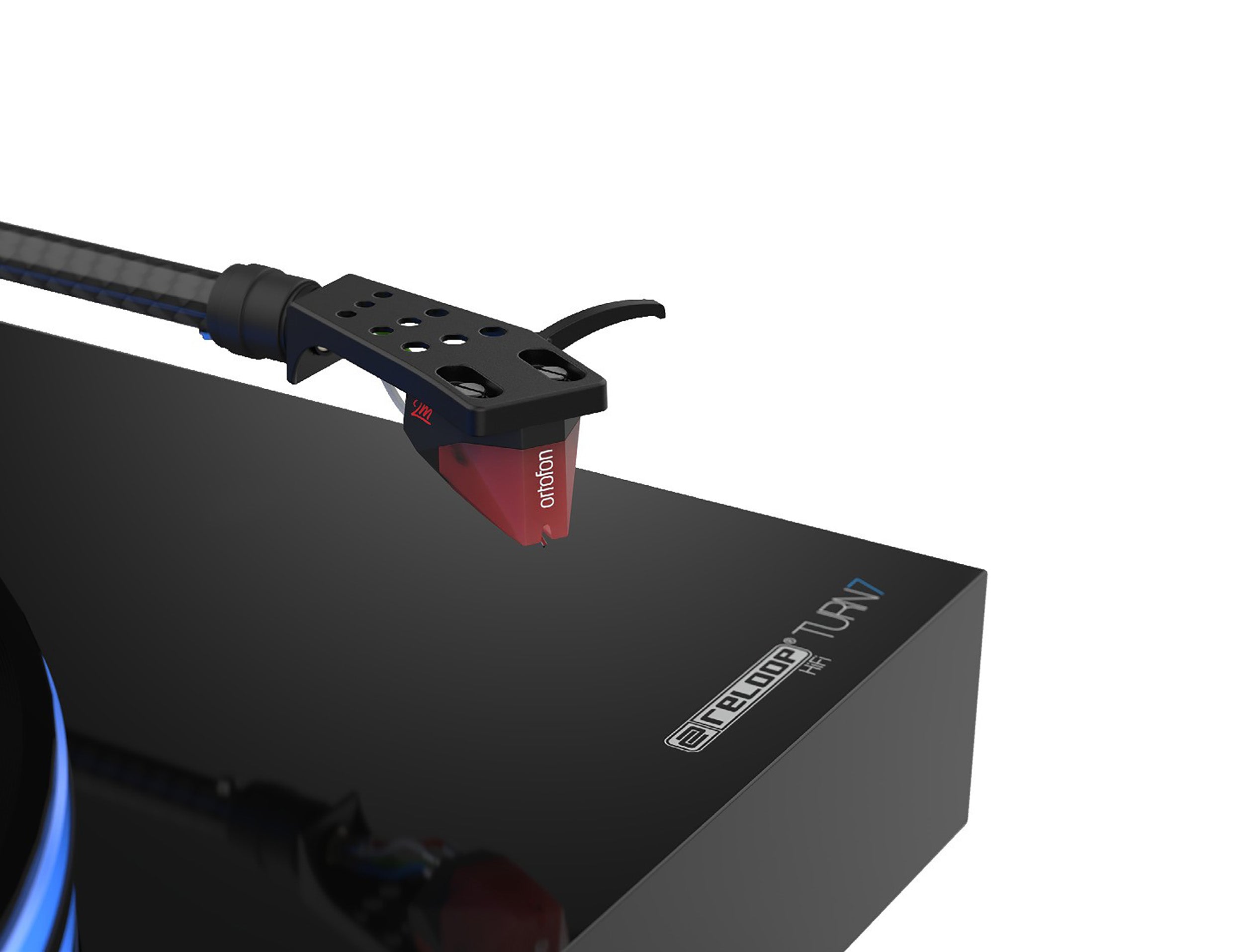

Ortofon 2m Red Pre-Installed

The turntable comes with the Ortofon 2M Red cartridge system pre-installed. The Ortofon 2M Red has an elliptical stylus tip and excellent sonic characteristics, including first-rate sound accuracy and reproduction. The Ortofon 2M Red is a highly versatile cartridge system with an open, dynamic sound and warm tones. The universal head shell connection (SME) adds more options for cartridge systems.

Meticulously Perfected

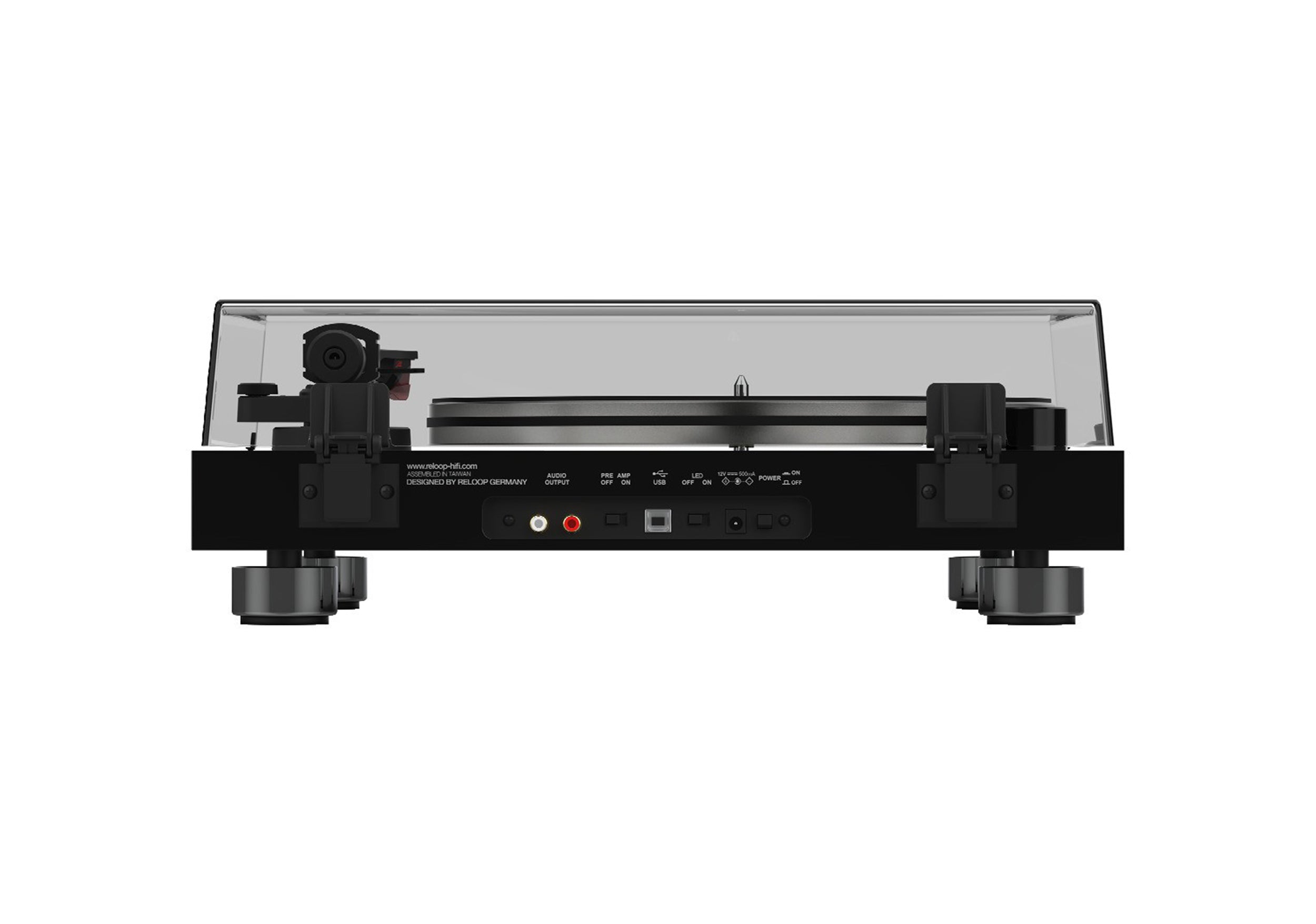

In addition to its high-quality preamplifier, the Turn 7 also features versatile switching between line and phono signals. The gold-plated corrosion-resistant RCA connectors ensure the best possible signal transmission. The built-in USB output allows you to digitize vinyl records.

Simple Design & Pure Functionality

The sturdy MDF wooden plinth and height-adjustable isolator feet with aluminium surround provide effective decoupling for the turntable. The high-gloss piano lacquer is a classy contrast to the timeless minimalism while emphasizing the Turn 7's superior quality.

Product Specifications:

Type of turntable: Belt-Driven manual Turntable System with USB Interface

Drive: Belt drive

Motor: DC Motor

Rotation speeds: 33 1/3, 45 RPM

Wow and Flutter: 0,2% WRMS

S/N Ratio: >45dB or higher

Breaking System: Manually

Turntable Platter:

Turntable Platter: Acrylic glass

300 mm diameter

Weight: 1.7 kg

Tonearm Section:

Type: Straight Tonearm

Effective Length: 223.6 mm

Effective Tonearm Mass: 18.5g

Overhang: 18.61 mm

Tracking Error Angle: ±1.5°

VTA Adjustment Range: - 2 ~ 4 mm

Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)

Anti-Skating Range: 0 - 4 g

Cartridge: Ortofon 2M Red

Output voltage at 1000 Hz, 5 cm/sec.: 5.5 mV

Channel balance at 1 kHz: 1.5 dB

Channel separation at 1 kHz: 22 dB

Channel separation at 15 kHz: 15 dB

Frequency response: 20-20.000 Hz + 3 / - 1 dB

Tracking ability at 315Hz at recommended tracking force: 70 µm

Compliance, dynamic, lateral: 20 µm/mN

Stylus type: Elliptical

Stylus tip radius: r/R 8/18 µm

Tracking force range: 1.6 - 2.0 g (16-20 mN)

Tracking force, recommended: 1.8 g (18 mN)

Tracking angle: 24.7°

Internal impedance, DC resistance: 1.3 kOhm

Internal inductance: 700 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 150-300 pF

Cartridge colour, body/stylus: Black/Red

Cartridge weight: 7.2 g

General:

Terminals: 1x PHONO/LINE Out, Build in Phono Stage (Pre-Amp)

Power Supply: 12 V 1A DC

Power consumption: 12W

Weight: 22 lbs.

Shipping Weight: 28?lbs.

Shipping Dimensions (LxWxH): 19.1 x 17.7 x 9.8"
