Description

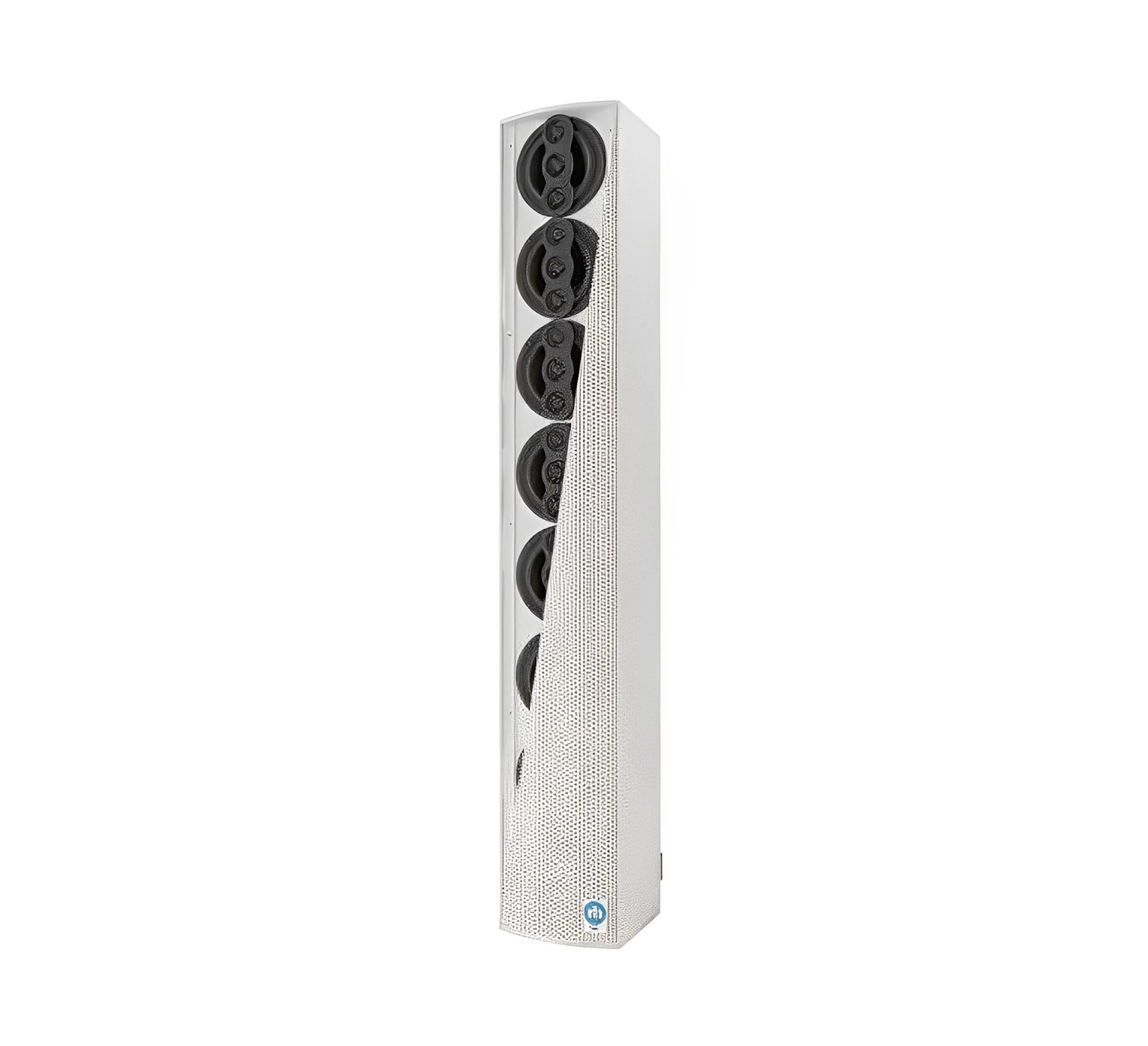

The Renkus Heinz IC16-8-RN-WT-WR, Digitally White Steerable Line Array Loudspeaker System Weather-Resistant is a powerful and versatile loudspeaker designed for high-performance sound in challenging environments. It features 3x 4″ coaxial transducers, each paired with three high-frequency tweeters, and 5x progressively spaced 4″ LF/MF transducers, ensuring precise audio dispersion and enhanced mid-low frequency performance. With 8 amplifier and DSP channels, the speaker provides fine-tuned sound customization, while beam control down to 400Hz allows for accurate targeting of audio in difficult acoustic settings.
The IC16-8-RN-WT-WR offers multiple acoustic beams and beam centers, along with a range of configuration presets, making it adaptable to various applications. It integrates seamlessly into a RHAON network for remote monitoring and control. Built with weather-resistant (WR) technology, it is designed to withstand outdoor conditions, including rain and temperature extremes, making it ideal for installations in both indoor and outdoor environments.
Product Specifications:
Sensitivity: 1.4 V (for rated power output)
Max SPL: 130 dB peak, (100 dB @ 100 Ft. (30.5 meters)
Power Consumption: Idle 0.5 A (120 V) / 0.25 A (240 V)
1/8 Power: 1.1 A (120 V) / 0.6 A (240 V) (onset of limiting)
1/3 Power: 2.9 A (120 V) / 1.6 A (240 V) (hard limiting)
Horiz Dispersion: 150° up to 3 kHz; 120° above 3 kHz
Vert. Opening Angles: 20°, 25° and 30°
Vert. Aiming Angle: Adjustable from -10° to +10°
Typical Throw: 100 Ft. (30 meters)
Beam Control: Effective down to 400 Hz
System Latency: 8ms analog input to outputPreset 0
No. Transducers: 3 coaxial transducers, each having triple tweeters
5x 4″ LF/MF Transducers progressively spaced
No. Amp Channels: 8
Weather Resistance: WR (Weather Resistant), suitable for outdoor use
Finish: White (WT)
Hanging Method: 2-point hinges or Metric M6 thread eye-bolts
Enclosure: Extruded Aluminum with perforated steel grille
Shipping Weight: 51 lbs.
Shipping Dimensions: 6 x 7 x 74 inches
