Description

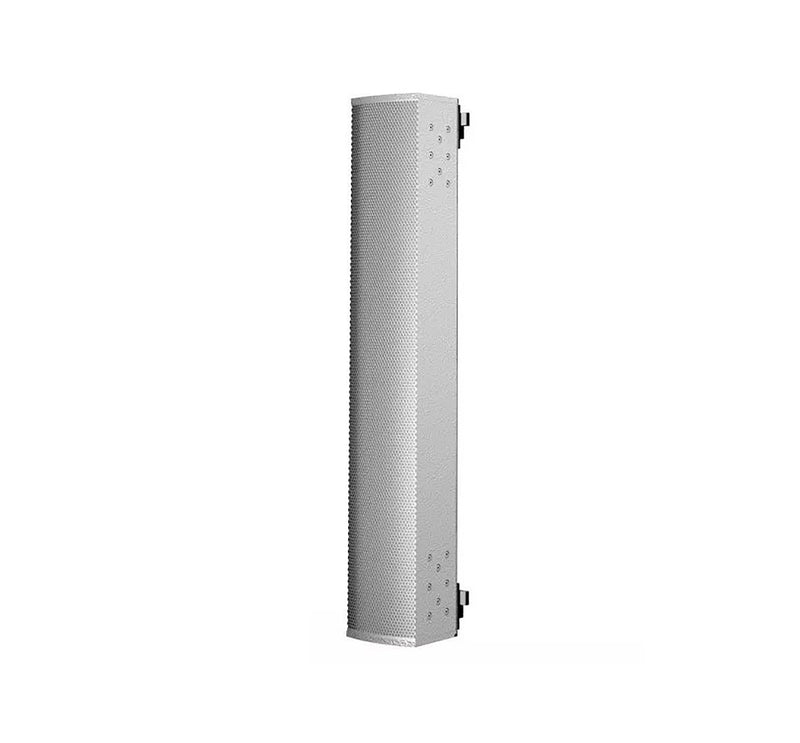

The Renkus Heinz ICL-F-RD, Fixed Installation speaker system with advanced digital beam steering technology IC Live arrays provide an elegant solution to long standing acoustical problems with slim enclosures that blend into any environment. Individual driver control maximizes the acoustical advantages of this design. The result is unsurpassed vertical pattern control – essential for delivering intelligible speech in reverberant spaces. IC Live beams can be steered up or down while the array remains vertical – and nearly invisible.
IC Live arrays are also powerful. Their 6.5-inch neodymium low frequency transducers and 1 inch throat titanium nitride coated high frequency drivers produce surprisingly high sound levels for their size. They are equally at home delivering a quiet sermon in a reverberant cathedral, cutting through the crowd noise in a gym during a close basketball game or shaking the walls with rock music in a club.
Adaptable, Articulate, Invisible
Digital beam steering puts IC Live output where it belongs: on the audience, and way from walls and ceilings. Computer software lets you define the opening angles for as many as four sonic beams from each ICL-R array module (up to 8 beams when stacked) and aim them up or down. Meanwhile, the slim enclosure stays vertical and inconspicuous. Two ICL-FR modules can be stacked for even tighter control and higher output.
Powerful, Accurate, Musical, Scalable
Iconyx transparent technology controls sound with the most advanced, intelligent DSP. Multi-channel Class D digital amplifiers with integral DSP engines control every single array element with programmable precision. High-current audiophile output stages power each individual lightweight, efficient transducer in the Iconyx array. Even at 100 feet, SPL is an impressive 107 dB (110 dB when stacked). Output is flat from 75 Hz to 18 kHz.
Low frequency energy can be extended to 40 Hz or below with matching subwoofers. Two IC Live arrays can be combined for added output and control. When full range musical output is important to the program, one or two IC215-S dual 15-inch subwoofers can be added to either array.
One-Touch Presets, Intuitive Software
RHAON empowered IC Live arrays provide a full set of remote control and supervision functions, along with the ability to store up to ten preset configurations in memory. The presets adapt the arrays’ 150° wide horizontal coverage for typical applications such as hotel meeting rooms or auditoriums.
For more complex situations, Iconyx BeamWare software makes it easy to shape the array’s coverage to the audience area.
Product Specifications:
Sensitivity: 1.4 V (for rated power output)
Freq. Range:
90 Hz to 12 kHz (-3 dB)
75 Hz to 18 kHz (-10 dB)
Max SPL: 137 dB peak, 107 dB @ 100 Ft. (30.5 m)
Power Consumption: Idle - 0.35 A (120 V) / 0.18 A (240 V)
1/8 Power: 1.6 A (120 V) / 0.8 A (240 V) (onset of limiting)
1/3 Power: 4.27 A (120 V) / 2.13 A (240 V) (hard limiting)
Horiz. Dispersion: 150° up to 3 kHz - 120° above 3 kHz
Vert. Opening Angles: 20°, 25° and 30°
Aiming Angle: Adjustable from -30° to +30°
Typical Throw: 80 Ft. (25 meters)
Beam Control: Effective down to 800 Hz
No. Transducers – Each Module: Five 6.5-inch cone transducers with neodymium magnets Three 1-inch HF titanium nitride compression drivers
No. Amp Channels: 8 (per module)
Power Connector: IEC power connector
Status Indicators: Power, Signal, Overdrive, Thermal, Mute, Input Pad, Preset Configuration Readout
Network Digital Format: 16- or 24-bit PCM - 48 or 96 kHz sample rate - selectable network latency.
Hanging Method: Metric M10 attachment points and hinge kits (Hinge Kit included with the product)
Enclosure: Finnish Birch with perforated steel grille
Shipping Weight: 57 lbs.
Shipping Dimensions: 7 x 8 x 48 inches
Available In: Black, White and Custom Color
