Description
The RF Venue 2-Channel Remote Antenna Kit for UHF Wireless Microphones is designed to improve wireless reception and provide dependable RF performance for compact audio installations. Available in multiple frequency ranges including 470–530 MHz, 500–570 MHz, and 530–608 MHz, this kit helps reduce signal dropouts by allowing antennas to be positioned remotely or mounted at the front of a rack for improved wireless coverage.
The complete kit includes two 1/2-wave antennas, BNC pass-through connectors, two 2-way splitters, six 2 ft coaxial cables, and mounting hardware for flexible installation. Designed for compatibility with UHF wireless receivers featuring removable antennas, the system provides an efficient solution for extending antenna placement while maintaining reliable signal performance.
Ideal for classrooms, meeting spaces, A/V media carts, small venues, and professional AV installations, the RF Venue 2-Channel Remote Antenna Kit offers simple setup and improved wireless stability. With three frequency options available, users can select the model that best matches their wireless microphone system to ensure consistent, reliable operation.

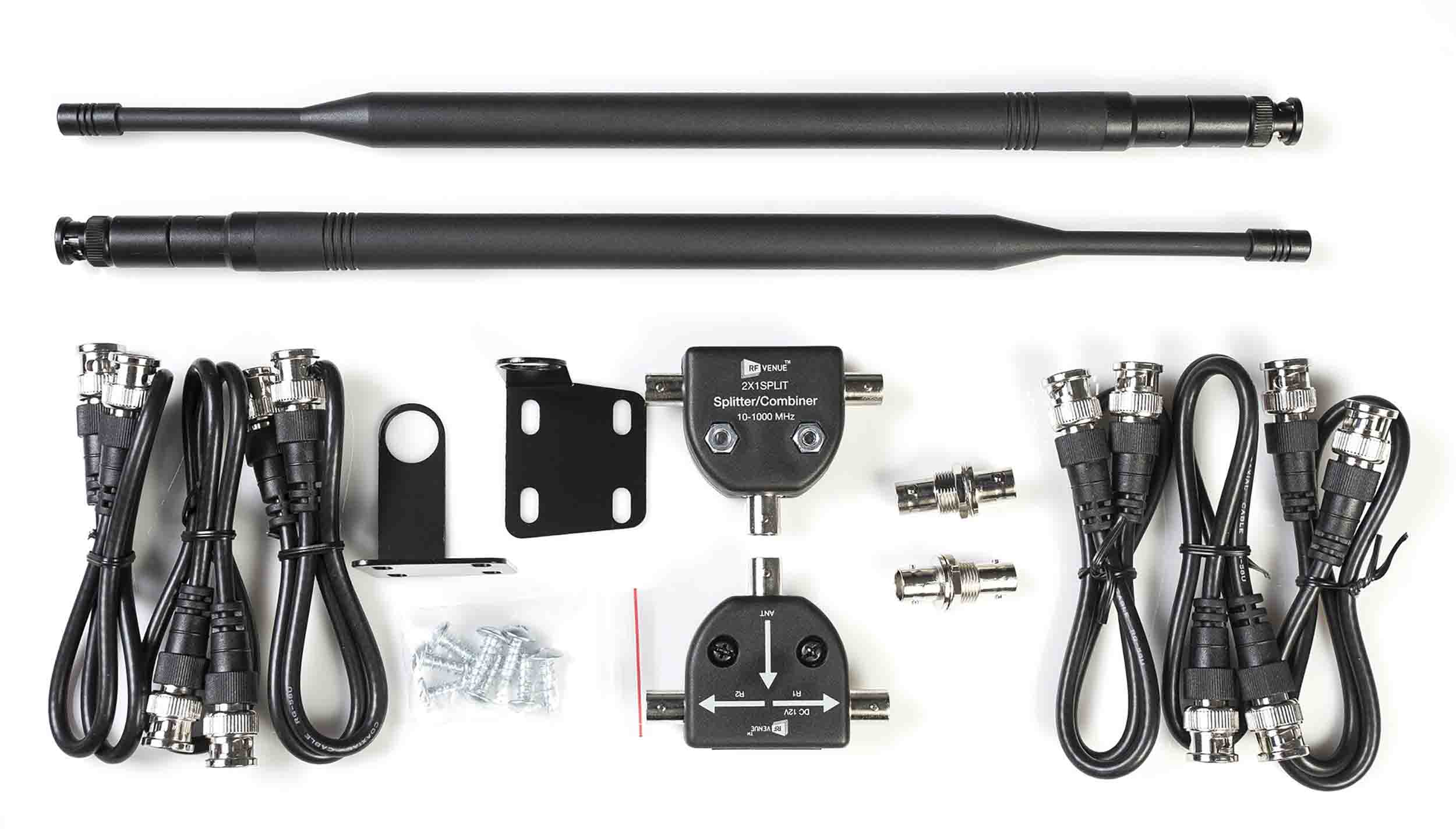

What's Included (All Models)
RF Venue 2-Channel Remote Antenna Kit
2 × 1/2-Wave Antennas
6 × Coaxial Cables (2 ft)
2 × 2-Way Splitters
2 × BNC Pass-Through Connectors
Bracket Hardware Set
Product Specifications:
Channels: 2
Frequency Range: Available in 470–530 MHz / 500–570 MHz / 530–608 MHz
Antenna Type: 1/2-Wave Antennas
Antennas Included: 2
Connectors: BNC Pass-Through
Splitters Included: 2 × 2-Way Splitters
Coaxial Cables: 6 × 2 ft Cables
Mounting Options: Remote or Front Rack Mount
Compatibility: UHF Wireless Receivers with Removable Antennas
Applications: Classrooms, Meeting Rooms, A/V Carts, Small Installations
Dimensions: 12 × 8 × 4 in
Weight: 3 lb (1.4 kg)
Frequency Range (470–530 MHz)
Channels: 2
Frequency Range: 470–530 MHz
Antenna Type: 1/2-Wave Antennas
Antennas Included: 2
Connectors: BNC Pass-Through
Splitters Included: 2 × 2-Way Splitters
Coaxial Cables: 6 × 2 ft Cables
Mounting Options: Remote or Front Rack Mount
Compatibility: UHF Wireless Receivers with Removable Antennas
Applications: Classrooms, Meeting Rooms, A/V Carts, Small Installations
Dimensions: 12 × 8 × 4 in
Weight: 3 lb (1.4 kg)
Frequency Range (500–570 MHz)
Channels: 2
Frequency Range: 500–570 MHz
Antenna Type: 1/2-Wave Antennas
Antennas Included: 2
Connectors: BNC Pass-Through
Splitters Included: 2 × 2-Way Splitters
Coaxial Cables: 6 × 2 ft Cables
Mounting Options: Remote or Front Rack Mount
Compatibility: UHF Wireless Receivers with Removable Antennas
Applications: Classrooms, Meeting Rooms, A/V Carts, Small Installations
Dimensions: 12 × 8 × 4 in
Weight: 3 lb (1.4 kg)
Frequency Range (530–608 MHz)
Channels: 2
Frequency Range: 530–608 MHz
Antenna Type: 1/2-Wave Antennas
Antennas Included: 2
Connectors: BNC Pass-Through
Splitters Included: 2 × 2-Way Splitters
Coaxial Cables: 6 × 2 ft Cables
Mounting Options: Remote or Front Rack Mount
Compatibility: UHF Wireless Receivers with Removable Antennas
Applications: Classrooms, Meeting Rooms, A/V Carts, Small Installations
Dimensions: 12 × 8 × 4 in
Weight: 3 lb (1.4 kg)
