Description

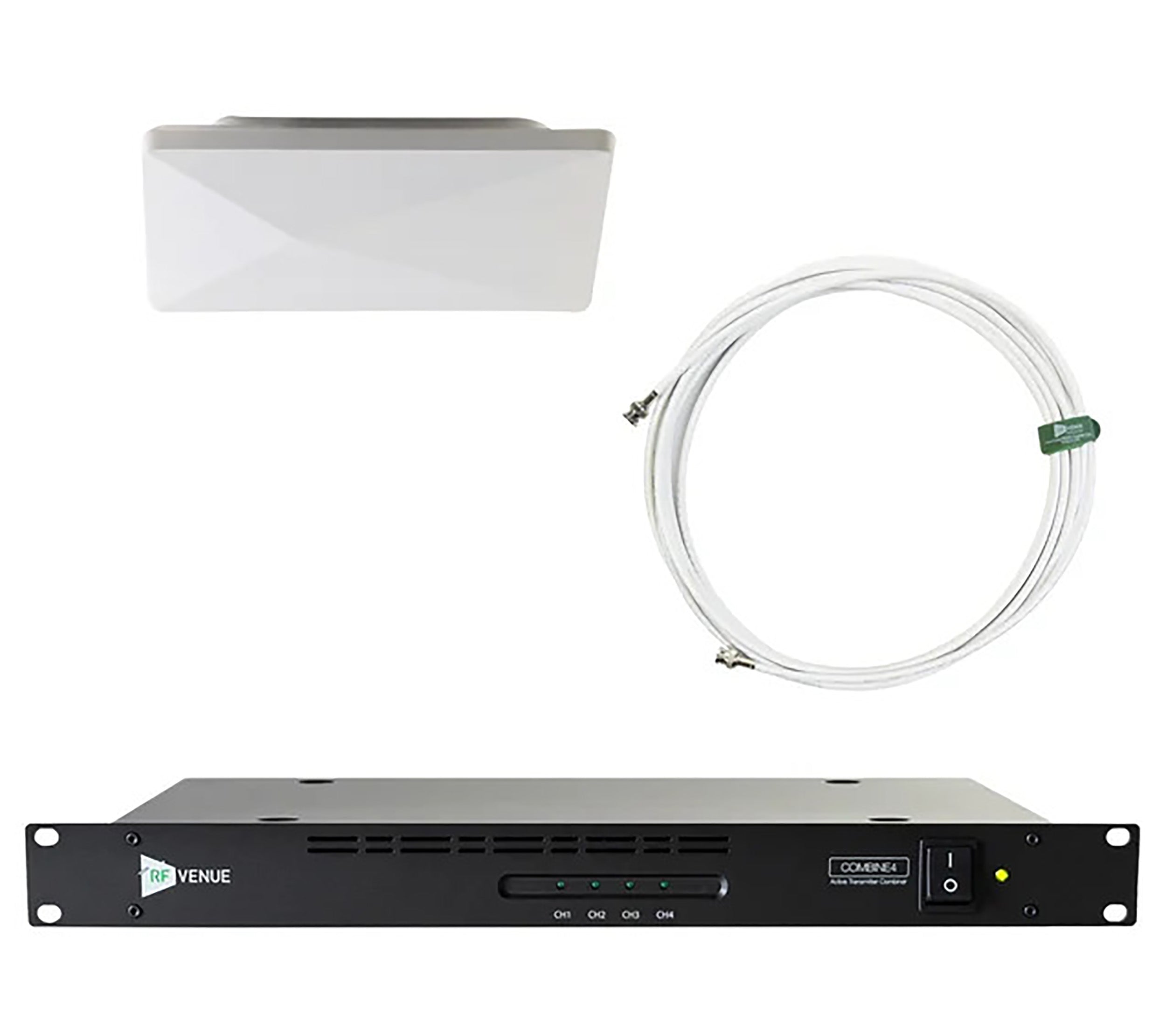

The RF Venue COMB4CP-ARC is a professional 4-channel IEM transmitter combiner system designed to deliver reliable in-ear monitor performance with clean signal distribution and a streamlined installation. The bundle includes a 4-channel transmitter combiner, CP Architectural Antenna, and 25-foot coaxial cable, providing a complete solution for professional audio environments, including live performances, houses of worship, broadcast facilities, and installed sound systems.

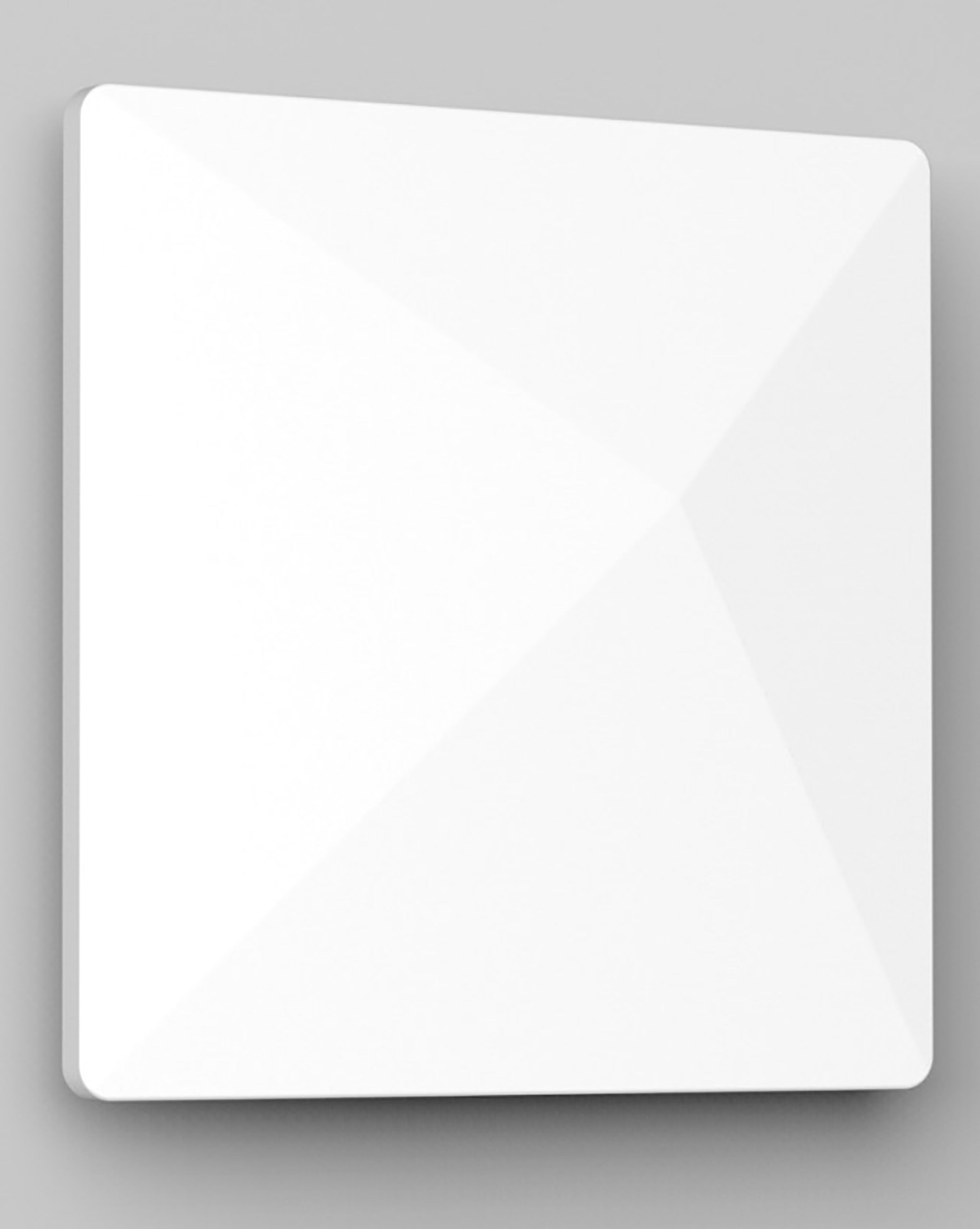

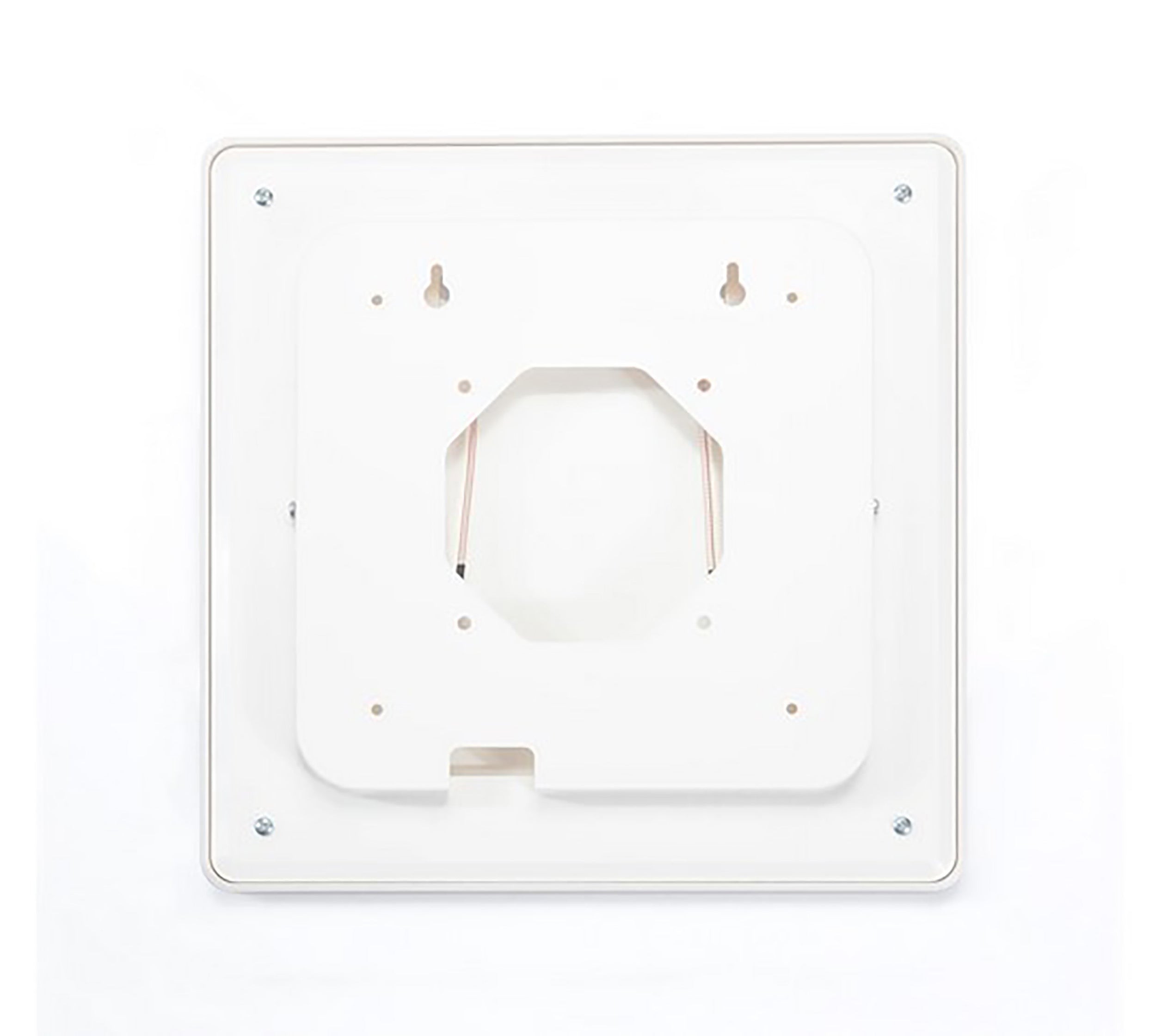

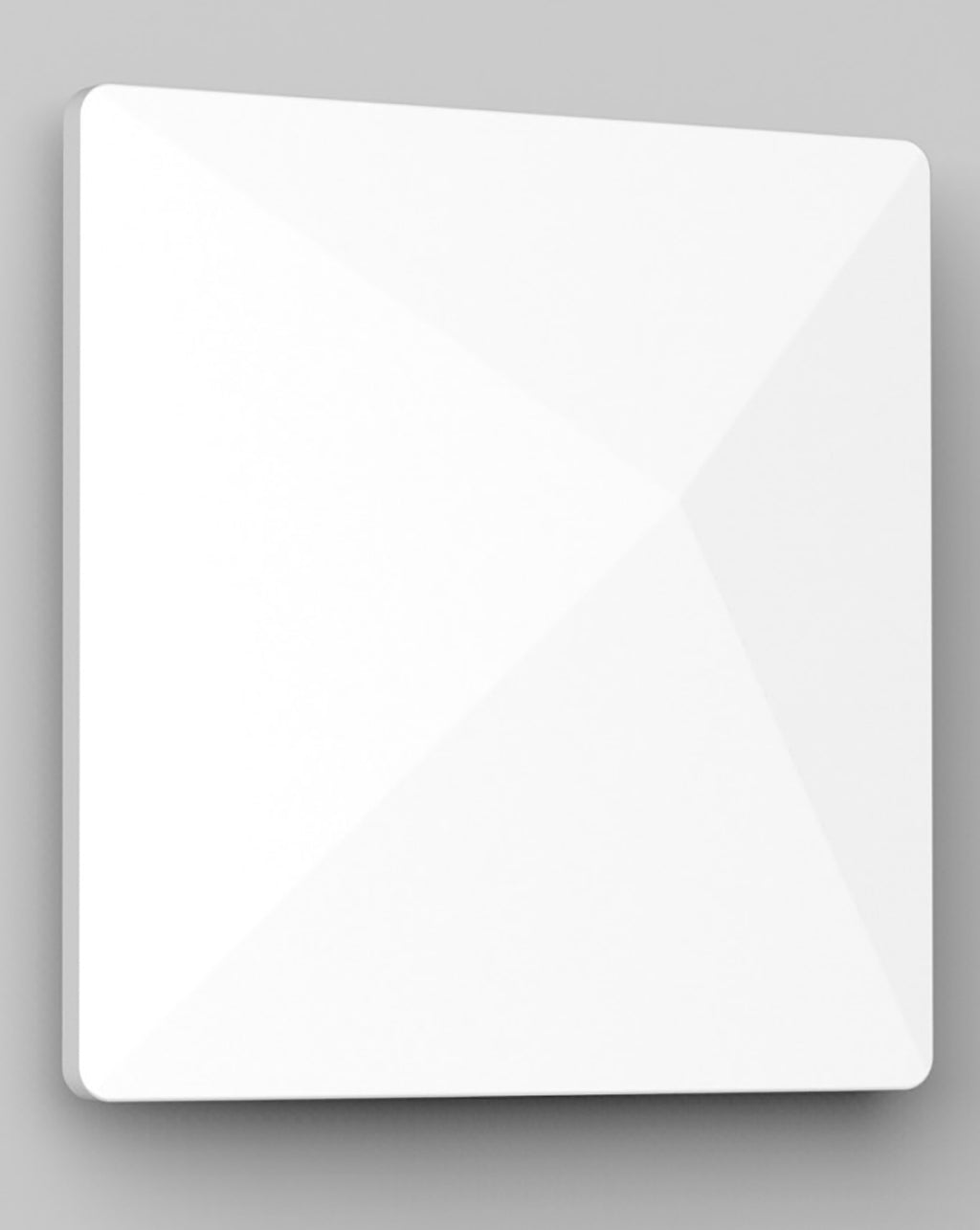

The CP Architectural Antenna features a slim, stylish design that blends seamlessly into any space and can be mounted on walls or ceilings for discreet installation. Its circularly polarized technology improves signal coverage, reduces dropouts, and minimizes interference from other RF sources. The paintable enclosure allows it to match different interior designs while maintaining strong wireless performance.

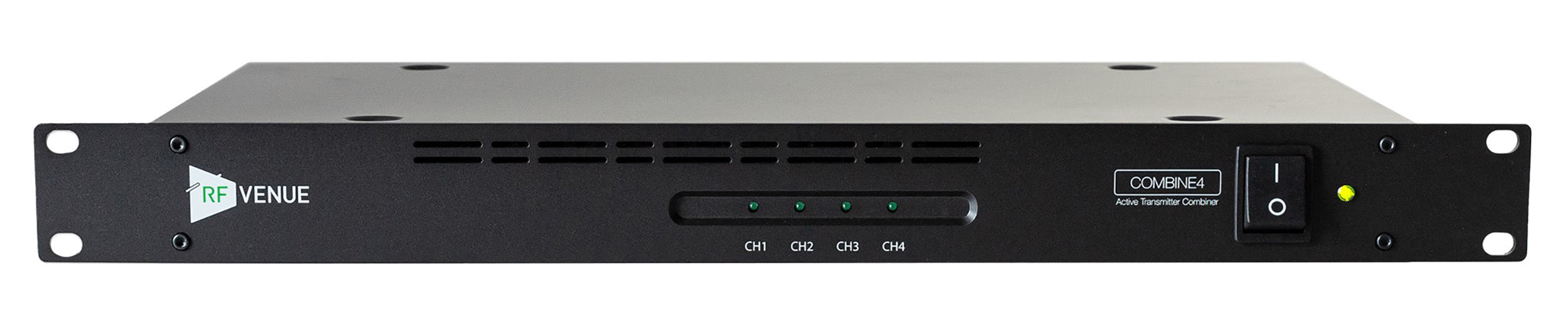

The COMB4CP-ARC transmitter combiner simplifies multi-channel IEM setups by combining up to four wireless monitor signals into a single antenna connection. Compatible with major IEM brands, it also provides DC power to reduce cable clutter and eliminate additional power adapters. With reliable RF management and efficient installation, this system helps deliver consistent, high-quality wireless monitoring for demanding professional applications
Product Specifications:
Product Type: 4-Channel IEM Transmitter Combiner System
Included Antenna: CP Architectural Antenna
Antenna Frequency Range: 400–800 MHz
Combiner Frequency Range: 470–960 MHz
Antenna Bandwidth: 400 MHz
Impedance: 50Ω
Polarization: RHCP (Right-Hand Circular Polarized)
Antenna Pattern: Flood
Beam Width: 120°
Antenna Gain: 2.5 dBi @ 500 MHz
Antenna Connector: BNC Female

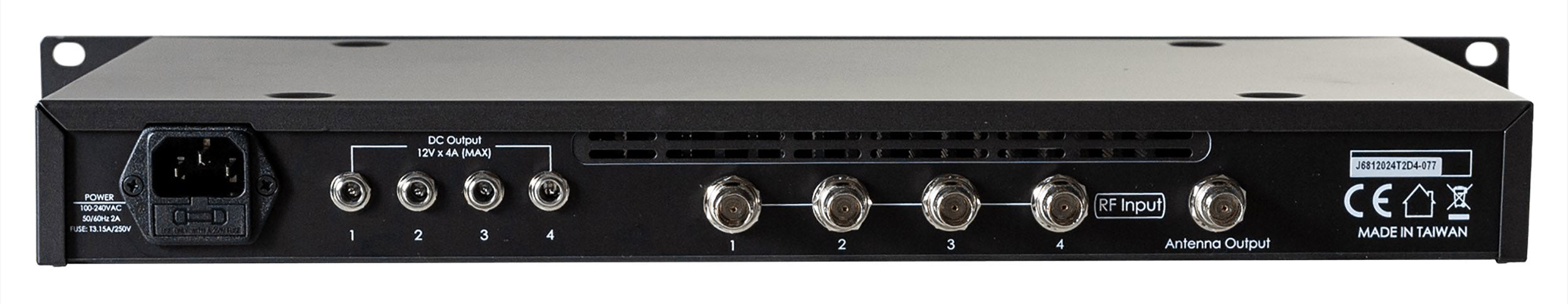

Combiner Inputs: 4 x BNC RF Inputs
Antenna Output: 1 x BNC Output
DC Outputs: 4 x DC Outputs
Maximum RF Input Power: +20 dBm (100 mW)
System Gain: 0 dB (±2 dB)
Input AC Voltage: 100–240 VAC, 50/60 Hz
Output DC Voltage: +12V, 1A Max
Power Consumption: 60W
Mounting: Wall or Ceiling Mount
Antenna Dimensions: 11" × 11" × 2"
Antenna Weight: 2 lbs
Combiner Dimensions: 19" × 2" × 10"
Combiner Weight: 5 lbs
Operating Temperature: 14–104°F (-10–40°C)
Color: White
