Description
The RF Venue D-ARCBD9 provides a complete professional RF distribution solution with the Diversity Architectural Antenna and DISTRO9 HDR 9-Channel UHF Distribution System Pack, designed to deliver reliable wireless microphone performance for up to nine channels. This turnkey bundle includes a black Diversity Architectural Antenna with wall and ceiling mounting kits, a high-performance DISTRO9 HDR multi-zone antenna distributor, premium low-loss double-shielded coaxial cables, and a DC power cable kit. Ideal for classrooms, meeting spaces, training centers, houses of worship, and professional installations, this system provides dependable RF coverage with a discreet, low-profile design.
The Black Diversity Architectural Antenna features a slim enclosure that blends seamlessly into walls or ceilings while providing improved wireless performance. Based on RF Venue’s Diversity Fin technology, the antenna uses a dual-feed diversity design to combine two antennas in one compact housing, helping reduce signal dropouts caused by changes in RF angle and orientation. With included wall and ceiling mounting hardware, pre-drilled installation points, and rear-mounted BNC connectors, it offers a clean and efficient solution for permanent wireless microphone setups.
The DISTRO9 HDR multi-zone antenna distributor delivers up to nine channels of low-noise diversity wireless performance using advanced divide-by-three circuitry and high dynamic range amplification. Dual-zone antenna inputs allow flexible coverage for large spaces or multiple rooms, while cascading a second DISTRO9 HDR expands the system to support up to 17 wireless microphone channels in just 2 RU of rack space. With DC power distribution for wireless receivers, future expansion capabilities, and ETL certification, this RF Venue system is built to meet the demands of professional UHF wireless microphone applications.

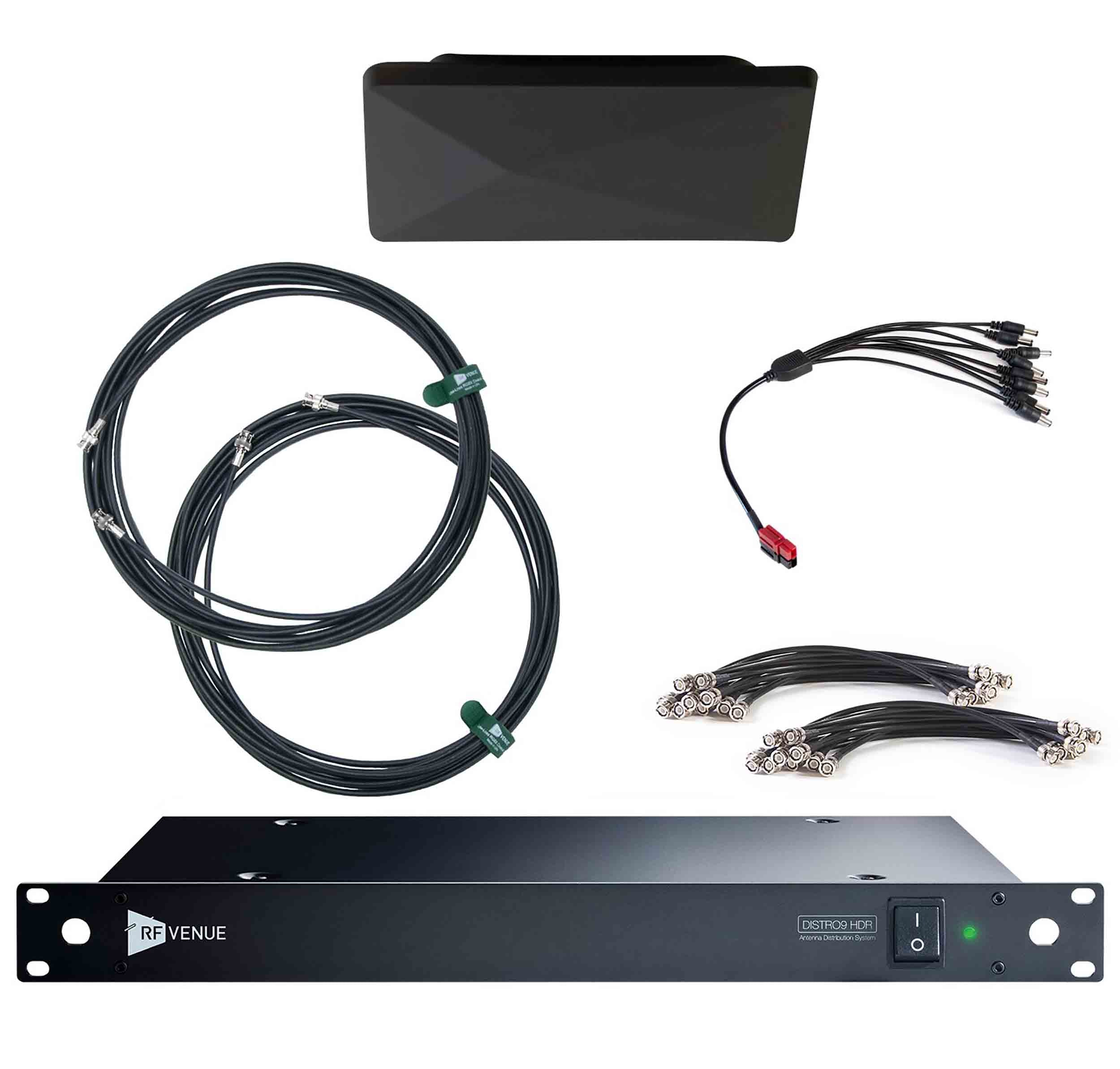

What's Included in the Box:
RF Venue Diversity Architectural Antenna & DISTRO9 HDR 9-Channel UHF Distribution System Pack (Black, 470 to 616 MHz)
RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (Black, 470 to 616 MHz)
RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
RG8X1.5-10 (10-Pack Interconnects, 1.5')
RG8X2-10 (10-Pack Interconnects, 2')
DC-OCTOPUS Power Distribution Kit
Product Specifications:
Antenna: Black Diversity Architectural Antenna
Antenna Mounting: Wall and Ceiling Mount
Antenna Design: Dual-Feed Diversity
Antenna Distributor: RF Venue DISTRO9 HDR
Wireless Channels: Up to 9
Expandable Channels: Up to 17 (with second DISTRO9 HDR)
Frequency Range: 470–616 MHz
RF Technology: Divide-by-Three Circuitry
Antenna Inputs: Dual Zone
Signal Performance: Low Noise, High Dynamic Range
Receiver Power: Up to 9 Wireless Receivers
Cables Included: Low-Loss Double-Shielded Coaxial Cables
Power Cable: DC Power Cable Kit Included
Mounting Kits: Wall and Ceiling Kits Included
Compatibility: UHF Wireless Microphone Systems
Certification: ETL Listed (USA & Canada)
Country of Assembly: USA
Weight: 6 lb (2.7 kg)
Dimensions: 18.9 × 9.8 × 1.8 in
