Description
The RF Venue D-ARCD9 delivers a professional RF distribution solution with the Diversity Architectural Antenna and DISTRO9 HDR 9-Channel UHF Distribution System Pack, designed to provide reliable wireless microphone performance for up to nine channels. This turnkey bundle includes a white Diversity Architectural Antenna with both wall and ceiling mounting kits, a DISTRO9 HDR multi-zone antenna distributor, premium low-loss double-shielded coaxial cables, and a DC power cable kit. Ideal for classrooms, meeting spaces, training centers, houses of worship, and professional installations, the system provides clean and dependable RF signal distribution.
The White Diversity Architectural Antenna features a slim, discreet enclosure designed for seamless wall or ceiling installation. Based on RF Venue’s acclaimed Diversity Fin technology, its innovative dual-feed design combines two antennas in one compact housing to reduce common RF dropouts caused by signal angle and orientation changes. With included mounting hardware and rear-mounted BNC connectors for easy cable integration, it delivers improved wireless performance while maintaining a clean, low-profile appearance.
The DISTRO9 HDR multi-zone antenna distributor uses advanced divide-by-three circuitry and low-noise amplification to provide up to nine channels of high dynamic range diversity wireless performance. Dual-zone antenna inputs enable flexible coverage for large venues or multiple rooms, while cascading a second DISTRO9 HDR expands the system to support up to 17 wireless microphone channels in just 2 RU of rack space. With DC power distribution for wireless receivers, future expansion capabilities, and ETL certification, this system is built to meet the needs of professional UHF wireless microphone applications.

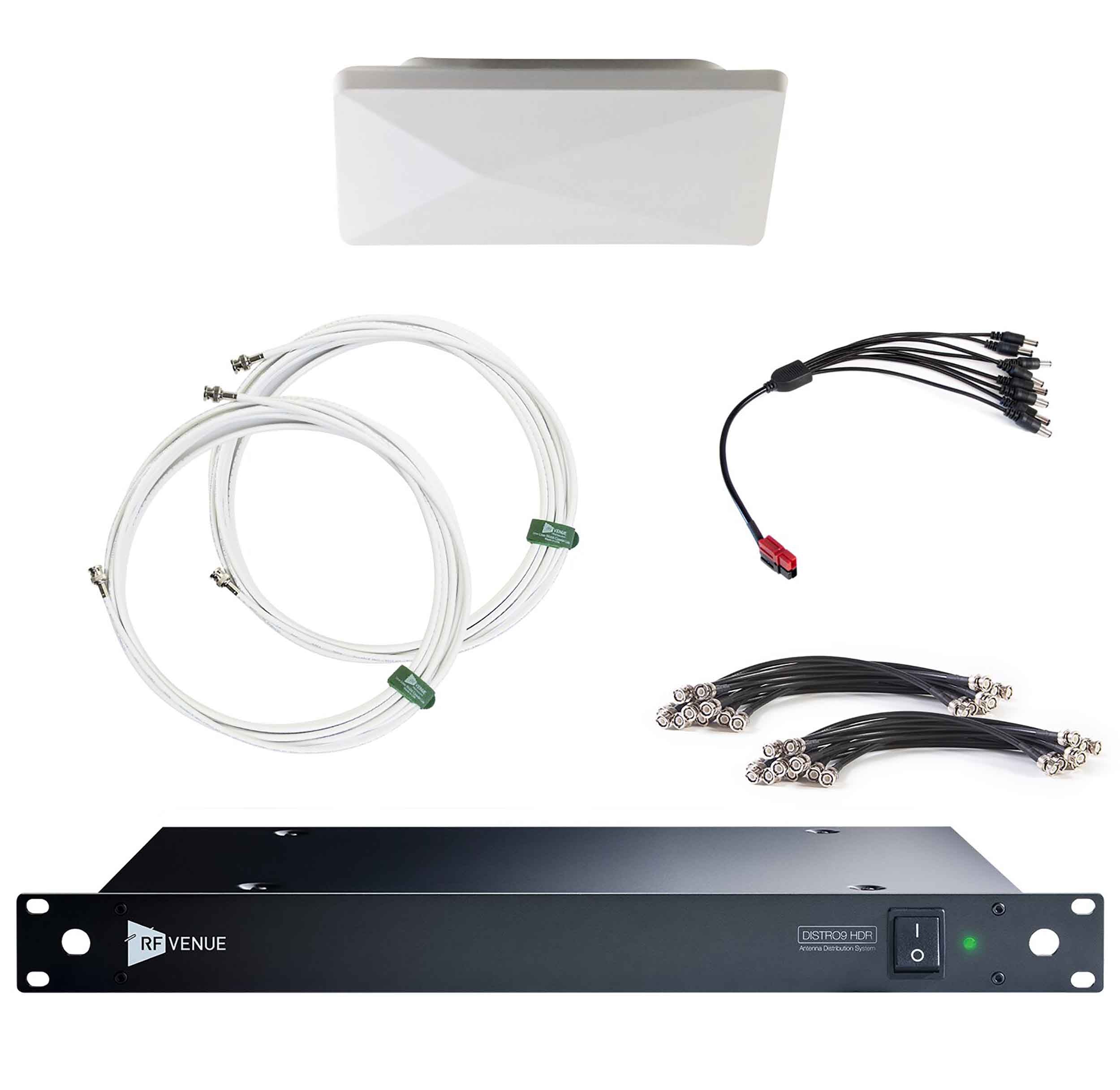

What's Included in the Box:
RF Venue Diversity Architectural Antenna & DISTRO9 HDR 9-Channel UHF Distribution System Pack (White, 470 to 616 MHz)
RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (White, 470 to 616 MHz)
RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
RG8X1.5-10 (10-Pack Interconnects, 1.5')
RG8X2-10 (10-Pack Interconnects, 2')
DC-OCTOPUS Power Distribution Kit
Product Specifications:
Antenna: White Diversity Architectural Antenna
Antenna Mounting: Wall and Ceiling Mount
Antenna Design: Dual-Feed Diversity
Antenna Distributor: RF Venue DISTRO9 HDR
Wireless Channels: Up to 9
Expandable Channels: Up to 17 (with second DISTRO9 HDR)
Frequency Range: 470–616 MHz
RF Technology: Divide-by-Three Circuitry
Antenna Inputs: Dual Zone
Signal Performance: Low Noise, High Dynamic Range
Receiver Power: Up to 9 Wireless Receivers
Cables Included: Low-Loss Double-Shielded Coaxial Cables
Power Cable: DC Power Cable Kit Included
Mounting Kits: Wall and Ceiling Kits Included
Compatibility: UHF Wireless Microphone Systems
Certification: ETL Listed (USA & Canada)
Country of Assembly: USA
Weight: 6 lb (2.7 kg)
Dimensions: 18.9 × 9.8 × 1.8 in
