Description
The RF Venue D-OMNID9 delivers a complete professional RF distribution solution with the Diversity Omni Antenna and DISTRO9 HDR 9-Channel UHF Distribution System Bundle, designed to enhance the performance and reliability of wireless microphone systems. This turnkey package includes the Diversity Omni Antenna, DISTRO9 HDR Active Antenna Splitter, two 25-foot low-loss coaxial antenna cables, a 10-pack of 1.5-foot low-loss BNC cables, and a DC Octopus cable for efficient RF signal and power distribution. The system supports up to nine wireless microphone receivers, making it ideal for live sound, broadcast, touring, and professional installations.
The DISTRO9 HDR Multi-Zone Antenna Distribution System provides up to nine channels of low-noise diversity wireless performance using advanced divide-by-three circuitry that replaces traditional internal splitters. With clean RF outputs, low-noise amplification, and a high dynamic range gain structure, it delivers reliable signal performance across VHF, T-Band, and UHF frequency ranges. Dual-zone antenna inputs provide flexible coverage for large areas or multiple rooms, with DC power support for active antennas and in-line amplifiers.
Built for expansion and future system needs, the DISTRO9 HDR allows RF outputs to be cascaded with a second unit to provide up to 17 wireless microphone channels in a compact 2 RU configuration. Unity gain outputs simplify system expansion, while the internal I/O section supports future upgrades such as network spectrum monitoring and filtering. With 12V DC power distribution, flexible installation options, and professional-grade RF performance, this bundle provides a dependable solution for evolving wireless microphone applications.

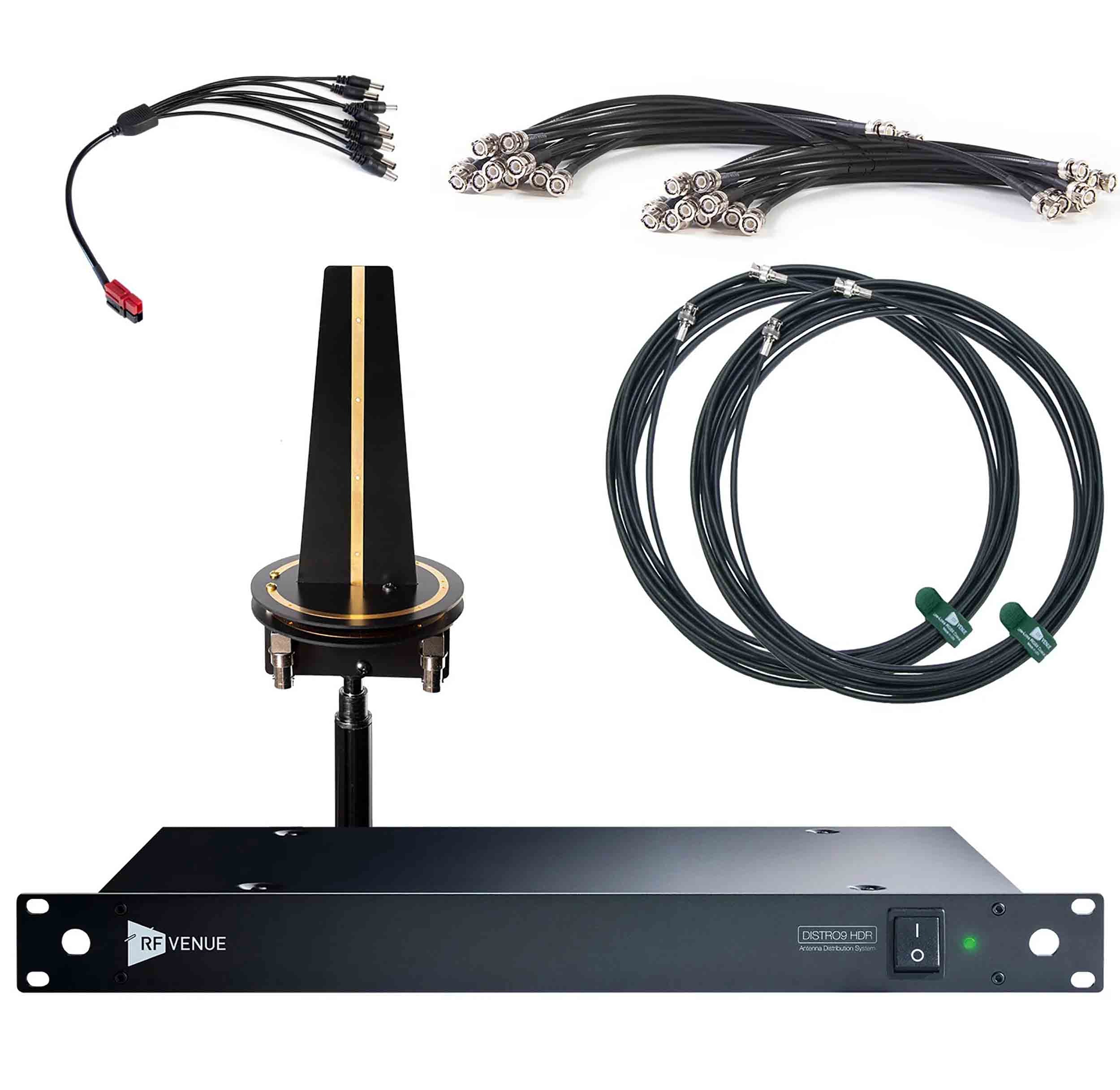

What's Included in the Box:
RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
IEC Power Cable
RF Venue Diversity Omni Antenna for UHF Wireless Mic Systems (470 to 616 MHz)
Stand Mount
Weather-Resistant Cover
RF Venue DC Octopus 8-Connector Power Distribution Cable
2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)
Product Specifications:
Antenna: Diversity Omni Antenna
Antenna Distributor: RF Venue DISTRO9 HDR
Wireless Channels: Up to 9
Expandable Channels: Up to 17 (with second DISTRO9 HDR)
Frequency Support: VHF, T-Band, UHF
RF Technology: Divide-by-Three Circuitry
Antenna Inputs: Dual Zone
Signal Performance: Low Noise, High Dynamic Range
RF Outputs: Unity Gain Cascade Outputs
Receiver Power: Up to 8 Receivers (DC Octopus Cable)
Power Output: 12V DC Distribution
Cables Included: 25' Low-Loss Coaxial Cables, 1.5' Low-Loss BNC Cables
Expansion Support: Spectrum Monitoring and Filtering Modules
Applications: Live Sound, Touring, Broadcast, Installations
Compatibility: Professional Wireless Microphone Systems
Weight: 6 lb (2.7 kg)
Dimensions: 18.9 × 9.8 × 1.8 in
