Description
The RF Venue DFIN-IPXD9 enhances professional wireless microphone systems with the Diversity Fin IPX Antenna and DISTRO9 HDR 9-Channel UHF Distribution System Bundle. This turnkey package includes the all-weather Diversity Fin IPX Antenna, the DISTRO9 HDR Active Antenna Splitter, two 25-foot low-loss coaxial antenna cables, two packs of 1.5-foot low-loss BNC cables, and a DC Octopus cable for efficient power distribution. Designed to deliver reliable RF performance, the system distributes signals to up to nine wireless microphone receivers for live events, broadcast, touring, and professional installations.
The included DISTRO9 HDR Multi-Zone Antenna Distribution System uses advanced divide-by-three circuitry to replace traditional internal splitters, providing up to nine low-noise channels of diversity wireless performance. With clean RF outputs, superior gain structure, and high dynamic range across VHF, T-Band, and UHF frequencies, the system delivers consistent signal quality in demanding RF environments. Dual-zone antenna inputs provide flexible coverage for large venues or multiple rooms, with DC power available for active antennas and in-line amplifiers.
The DISTRO9 HDR is designed for expansion and future system needs, allowing RF outputs to be cascaded to a second unit for up to 17 wireless microphone channels in just 2 RU of rack space. Its unity gain outputs simplify system expansion, while the internal I/O section supports future upgrades such as network spectrum monitoring and filtering. With flexible configuration options and professional-grade RF management, this bundle provides a reliable solution for evolving wireless microphone applications.

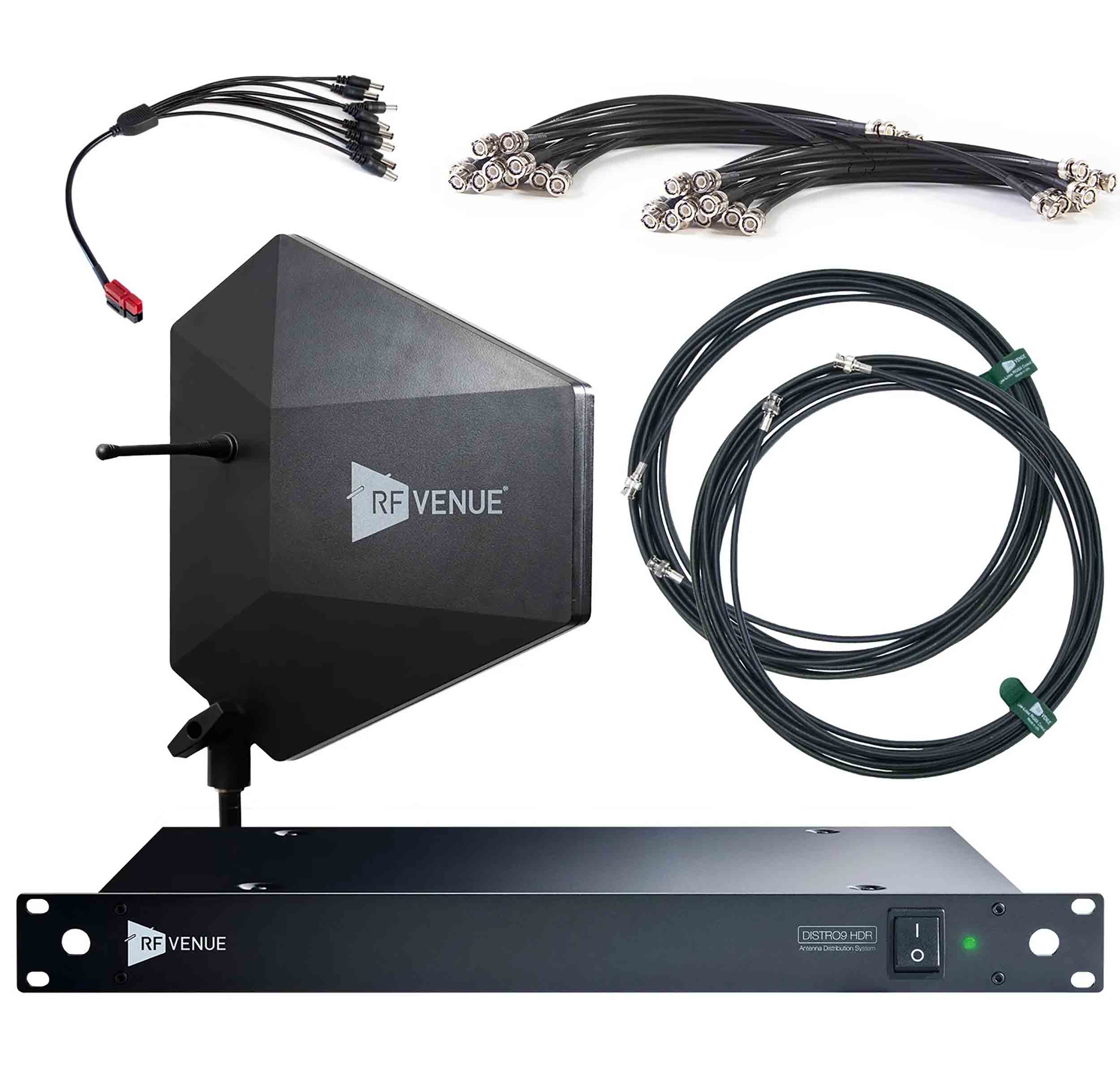

What's Included in the Box:
RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
IEC Power Cable
RF Venue Diversity Fin IPX Antenna (Black, 470 to 928 MHz)
2 x Dipole Antenna
2 x Spare Dipole Antenna
Threaded EU Microphone Stand Adapter
RF Venue DC Octopus 8-Connector Power Distribution Cable
Product Specifications:
Antenna: Diversity Fin IPX All-Weather Antenna
Antenna Distributor: RF Venue DISTRO9 HDR
Wireless Channels: Up to 9
Expandable Channels: Up to 17 (with second DISTRO9 HDR)
Frequency Support: VHF, T-Band, UHF
RF Technology: Divide-by-Three Circuitry
Antenna Inputs: Dual Zone
RF Outputs: Unity Gain Cascade Outputs
Signal Performance: Low Noise, High Dynamic Range
Receiver Power: Up to 8 Receivers (DC Octopus Cable)
Cables Included: Low-Loss Coaxial and BNC Cables
Power Support: 12 VDC Distribution
Rack Space: 2 RU (Expandable Configuration)
Expansion Features: Spectrum Monitoring and Filtering Support
Applications: Live Sound, Touring, Broadcast, Installations
Compatibility: Professional Wireless Microphone Systems
Weight: 15.7 lb (7.1 kg)
Dimensions: 22.5 × 14.4 × 8.6 in
